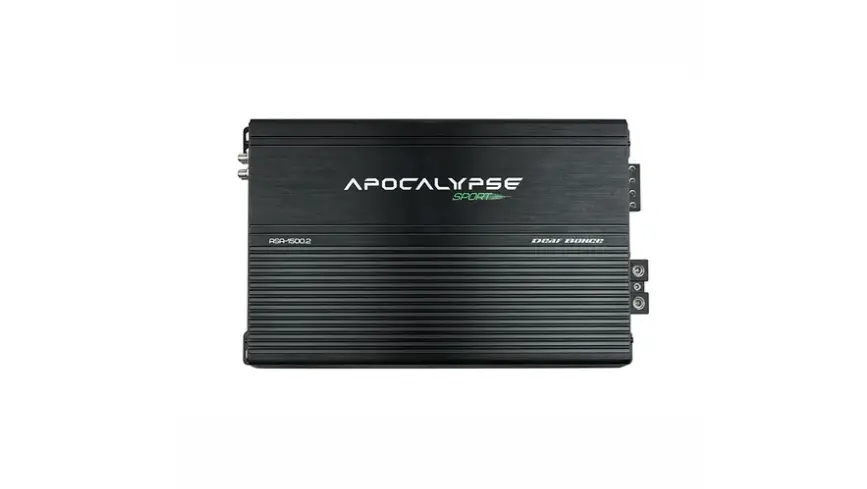

The Deaf Bonce Apocalypse ASA-1500.2 is a two‑channel Class D amplifier engineered for high-current car audio builds, delivering up to 1500W RMS per channel at 1 Ohm and bridging to over 3 kW into a suitable load.
- 2-channel Class D design: Efficient amplification in a compact package, suitable for demanding front/rear or sub configurations without excessive heat or space.
- 1 Ohm RMS Power (14.4 V): 1500W x 2: Very high available power per channel when wired to 1 Ohm, providing ample headroom for demanding subs or components.
- Bridge power (2 Ohm): 3020W x 1: Bridging converts the amp into a single high‑power channel ideal for a low‑impedance subwoofer load.
- Minimum load: 1 Ohm (channel) / 2 Ohm (bridge): Ensures stable operation at low impedances with appropriate load planning in a multi‑speaker setup.
- Frequency response: 10–20000 Hz: Wide bandwidth supports full‑range audio with clean highs and tight lows when paired with suitable speakers.
- SNR: ≥ 91 dB: Low noise floor enhances clarity and reduces hiss in quiet passages and mid/highs.

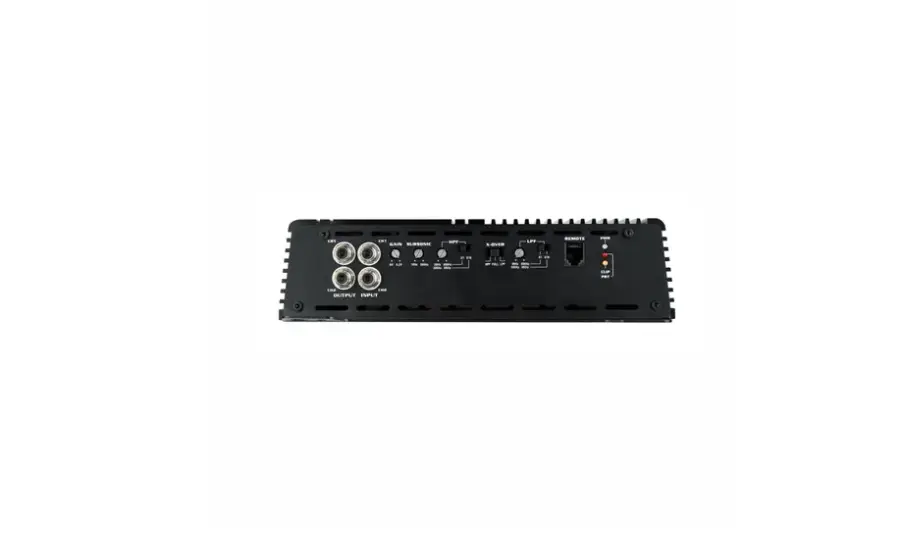

- Simultaneous LPF and HPF: Both filters can operate at the same time for precise crossovers and seamless integration between subwoofers and full‑range speakers.
- Low pass filter: 50–1200 Hz or 500–12000 Hz
- High pass filter: 10–1200 Hz or 100–12000 Hz
- Crossover: 12 dB/Oct

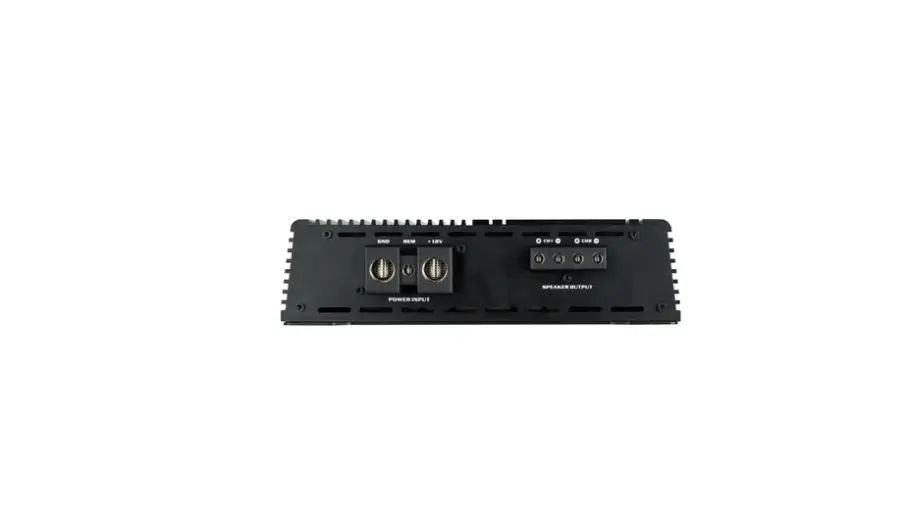

- Input terminal: 0 Ga
- Output terminal: 8 Ga
- Working voltage: 9–15V
- Size (WxLxH): 15 x 9.4 x 2.5 inch
The ASA-1500.2 is ideal for builds that demand serious sub-centric power in a two‑channel package, with flexible bass shaping and robust low‑impedance performance. Use it to drive a high‑power sub in bridge mode or power a two‑speaker front stage with athletic headroom and quiet operation thanks to its 91 dB+ signal‑to‑noise ratio.
| Model | ASA-1500.2 |
| Class | D |
| Number of the channels | 2 |
| Frequency response | 10-20000 Hz |
| 1 Ohm RMS Power (14.4 V) | 1500W x 2 |
| 2 Ohm RMS Power (14.4 V) | 890 W x 2 |
| 4 Ohm RMS Power (14.4 V) | 550 W x 2 |
| 2 Ohm RMS Power (Bridge) | 3020W x 1 |
| 4 Ohm RMS Power (Bridge) | 1780 W x 1 |
| Minimum permissible load on the channel | 1 Ohm |
| Minimum permissible load in a bridge connection | 2 Ohm |
| The simultaneous operation of LPF and HPF | Yes |
| Low pass filter | 50-1200 / 500-12000 Hz |
| High pass filter | 10-1200 / 100-12000 Hz |
| Crossover | 12 dB/Oct |
| Input terminal | 0 Ga |
| Output terminal | 8 Ga |
| Working voltage | 9 - 15V |
| Signal-to-noise ratio | ≥ 91 dB |
| Size (WxLxH) | 15 x 9.4 x 2.5 inch |
