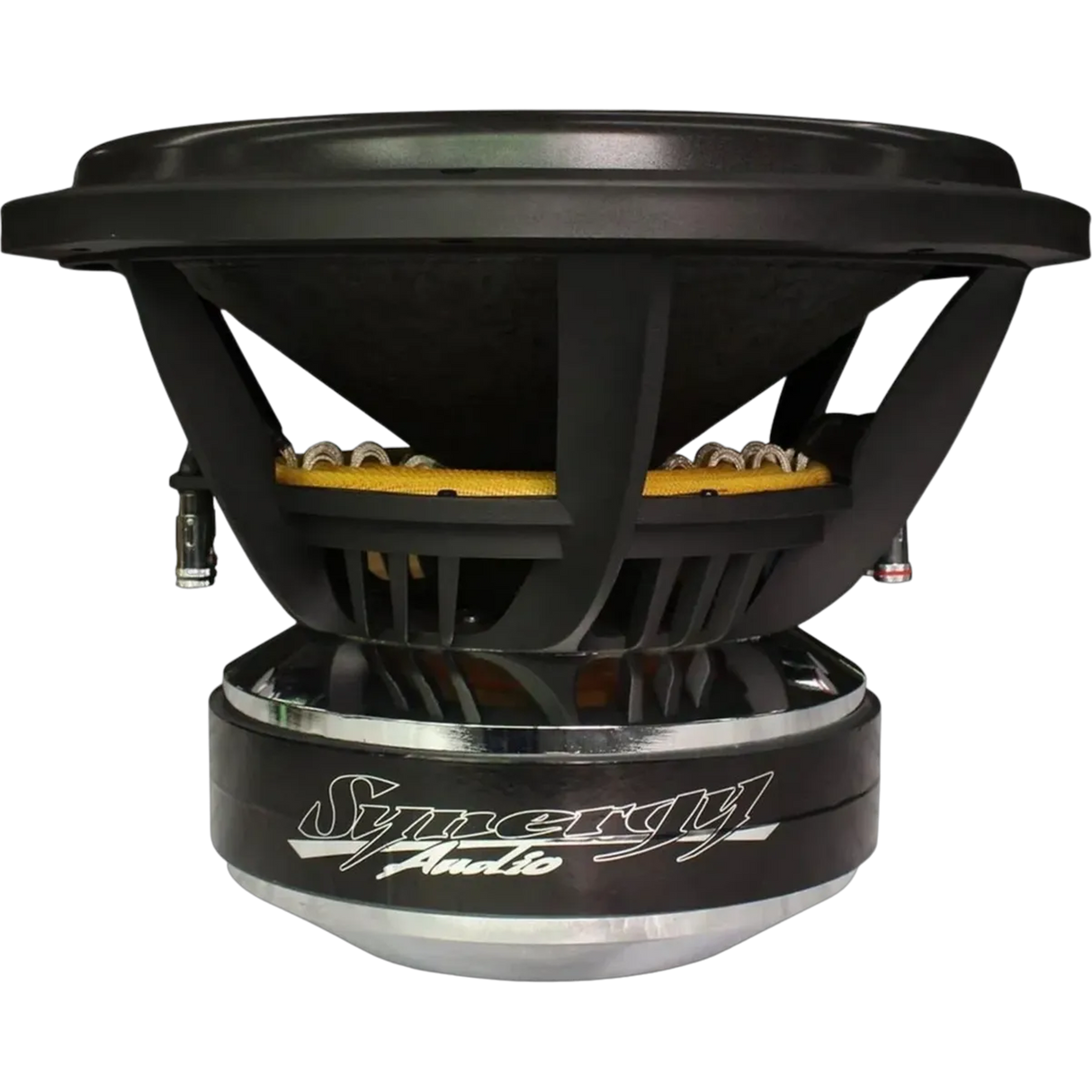

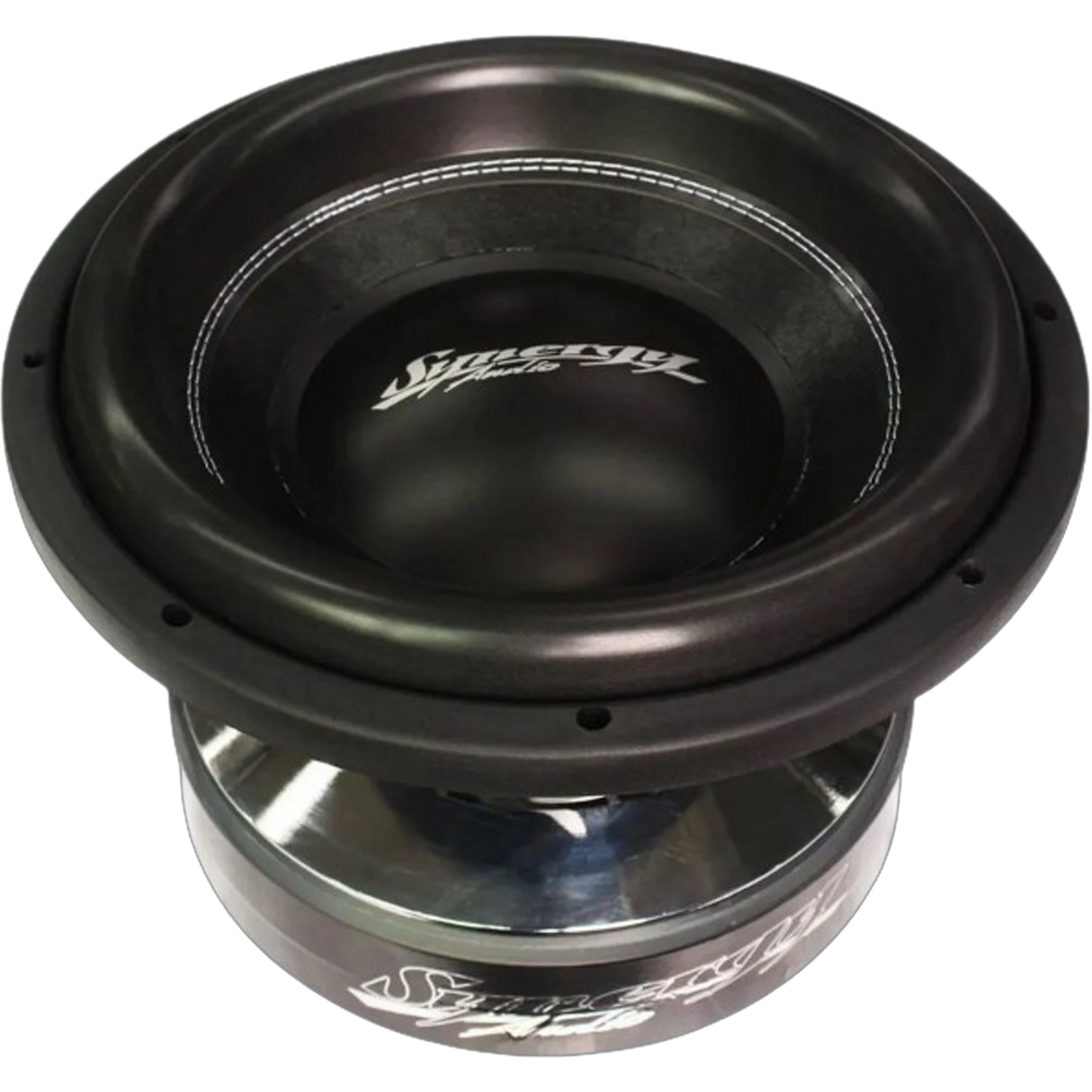

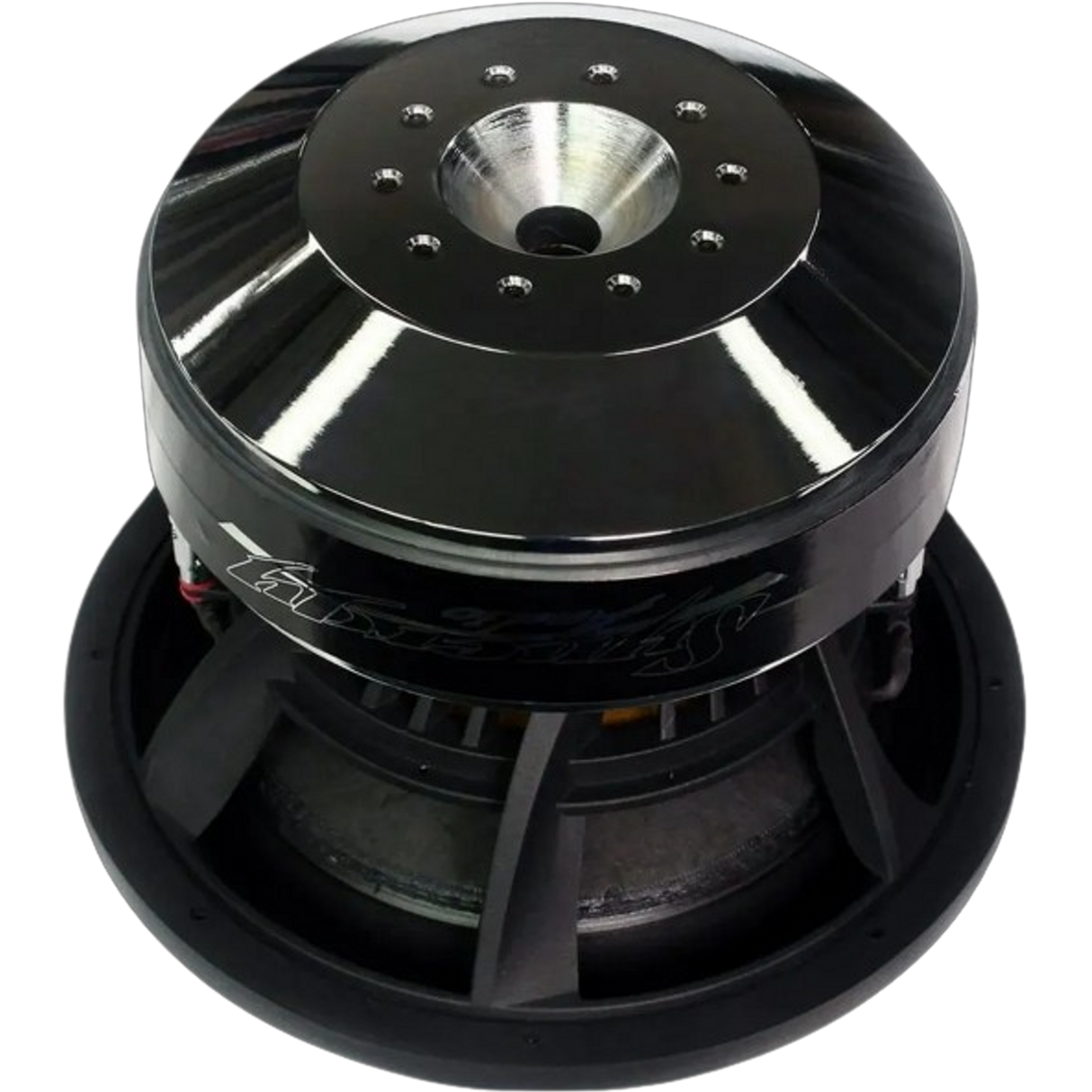

Synergy WFO Series 15" Competition DVC Subwoofer 2,500 Watts RMS

The Synergy WFO Series 15" Competition DVC Subwoofer is a 15‑inch dual‑voice‑coil driver built for competition‑grade bass, delivering 2,500W RMS for a controlled, high‑output low end in a ported enclosure (3–4 ft³ recommended).

• RMS Power: 2,500W RMS — continuous power handling for sustained, loud bass when paired with a capable amplifier and enclosure.
• Suggested Ported Space: 3–4 ft³ — enclosure volume optimized for a vented configuration to leverage the driver’s output.
• Voice Coil Diameter: 3" — a relatively large coil size that supports high current delivery and dynamic excursion.
• Motor Diameter: 9.8" — substantial magnetic area for strong motor force and precise cone control at high output.
• Cutout Diameter: 14.125" — mounting hole size required for proper panel cutout.
• Mounting Diameter: 15.5625" — frame diameter specification to ensure correct seating and clearance.
• Mounting Depth: 10" — depth required in the mounting location; plan for enclosure or trunk space accordingly.
• Motor Weight: 78lbs — heavy magnet assembly contributing to structural rigidity and control during high‑excursion bass.
• Re (DC Resistance): 3.98 Ω — nominal impedance presented to the amplifier, influencing load and wiring choice.
• Fs: 39.7 Hz — resonance frequency impacting the low‑frequency extension achievable in the chosen enclosure.
• Sd: 82.958 m — cone area used to estimate output potential and excursion capability.
• Vas: 42.691 L — equivalent enclosure volume related to the woofer’s compliance for proper bass response.
• MMS: 367.706 g — moving mass of the cone/coil assembly, affecting excursion and control.

In a real car audio build, this 15" dual‑voice‑coil sub delivers high output with serious authority when paired with an appropriately sized ported enclosure and a suitable high‑power amplifier. The dual voice coils and the drive‑system specification support flexible wiring and strong, controlled bass at competitive listening levels, while the 3–4 ft³ recommended ported space guides enclosure design for robust low‑end performance.
