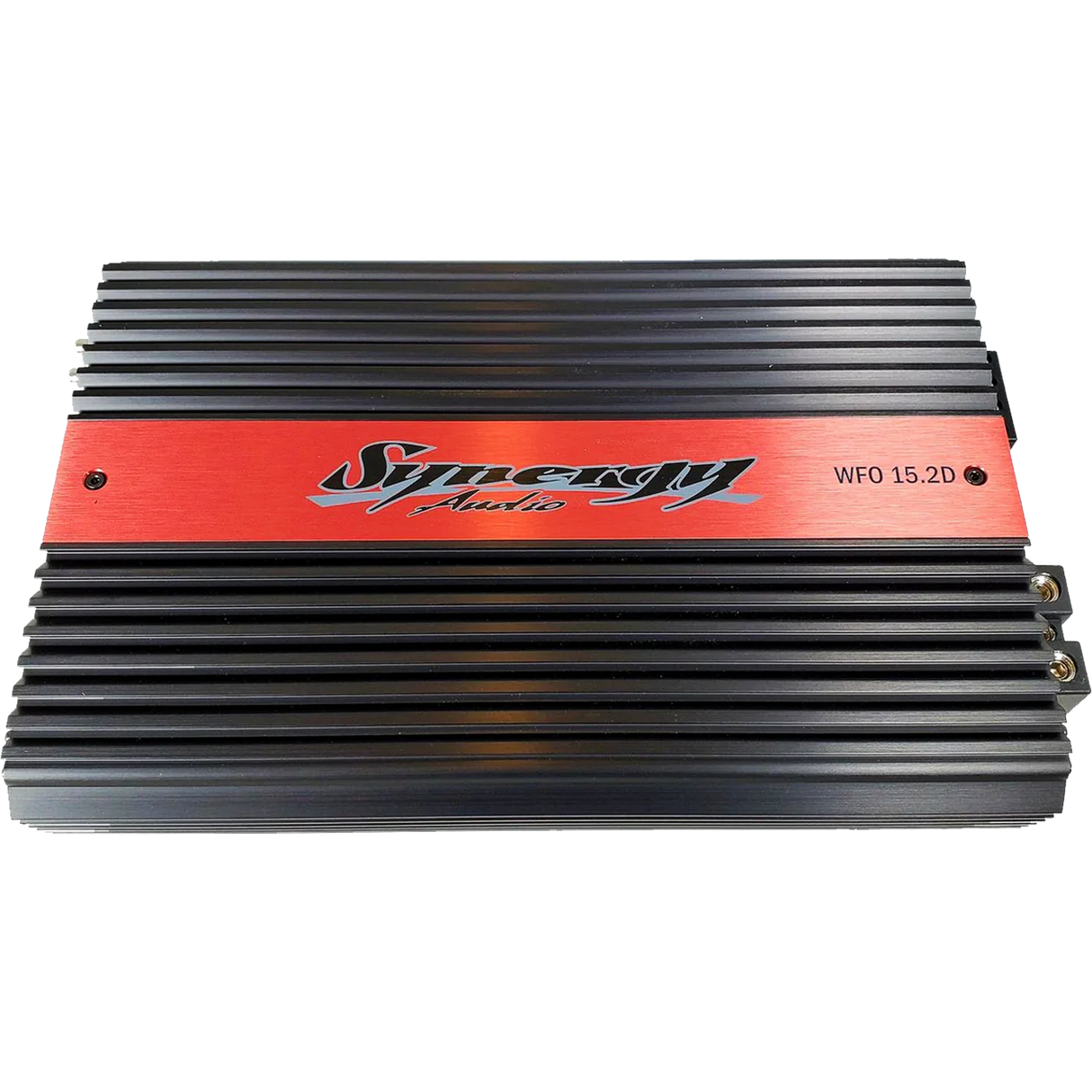

Synergy WFO 15.2D 2-Channel Amplifier 1500w x 2, OGA Inputs

The Synergy WFO 15.2D is a Korean-built, 2-channel powerhouse from the WFO lineup, engineered for extreme power delivery with stability at 1 ohm per channel in stereo and 2 ohms bridged. It delivers 1,500W RMS per channel at 1 ohm, making it a true high-current amplifier for demanding car audio installs.

• Power @ 4 Ohm: 650 x 2 @ 14.4v — Two channels at a 4-ohm load with solid headroom for a pair of speakers or components.
• Power @ 2 Ohm: 1,060 x 2 @ 14.4v — More output per channel when a lower impedance is used.
• Power @ 1 Ohm: 1,500w x 2 @ 14.4v — Maximum rated power per channel for ultra-low impedance scenes.
• Power @ 4 Ohm Bridged: 2,130W x 1 — Bridging to drive a single high-power speaker with substantial output.
• Power @ 2 Ohm Bridged: 2,920W x 1 @ 14.4v — Higher bridge-mode output for a single load at lower impedance.
• Frequency Response: 10hz – 38khz — Extends from sub-bass up into upper highs, suitable for full-range or woofer-focused setups.
• Signal to Noise Ratio: >100db — Low noise floor helps keep hiss and background noise minimal at high output.
• Dampening Factor: 300 — Indicates control over speaker motion under rated power for tighter bass。
• Low Pass Filter: (X1, X10) Channels 1/2 – 50hz (500)hz – 800hz(8K) — Adjustable Crossover to tailor bass-to-midrange output.
• High Pass Filter: Channels 1/2 – 20(200)hz – 800hz(8K) — Crossover to protect or shape mid/high content.
• Operating Voltage: DC 8V-16V — Designed to work with a broad range of vehicle electrical systems.
• Input Sensitivity: 8V – 0.2V — Flexible signal matching to compatible head units or processors.
• Fuse Rating: 250A — Indicates the high-current protection setup for this amp.
• Dimensions: 350mm L x 239mm W x 69mm H — Compact footprint for mounting in tight dash or trunk spaces.
• Power & Ground Inputs: 0 gauge — Supports large gauge wiring for minimal voltage drop in high-current builds.
• Speaker Outputs: 8 gauge — Heavy-duty outputs suited to demanding speaker loads.

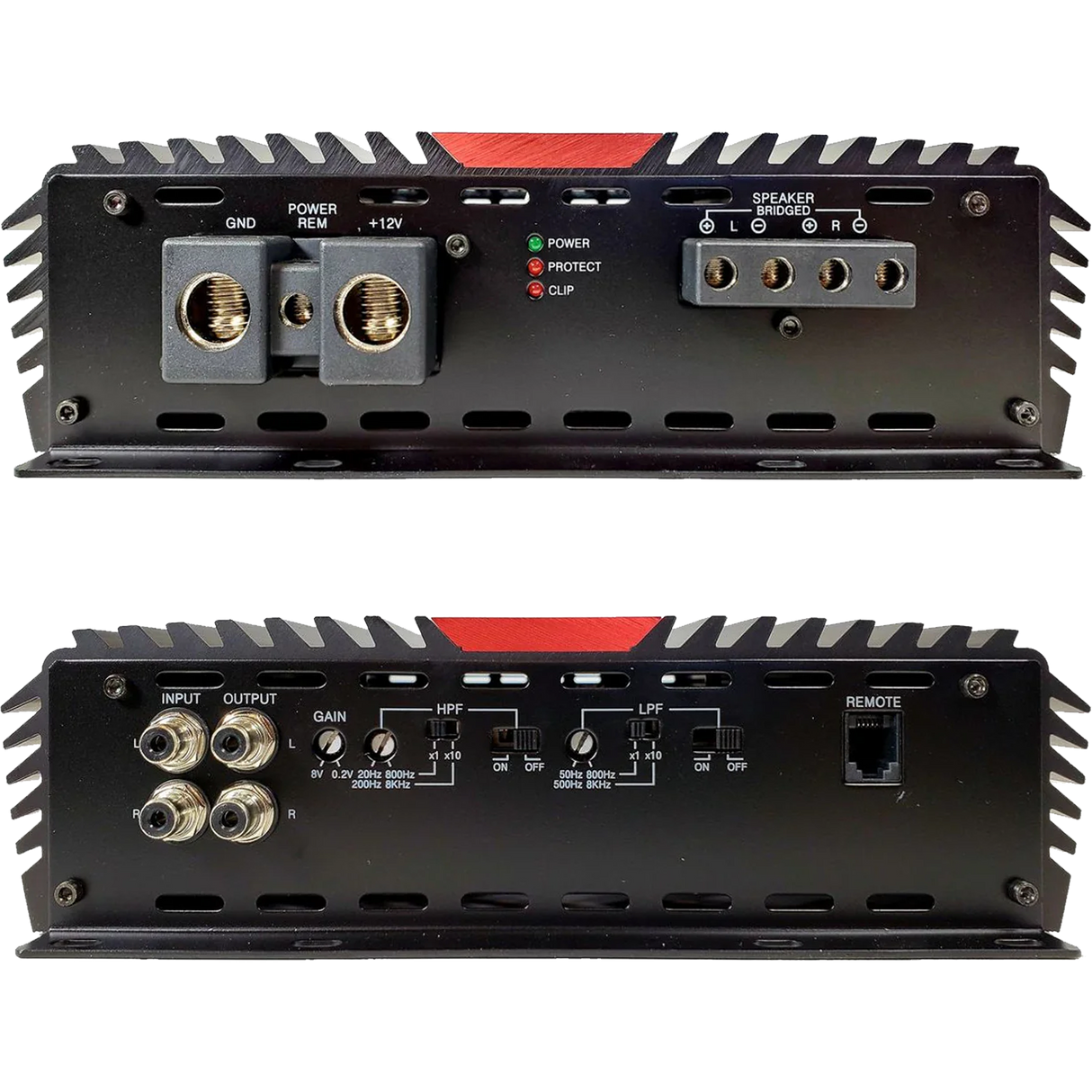

• RCA Input/Output Connections: Panel locking Tiffany RCA input and output connections — Secure signal paths that resist vibration-induced unplugging.

In a real car audio build, the WFO 15.2D provides serious headroom for a high-output sub setup or a powerful front-stage, with bridging options that let you consolidate power to a single driver when needed. Its 1 ohm stereo stability and 14.4V operation help maintain performance under automotive voltage swings, while the 0 gauge inputs and locking RCA connections support reliable, high-current operation in demanding installations.
