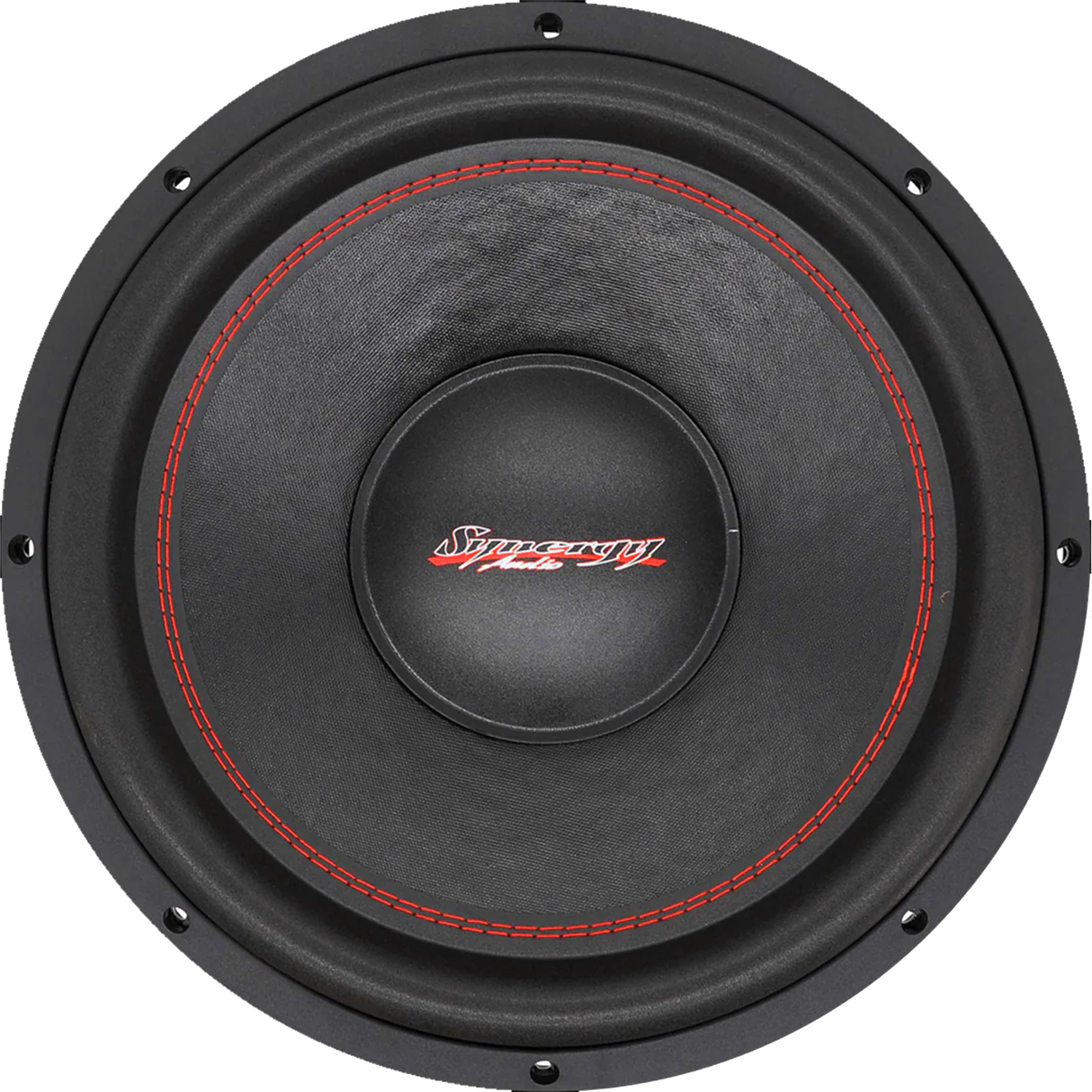

Synergy SYN Series 15" Subwoofer 1,250 Watts RMS DVC

The Synergy SYN Series 15" Subwoofer delivers 1250 watts RMS in a rugged, precision-built 15" driver designed for daily high‑output bass in premium car systems. Its advanced magnet, venting, and high-temp voice coil provide sustained performance under demanding listening sessions.

• RMS Power: 1250 watts continuous handling for loud, controlled bass when paired with a capable amplifier.
• Impedance: 6.40 Ω (15D4) or 4.00 Ω (15D2) variants to suit different amplifier loads and wiring choices.
• Motor and cooling architecture: triple 190 mm Y35 ferrite magnets, 20 mm top plate, one-piece bottom T‑Yoke with extended pole; pole chamfer, a flared vent, and 12 magnetic gap vents maximize cooling during deep bass excursions.
• Voice coil and winding: 3" high‑temperature, four‑layer voice coil on a black aluminum former wound with high‑temp aluminum wire for robust power handling.
• Cone, surround, and spider: non‑pressed pulp paper cone with red double stitching, high‑roll foam surround, and dual red Nomex spiders with stitched tinsel leads for reliable, linear excursion.
• Frame and finish: 6‑spoke heavy‑duty cast aluminum frame finished in gloss black for rigidity and a premium look.
• Performance parameters: Fs ~33–33.8 Hz; SPL ~89.4–89.8 dB; Vas ~54–58 L; Mms ~376–416 g; Cms ~58.838 m mm/N / 73.010 m mm/N (variant specifics vary).
• Enclosure recommendation: Suggested Ported 3.0–4.0 ft³ for deep, rhythmic bass without excessive enclosure size.
• Install dimensions: Cutout Diameter 14.125" and Mounting Diameter 15.5625" for standard 15" openings.

In a real car build, this sub delivers deep, impactful bass with reliable thermal and mechanical stability. The robust cooling, strong motor, and rigid frame support high‑volume playback in a ported enclosure while fitting into common 15" openings for enthusiast installations.
