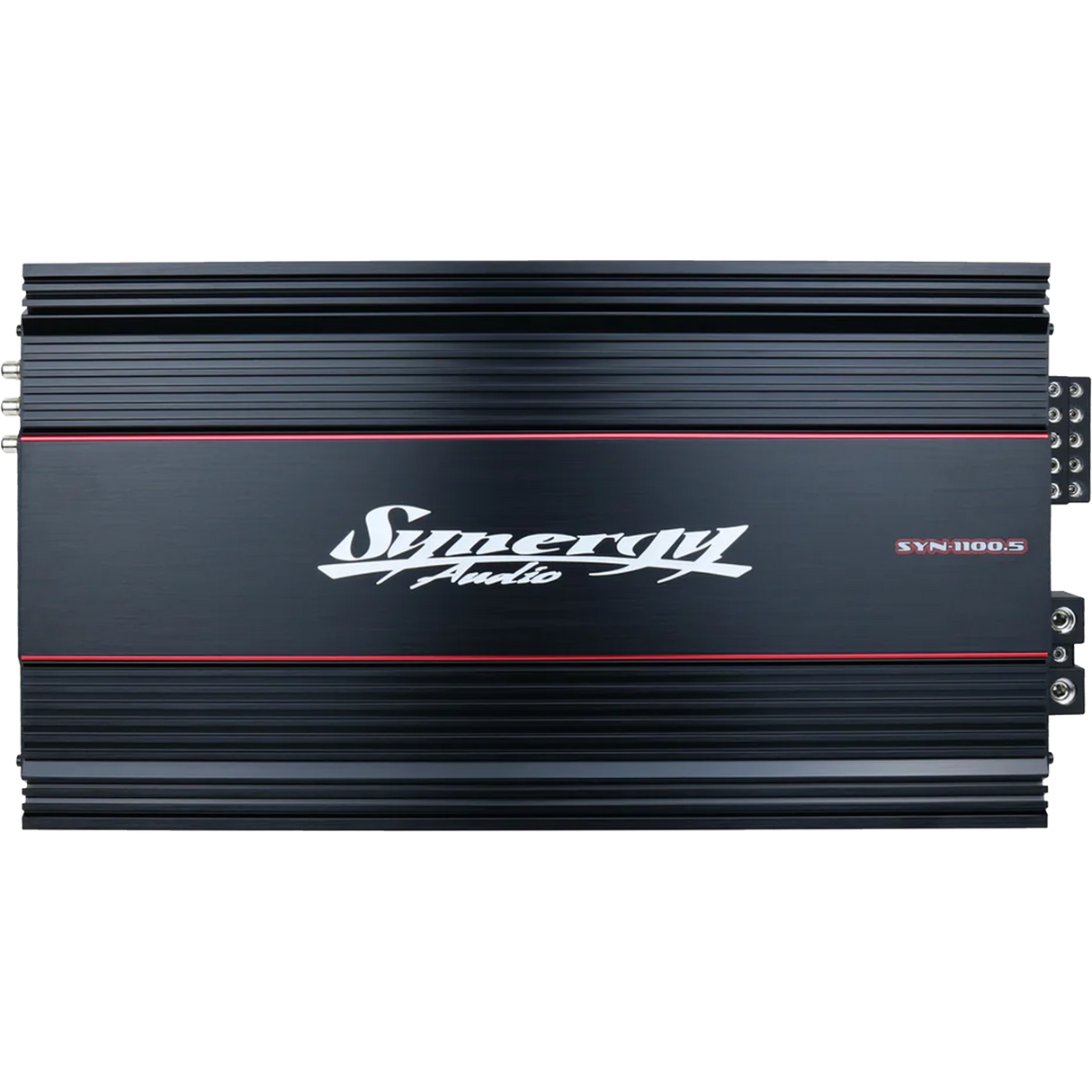

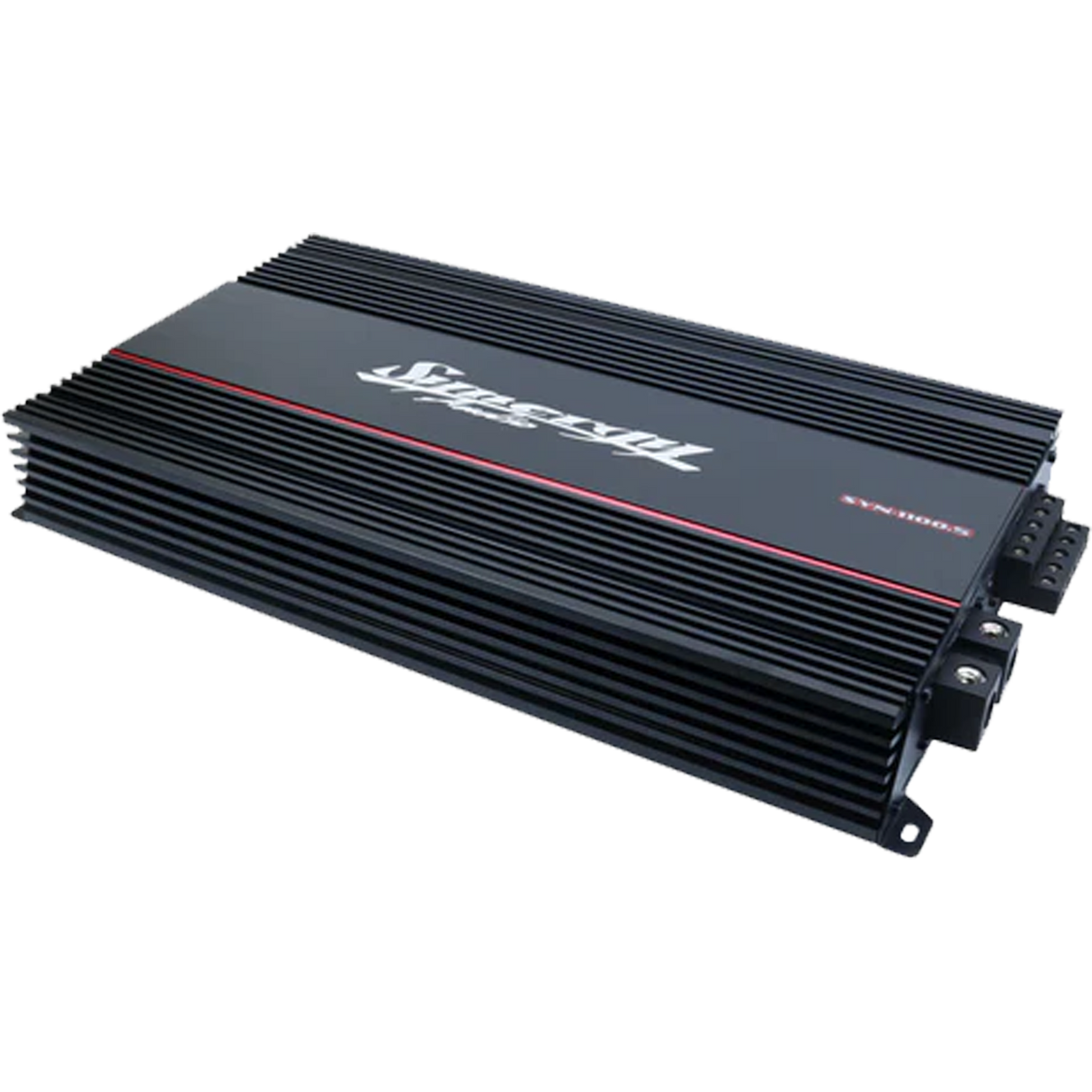

Synergy SYN Series 1100.5 Channel Amplifier

The Synergy Audio SYN 1100.5D is a multi‑channel amplifier designed for serious car audio enthusiasts who demand premium build quality, flexible power, and reliable performance in daily drivers and competition setups.

• Power @ 4 Ohm: 150w x 4 @ 14.4v — Four-channel output with solid per‑channel headroom for a complete front stage or active three‑way setups.
• Power @ 2 Ohm: 230w x 4 @ 14.4v — Higher current capability to sustain louder, more demanding front-stage loads.
• Power @ 4 Ohm Bridged: 520w x 2 @ 14.4v — Bridge two channels for a strong mono sub or dedicated bass channel.
• Power @ 4 Ohm: 650w x 1 @ 14.4v — Single‑channel output ideal for a sub with substantial headroom.
• Power @ 2 Ohm: 1050 x 1 @ 14.4v — High‑current single channel for high‑power subwoofers or demanding loads.
• Power @ 1 Ohm: 1500 x 1 @ 14.4v — Maximum single‑channel output for extreme bass applications.
• Frequency Response: 20hz – 20Khz — Full bandwidth capable of reproducing the entire audible range.
• Signal to Noise Ratio: >85db — Low noise floor helps preserve detail at higher listening levels.
• Damping Factor: >200 — Strong control of speaker motion for tight bass and crisp transients.
• Subsonic Filter: 10hz – 50hz — Protects subs and reduces unnecessary ultra‑low energy in challenging enclosures.
• Low Pass Filter: 35hz – 250hz — Shapes the sub output to keep bass focused and clean.
• High Pass Filter: x1 20hz – 800hz; x10 200hz – 8khz — Flexible HPF options for front channels and multi‑channel setups.

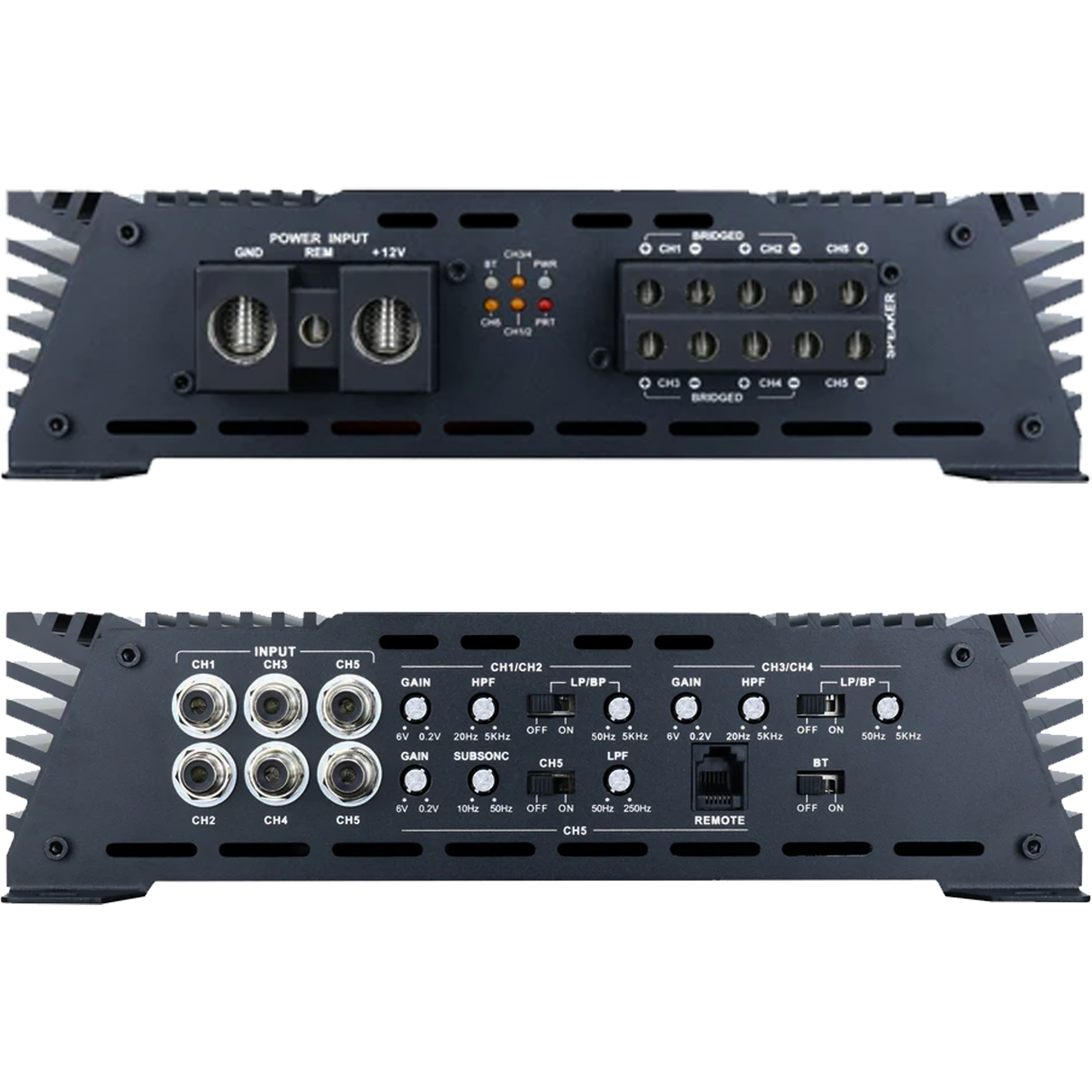

• 0 GA Power & Ground Terminals — Heavy‑duty input geometry for minimal resistance at high current draw.
• 16v Working Voltage — Designed to operate from a 16V supply to sustain high output under load.
• 6 Power Transformers — Multiple transformers help maintain voltage stability under peak demand.
• Heavy Duty 2oz Printed Circuit Board — Thicker copper traces reduce impedance and improve signal integrity at high power.
• Size: 26.77” L x 9.45” W x 2.44” H — Long, slim chassis suited for under‑seat or behind‑dash installations.
• BT 5.0 — Bluetooth 5.0 provides installation flexibility and wireless integration options.
• All SYN series amplifier features:
  • Custom high mass, thermally optimized aluminum heat sink casing — improves cooling under demanding loads.
  • Overbuilt power supplies and output sections utilizing high grade components — sustains performance during peak demand.
  • Heavy duty double sided through hole PCB’s with thick solid copper heavy duty traces — robust signal paths and reliability.
  • Nickel plated Locking Tiffany RCA inputs/outputs — durable, secure connections with corrosion resistance.
  • Single 1/0 and 4 gauge nickel plated power and ground inputs — supports low‑loss high‑current wiring.
  • Nickel plated 8 gauge speaker outputs — strong, reliable terminations for drivers.
  • Input sensitivity 6V – 200mV — ensures proper gain staging with a wide range of head units.
  • +18db Remote Gain control with power and clipping indicator lights — remote level adjustment with visual protection feedback.
  • Multi-way fully intelligent circuitry for maximum protection — guards against common faults and enhances reliability.

Designed for daily driving, high‑volume demo setups, and SPL competition lanes, the SYN 1100.5D provides multi‑impedance versatility, strong bass capability, and rigorous protection features in a chassis built to endure extended, high‑duty use.
