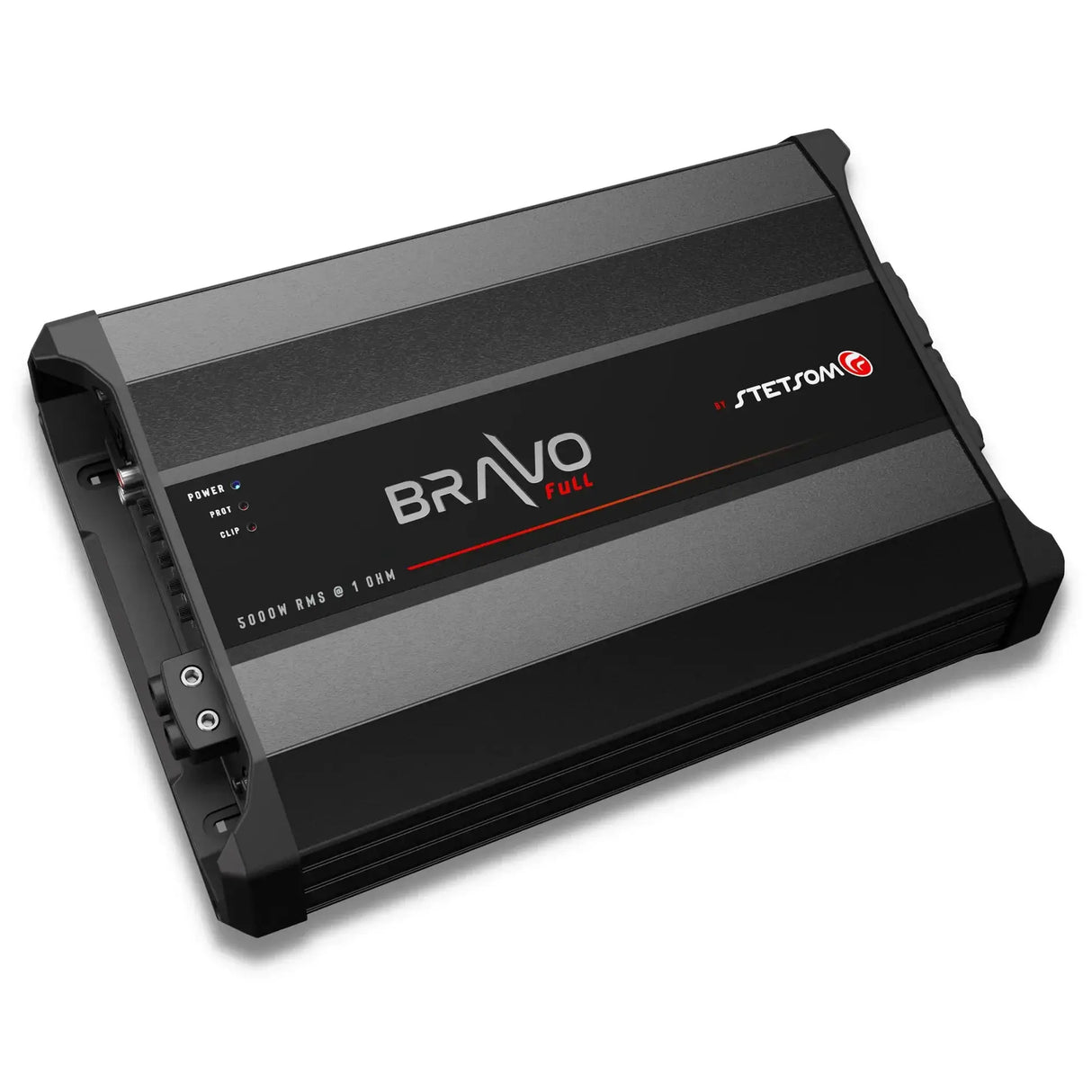

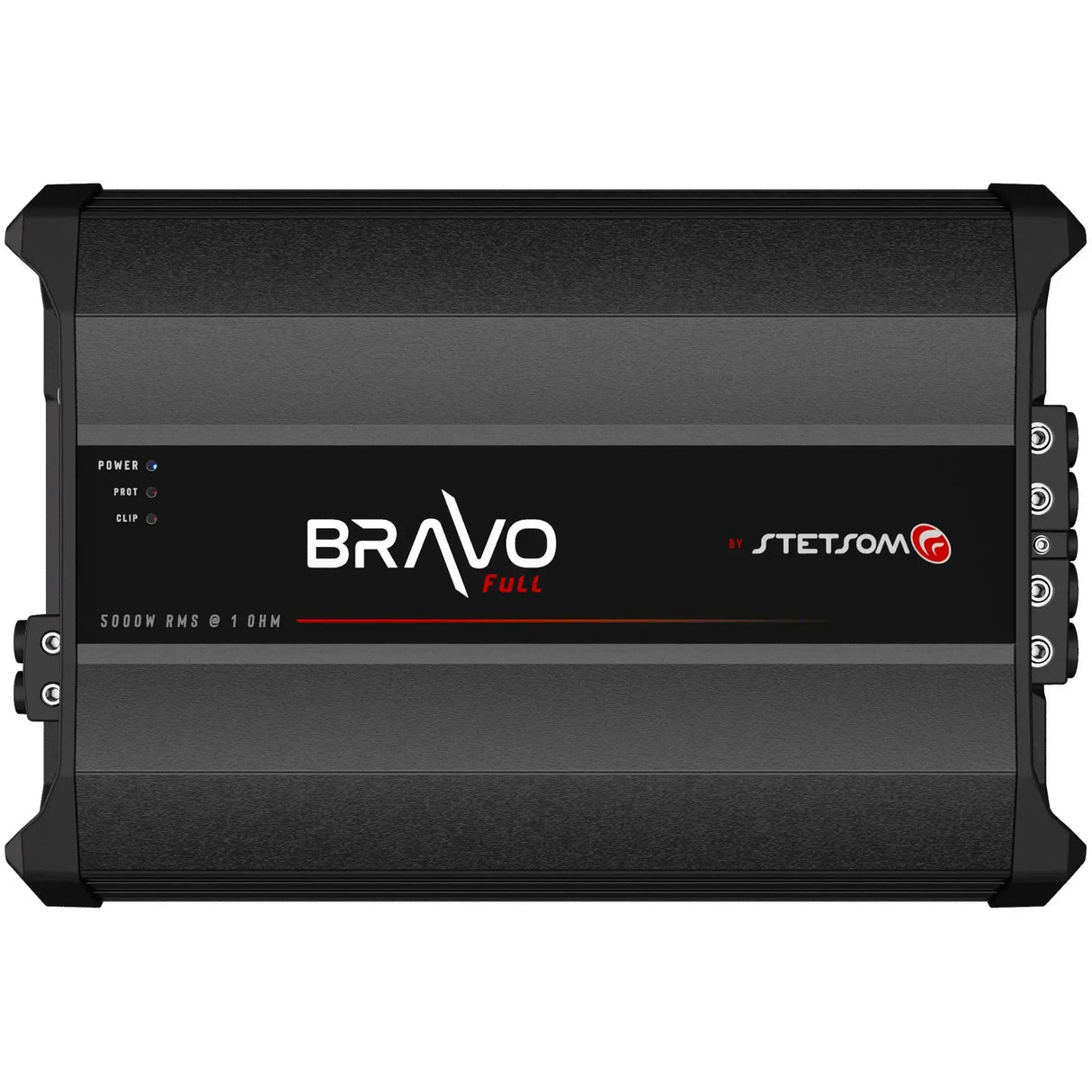

Stetsom BRAVO FULL 5K Digital Full-Range Amplifier Mono 1 Channel Class D 5000 Watts RMS

The Stetsom BRAVO FULL 5K is a 1‑channel digital Class D mono amplifier built for extreme low‑end performance in serious car audio systems. It delivers up to 5,300W RMS at 1 Ohm with a 14.4V supply and 5,000W RMS at 1 Ohm with a 12.6V supply, making it a dedicated power source for high‑current subs or single‑channel bass sections.

• Number of Channels: 1 — a true mono amp designed to drive a single high‑power load, typically a sub or dedicated low‑frequency section in a high‑output setup.
• RMS Power at 1 Ohm @ 14.4V: 5,300W — extreme low‑impedance capability enables very loud bass with tight control on demanding subwoofers.
• RMS Power at 2 Ohms @ 14.4V: 3,300W — strong performance into 2 Ohm loads for high‑demand subs or multi‑voice coil configurations.
• RMS Power at 1 Ohm @ 12.6V: 5,000W — maintains substantial output on systems with slightly lower vehicle voltage, typical of cold starts or conservative electrical conditions.
• RMS Power at 2 Ohms @ 12.6V: 2,800W — solid low‑impedance performance across voltage ranges.
• Minimum input sensitivity: 200mV — compatible with most head units and source signals without excessive gain.
• Signal to noise ratio: >90dB — clean output with low background hiss when driving high‑level signals.
• Frequency response (-3dB): 10Hz ~ 12KHz — broad bandwidth suitable for full‑range or subs with appropriate filtering.
• Crossover low pass: 90Hz ~ 12KHz — builds a tailored bass path by truncating high frequencies from the output.
• Crossover high pass: 10Hz ~ 90Hz — protects the amp and speakers from extreme lows while shaping the audible spectrum.
• Bass boost: Freq 30Hz ~ 70Hz / Boost 0dB ~ +10dB — adjustable emphasis to dial in punch at the listening position.
• Input impedance: 12K Ohms — high input impedance minimizes source loading for most car head units and processors.
• Supply voltage: 9V ~ 16V DC — accommodates typical vehicle electrical conditions and alternator performance.
• Musical/Bass consumption: 242A/485A — indicates the current draw range to plan electrical upgrades in high‑output builds.
• Dimensions: 3.14" x 9.11" x 13.11" — compact footprint for flexible mounting in vehicles with limited space.
• Weight: 9.36 lb — sturdy chassis designed to handle high power while remaining relatively portable within an install.

In a real build, this amplifier excels as the core power source for a single, high‑efficiency bass path or a mono subwoofer setup. Its built‑in crossovers and bass boost allow precise tonal shaping, while its 1‑Ohm capability and substantial peak outputs demand a robust electrical system and proper heatsinking for sustained performance.
