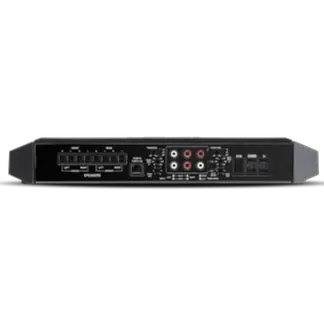

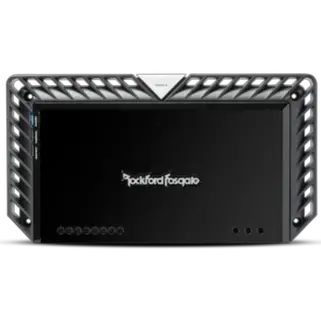

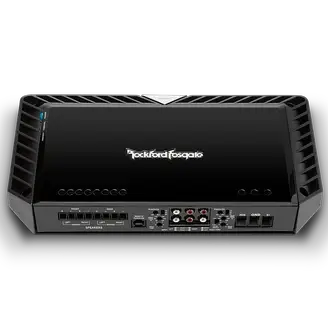

Rockford Fosgate Power Series T600-4 4-Channel Amplifier

Rockford Fosgate Power Series T600-4 is a compact 4-channel amplifier delivering 600W total RMS, with built-in crossovers and flexible channel Configurations tailored for front components, rear speakers, and subwoofers. Built for enthusiasts who demand precise tuning and reliable power in tight mounting spaces, it pairs well with high-performance front stages and integrated rear fills.

• Total RMS Power & Bridging: 600 Watts total RMS with 100W x4 @ 4Ω, 150W x4 @ 2Ω, or 300W x2 when bridged at 4Ω; supports two 2Ω bridged channels for subwoofers.
• MOSFET Output Stage: High-current MOSFET design provides solid, consistent power delivery across the audio band for dynamic transients.
• 4 Gauge Power/Ground Connectors: Heavy-gauge wiring minimizes voltage drop, aiding stability during demanding musical peaks.
• 2/4 Channel Input Switch: Select between 2- and 4-channel signal inputs to match your source equipment and wiring complexity.
• 24dB/Octave Crossover: Front and rear channels offer high-pass and low-pass options (50–500 Hz) with 24dB/octave Butterworth slopes for clean separation and minimal phase shift.
• RCA Pass-Thru Outputs: Passes the input signal through to additional amplifiers, enabling multi-amp systems without extra splitters.
• Punch EQ & Tone Controls: Front and rear EQ sections provide Treble 0–12 dB at 12 kHz and Bass 0–18 dB at 45 Hz, allowing precise tonal shaping in-car.
• Bridgeable & Sub-Suitable: Bridgeable operation supports driving subs via 2Ω per bridged pair for enhanced low-end impact.
• CTA-2006 Compliant & 2-Year Warranty: Meets industry compliance and includes reassurance with a two-year warranty.
• Cooling & Indicators: Convection heat sink with Power and Thermal Protect indicators for reliable operation under load.
• Inputs/Outputs & Specs: Front Low-level 1 RCA, Rear Low-level 1 RCA, and a single Low-level output; 9–16 VDC operation with 80 A max current draw (80 A fuse recommended) and 70%–64% efficiency depending on load.
• Dimensions & Weight: 2.14" H × 8.14" W × 14.91" D (5.42 × 20.68 × 37.86 cm); 12 lb (5.44 kg).

In a real-world build, the T600-4 excels as the backbone of a four-channel system: drive front components and rear speakers with clean, controlled power, while using the built-in crossover to tailor bass routing and subwoofer activity. The punch EQ and responsive crossovers let you sculpt the sound to your vehicle’s acoustics, and the ability to bridge channels or run subs from the rear channels simplifies wiring and tuning. With robust protection and standard wiring harnesses, it’s a precise, scalable solution for serious car audio installs.
