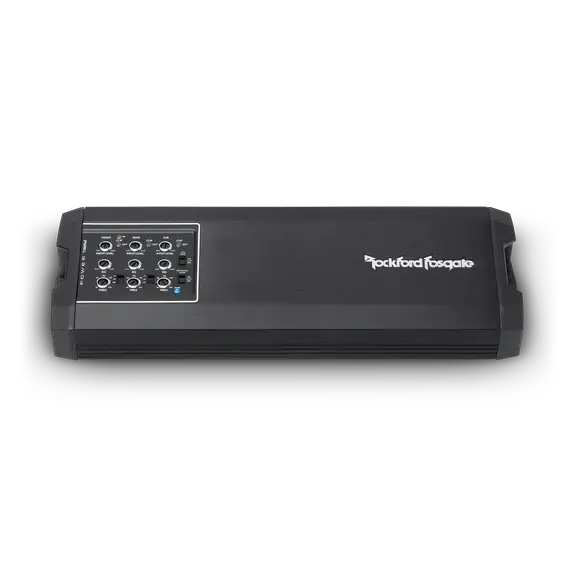

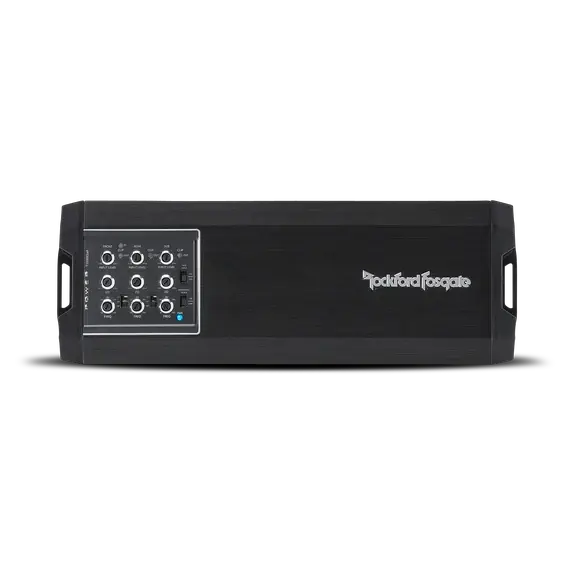

Rockford Fosgate Power Series T1000X5ad 5-Channel Amplifier

The Rockford Fosgate Power Series T1000X5ad Element Ready 5-channel amplifier delivers 1000W RMS across five channels on Rockford’s Class AD/BD platform, built for high-efficiency, multi-speaker car audio systems with integrated tone shaping and onboard controls.

• Total power and channel configuration: 1000W total RMS; 100W x4 + 400W x1 @ 4Ω; 100W x4 + 600W x1 @ 2Ω; five-channel design with a dedicated sub channel for flexible setups.
• 4/2 Ohm multi-impedance: Accepts 4Ω or 2Ω loads, allowing you to tailor power delivery to your speakers and sub for better headroom and efficiency.
• Constant Power technology: Delivers up to 25% more output per channel than rated, providing dynamic headroom during musical transients and loud passages.
• Class AD + Class BD topology: Rockford’s proprietary multi‑topology approach aimed at efficient, clean power delivery for a multi-channel system.
• Differential inputs with high-level auto turn-on: Reduces noise from high‑level sources and can provide a remote out signal when using high‑level inputs, aiding quieter signal integration.
• Top mounted controls with C.L.E.A.N. indicators: Accessible tuning controls plus input/output clip detection LEDs to help with safe, precise setup during install.
• Integrated crossovers and Punch EQ: Onboard high-pass, low-pass, and sub crossovers plus a Punch EQ boost circuit for tonal shaping and sub‑bass emphasis without extra processors.
• Thermal management: Dual fans, dual extruded heat sinks, and real-time thermal monitoring to maintain performance under demanding loads.
• Remote control readiness: PLC2 remote ready for Punch Level Control and a Remote-Out feature when using high‑level inputs for level matching.
• Input options and protection: Front/Rear/Sub 4‑pin high/low inputs with a 2CH/4CH switch; 20Hz–20kHz frequency response; 150 mV to 12 V input sensitivity; THD+N <1.0% across rated loads; CE/CTA-2006 compliant with a 2‑year warranty.

In a real car audio build, the T1000X5ad serves as the single amplification hub for a 4‑seat front/rear setup plus a powered sub: 4 channels at 100W each for the front/rear speakers and a 600W channel for the sub at 2Ω. Onboard crossovers and tone controls enable precise channel shaping, while differential inputs and auto turn‑on reduce noise from factory or aftermarket wiring. The PLC2 remote option makes final sub level tuning quick from the dash, and robust cooling with real‑time thermal monitoring helps maintain consistent performance during long, bass‑heavy listening sessions. Element Ready compatibility ensures seamless integration with other Rockford Fosgate ecosystem components.
