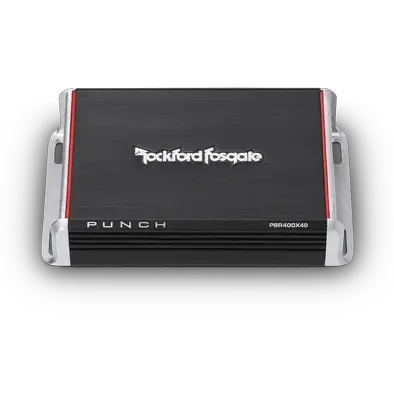

Rockford Fosgate Punch PBR400X4d 4-Channel Amplifier

The Rockford Fosgate Punch PBR400X4d is a compact, full-range 4-channel Class-D amplifier built for tight, stealth installs in front/rear car audio systems, delivering up to 400 Watts total with efficient Boosted Rail Technology. Element Ready™ amplifiers are designed specifically for Motorsports and Motorcycle applications.

• Power output: 50 Watts x 4 @ 4-Ohm, 100 Watts x 4 @ 2-Ohm, 200 Watts x 2 @ 4-Ohm (bridged). Real-world: provides solid multi-channel headroom for front and rear channels and allows bridging two channels for higher drive to a single speaker when needed.
• Class-D differential inputs: Full-range inputs with high-level auto turn-on. Real-world: preserves signal integrity while keeping heat and electrical noise to a minimum, even when tapping from OEM radios.
• Power and ground: 8 AWG power/ground connector; recommended fuse 60 A. Real-world: supports robust power delivery for stable listening levels without overtaxing wiring in compact vehicles.
• Protection and monitoring: C.L.E.A.N. input/output clip detection and indicator LEDs; real-time output and power-supply thermal sensing; Rockford Fosgate proprietary protection. Real-world: helps prevent distortion and protects the amp under demanding conditions.
• Crossovers: Selectable 12dB/Octave Butterworth Crossovers; High-Pass: 60/80 Hz @ 12dB/Octave; Low-Pass: 80 Hz @ 12dB/Octave. Real-world: enables clean separation between front/rear full-range channels or tailoring to a specific woofer/tweeter lineup.
• Construction and cooling: Extruded aluminum heatsink with convection cooling; compact design for stealth installations. Real-world: efficient heat dissipation in confined spaces, reducing thermal throttling.
• Remote and wiring: Remote-Out feature when using high level inputs; Front/Rear speaker outputs use 4-Pin Harness connections; 1-Year warranty; CE/CEA-2006/CTA-2006 compliant. Real-world: simplifies integration with aftermarket or OEM systems and provides reliable warranty coverage and compliance.
• Physical specs: Dimensions (H x W x D) 1.53 x 4.25 x 6.75 in; shipping weight 3.1 lb. Real-world: slim profile fits under seats or in small panels without sacrificing performance.

Benefits: In a typical 4-channel install, the PBR400X4d powers front and rear speakers with clean, efficient Class-D operation and robust thermal protection, maintaining low noise and minimal distortion at higher listening levels. Its bridging capability and flexible crossover options make it suitable for compact builds where space is at a premium, while its OEM-friendly turn-on and 8 AWG power wiring support reliable integration with modern factory radios. The combination of a convection heatsink and real-time protection keeps performance consistent in mobile environments, and the compact footprint helps preserve trunk or cabin space without compromising sound quality.
