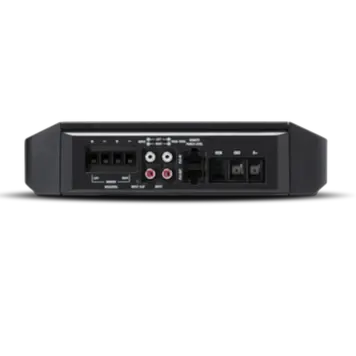

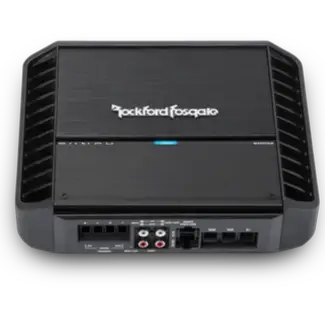

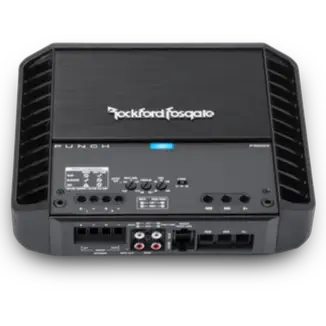

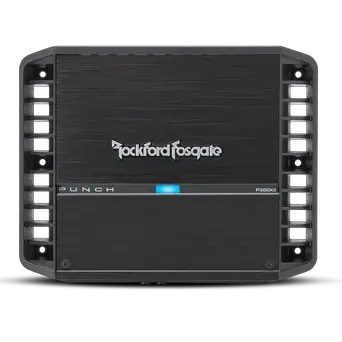

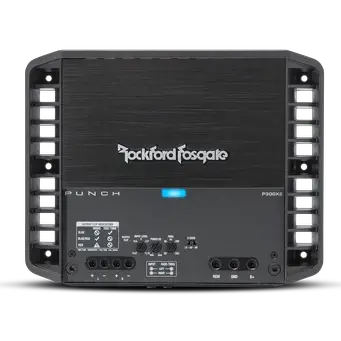

Rockford Fosgate Punch P300X2 2-Channel Amplifier

The Rockford Fosgate Punch P300X2 is a compact 2-channel amplifier that delivers real Rockford power in a small footprint, ideal for driving a coaxial or component speaker pair or a single sub while supporting stereo/mono operation with passive crossovers.

• Number of Channels: 2-channel design lets you run two speakers in stereo or bridge to a single channel for a sub or mono load, offering flexible installation options.
• Total Power (Sum of Rated Power): 300 Watts overall, providing substantial mid-range and bass headroom in a compact chassis.
• Rated Power: 100 Watts x 2 @ 4 ohms; 150 Watts x 2 @ 2 ohms; 300 Watts x 1 @ 4 ohms bridged, enabling multiple wiring configurations for different speaker loads.
• Bridged Dynamic Power (PVC/PowerCube®): 122 Watts x 2 @ 4 ohms, 0° Res; 215 Watts x 2 @ 2 ohms, 0° Res; 435 Watts x 1 @ 4 ohms bridged, 0° Res — higher peak capability when needed.
• Frequency Response: 20 Hz–20 kHz, ensuring full-range audio reproduction for most car audio setups.
• Efficiency: 69% @ 4-ohms, reflecting cooling and power delivery efficiency suitable for continuous listening without excessive heat.
• Class: A/B topology for a balance of efficiency and linearity in musical transients.
• Crossover Controls: High-Pass and Low-Pass 50 Hz–250 Hz @ 12 dB/Octave Butterworth; All-Pass: Yes, enabling precise speaker filtering and phase alignment.
• Inputs/Outputs: High level input capable with Auto Turn-On; RCA pass-thru outputs for easy integration with additional amps or processing.
• Remote Ready: Optional Punch Level Control (PLC2) with input clip indicator for convenient level matching.
• Thermal/Protection: On-board Punch EQ with +18 dB boost @ 45 Hz; Power/Protect/Thermal LED indicators; Short circuit and over-current protection.
• Physical: Cast aluminum heatsink, convection cooling, stealth top-mounted control panel, captive C-Clamp power and speaker connections, 8 AWG–4 AWG power input; 8 AWG–18 AWG speaker wire ranges.
• Dimensions: 2.38" H x 7.76" W x 9.86" D (6.05 cm x 19.71 cm x 25.04 cm); Shipping weight 9.5 lb (4.3 kg).
• Compliance: CTA-2006 compliant for standard car-audio installations.

Benefits: The P300X2 is suited for compact builds that need meaningful power to a pair of speakers or a single sub, with flexible stereo/bridged configurations and simple OEM-integrated wiring via high-level inputs. It solves the need for clean, controllable bass and midrange drive in tight spaces while offering adjustable crossovers and a boostable low-end with Punch EQ, all backed by Rockford Fosgate’s reliability in a small heatsinked chassis.
