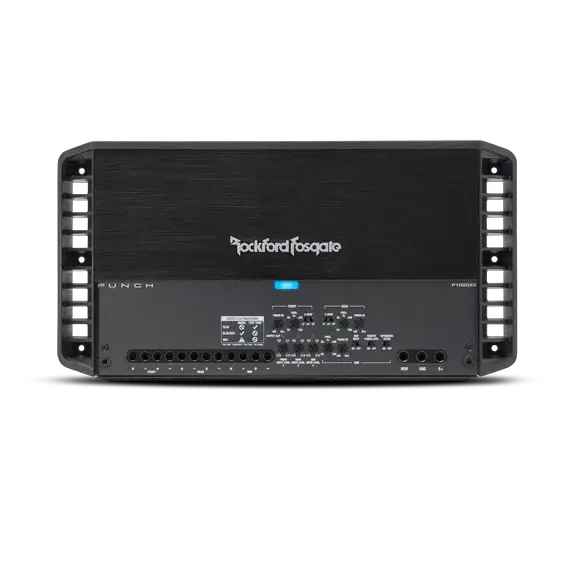

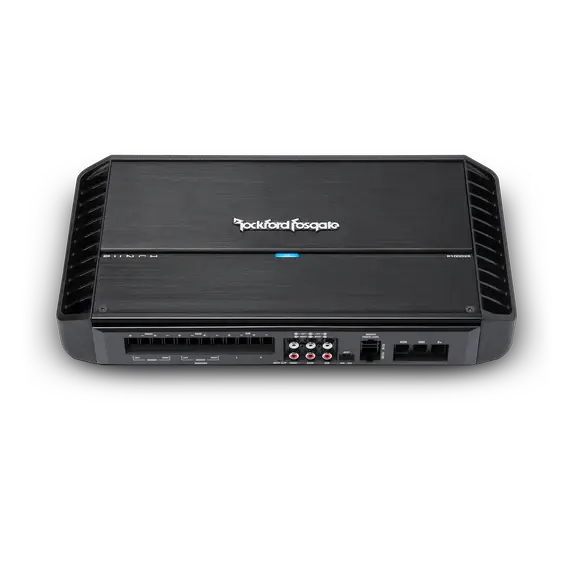

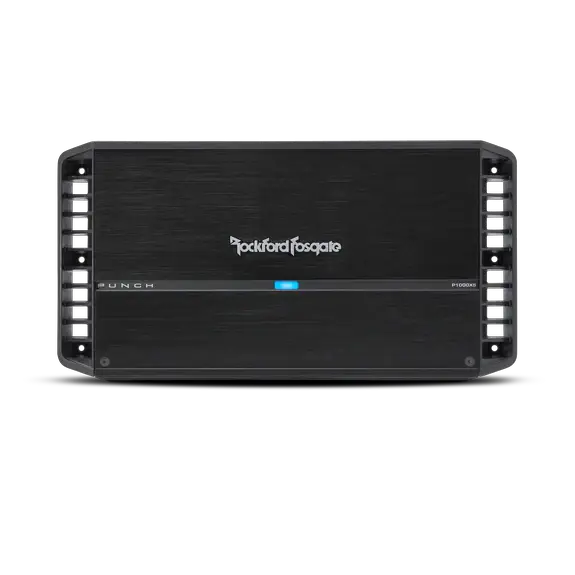

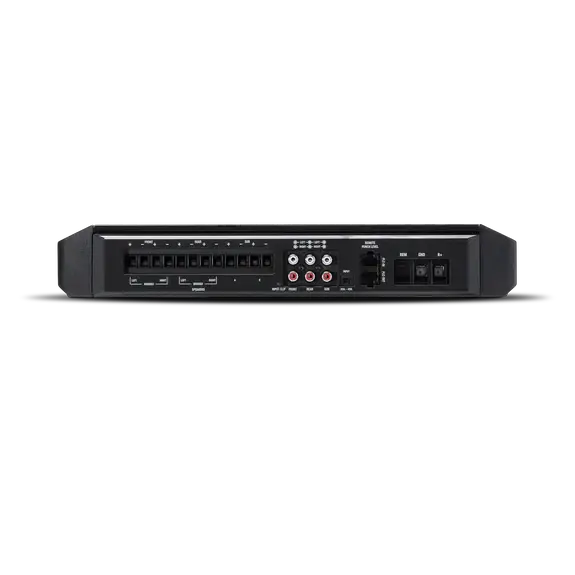

Rockford Fosgate Punch P1000X5 5-Channel Amplifier

The Rockford Fosgate Punch P1000X5 is a 1,000-watt full-range 5-channel amplifier built to run dash speakers, rear fill, and a dedicated sub channel from a single chassis with strong, efficient power delivery and advanced protection.

• Power architecture: 75 Watts x 4 + 150 Watts x 1 @ 4Ω and 125 Watts x 4 + 300 Watts x 1 @ 2Ω, delivering clean, multi-zone amplification for a complete cockpit-to-trunk system.
• On-board Punch EQ: +18dB boost at 45 Hz to tighten and deepen bass without requiring additional processing hardware.
• 40–250 Hz front/rear crossover: 12dB/octave Butterworth crossovers on front and rear channels for smooth, musical high-pass filtering that preserves vocal and instrument clarity.
• Sub channel and infrasonic control: Dedicated sub output with a 0dB to +18dB boost at 45 Hz and an infrasonic filter to help control ultra-low bass.
• Bridgeable design: Yes (front/rear channels) allowing you to combine channels for higher subwoofer drive or greater front/rear power where needed.
• Inputs and sensing: Hi/Low level input with auto turn-on circuit and a 2/4 channel input selector for flexible integration with factory radios or aftermarket HEAD units.
• Protection and efficiency: Tri-stage protection (thermal, over-current, short circuits) plus muted turn-on and a cast aluminum heatsink with convection cooling for reliability in daily driving.
• Physical and compliance: Stealth top-mounted control panel, CTA-2006 compliant, 6.05 x 19.71 x 38.18 cm (2.38 x 7.76 x 15.03 in) chassis, 15.3 lb (6.93 kg).

The P1000X5 is tailored for enthusiast-grade 5-channel setups where a single amplifier must power front dash speakers, rear fills, and a sub with precise level control and robust protection. Its integrated EQ, configurable crossover, and bridgeable channels help solve space, wiring, and tuning challenges while preserving system-wide clarity and bass impact.
