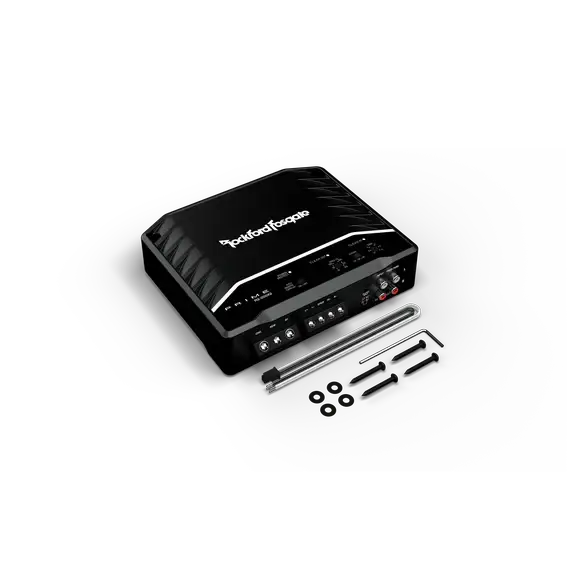

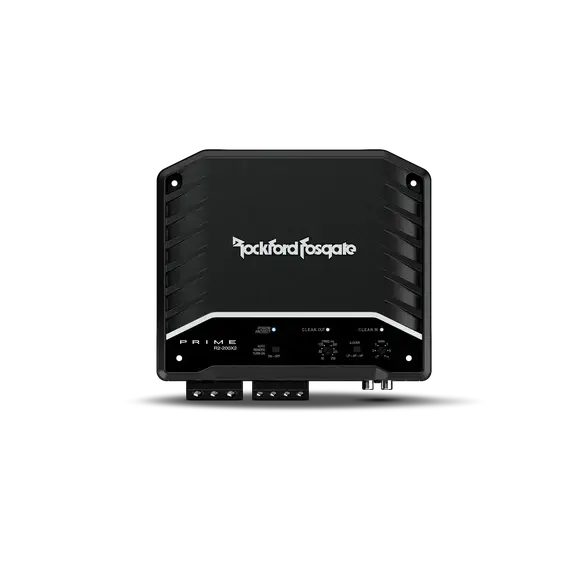

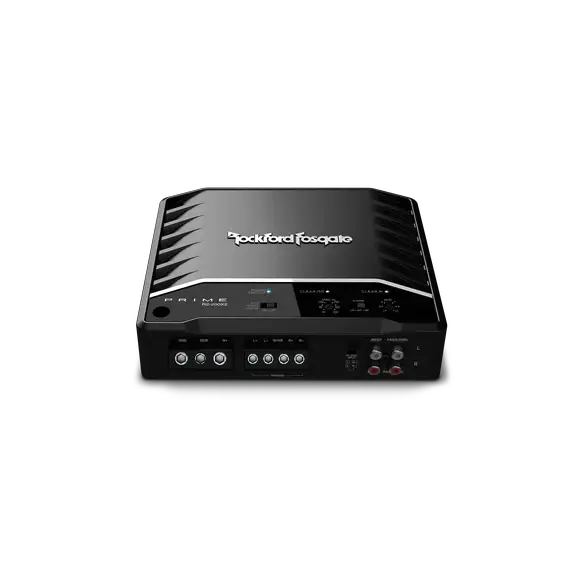

Rockford Fosgate Prime R2-200X2 2-Channel Amplifier

The Rockford Fosgate Prime R2-200X2 is a 2-channel Class-D amplifier built for car audio enthusiasts who demand reliable power with easy tuning for factory or aftermarket systems. It delivers up to 200W total and offers flexible crossover controls and CLEA setup for clean, precise integration.

• 2-Channel Class-D amplifier: Efficient switching topology keeps heat and current draw lower while maximizing space in the dash or under seats, ideal for compact install scenarios.
• Total Power (Sum of Rated Power): 200 Watts
• Rated Power (RMS): 50 Watts x 2 @ 4Ω; 100 Watts x 2 @ 2Ω; 200 Watts x 1 @ 4Ω
• Bridged/Mono: Yes — capable of bridging to a single channel for higher output when needed (60W x 2 @ 4Ω, 107W x 2 @ 2Ω, 215W x 1 @ 4Ω in bridged/mono configurations)
• Frequency Response: 20 Hz – 20 kHz
• Input Sensitivity: Low-Level 150 mV – 4 V; High-Level 450 mV – 12 V

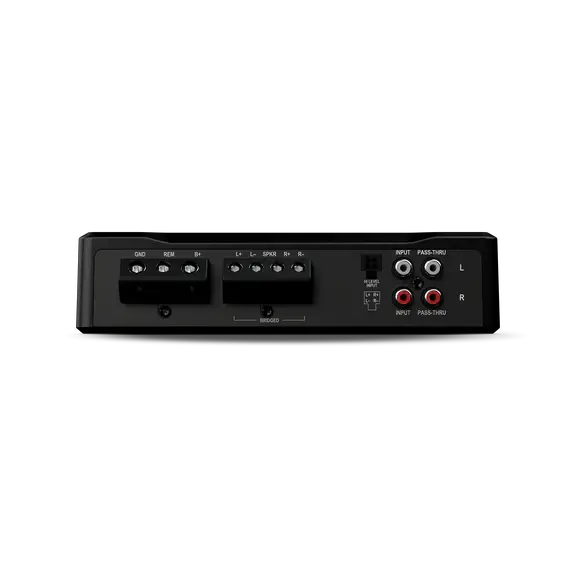

• Signal Input / Output: Balanced Differential Inputs with RCA Pass Through Outputs; 2 RCA low-level input; 4-Pin Molex high-level input
• Crossover Controls: High-Pass 50 Hz – 250 Hz @ 12 dB/Octave Butterworth; Low-Pass 50 Hz – 250 Hz @ 12 dB/Octave Butterworth; All-Pass: Yes
• C.L.E.A.N. Setup: Fully Adjustable for clean signal routing and straightforward tuning
• Remotes / Indicators: Top Mounted Control Panel; Power/Protect (Blue/Red) indicators
• Protection: Short Circuit & Over Current Protection
• Heat Dissipation: Cast aluminum heat sink with convection cooling
• Power and Wiring: Power Input Connector: 4 AWG; Speaker Output Connector: 8 AWG
• Recommended Fuse: 30 A (not included)
• Operating Voltage: 9 – 16 VDC
• Certifications: CEA-2006 Compliant & CE Compliant

Benefits: The R2-200X2 fits two-channel front-stage setups or a bridged mono configuration when higher output is required, delivering clean, adjustable power to component speakers or a dedicated sub in 4Ω/2Ω environments. Its balanced inputs with RCA pass-through simplify signal distribution, while 12 dB/Oct Butterworth crossovers enable precise high-pass and low-pass filtering to minimize mis-matched frequencies. The compact, convection-cooled cast-aluminum heatsink and auto-sense RAP bypass support reliable performance in a wide range of vehicles, making this amp a solid choice for enthusiasts upgrading factory audio or building aftermarket systems.
