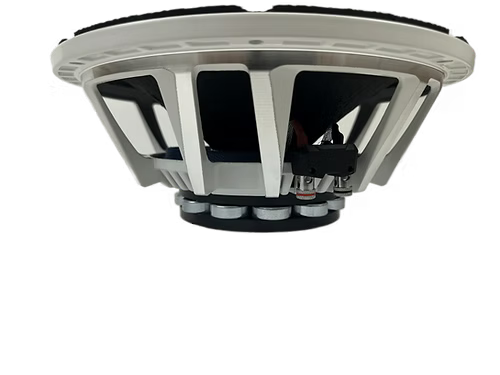

Resilient Sounds RS NEO 8" Pro Audio Midrange Loudspeaker (single)

The Resilient Sounds RS NEO 8" Pro Audio Midrange Loudspeaker (single) is an 8-inch midrange driver built for premium car audio systems, delivering clear vocal and upper-mid detail across 100 Hz to 8.5 kHz. It uses a neodymium magnet, a 2" voice coil, and a 4-ohm impedance for efficient, controllable performance in high-end builds.

• Nominal Diameter: 8" (203 mm) — this size provides substantial midrange cone area while fitting standard 8" openings, aiding midrange presence without requiring a oversized enclosure.
• Max Power Handling: 800 W — offers headroom for brief dynamic peaks when driven by capable amplifiers.
• RMS Power Handling: 400 W — recommended continuous power level for sustained listening without stressing the voice coil.
• Frequency Response: 100 Hz–8.5 kHz — covers vocals and upper midrange, helping to integrate with woofers and tweeters in a multi-way system.
• Nominal Impedance: 4 Ω — impedance level used for amplifier and crossover design, affecting load presented to the amp.
• Sensitivity: 98 dB — efficiency rating indicating how loudly the driver will play given input power, influencing required amplifier headroom.
• Voice Coil Diameter: 2" — larger coil aids heat dissipation and control at higher power levels, improving transient handling.
• Voice Coil Wire: CCAW — copper-clad aluminum wire balances conductivity, weight, and thermal performance in a midrange coil.
• Magnet: Neodymium — lightweight, high-flux magnet system improves control and reduces moving mass for better dynamics.
• Thiele–Small Parameters: Vas 9.53 L; Fs 99 Hz; Qms 4.18; Qes 0.31; Qts 0.29; Sd 216.4 cm²; Mms 17.83 g; BI 10.68 Tm; Re 3.2 Ω — these figures guide enclosure sizing, damping, and crossover decisions for accurate midrange performance.
• Mounting Info: Overall Diameter 8.26" (210 mm); Front Mount Baffle Cutout 7.32" (186 mm); Mounting Depth 3.11" (79 mm); Overall Depth 3.51" (89.3 mm) — precise fit in standard 8" installations and compatible with door panels or kick panels requiring these clearances.

In a premium multi-way front stage, the RS NEO 8" excels as the dedicated midrange, delivering clear vocal articulation and instrument detail with a controlled response from 100 Hz upward. The 4 Ω impedance pairs with high-quality amplifiers, while 98 dB sensitivity helps achieve robust output without excessive power. The neodymium magnet and 2" coil combine to maintain precise timing and heat management during dynamic passages. The mounting dimensions support straightforward installation in standard 8" openings, making it suitable for door or panel placements in high-end builds. TS parameters inform crossover and enclosure choices to ensure predictable performance in a real vehicle environment.
