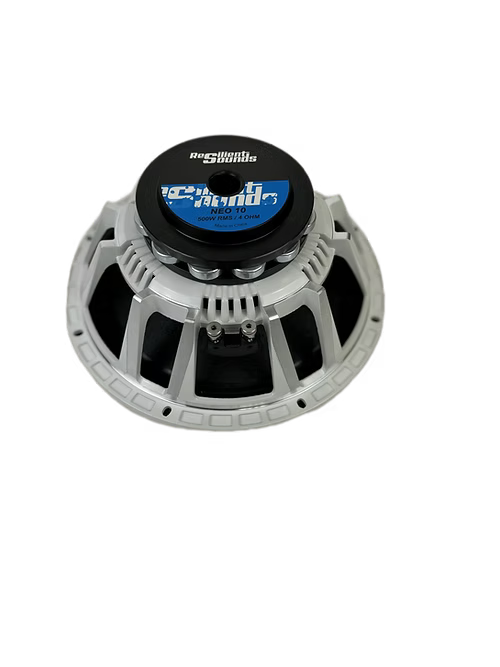

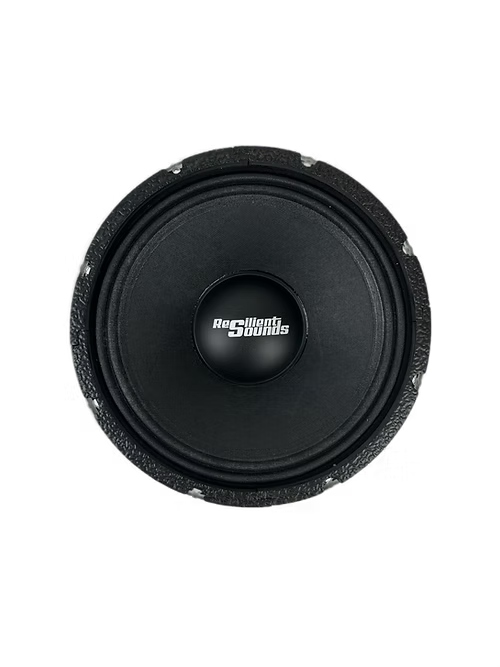

Resilient Sounds RS NEO 10" Pro Audio Midrange Loudspeaker (single)

The Resilient Sounds RS NEO 10" Pro Audio Midrange Loudspeaker is a single, neodymium-magnet 10-inch midrange driver built for high-demand car audio systems, delivering detailed midrange with strong, controlled output from 75 Hz up to 6.5 kHz.

• Nominal Diameter: 10" (254mm) — defines the mounting footprint and helps you select a compatible enclosure and cutout.
• Max Power Handling: 1000 W — indicates peak input capability for brief transients in aggressive systems; plan amplification with headroom.
• RMS Power Handling: 500 W — continuous power rating; ensures you don’t exceed thermal limits during extended listening.
• Frequency Response: 75 Hz – 6.5 kHz — covers low to high midrange content, enabling clear vocal and instrument detail across a broad band.
• Nominal Impedance: 4 Ω — affects amplifier load and system design; influences how it pairs with downstream components in a multi‑way setup.
• Sensitivity: 98.5 dB — higher sensitivity means more output per watt, aiding high-volume performance without excessive amplifier power.
• Magnet: Neodymium — lighter magnet improves transient response and reduces moving mass, contributing to accurate midrange reproduction.
• Voice Coil Diameter: 2.5" — larger coil can help with heat dissipation and power handling in demanding applications.
• Voice Coil Wire: CCAW — copper-clad aluminum wire used in the coil assembly, balancing cost, weight, and conductivity.
• Thiele‑Small Parameters: Vas 26.8 L; Fs 76 Hz; Qms 4.5; Qes 0.37; Qts 0.34; Sd 349.6 cm²; Mms 27.96 g; BI 10.77 Tm; Re 3.2 Ω — these values support precise enclosure modeling and crossover design for accurate system integration.
• Mounting Info: Overall Diameter 10.31" (262 mm); Front Mount Baffle Cutout 9.25" (235 mm); Mounting Depth 4.09" (104 mm); Overall Depth 4.52" (115 mm) — essential for fitment planning in vehicle applications.

In a high‑fidelity car audio build, this RS NEO midrange serves as the dedicated mid/high channel in a multi‑way system, enabling detailed vocal articulation and instrument realism while fitting within typical 10" openings and a 4 Ω load. Use its Thunder‑toned transient potential and substantial sensitivity to achieve clean, loud midrange performance with appropriately matched amplification and crossover design.
