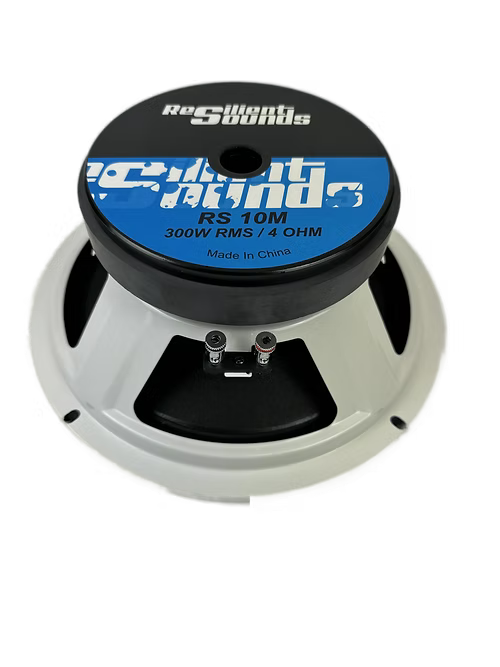

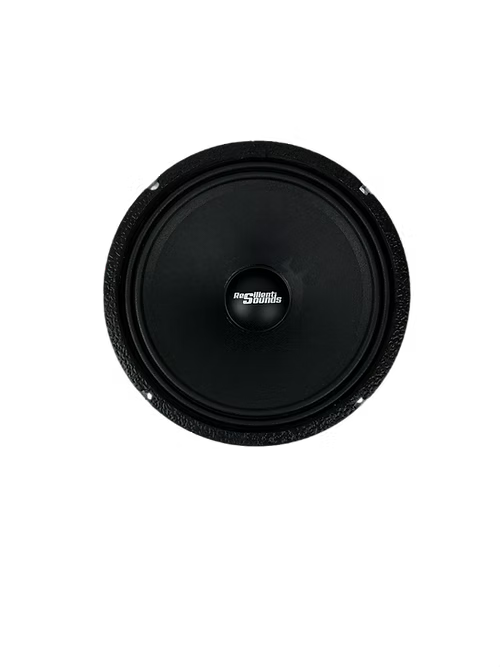

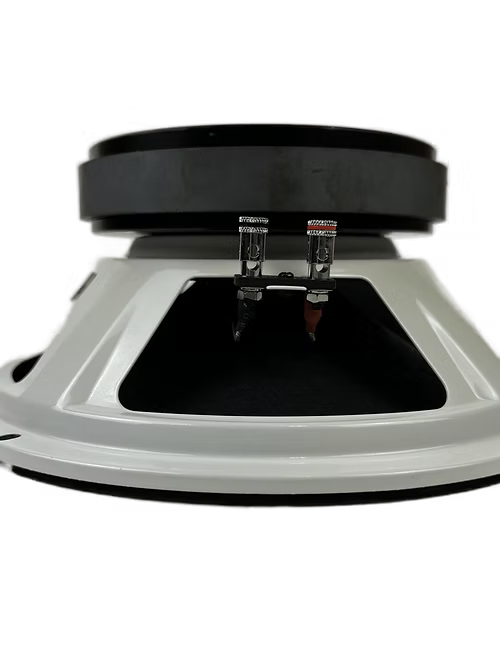

Resilient Sounds RS 10M 10" Pro Audio Midrange Loudspeaker (single)

The RS 10M is a 10-inch pro audio midrange loudspeaker built for demanding car installs, delivering precise midrange and vocal clarity with solid power handling.

• Nominal Diameter: 10" (254mm) — standard 10" midrange footprint that fits common enclosures and mounting locations.
• Max Power Handling: 600 W — supports short-term peak energy for dynamic music passages without exceeding the driver’s limits.
• RMS Power Handling: 300 W — indicates safe, continuous amplification for reliable daily listening levels.
• Frequency Response: 70 Hz - 7 kHz — covers lower mids through upper mids, providing vocal presence and instrument detail.
• Sensitivity: 98.5 dB — higher efficiency means more output from a given amplifier power, aiding loud yet controlled response.
• Nominal Impedance: 4 ohms — compatibility with common car amplifiers and crossover designs, influencing power delivery and damping.
• Voice Coil Diameter: 1.5" — larger coil provides improved heat distribution and control under power, aiding dynamic performance.
• Magnet: Ferrite — stable magnetic field in a compact package, contributing to consistent midrange control.
• Cone Area (Sd): 349.6 cm² — larger cone area moves more air for stronger midrange output and presence.
• Vas: 37.94 L — enclosure volume guidance for appropriate sealed or vented designs to achieve expected response.
• Fs: 72 Hz — free-air resonance informing low-end behavior and enclosure tuning considerations.
• Qts: 0.44 — combined driver behavior in a box, indicating flexible enclosure options for balanced performance.
• Qms: 5.51 — mechanical damping factor, affecting transient response and control under dynamic excitation.
• Qes: 0.48 — electrical damping factor, shaping how the driver interacts with the enclosure and crossover.
• Mms: 22.21 g — moving mass influencing acceleration and midrange transient behavior.
• Re: 3.2 Ω — DC resistance used for amplifier matching and thermal considerations.
• BI: 8.21 Tm — motor strength indicator, relating to control during excursion and overall efficiency.
• Overall Diameter: 10.11" (257mm) — external size for fitment planning alongside mounting hardware.
• Front Mount Baffle Cutout: 9.13" (232mm) — recommended hole size for front-mount installation.
• Mounting Depth: 3.85" (98mm) — how far the driver sits behind the mounting surface.
• Overall Depth: 4.21" (107mm) — total depth including mounting flange for clearance checks.

The RS 10M is engineered for midrange-focused car audio builds, delivering clear vocal presence and instrument detail within a 4-ohm system. Its 98.5 dB+ efficiency, ferrite magnet stability, and defined enclosure guidance (Vas, Fs) help you design a responsive front-stage or midrange module that integrates with other drivers to achieve balanced, dynamic sound in a vehicle environment.
