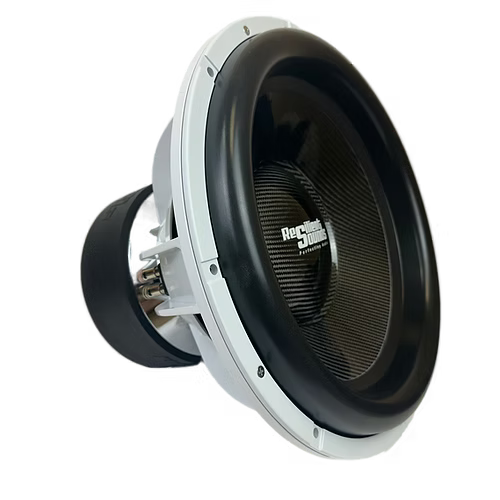

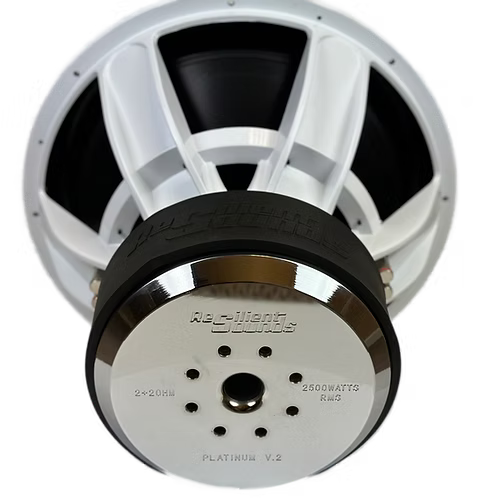

Resilient Sounds Platinum V2 Series 18" Subwoofer

The Resilient Sounds Platinum V2 Series 18" Subwoofer is a high-power, premium-grade woofer built for serious bass enthusiasts seeking deep, controlled output from a dedicated 18-inch driver. It combines a larger motor, longer coil, and carbon fiber cone with a cast aluminum frame to deliver robust performance in demanding installations.

• Size: 18" subwoofer, part of the Platinum V2 lineup for premium build quality.
• Motor: 13% larger motor for greater force and control at high excursion.
• Voice coil: 20% longer 3" 8-layer coil for improved thermal handling and linearity under heavy power.
• BL^2/RE: Increased by as much as 50% (plat 12V1 vs Plat 12V2) for better efficiency and electrical performance.
• Spider pack: 10" spider pack with insulated dual leads for reliable high-power operation.
• Cone and dust cap: Carbon fiber cones and dust caps standard with the Platinum line.
• Surround: New high roll tooled surrounds designed for durable long-term performance.
• Frame: Cast aluminum frame for rigidity and strength.
• Power handling: Conservatively rated at 2,500 RMS / 5,000 Watts peak.
• XMAX: 35 mm of linear excursion capability.
• Mounting note: For mounting Resilient Sounds V2 models with trim rings, a hex head screw is recommended to avoid flaring and prevent trim ring cracking.
• Box specs: 4-6 cubic feet per subwoofer.
• Tuning: 28–33 Hz for strong low-end extension in a vented enclosure.
• Port area: 12–16 square inches of port area per cubic foot.
• Mounting depth: 12.5 inches mounting depth.
• Cutout: 16.93 inches.
• Displacement: 0.33 cubic feet.
• Trim Ring removal instructions: The Resilient Sounds V2 trim ring is decorative and helps secure the surround; removing it is not recommended unless performing a recone and may void the manufacturer warranty. If proceeding, use a Phillips screwdriver to remove 4 screws, then heat with a heat gun and pry tool to free adhesive around the ring, handling carefully as components may be hot. Reinstall with only hand-tightened screws. Follow steps carefully and contact Info@resilientsounds.com with any questions.

Benefits: This 18" Platinum V2 sub is tuned for a practical 28–33 Hz window in a 4–6 ft³ enclosure per sub, with ample port area to yield deep bass without excessive enclosure size. The combination of a larger motor, longer coil, and higher BL^2/RE improves control and thermal performance under demanding SPL tasks, while the carbon fiber-cone design and rigid cast-aluminum frame provide structural integrity for high-power listening environments. It suits premium multi-sub builds or single-driver setups where deep, punchy bass and reliable power handling are priorities.
