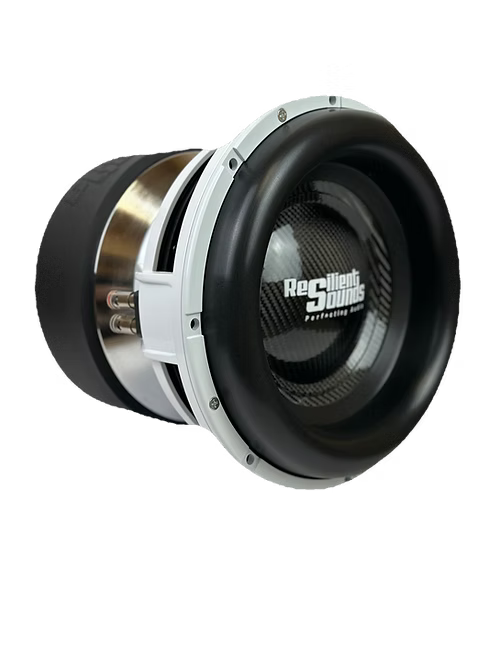

Resilient Sounds Platinum V2 Series 12" Subwoofer

The Resilient Sounds Platinum V2 Series 12" Subwoofer is a high-performance 12-inch driver built for demanding car audio systems, delivering deep bass with authoritative control. It combines a larger motor, extended voice coil, and carbon fiber cone for stiffness and durability.

• Power handling: 2,500 RMS / 5,000 Watts peak — provides headroom for sustained bass and dynamic peaks without early compression.
• 13% larger motor: Increases magnetic flux for improved control and efficiency at high excursion, helping bass stay punchy under heavy demand.
• 20% longer 3” 8-layer voice coil: More copper length and wrap enable greater excursion and heat dissipation, supporting higher power before compression.
• XMAX 35 mm: High excursion capability translates to deeper bass extension and more aggressive low-end output.
• 10" spider pack with insulated dual leads: Enhances cone centering and reliability under intense movement while maintaining clean, uninterrupted signal paths.
• Carbon fiber cone and dust cap: Stiff, lightweight construction reduces cone flex for tighter, more accurate bass response.
• New high roll tooled surrounds: Durable edge geometry improves excursion and longevity while preserving suspension control.
• Cast aluminum frame: Rigid framework minimizes chassis flex and helps maintain alignment under high power.
• BL^2/RE improvements: Increased by as much as 50% between Plat 12V1 and Plat 12V2, enhancing efficiency and potential output.
• enclosure and mounting specifics: Box specs 2.00–3.00 cubic feet per sub, tuning 28–33 Hz, port area 12–16 square inches per cubic foot, with mounting depth 10.25 inches, cutout 11.175 inches, and displacement 0.25 cubic feet.
• Trim ring mounting note: For Resilient Sounds V2 models with trim rings, use hex head screws to avoid flaring and potential trim ring cracking.

In a 2.0–3.0 cu ft enclosure tuned to 28–33 Hz, this driver delivers controlled, deep bass with solid linearity and high power handling. The combination of a reinforced motor, long coil, carbon fiber cone, and rigid cast aluminum frame makes it well-suited for high-output street bass and premium audio systems where precision and durability matter most.
