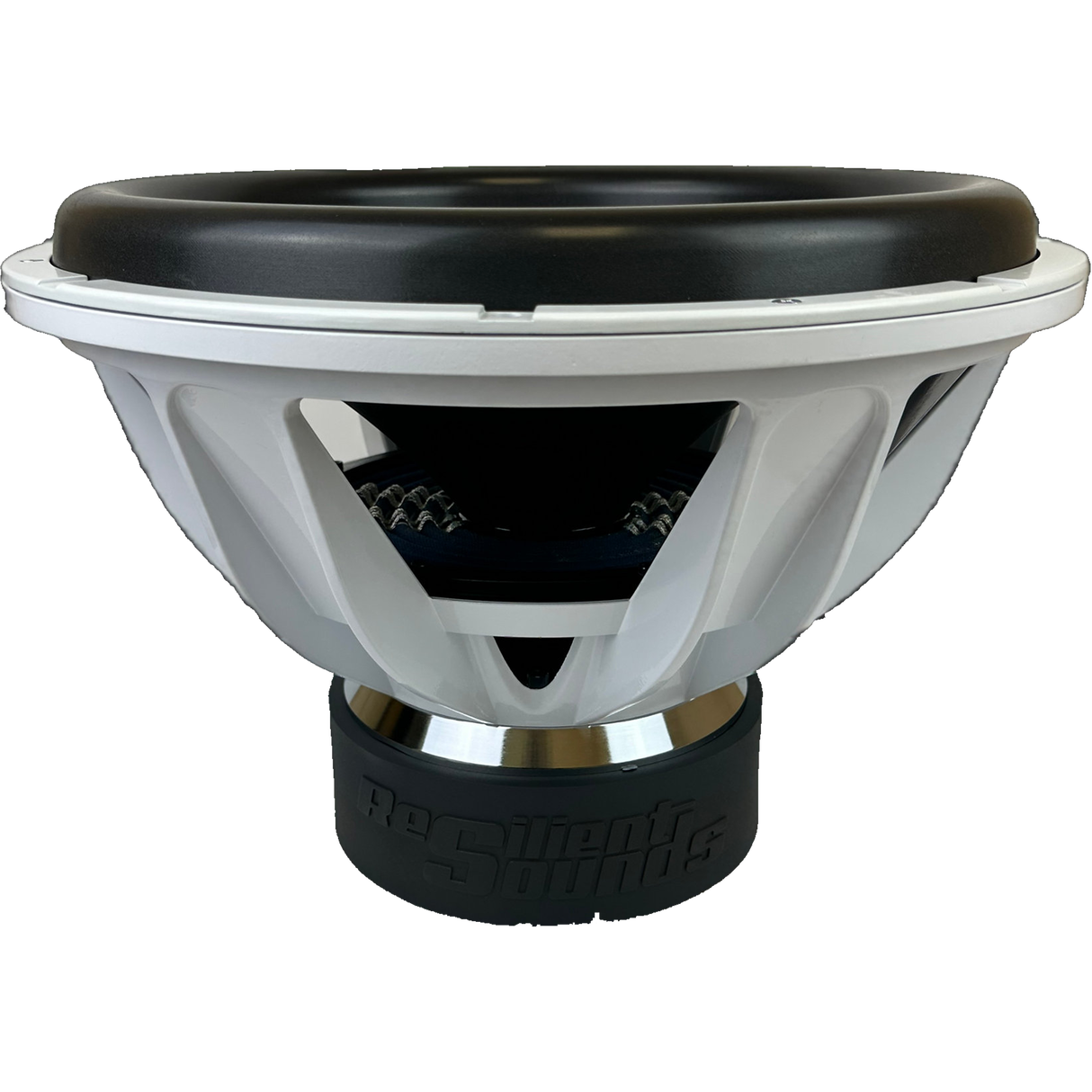

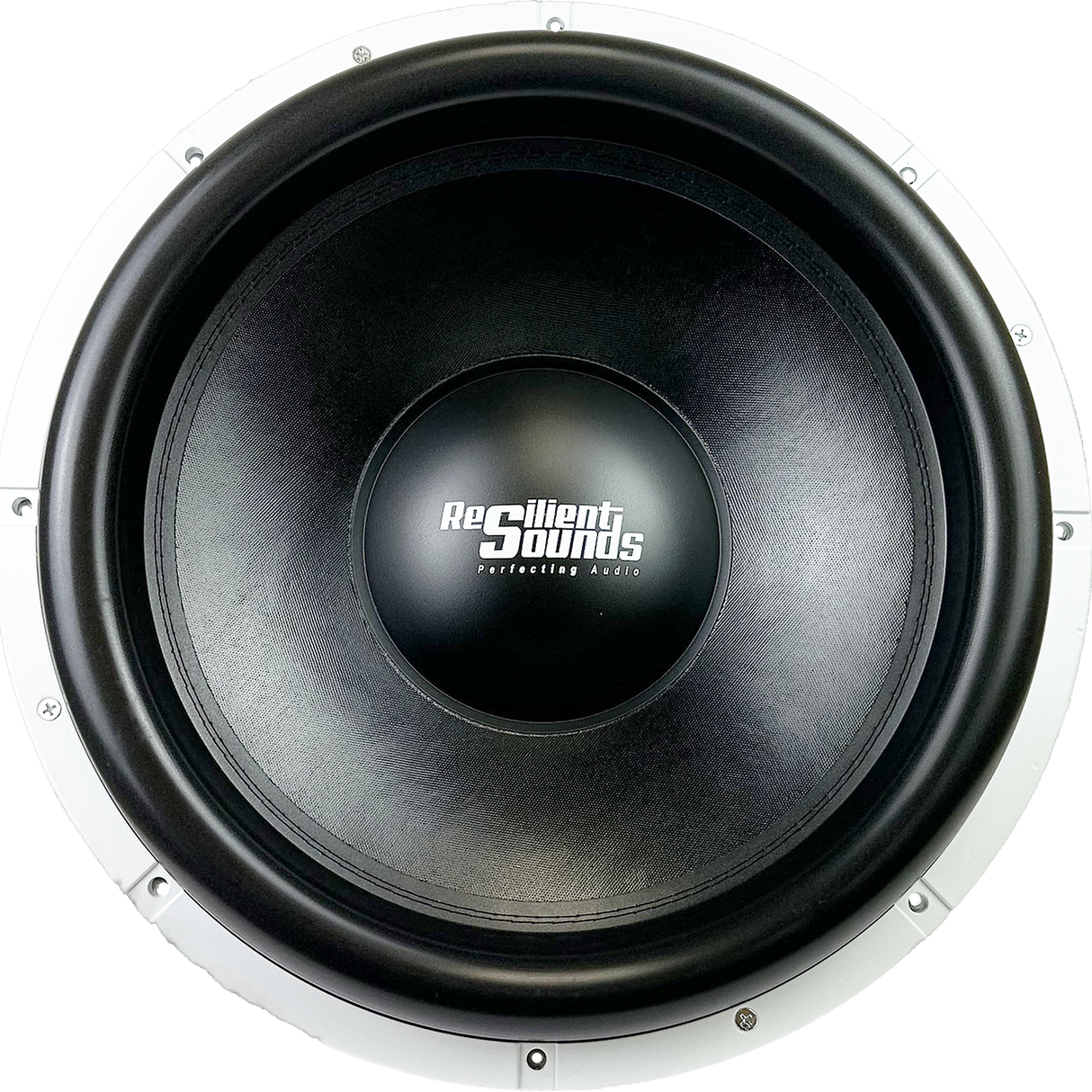

Resilient Sounds Gold V2 Series 18" Subwoofer

The Resilient Sounds Gold V2 18" Subwoofer is built for serious car-audio builds, delivering tight, extended bass from a high-excursion 18-inch driver with a conservatively rated 1500 Watts RMS. A 3" four-layer voice coil (25% longer than V1) paired with a vented triple-stack 220mm motor provides strong magnetic control and robust thermal handling for demanding playback.

• Voice Coil: 3" four-layer design (25% longer than V1) increases thermal capacity and excursion potential for demanding tracks.
• Motor Assembly: Triple Stack 220mm motor with venting (15% larger than V1) delivers greater magnetic force and improved cooling under heavy output.
• Surround: NEW High Roll Tooled Surround supports linear travel and durability at high excursion.
• Frame & Hardware: Cast aluminum frame, aluminum gasket, engraved bottom plate, and molded motor boot for rigidity and consistent mounting.
• Magnetic Circuit: Aluminum shorting ring to reduce inductance and improve high-frequency response.
• Terminals: 4 GA push terminals for robust, low-resistance wiring.
• Power Handling: Conservatively rated 1500 Watts RMS.
• XMAX: 31mm of peak linear excursion for deep, impactful bass.
• Impedance: Dual 2 Ohm or Dual 4 Ohm voice coils for flexible wiring options.
• Size Availability: Available in 10", 12", 15", and 18" models.
• Trim Ring Mounting: For mounting V2 models with trim rings, use hex head screws to avoid flaring and potential trim ring cracking.
• Enclosure Specs: 4-6 cubic feet per subwoofer; tuning 28-32 Hz; port area 12-16 square inches per cubic foot; mounting depth 11.56 inches; cutout 16.93 inches; displacement 0.28 cu ft; outside diameter 18 5/32 inches.

In a properly sized 4-6 ft³ enclosure tuned to roughly 28–32 Hz, this driver delivers deep, controlled bass with the muscular authority needed for high-SPL music and cinematic tracks. The combination of a large voice coil, robust motor assembly, and rigid aluminum construction reduces distortion under demanding duty while maintaining reliable performance across the installed range.
