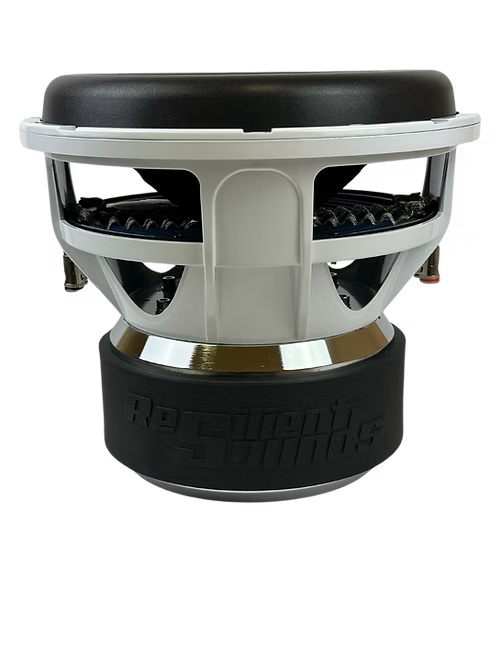

Resilient Sounds Gold V2 Series 12" Subwoofer

The Resilient Sounds Gold V2 Series 12" Subwoofer is a high-excursion, high-power woofer built for enthusiasts who demand serious bass in larger enclosures. It pairs a 3" four-layer voice coil with a vented triple-stack 220mm motor and rigid aluminum construction to deliver controlled, high-output low end.

• Power handling: Conservatively rated 1500 Watts RMS, meaning you can push substantial musical and transient bass with appropriate amplification and thermal management.
• Voice coil: 3" four-layer voice coil, 25% longer than V1, which increases surface area for heat dissipation and helps maintain linear performance under higher power.
• Spider pack: 10" spider pack with dual sewn leads, providing durable mechanical support and reliable electrical connection under heavy excitation.
• Surround: New high-roll tooled surround, designed to improve excursion control and durability during aggressive low-frequency playback.
• Motor assembly: Triple-stack 220mm motor with venting, 15% larger than V1, for higher force factor and better heat removal at high power.
• Frame and components: Cast aluminum frame, aluminum shorting ring, and aluminum gasket, contributing to rigidity, coil control, and sealing in demanding builds.
• Terminals: 4 GA push terminals, enabling robust, high-current wiring for low-impedance setups.
• Bottom and boot: Engraved bottom plate and molded motor boot, adding durability and a premium aesthetic while aiding dust and moisture protection.
• XMAX: 31 mm of peak linear excursion capability, supporting deep bass with controlled cone travel when properly mounted.
• Size availability: Available in 10", 12", 15", and 18" diameters to fit a range of enclosures and vehicle applications.
• Enclosure specs: ENCLOSURE SIZES: 1.75–2.75 cubic feet per sub; tuning 29–33 Hz; port area 12–16 in² per cubic foot; mounting depth 9.125 in; cutout 11.175 in; displacement 0.20 cu ft; outside diameter 12 5/32 in. This gives you flexible, data-driven options for sealed or ported builds.
• Trim ring compatibility: For mounting Resilient Sounds V2 models with trim rings, a hex head screw is recommended to avoid flaring and cracking the trim ring.

In a real car install, this woofer excels in large enclosures powered by capable amplifiers, delivering controlled, punchy bass with ample thermal headroom. Its enclosure range, power rating, and robust construction make it suitable for high-output street systems or competition-oriented setups that require reliable, enduring performance.
