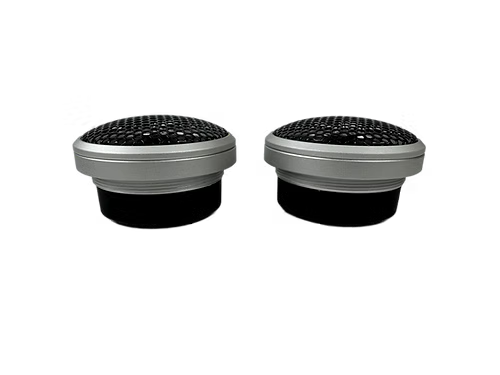

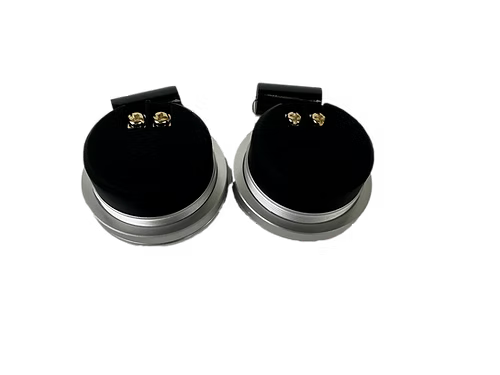

Resilient Sounds EST-1 1" NEO Tweeter (Pair)

The Resilient Sounds EST-1 1" NEO Tweeter (Pair) is a compact high-frequency driver designed for premium car audio systems, delivering crisp highs with broad extension from 650 Hz to 40 kHz.

• 1" NEO Tweeter: 1" dome tweeter design with a silk cone tailored for smooth high-frequency output.
• RMS Power: 30RMS — this is the continuous input rating, indicating how much power the tweeter can regularly handle from an amplifier in normal use.
• Max Power: 60W — reflects the upper limit for brief, high-signal bursts or transients beyond the continuous rating.
• Nominal Impedance: 4 Ohm — defines the electrical load the driver presents to the amp and influences compatibility with common car audio amplification.
• Sensitivity: 90 dB @ 1W/1m — shows how loudly the tweeter will play from a given input and is useful for estimating required amplifier headroom.
• Frequency Range: 650 Hz – 40 kHz — specifies the frequencies the driver reproduces, underscoring its role as a high-frequency component in a system.
• Voice Coil: 26 mm — the coil size affects heat handling and excursion within a compact form factor.
• Cone: Silk — a silk cone contributes to smooth treble with controlled breakup for natural sounding highs.
• Mounting Depth: 24 mm — shallow mounting depth aids installation in tight dash or door panels where space is limited.
• Mounting Diameter: 49 mm — requires a 49 mm mounting hole, informing fitment and cutout planning.
• Sold As: Pair — ships as a matching pair for symmetric stereo installation.

In a car audio build, EST-1 provides dedicated high-frequency extension for two-way or component systems. Its 4-ohm load and 90 dB sensitivity help achieve crisp, detailed treble with moderate amplifier power, while the compact depth and silk-cone design support smooth integration with midrange or midbass drivers running from the midrange onward. Pairing these tweeters creates balanced front-stage highs with consistent imaging across the left and right channels.
