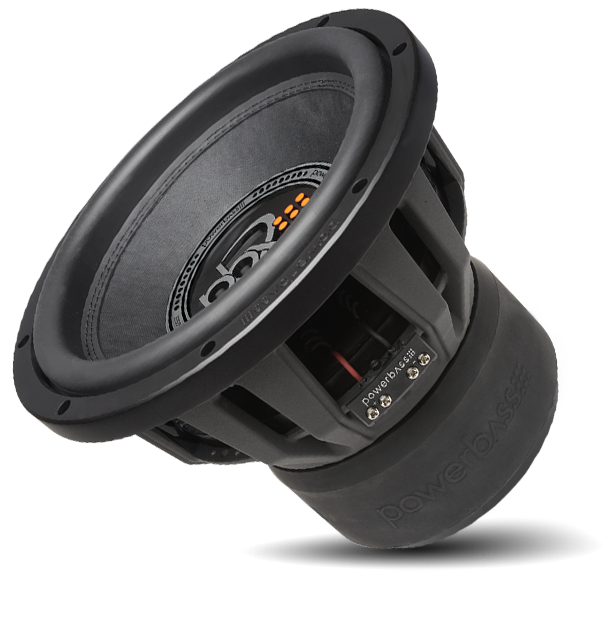

Powerbass 3XL-1210D 12" Subwoofer

Powerbass 3XL-1210D is a 12" dual 1-ohm subwoofer featuring a new PBX logo dust cap, designed for high-output ported installations with a 1000W RMS (2000W peak) capability and a 3" vented voice coil for strong, controlled bass.

• Dual 1-ohm voice coils: Two 1-ohm coils provide wiring flexibility to match a range of amplifiers and loads.
• Power handling: 1000W RMS and 2000W maximum peak performance for demanding bass passages without clipping when used within specification.
• Cone and surround: Pressed and coated pulp paper cone with a high-roll NBR surround supports high excursion and durable operation.
• Ventilated voice coil and cooling: 3" vented BASV voice coil former plus perimeter aero-vent cooling vents help dissipate heat during extended bass output.
• Motor and basket: XTRA large triple-stacked magnet structure and a non-resonant DDC coated cast aluminum basket deliver rigidity and precise control.
• Terminals: Square spring-loaded nickel-plated push terminals ensure solid, corrosion-resistant connections.
• Frequency response and sensitivity: 25 Hz–450 Hz with 89 dB (1W/1M) sensitivity for efficient power-to-output translation.
• Physical fit: Cutout diameter 11.06" (282 mm) and mounting depth 9.1" with a 228.46 oz magnet for a substantial, stable mounting footprint.
• Enclosure design: Optimally designed for ported enclosures to maximize bass output and efficiency.

In a real car audio build, the 3XL-1210D excels in ported systems where you need deep, controlled bass with high dynamic capability. The dual 1-ohm coils and robust motor assembly support demanding amplifier loads while the heat-management features maintain performance during long, demanding bass passages. Pair it with a capable amplifier and a properly tuned ported enclosure to realize its full low-end potential.
