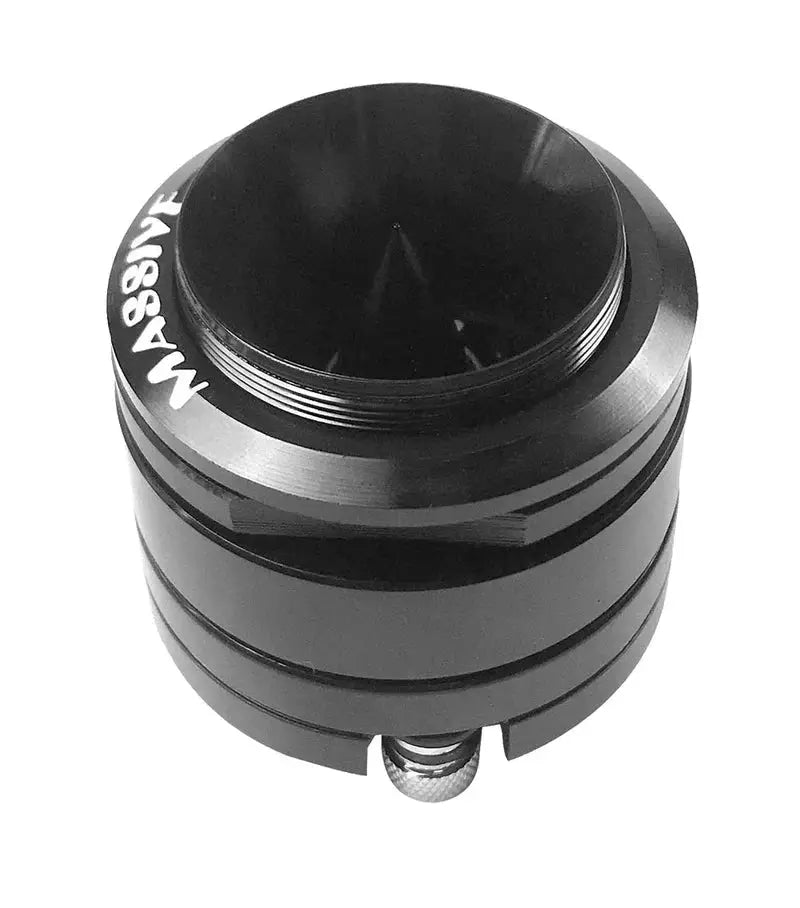

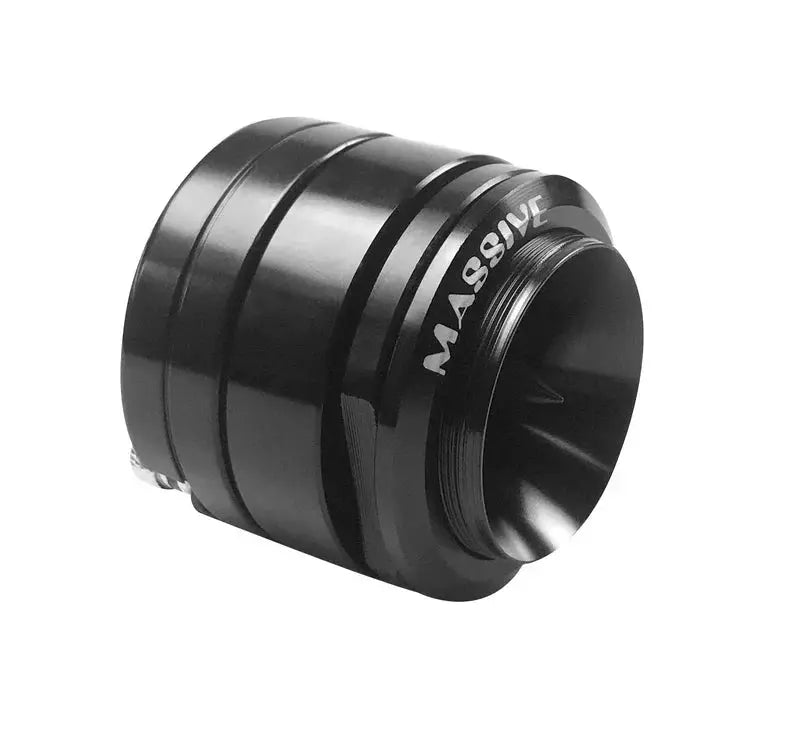

Massive Audio CT4Xv2 1" Titanium Diaphragm Super Tweeter (each)

Massive Audio's CT4XV2 Power Bullet Tweeters are 1" titanium-diaphragm compression drivers built for high-end car audio enthusiasts who demand crisp, extended highs and straightforward in-car mounting. Designed with neodymium magnets and a 12 Volt Pro system in mind, they deliver clean top-end performance with reliable heat management.

• Throat Size: 1" (25.5mm) throat size indicates the coupling bore from the driver to the horn or mounting interface, influencing fitment and how efficiently the tweeter can couple to the crossover network.
• Nominal Impedance: 4 Ohm — a common load for car amplifiers and crossovers, enabling flexible amplifier pairing without excessive impedance mismatch.
• Power Rating RMS: 30 Watts — continuous input capability, guiding how much average power you can apply without overheating or distortion.
• Max Power: 120 Watts — peak input the tweeter can handle briefly, useful for transient peaks in music without immediate damage when used within system headroom.
• Usable Frequency Range: 3KHz - 25KHz — covers the essential high-frequency spectrum for detailed cymbals, sibilance, and air in the soundstage.
• Sensitivity: 100 dB — high efficiency, meaning more output from each watt of amplifier power and potentially lower amp Current draw for the same output.
• Magnet Weight: 37 oz — substantial neodymium magnet contributes to strong magnetic flux for better control and dynamic response.

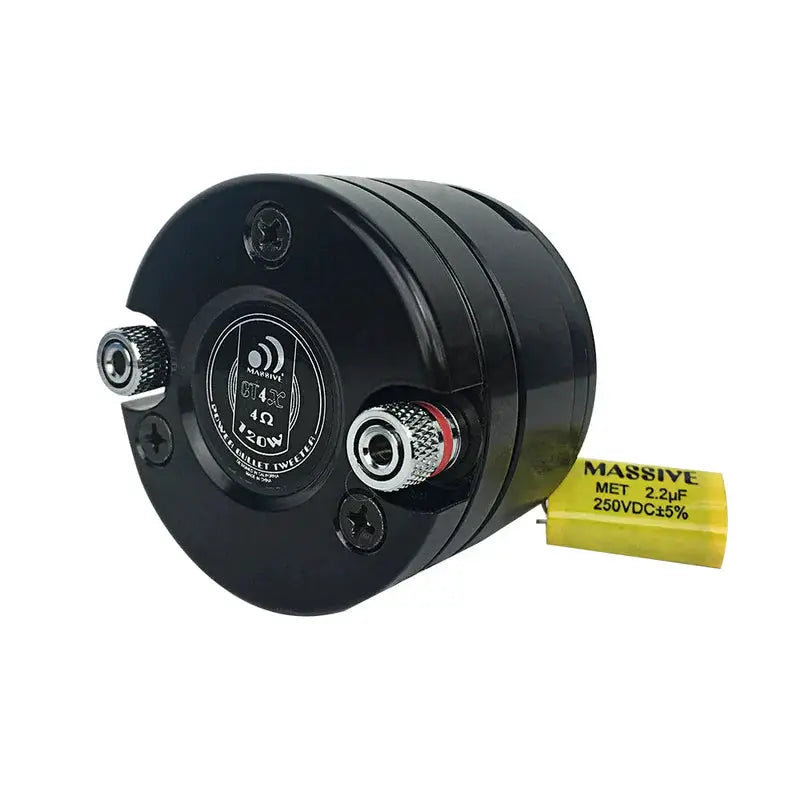

• Filter: 2.2uF/250V Cap Filter — built-in cap filter shapes the high-frequency response and protects the voice coil from excessive HF energy.
• Voice Coil Diameter: 25mm — indicates the coil size and heat handling capability, which influences power handling and thermal performance.
• DC Resistance (Re): 3.7 Ohm — electrical resistance of the voice coil, relevant to crossover design and amplifier load calculations.
• Overall Diameter: 2.3" (58mm) — physical footprint for mounting considerations and fit in tight dash or door locations.
• Mounting Holes Diameter: 70mm — mounting hole pattern compatibility helps determine feasible installation locations.
• Depth: 2.8" (71.12mm) — installation depth important for clearance behind mounting surfaces in doors or dashboards.
• Diaphragm Material: Titanium — rigid, lightweight diaphragm for fast transient response and extended high-frequency performance.
• Magnet Composition: Neodymium — compact, high-strength magnets used to achieve strong magnetic flux in a small form factor.

The CT4XV2 Power Bullet Tweeters are ideal for premium front-stage applications in 12V systems, pairing well with crossover networks and high-fidelity amplifiers to extend high-frequency response without introducing harshness. Their compact size, 4 Ohm impedance, and 30W RMS rating make them a practical upgrade for discerning listeners seeking precise, airy highs from a single 1" titanium diaphragm unit.
