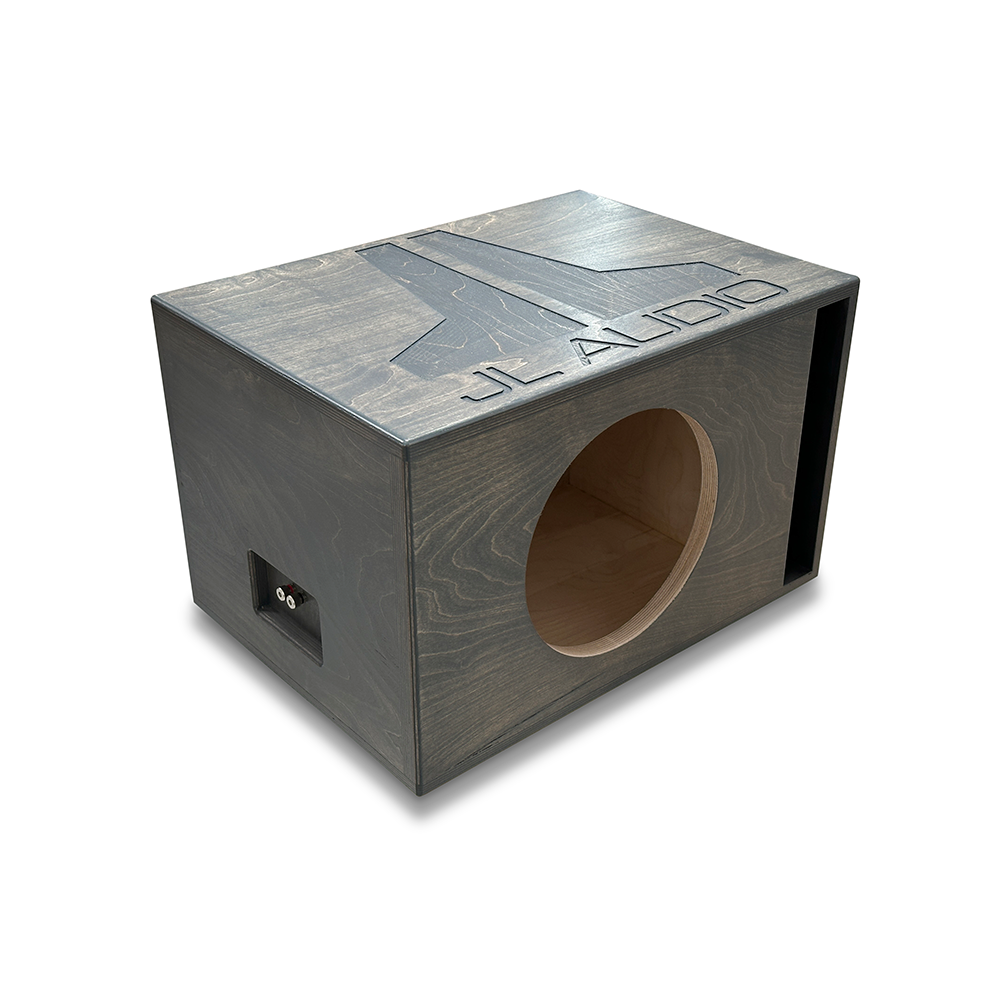

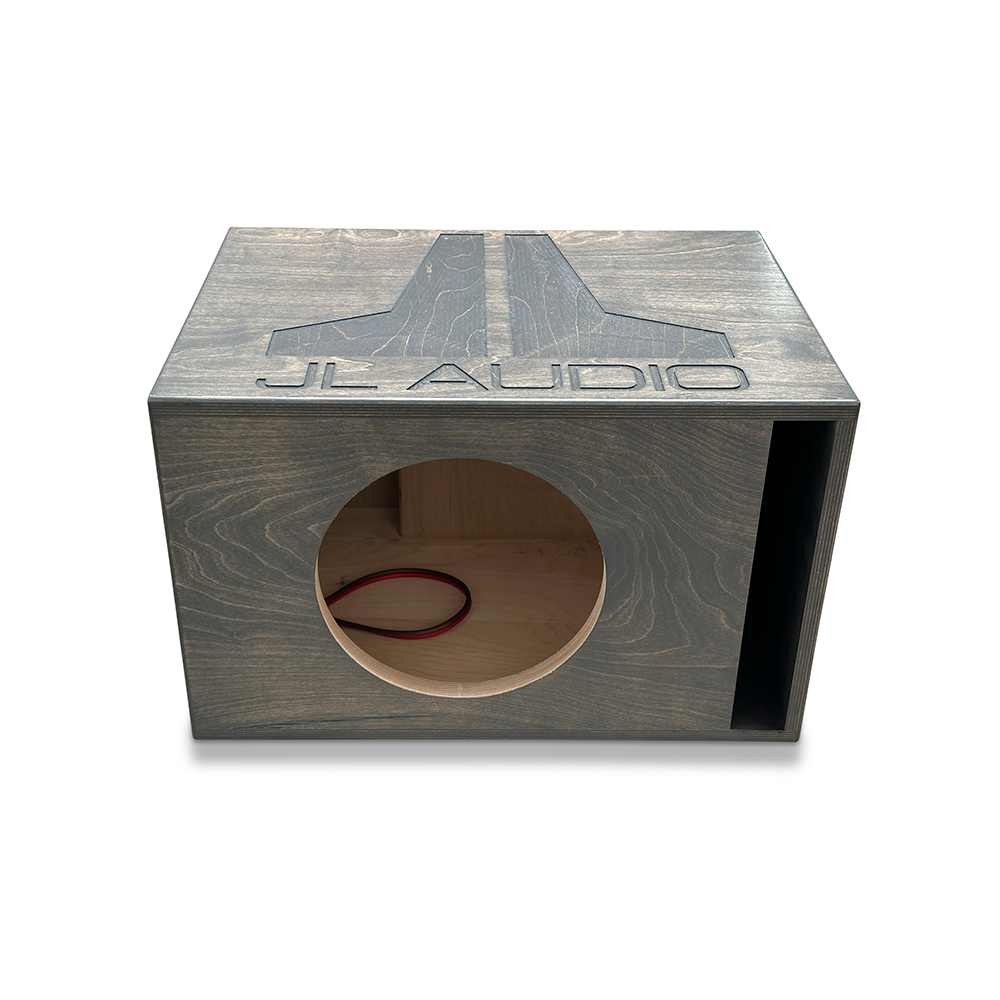

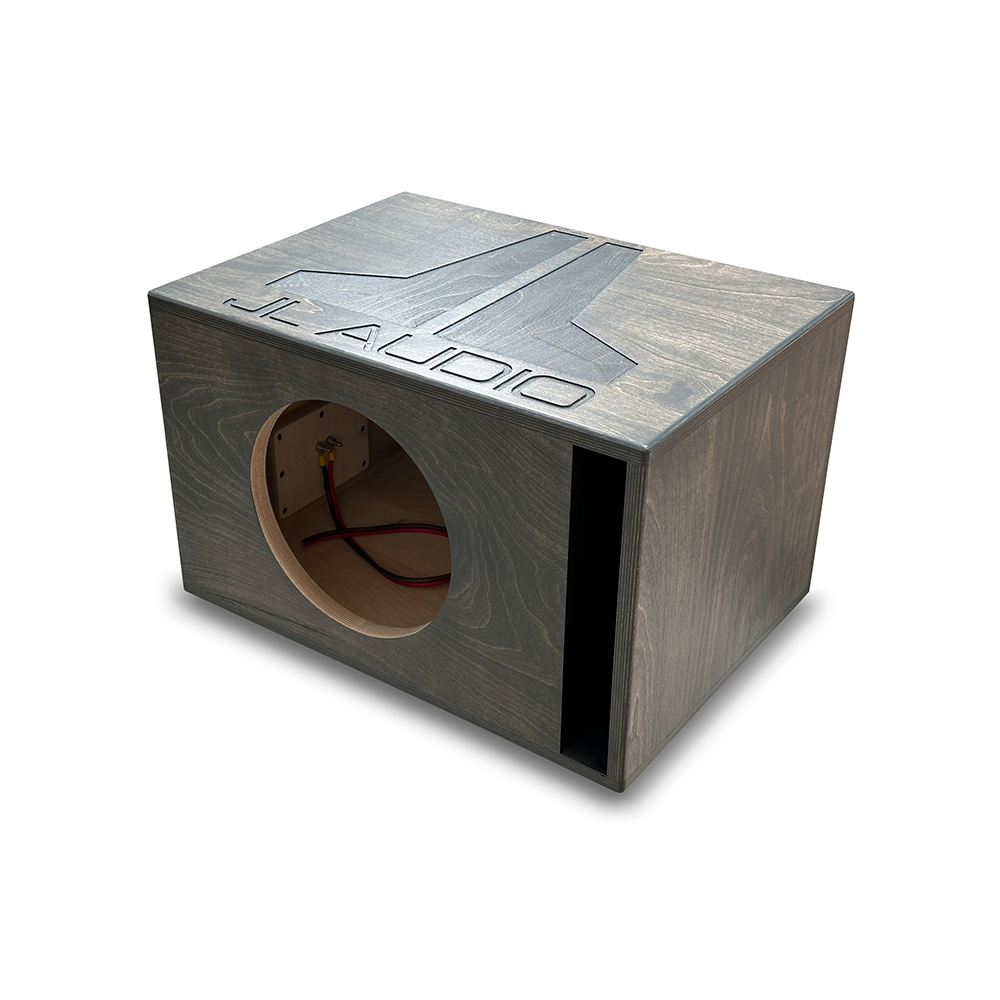

JL Audio Single 13.5" W7 Ported Enclosure

Engineered specifically for the JL Audio W7 13.5" subwoofer, this single-port enclosure delivers optimized airspace and tuning for deep, controlled bass response. Handcrafted in the USA from 13-ply Russian Baltic Birch with a carbon gray finish and zero visible exterior screws, it pairs rigid construction with a clean, show-ready appearance for high-power installations.

• Net Volume: 2.5 cubic feet — provides the designed airspace for the W7 13.5" to achieve deep bass with controlled cone motion.
• Tuning: 32 Hz — positions the bass peak and low-end extension around typical musical content for balanced performance.
• Port Area: 35.62 sq in — larger port area supports airflow at the tuned frequency for punchier response.
• Port Size: 14.998" x 2.375" — port dimensions influence air throughput and enclosure resonance characteristics.
• Cutout: 11.9" — mounting hole diameter for the subwoofer.
• Construction: 3/4" (18mm) Russian Baltic Birch — 13-ply panels resist flex under heavy excursion for tight bass.
• Baffle: Solid 1" (24mm) front baffle — 17-ply adds stiffness where the woofer loads the box.
• Finish: Carbon gray stain with polyurethane topcoat — durable, premium-looking exterior.

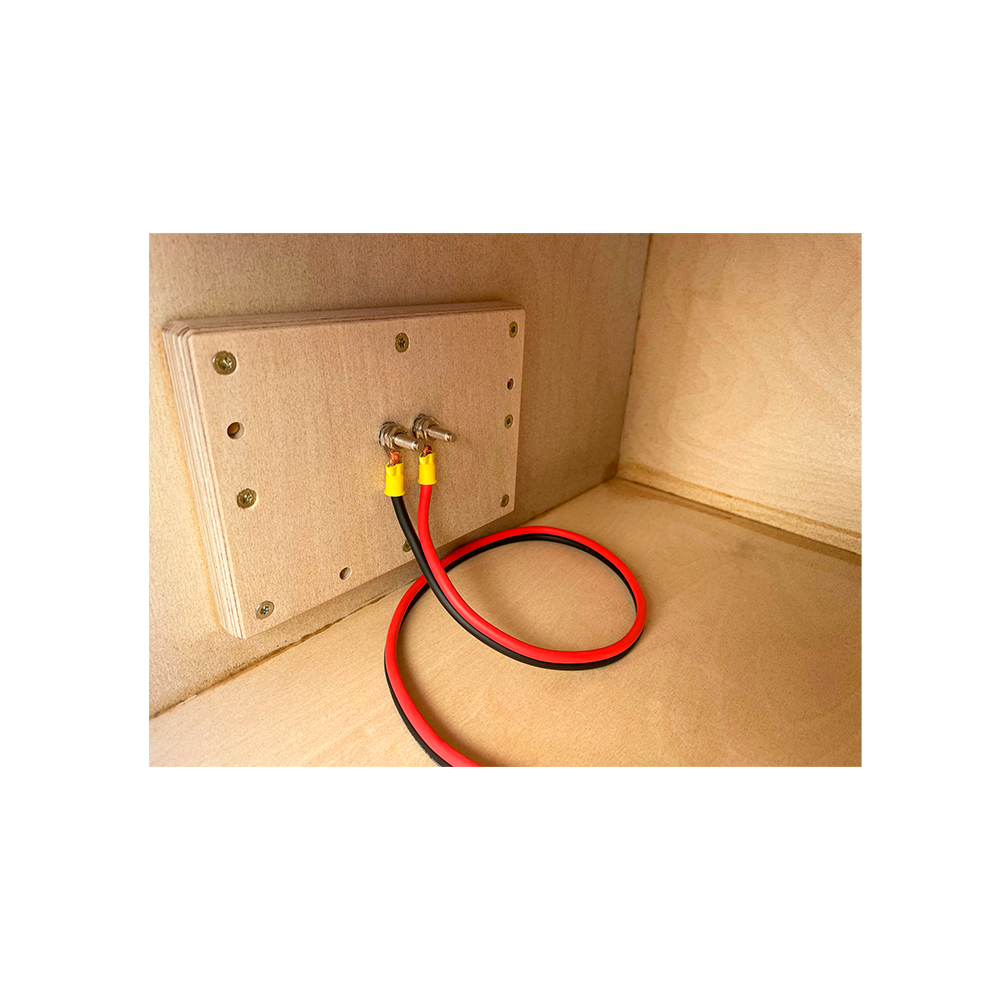

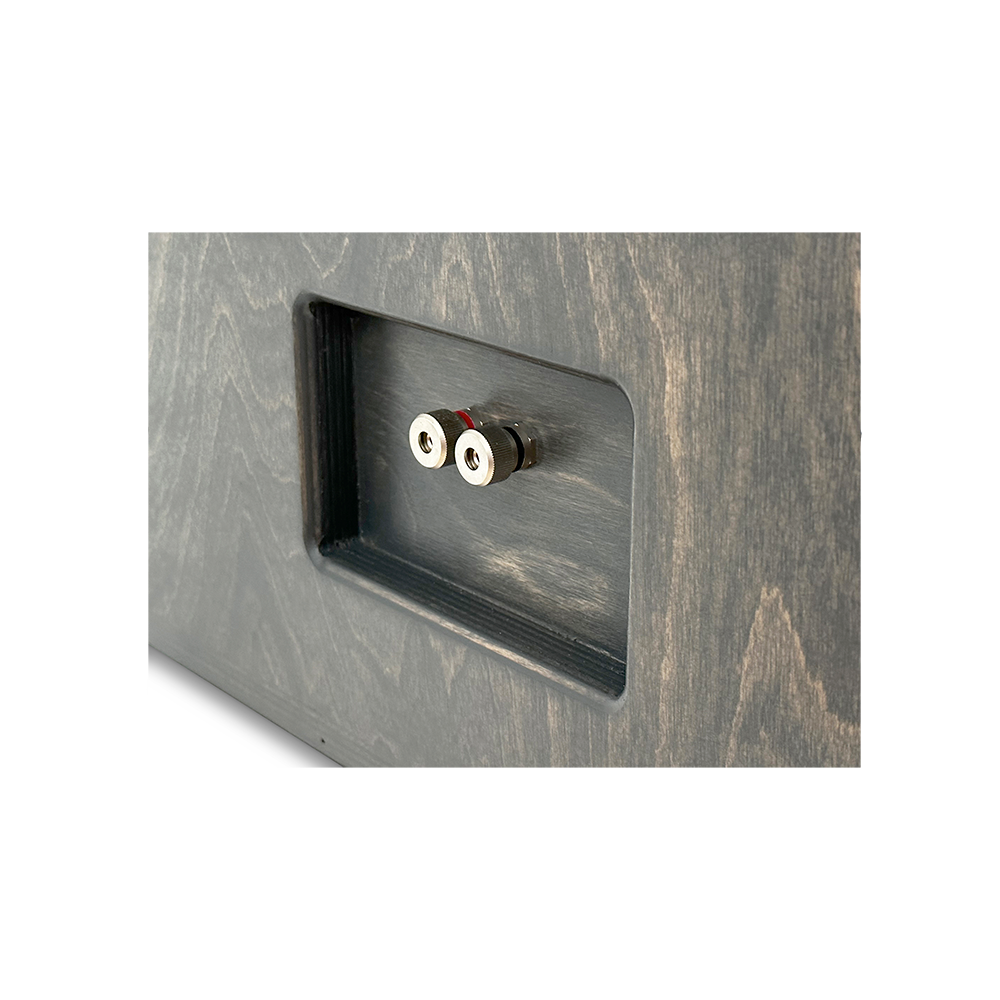

• Wiring: Pre-wired 10ga OFC with metal binding post — simplifies installation and ensures solid power transfer.
• Power Rating: Up to 1750W RMS — handles high-power demands when paired with appropriate amplification.
• Dimensions: Height 16.5", Width 25.75", Depth 18.0" — size footprint suitable for trunk or hatch installations.
• Handcrafted in the USA — built by hand in the United States with a refined assembly process for durability and quality.
• Exterior: Zero visible screw holes — maintains a clean, show-quality exterior appearance.
• Bonding: Fully glued with Titebond III — airtight integrity and long-term durability.
• Ready to install — arrives prepared for wiring the subwoofer; no additional enclosure work required.

In a real car audio build, this enclosure pairs with the W7 13.5" to deliver the designed 2.5 cu ft @ 32 Hz, supporting deep, controlled bass with minimal enclosure flex. The rigid Baltic Birch construction, thick front baffle, and airtight glueing preserve transient response under high power, while the pre-wired wiring and zero-exterior-screw exterior simplify installation and aesthetics. Lead time: built to order; ships in 2-3 weeks.
