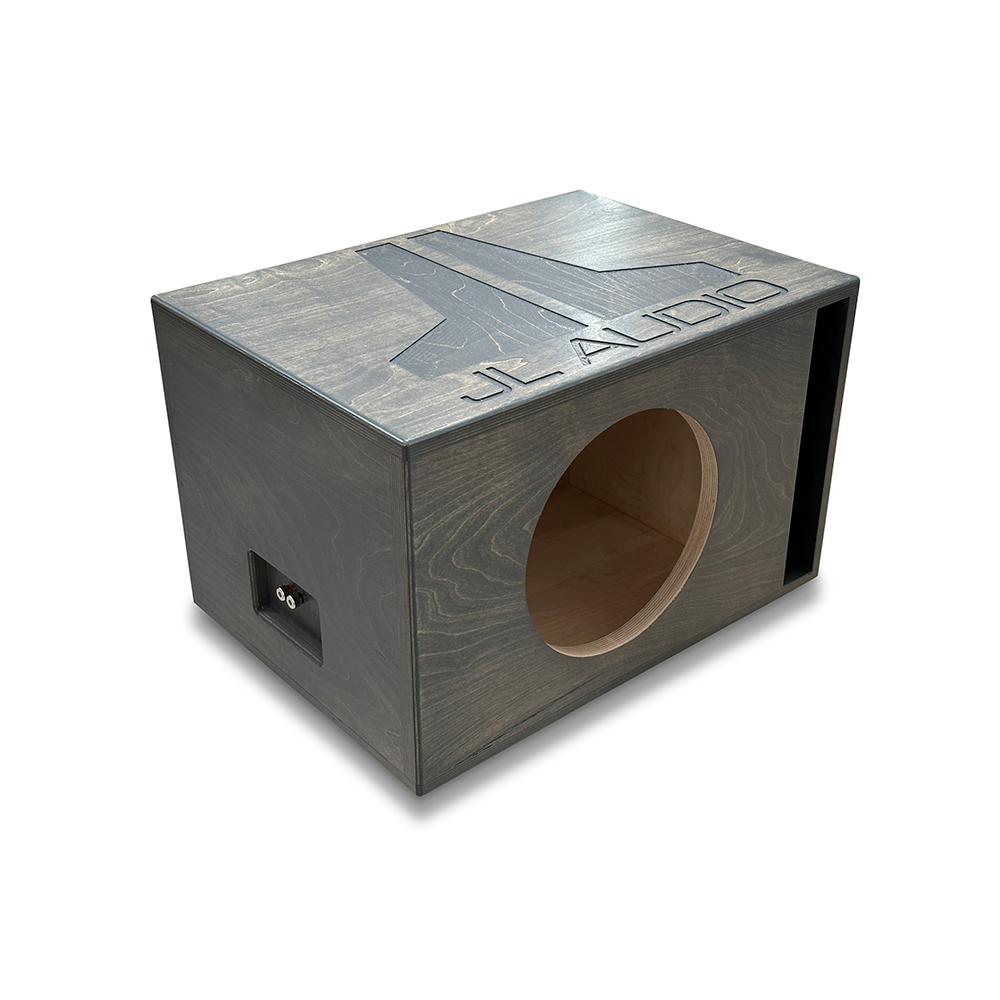

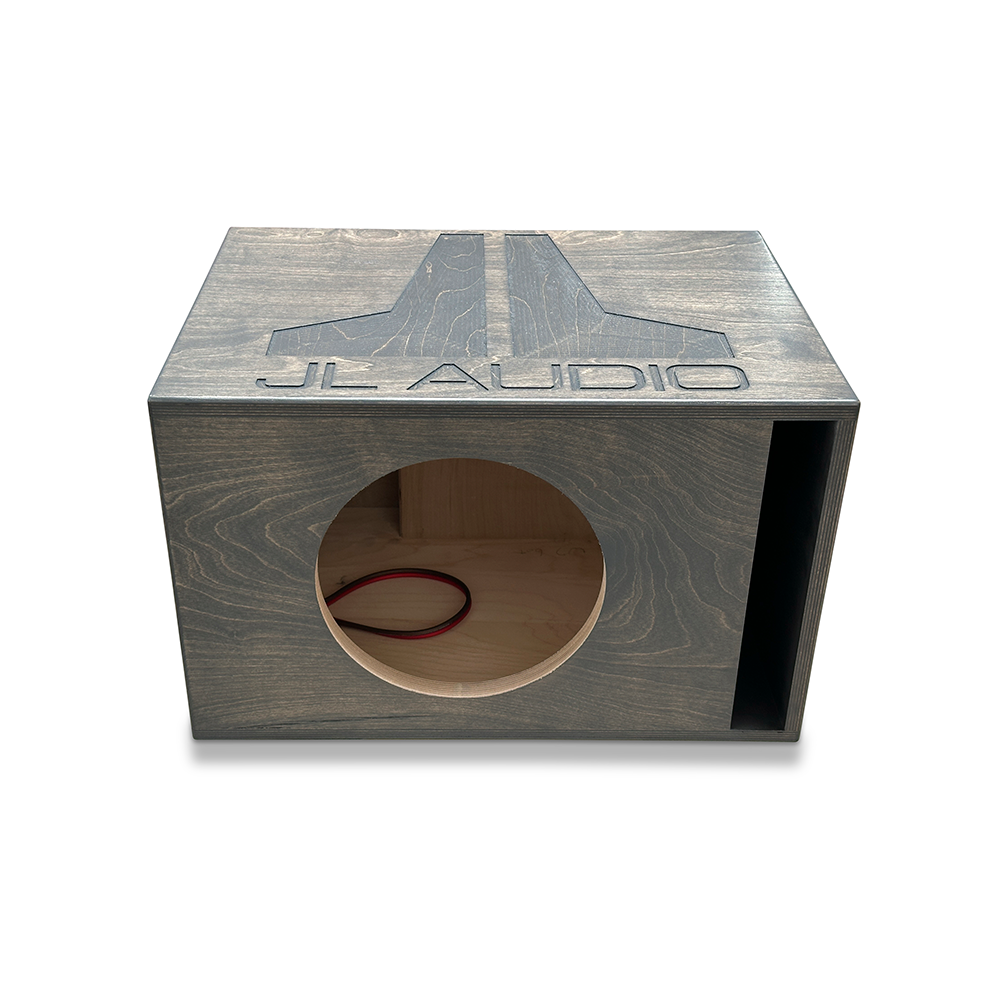

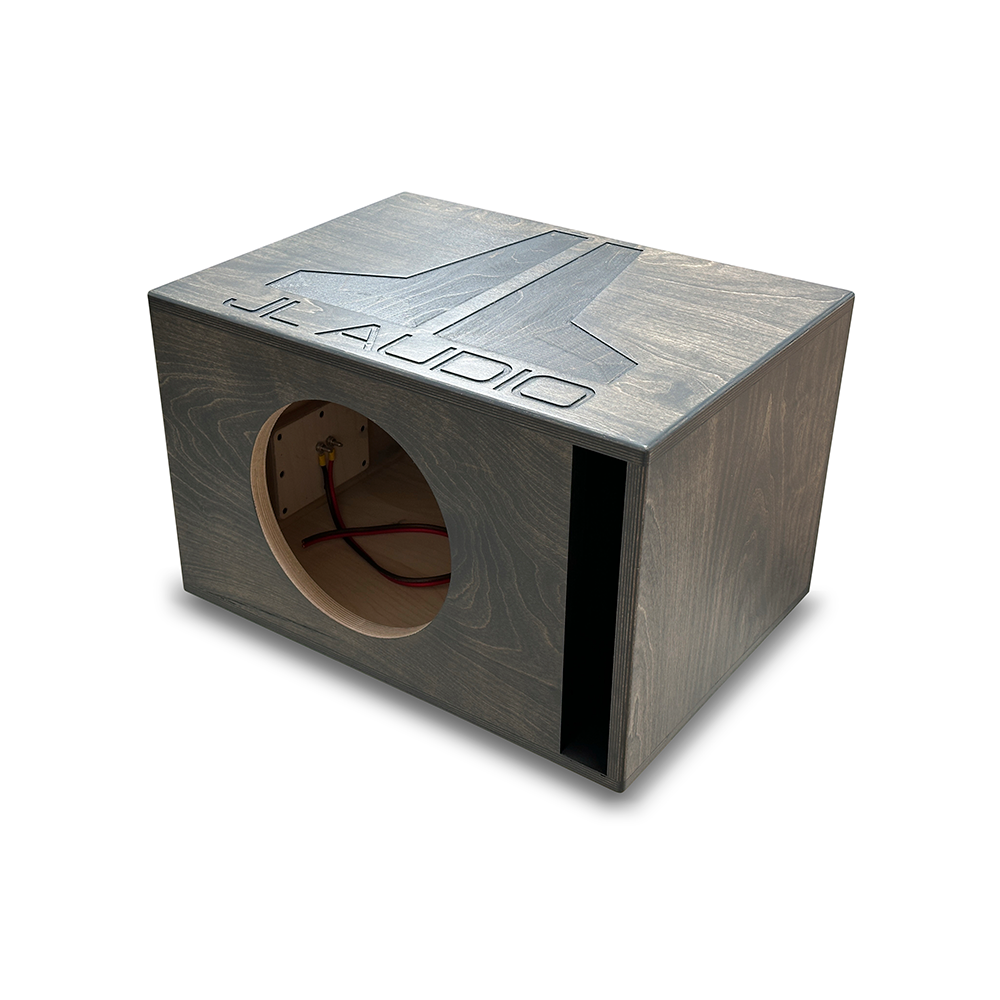

JL Audio Single 12" W7 Ported Enclosure

Engineered specifically for the JL Audio W7 12" sub, this single-12 ported enclosure delivers 2.0 cu ft of airspace tuned to 33 Hz for deep, controlled bass in a hand-built USA chassis.

• Net Volume: 2.0 cubic feet of internal space designed to suit the W7 12" for strong low-end extension.
• Tuning: 33 Hz tuning sets the low-frequency target so the woofer can reach deep bass without excessive port flex at high outputs.
• Port Area: 28.69 sq in port area, influencing airflow and overall port efficiency for clean, punchy response.
• Port Size: 13.501" x 2.125" port dimensions, contributing to the enclosure’s tuned vent characteristics.
• Cutout: 10.05" cutout diameter to accommodate the W7 mounting.
• Construction: 3/4" (18mm) Russian Baltic Birch, 13-ply, providing rigidity with minimal panel flex.
• Baffle: Solid 1" (24mm) front baffle, 17-ply, enhancing stiffness and reducing resonance at depth.
• Finish: Carbon gray stain with polyurethane topcoat for durability and a showroom-ready appearance.

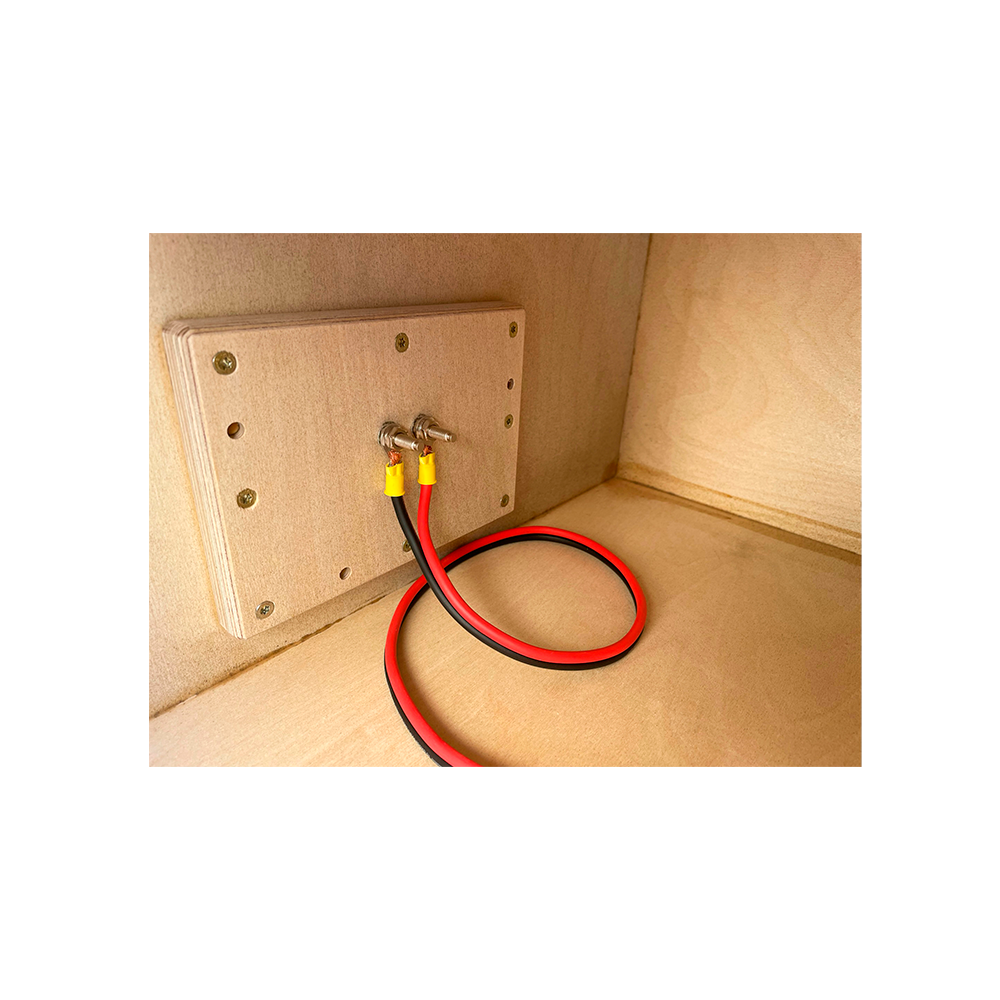

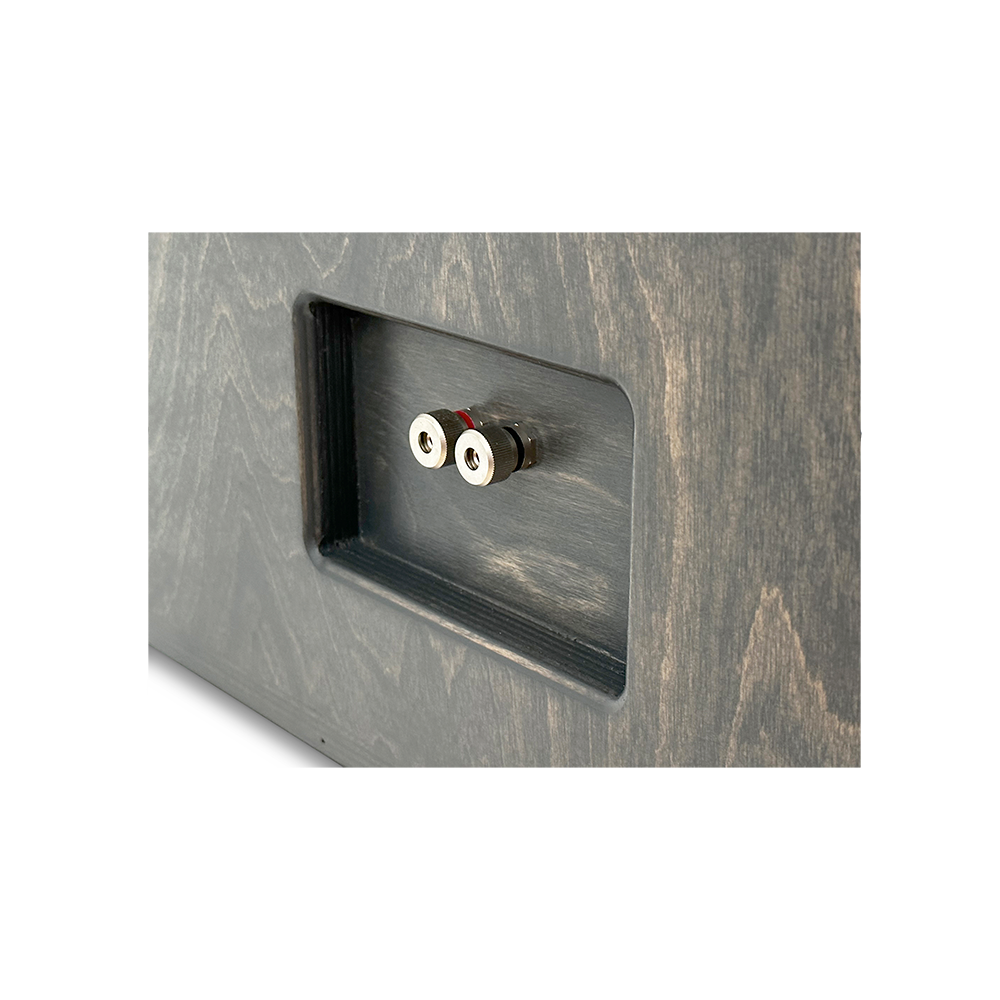

• Wiring: Pre-wired 10ga OFC with metal binding post for straightforward, low-impedance wiring.
• Power Rating: Up to 1750W RMS, aligning with high-power JL W7 installations while maintaining enclosure integrity.
• Dimensions: Height 15.0" x Width 23.875" x Depth 17.25" to fit common vehicle apertures with room for installation tolerances.
• Handcrafted in the USA: Built by hand in the United States with a show-quality exterior—zero visible exterior screw holes.
• Lead Time / Shipping: Lead time is built to order; ships in 2–3 weeks.
• All Sales Final: Policy stated in product details.

In a real car audio build, this enclosure provides a matched airspace and tuned venting for the W7 12" that supports deep, controlled bass while preserving enclosure rigidity and airtight integrity thanks to Titebond III glue. The no-exterior-screw exterior and ready-to-wire configuration simplify installation, enabling a clean, performance-focused setup.
