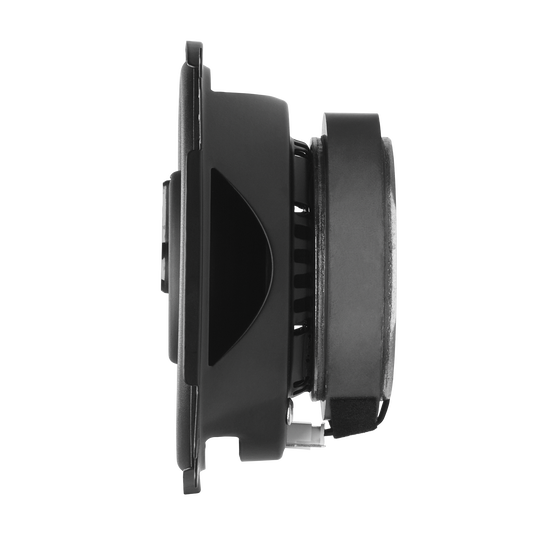

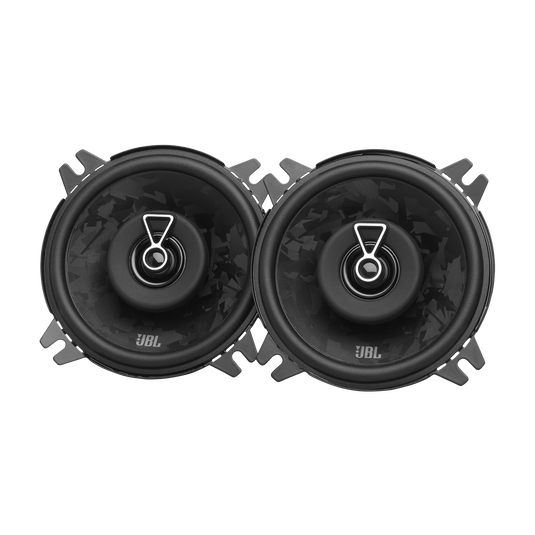

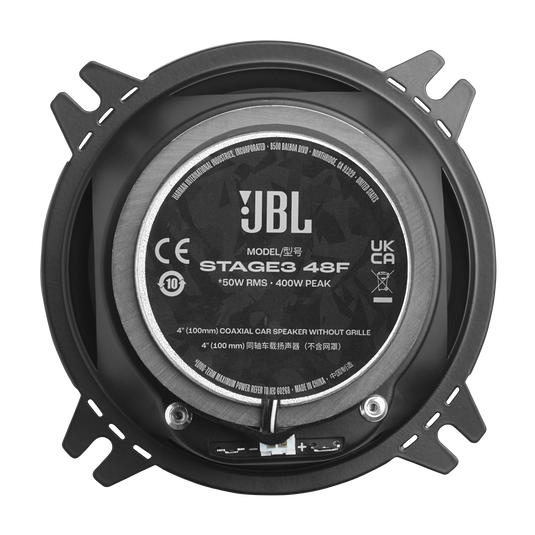

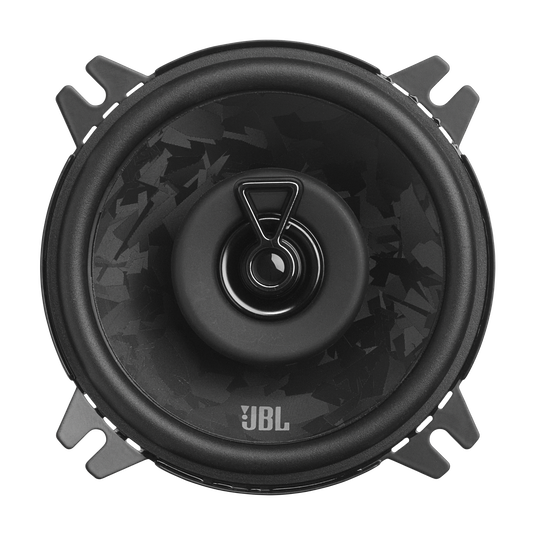

JBL Stage3 48F 4" 2-Way Coaxial Car Speakers

The JBL Stage3 48F 4" 2-Way Coaxial Car Speakers deliver 50W RMS / 400W peak power at a True 4-ohm nominal impedance, bringing Stage3 Series glass-fiber engineering to the compact 4" format. A drop-in upgrade for dash, door, and rear deck locations where space is tight — more bass, cleaner highs, and a True 4-ohm design that works equally well off a head unit or an amp.

The woofer is built on JBL's patented Plus One™ cone architecture with a 10% glass-fiber reinforced cone — the added rigidity reduces unwanted flex for tighter, more accurate bass reproduction with frequency response reaching down to 80Hz. The Plus One™ design increases effective cone area beyond a standard 4" driver for more bass output and musical body without upsizing. Sensitivity reaches 89dB at 2.83V, and the True 4-ohm impedance is optimized to extract maximum clean power from both factory head units and aftermarket amplifiers. The integrated PEI balanced dome tweeter delivers smooth, detailed high-frequency reproduction that spreads evenly throughout the cabin without harshness or fatigue. Frequency response spans 80Hz to 20kHz. Built with eco-friendly recycled plastics and PVC-free wiring — premium sound with a reduced environmental footprint. The laser-etched carbon-fiber finish adds a premium visual touch.

Installation is a true drop-in for most vehicles with factory 4" locations — common in dash, rear deck, and door applications across a wide range of vehicles. Pair with a 4-channel amplifier rated 30–60W RMS per channel for the best results, or run directly off a quality head unit. Ideal for everyday listening where you want noticeably better sound in a compact speaker format.

Why Choose the JBL Stage3 48F?

• Glass-Fiber Plus One™ Cone: 10% glass-fiber reinforcement delivers tighter bass and more accurate midrange than standard polypropylene — in a compact 4" package.
• True 4-Ohm Impedance: Optimized for maximum clean power transfer from factory head units and aftermarket amplifiers — no impedance mismatch, no wasted watts.
• PEI Balanced Dome Tweeter: Smooth, detailed high-frequency reproduction that spreads evenly throughout the cabin without harshness.
• 89dB Sensitivity: Efficient design delivers solid output from both head units and amplifiers — a meaningful upgrade even without an external amp.
• 50W RMS / 400W Peak Power Handling: Handles real-world amplifier power without distortion or thermal compression.
• 80Hz – 20kHz Frequency Response: Clean musical bandwidth from midrange punch to crisp high-frequency detail.
• True Drop-In Fit: Designed for standard 4" OEM locations — no cutting or fabrication required in most vehicles.
• Eco-Friendly Construction: Recycled plastics and PVC-free wiring — premium performance with a lighter environmental footprint.

Amplifier & Installation Recommendations

The Stage3 48F's True 4-ohm impedance and 89dB sensitivity make it a strong performer off a factory head unit. For the best performance, pair with a 4-channel amp rated 30–60W RMS per channel at 4 ohms. Mount in the factory 4" location — no cutting or fabrication required in most vehicles. Use 16-gauge or heavier speaker wire for runs over 6 feet. Note: at 80Hz low-frequency extension, these speakers work best paired with a subwoofer for full-range system coverage.

Full Specifications

Frequently Asked Questions

Q: What vehicles commonly use 4" speakers?
A: 4" speakers are common in dash locations, rear decks, and door panels across a wide range of vehicles including many Honda, Toyota, Mazda, and European models. Contact us at Trinity Car Audio with your year, make, and model to confirm fitment before ordering.

Q: Can I run the Stage3 48F off my factory head unit?
A: Yes — the True 4-ohm impedance and 89dB sensitivity are designed to work well with factory head units. You'll hear a clear improvement over OEM speakers immediately. An external amplifier will unlock the full 50W RMS potential for even better dynamics.

Q: Do I need a subwoofer with the Stage3 48F?
A: The 48F's 80Hz low-frequency extension means it won't reproduce deep bass on its own. For full-range system coverage, pairing with a subwoofer is strongly recommended. The Stage3 48F handles midrange and highs; a subwoofer handles everything below 80Hz.

Q: How does the Stage3 48F compare to the Stage3 58F?
A: The 48F is a 4" speaker for compact OEM locations; the 58F is a 5.25" speaker for slightly larger locations. Both share the same Plus One™ glass-fiber cone, PEI dome tweeter, True 4-ohm design, and power handling. The 58F extends slightly lower (55Hz vs 80Hz) due to its larger cone area. Choose based on your vehicle's OEM speaker size.
