JBL Stadium 102SSI 10" SSI Car Subwoofer
Description
Description
The JBL Stadium 102SSI 10" SSI Car Subwoofer delivers 450W RMS / 1,350W peak power with Selectable Smart Impedance (SSI™) technology that lets you switch between 2 ohms and 4 ohms to match your amplifier's optimal output impedance. The 10" sibling to the Stadium 122SSI, it brings the same aero-cooled voice coil, 8 AWG push terminals, and Stadium Series engineering to a more compact footprint — ideal for space-constrained builds where a 12" won't fit but you still want Stadium-level output.

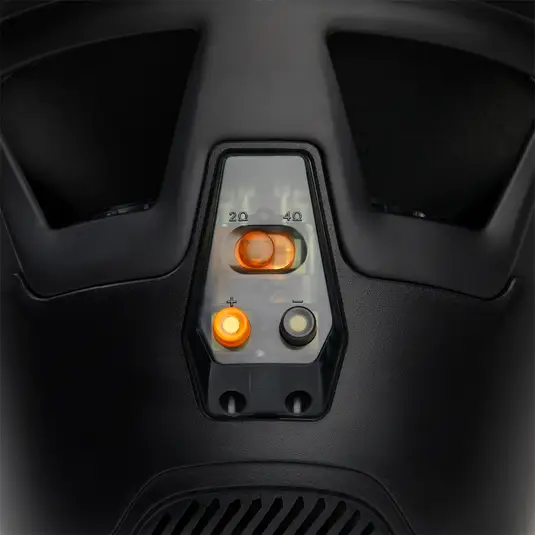

The SSI™ system is the headline feature: a built-in impedance selector lets you configure the sub at 2 ohms for maximum power output from a high-current amplifier, or 4 ohms for cleaner, more efficient operation. No rewiring, no separate DVC configurations — just flip and go. The aero-cooled motor design channels airflow directly across the 2" (50mm) voice coil to dissipate heat during high-output operation, keeping thermals low and performance consistent even during extended high-volume listening. Sensitivity reaches 91dB at 2.83V for strong output efficiency. Frequency response spans 30Hz to 175Hz, covering the full subwoofer range from deep sub-bass to upper bass punch. The integrated push terminals accept up to 8 AWG speaker wire for low-resistance current delivery at high power levels. Cutout diameter is 22.7cm with a 15.9cm mounting depth — fits most standard 10" enclosures.
Pair the Stadium 102SSI with a mono amplifier rated 350–450W RMS at your chosen impedance. The JBL Club A600 at 350W RMS (4 ohms) or 600W RMS (2 ohms) is a natural match — keep gain conservative at 2 ohms. The JBL Stage GT 50011 at 300W RMS (4 ohms) or 500W RMS (2 ohms) is a tighter power match. Use a ported enclosure tuned to 32–38Hz for maximum output, or a sealed enclosure for tighter, more accurate bass.
Why Choose the JBL Stadium 102SSI?
- SSI™ Selectable Smart Impedance: Switch between 2 ohms and 4 ohms to match your amplifier's optimal output impedance — no rewiring, no separate DVC configurations.
- Aero-Cooled Motor Design: Channels airflow directly across the voice coil for consistent thermal management during high-output operation.
- 450W RMS / 1,350W Peak Power Handling: Stadium Series power handling in a compact 10" package.
- 91dB Sensitivity: Efficient design delivers strong bass output without taxing your amplifier.
- 30Hz – 175Hz Frequency Response: Deep sub-bass extension to upper bass punch — full subwoofer bandwidth coverage.
- 8 AWG Terminal Compatibility: Integrated push terminals accept up to 8 AWG wire for low-resistance, high-current delivery at rated power.
- Compact 10" Footprint: Stadium Series performance in a smaller package — ideal for builds where a 12" won't fit.
- Broad Amplifier Compatibility: 2 or 4 ohm operation means it works with virtually any mono amplifier on the market.
Amplifier & Enclosure Recommendations
Pair the Stadium 102SSI with a mono amplifier rated 350–450W RMS at your chosen impedance. The JBL Club A600 (350W at 4Ω / 600W at 2Ω) and Stage GT 50011 (300W at 4Ω / 500W at 2Ω) are both strong matches. For enclosures: a ported box tuned to 32–38Hz maximizes low-frequency extension and output for hip-hop, EDM, and bass-heavy music. A sealed enclosure delivers tighter, more accurate bass for rock, jazz, and SQL listening. Set your amplifier's low-pass crossover at 80Hz and subsonic filter at 28Hz for ported enclosures. Use 8 AWG or heavier speaker wire from amp to sub, and 4-gauge power and ground wire to your amplifier.
Full Specifications
| Specification | Value |
|---|---|
| Brand | JBL |
| Model | Stadium 102SSI |
| Size | 10" |
| Power Handling (RMS) | 450W |
| Power Handling (Peak) | 1,350W |
| Sensitivity (@ 2.83V/1m) | 91dB |
| Frequency Response | 30Hz – 175Hz |
| Impedance | 2 or 4 ohms (SSI™ Selectable) |
| Voice Coil Diameter | 2" (50mm) |
| Voice Coil Cooling | Aero-Cooled |
| Terminal Compatibility | Up to 8 AWG |
| Cutout Diameter | 22.7 cm |
| Mounting Depth | 15.9 cm |
Frequently Asked Questions
Q: How does the Stadium 102SSI compare to the Stadium 122SSI?
A: Both share the same SSI™ selectable impedance technology and aero-cooled voice coil design. The 102SSI is a 10" sub at 450W RMS — ideal for space-constrained builds. The 122SSI is a 12" sub at 500W RMS for more cone area, deeper bass extension, and higher output. Choose the 102SSI when space is limited; choose the 122SSI when maximum output is the priority.
Q: How does the SSI™ Selectable Smart Impedance work?
A: A built-in impedance selector lets you configure the subwoofer at either 2 ohms or 4 ohms. Select 2 ohms to maximize power output from a high-current amplifier, or 4 ohms for cleaner, more efficient operation. No rewiring or separate DVC wiring configurations required.
Q: What amplifier pairs best with the Stadium 102SSI?
A: A mono amplifier rated 350–450W RMS at your chosen impedance is ideal. The JBL Club A600 and Stage GT 50011 are both strong matches. Contact us at Trinity Car Audio for a specific recommendation based on your system goals.
Q: What enclosure type should I use with the Stadium 102SSI?
A: A ported enclosure tuned to 32–38Hz maximizes output for bass-heavy music. A sealed enclosure delivers tighter, more accurate bass for everyday listening. Contact us at Trinity Car Audio for specific enclosure volume and tuning recommendations for your vehicle.
