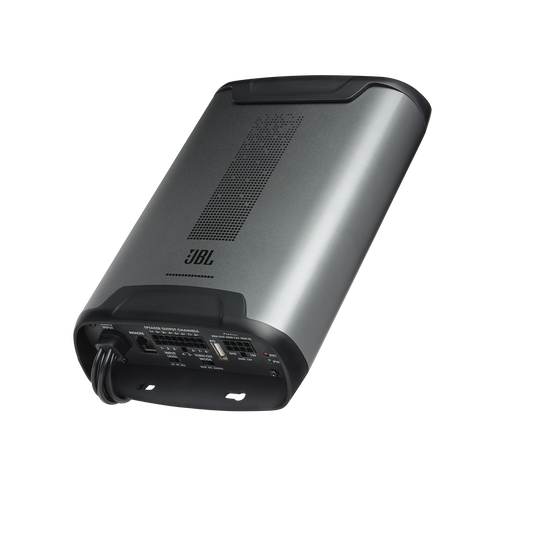

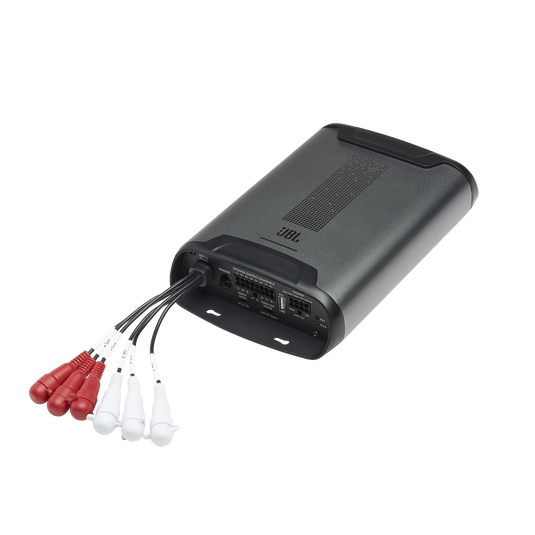

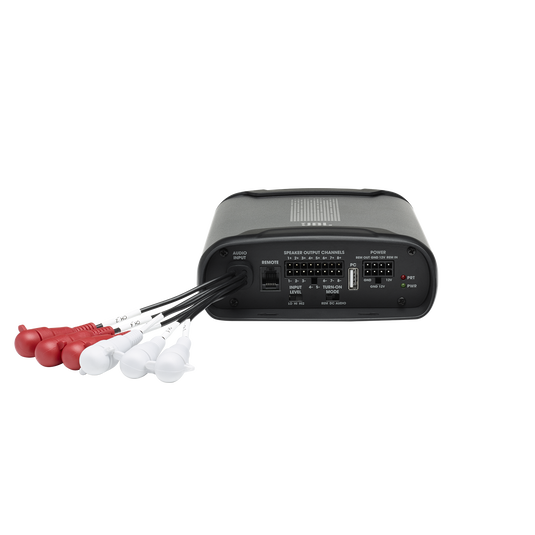

JBL DSP4086 8-Channel Class-D DSP Amplifier

The JBL DSP4086 8-Channel Class-D DSP Amplifier puts out 40W RMS x8 at 4 ohms (60W RMS x8 at 2 ohms) — 1,000W peak — with a fully integrated digital signal processor featuring a 31-band EQ, time alignment, and active crossovers, all tunable via PC interface. This is the all-in-one solution for builders who want amplification and DSP processing in a single compact chassis — no separate DSP unit, no extra wiring, no additional mounting space required.

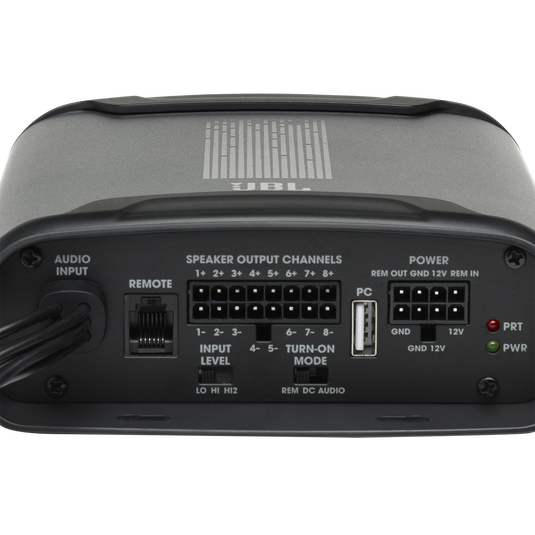

The DSP4086 accepts 6-channel audio inputs and delivers 8 powered output channels, making it ideal for complex system configurations: front stage (L/R), rear fill (L/R), center channel, subwoofer, and more. All 8 channels run in Class-D for maximum thermal efficiency — less heat, smaller chassis, lower current draw. Power output is 40W RMS x8 at 4 ohms or 60W RMS x8 at 2 ohms, with THD+N below 1% at rated output. Frequency response spans 10Hz to 22kHz (√3dB) with a signal-to-noise ratio exceeding 90dB at 4 ohms — clean, quiet, high-fidelity amplification across all 8 channels simultaneously. The integrated DSP is tuned via an intuitive PC interface offering a 31-band graphic or parametric EQ (selectable), precise time alignment for soundstage correction, and active crossover controls for full system frequency management without a separate processor. A wired remote subwoofer level control (-30dB to +6dB) is included for driver-seat bass adjustment. The conformal-coated circuit board resists moisture, vibration, and harsh environments — making the DSP4086 suitable for motorcycle, marine, and powersports applications in addition to standard automotive installs. Operating voltage is 8V–16V; fuse rating is 40A.

The DSP4086 is the ideal amplifier for a full active system build — pair with JBL Stadium Series component speakers up front, rear fill speakers, and a subwoofer. Use the active crossover to set precise crossover points for each channel, and the time alignment to correct for driver-to-listener distances. The compact chassis mounts under a seat, behind a panel, or in a motorcycle fairing. A single 40A fuse keeps the install clean and simple.

Why Choose the JBL DSP4086?

• Amplifier + DSP in One Chassis: 8 powered output channels with integrated 31-band EQ, time alignment, and active crossovers — no separate DSP unit required.
• 31-Band EQ (Graphic or Parametric): Selectable EQ mode for precise frequency response correction across all channels.
• Time Alignment: Correct for driver-to-listener distance differences for a focused, centered soundstage — a feature previously reserved for standalone DSP processors.
• Active Crossovers: Set precise crossover points for each channel without passive crossover networks — maximum control, minimum signal loss.
• 6 Inputs / 8 Outputs: Handles complex system configurations — front stage, rear fill, center, and subwoofer from a single unit.
• Class-D Efficiency: Maximum power output with minimum heat generation — compact chassis, lower current draw, reliable long-term operation.
• Conformal-Coated PCB: Moisture and vibration resistant — suitable for automotive, motorcycle, marine, and powersports applications.

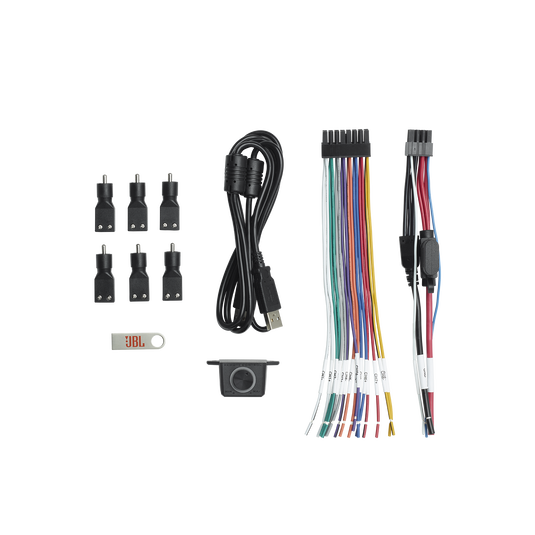

• Remote Subwoofer Level Control Included: -30dB to +6dB adjustment from the driver's seat — included in the box.

System & Wiring Recommendations

Use 8-gauge power and ground wire — fuse within 18 inches of the battery at 40A. For a full active system: assign channels 1+2 to front tweeters (high-pass at 3–4kHz), channels 3+4 to front woofers (band-pass at 80Hz–3kHz), channels 5+6 to rear fill (high-pass at 80Hz), and channels 7+8 to subwoofer (low-pass at 80Hz). Use the PC tuning interface to set time alignment for each driver position and apply EQ correction for your vehicle's acoustic response. The DSP4086 pairs naturally with JBL Stadium Series component speakers and any JBL Club or Stadium Series subwoofer. For motorcycle installs, the conformal-coated PCB and compact chassis make this one of the most capable amplifiers available for fairing or under-seat mounting.

Full Specifications

Frequently Asked Questions

Q: Do I need a separate DSP processor with the DSP4086?
A: No — the DSP4086 has a fully integrated DSP with 31-band EQ, time alignment, and active crossovers built in. It replaces both a standalone amplifier and a separate DSP processor, saving space, wiring complexity, and cost.

Q: What software do I use to tune the DSP4086?
A: The DSP4086 is tuned via a PC interface (Windows). Connect via USB, launch the JBL DSP tuning software, and adjust EQ, time alignment, crossover points, and channel levels. Contact us at Trinity Car Audio for guidance on the tuning process.

Q: Is the DSP4086 suitable for motorcycle or marine installs?
A: Yes — the conformal-coated circuit board resists moisture, vibration, and harsh environments, making the DSP4086 one of the most capable amplifiers available for motorcycle fairing, under-seat, or marine dash mounting.

Q: Can I run a subwoofer with the DSP4086?
A: Yes — bridge two channels for subwoofer output, or dedicate one or two channels to a subwoofer with the active low-pass crossover set at your desired frequency. The included remote level control gives you -30dB to +6dB subwoofer adjustment from the driver's seat.
