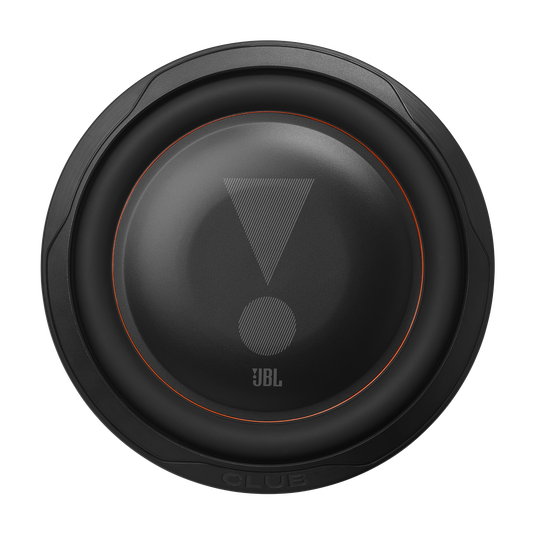

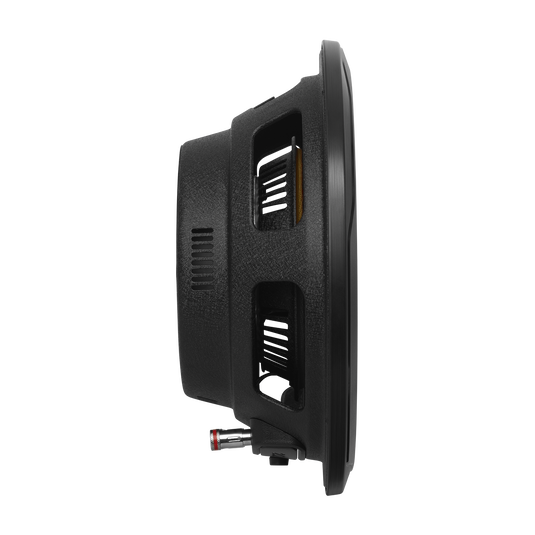

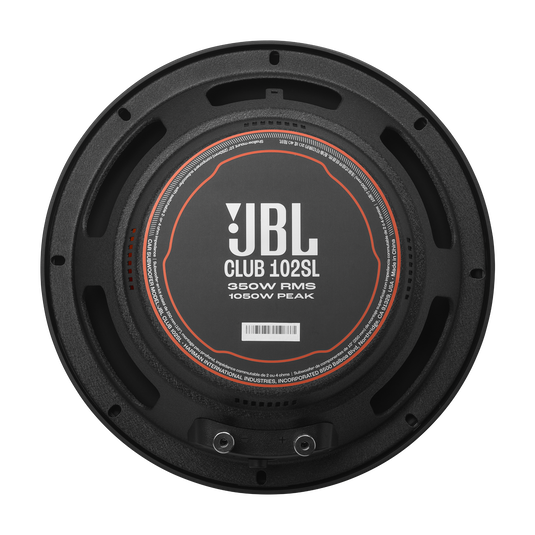

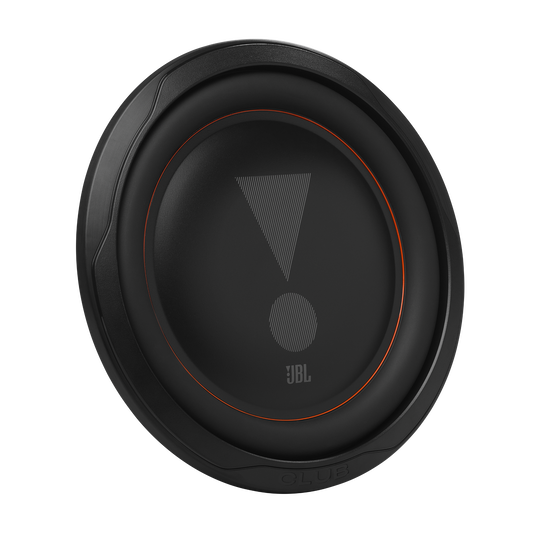

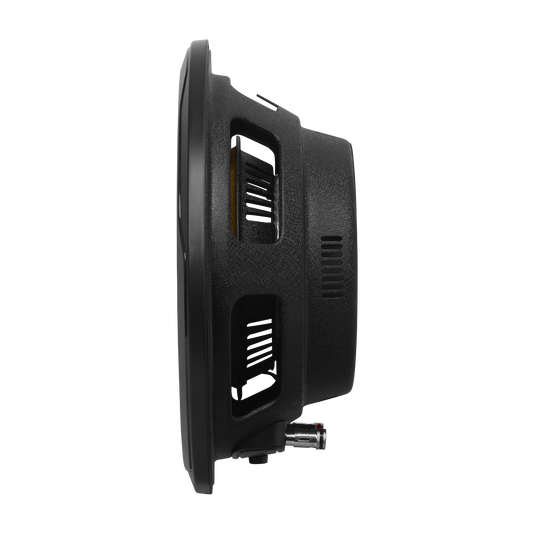

JBL Club 102SL 10" Shallow-Mount SSI Subwoofer
Description
Description
The JBL Club 102SL 10" Shallow-Mount SSI Subwoofer delivers 350W RMS / 1,050W peak power with Selectable Smart Impedance (SSI™) technology and an ultra-shallow 82.5mm (3.25") mounting depth — making it the go-to solution for builds where a standard-depth subwoofer simply won't fit. Trucks, SUVs, sedans with limited trunk depth, and under-seat installs — the Club 102SL brings Club Series bass output to locations that were previously off-limits.
The SSI™ system lets you switch between 2 ohms for maximum power output from a high-current amplifier, or 4 ohms for cleaner, more efficient operation — no rewiring, no separate DVC configurations. The rigid aluminum cone is the key differentiator from the standard Club 102's polypropylene cone — aluminum's higher stiffness-to-mass ratio allows for accurate bass reproduction at the shallow excursion depths that a low-profile motor structure requires, while keeping distortion ultra-low even at full output. The high-roll rubber surround maximizes available cone excursion within the shallow motor structure. The vented basket channels moving air across the 50mm voice coil to dissipate heat during high-output operation. Sensitivity is 82.5dB at 1W/1m; frequency response spans 35Hz to 500Hz (-6dB). Cutout diameter is 228.6mm (22.86cm). The concealed trim ring and signature orange accent deliver a clean, custom look. Weight: 4.5 kg.
Pair the Club 102SL with a mono amplifier rated 250–350W RMS at your chosen impedance. The JBL Club A600 at 350W RMS (4 ohms) or 600W RMS (2 ohms) is a natural match — keep gain conservative at 2 ohms. Use a sealed enclosure or a purpose-built shallow-mount enclosure for the best results — the 82.5mm mounting depth opens up under-seat, behind-seat, and spare-tire well locations that standard subwoofers can't access.
Why Choose the JBL Club 102SL?
- 82.5mm Shallow Mounting Depth: Fits under seats, behind seats, in spare-tire wells, and in shallow trunk locations where standard subwoofers won't fit.
- SSI™ Selectable Smart Impedance: Switch between 2 ohms and 4 ohms to match your amplifier's optimal output impedance — no rewiring required.
- Rigid Aluminum Cone: Higher stiffness-to-mass ratio than polypropylene — accurate bass reproduction at shallow excursion depths with ultra-low distortion.
- High-Roll Rubber Surround: Maximizes available cone excursion within the shallow motor structure for the deepest possible bass from a low-profile design.
- Vented Basket: Moving-air cooling keeps the 50mm voice coil thermally managed during high-output operation.
- 350W RMS / 1,050W Peak Power Handling: Club Series power handling in a shallow-mount package.
- 35Hz – 500Hz Frequency Response: Deep bass extension from a shallow-mount design — down to 35Hz (-6dB).
- Concealed Trim Ring + Orange Accent: Clean, custom look with signature Club Series styling — no exposed hardware.
Amplifier & Enclosure Recommendations
Pair the Club 102SL with a mono amplifier rated 250–350W RMS at your chosen impedance. The JBL Club A600 (350W at 4Ω / 600W at 2Ω) is a natural match — keep gain conservative at 2 ohms to stay within the sub's 350W RMS rating. For enclosures: a sealed shallow-mount enclosure is the most common choice for under-seat and spare-tire well installs — it delivers tight, accurate bass and works well within the Club 102SL's shallow motor structure. A purpose-built ported shallow enclosure can extend low-frequency output further if space allows. Set your amplifier's low-pass crossover at 80Hz and subsonic filter at 30Hz. Use 8 AWG or heavier speaker wire from amp to sub.
Full Specifications
| Specification | Value |
|---|---|
| Brand | JBL |
| Model | Club 102SL |
| Size | 10" (250mm) |
| Power Handling (RMS) | 350W |
| Power Handling (Peak) | 1,050W |
| Sensitivity (1W/1m) | 82.5dB |
| Frequency Response (-6dB) | 35Hz – 500Hz |
| Impedance | 2 or 4 ohms (SSI™ Selectable) |
| Voice Coil Diameter | 50mm |
| Cone Material | Rigid Aluminum |
| Surround Material | High-Roll Rubber |
| Basket | Vented |
| Cutout Diameter | 228.6mm (22.86cm) |
| Mounting Depth | 82.5mm (3.25") |
| Weight | 4.5 kg |
Frequently Asked Questions
Q: How shallow is the Club 102SL's mounting depth?
A: The Club 102SL has an 82.5mm (3.25") mounting depth — making it compatible with under-seat enclosures, spare-tire well locations, and shallow trunk builds where standard subwoofers (typically 150–200mm deep) won't fit. Always measure your available depth before ordering.
Q: How does the Club 102SL compare to the standard Club 102?
A: Both share SSI™ selectable impedance and 350W RMS power handling. The Club 102SL uses a rigid aluminum cone and shallow motor structure (82.5mm depth) for space-constrained installs. The standard Club 102 uses a polypropylene cone with a double-stacked magnet and standard mounting depth for maximum excursion and output. Choose the 102SL for tight spaces; choose the Club 102 for maximum output in a standard enclosure.
Q: What amplifier pairs best with the Club 102SL?
A: A mono amplifier rated 250–350W RMS at your chosen impedance is ideal. The JBL Club A600 is a natural match. Contact us at Trinity Car Audio for a specific recommendation based on your install location and system goals.
Q: What enclosure type works best with the Club 102SL?
A: A sealed shallow-mount enclosure is the most common and practical choice for under-seat and spare-tire well installs. It delivers tight, accurate bass within the Club 102SL's shallow motor structure. Contact us at Trinity Car Audio for specific enclosure recommendations for your vehicle and install location.
