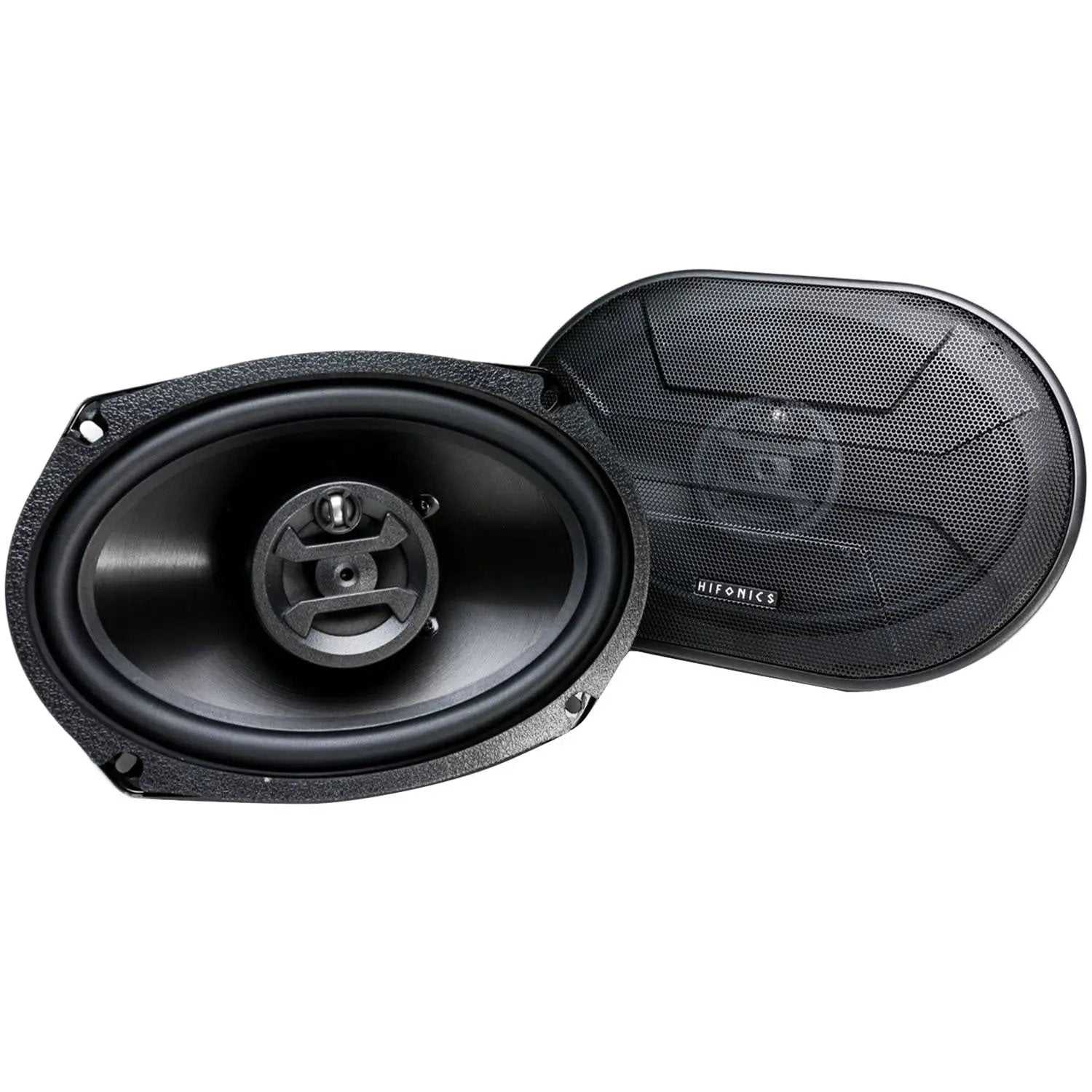

Hifonics ZS693 ZEUS 6×9 Inch Speakers
Description
Description

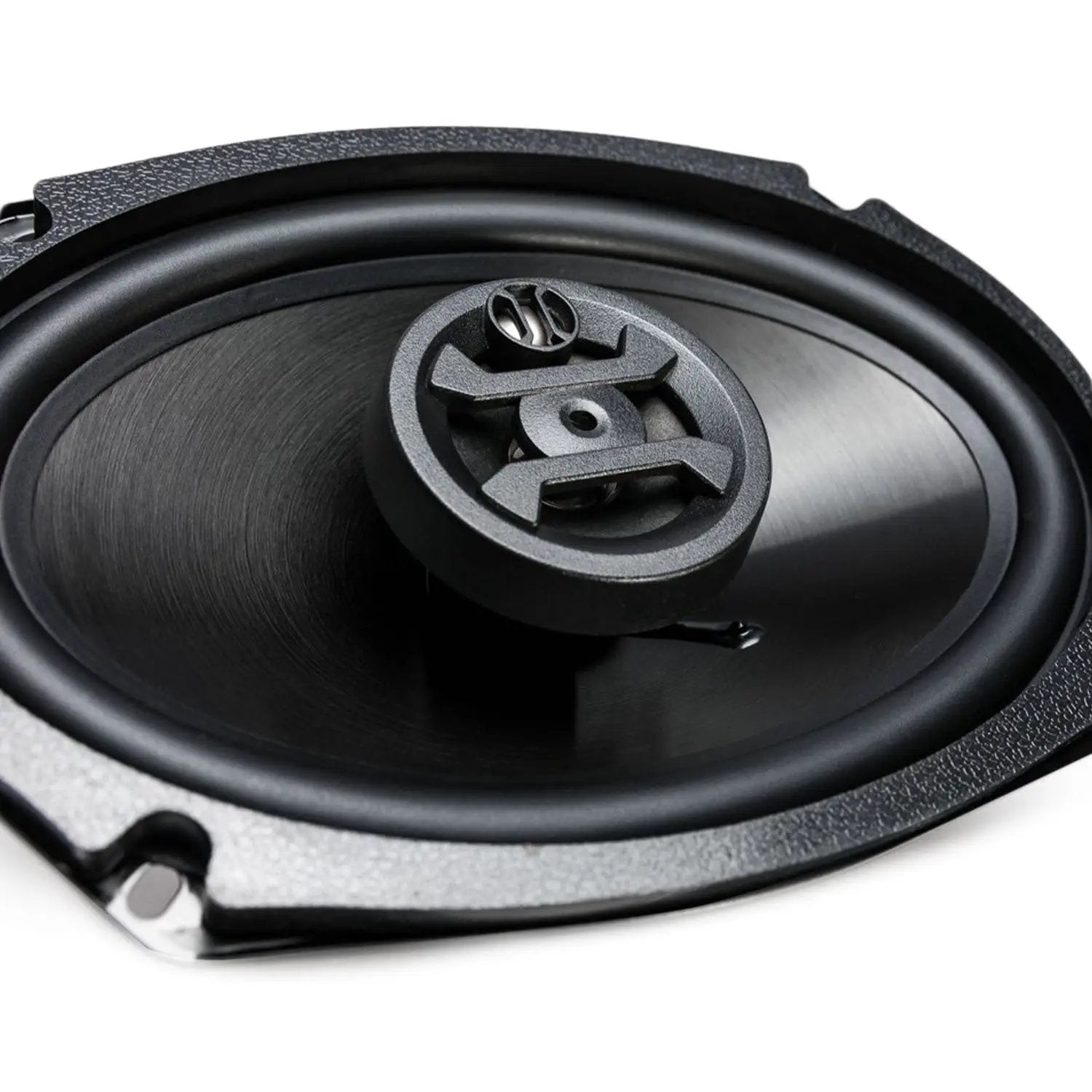

The Hifonics ZS693 ZEUS is a 6 x 9 inch 3-way car audio coaxial speaker system engineered to deliver powerful, clear sound reproduction. Built with rigid Alpha-Cellulose poly woofer cones and moisture-resistant rubber surrounds, it ensures impactful mid-bass response and long-lasting durability.
High frequencies are accurately handled by impact-resistant Neo-Mylar soft dome tweeters on Kapton formers for efficient heat dissipation. An anti-resonant stamped steel basket minimizes harmonic distortion, while the passive Butterworth crossover provides smooth transitions between frequencies.
Designed for universal factory replacement, these 4-ohm speakers handle up to 60 watts RMS and 400 watts peak power. Standard spade connectors allow for straightforward wiring and dependable audio signal transfer.
Key Features
| Brand | Hifonics |
| Series | ZEUS |
| Model | ZS693 |
| Product Type | 3-Way Coaxial Car Speakers |
| Speaker Size | 6 x 9 in |
| RMS Power Handling | 60 W |
| Peak Power Handling | 400 W |
| Impedance | 4 Ohms |
| Sensitivity | 88 dB |
| Frequency Response | 46Hz - 20kHz |
| Crossover Slope | 1kHz + 3kHz 12dB |
| Tweeter Size | 1 in |
| Cone Material | Alpha-Cellulose |
| Surround Material | Rubber |
| Basket Material | Stamped Steel |
| Magnet Type | Ferrite |
| Mounting Cutout Dimensions | 21.9 x 15.2 cm |
| Outside Dimensions | 26.3 x 18.3 cm |
| Mounting Depth | 8.5 cm |
| Overall Dimensions | 36.2 × 29.8 × 14.1 cm |
| Weight | 2.8 kg |
| CEA Standards | CEA426B |
Highlights
- 3-way coaxial speaker design delivering full-range audio performance
- 60W RMS and 400W peak power handling at 4 ohms
- Alpha-Cellulose poly woofer cones with moisture-resistant rubber surrounds
- 1-inch Neo-Mylar soft dome tweeters for smooth high frequencies

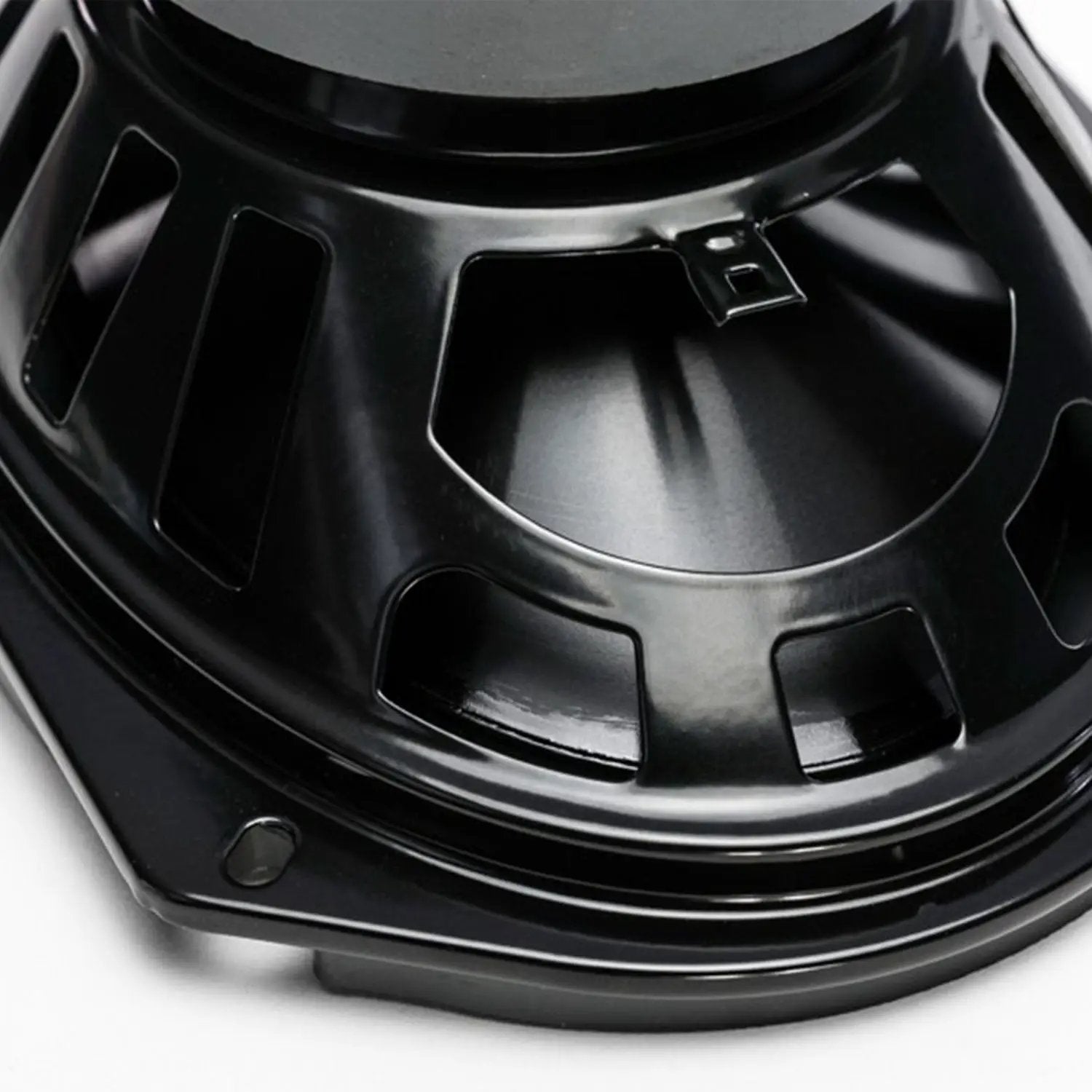

- Anti-resonant stamped steel basket reduces vibration and distortion
- Passive Butterworth crossover for seamless frequency integration
Compatibility
Universal fit designed for factory 6 x 9 inch speaker replacement locations in standard automotive dash, door, or rear deck installations.
What's included
- Pair of Hifonics ZS693 6x9 inch 3-way coaxial speakers
- Quick start guide
