Hifonics ZS65CXS ZEUS 6.5 Inch Shallow Speakers
Description
Description
The Hifonics ZS65CXS ZEUS Series delivers high-performance audio in a shallow-mount coaxial configuration engineered for tight vehicle installations. Built with rigid Alpha-Cellulose poly woofer cones and moisture-resistant rubber surrounds, these speakers produce responsive mid-bass impact without distortion.

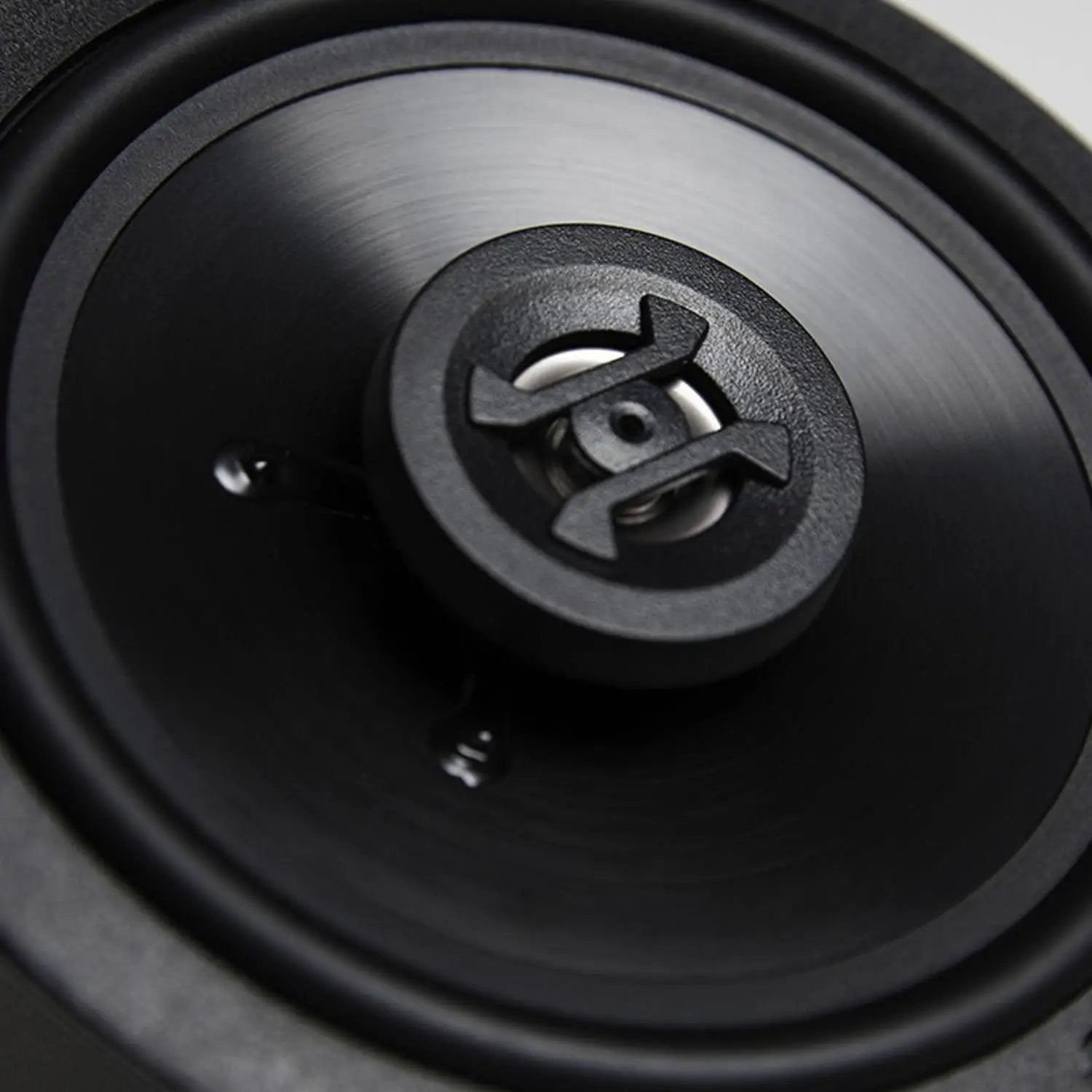

High frequencies are handled by 1-inch Neo-Mylar soft dome tweeters, offering clear, impact-resistant sound reproduction paired with heat-dissipating Kapton voice coil formers. An overcoil cooling system circulates air through the epoxy-infused natural fiber spider to ensure reliable operation under continuous load.
Housed in anti-resonant stamped steel baskets with compact ferrite magnets, this 3-way system fits factory speaker locations with minimal mounting depth. Protective grilles and standard spade connector terminals provide versatile installation options for universal car audio upgrades.
Key Features
| Brand | Hifonics |
| Series | ZEUS |
| Model | ZS65CXS |
| Product Type | 3-Way Shallow Mount Coaxial Speaker Pair |
| Speaker Size | 6.5" |
| RMS Power Handling | 50 W |
| Peak Power Handling | 300 W |
| Impedance | 4 Ohms |
| Sensitivity | 88 dB |
| Frequency Response | 60 Hz - 20 kHz |
| Crossover Slope | 4 kHz 12 dB |
| Mounting Depth | 4.2 cm |
| Mounting Diameter / Cutout | 14.2 cm |
| Overall Diameter | 17.8 cm |
| Dimensions | 37.8 × 21.4 × 10.2 cm |
| Weight | 1.5 kg |
| Color | Black |
| Cone Material | Alpha-Cellulose |
| Surround Material | Rubber |
| Tweeter Type | 1" Neo-Mylar Soft Dome |
| Basket Material | Stamped Steel |
| Magnet Type | Ferrite |
| Connector Type | Spade / Solder |
Highlights
| Feature | Description |
|---|---|
| Tweeters | 1 inch: Clear highs while handling plenty of power without sounding harsh. Neo-Mylar Soft Dome Tweeter: Impact Resistant Tweeter Elements, Great sound quality and increased reliability. Kapton: Lightweight and efficiently dissipates heat. |
| Cone Material | Alpha-Cellulose Cones: Light weight for speed and very rigid for deep bass. |
| Surround / Cone Coupling | Rubber: Moisture Resistant Rubber Surround with high Mid-Bass Impact. High Temperature Adhesive: Special adhesive is chosen to create a permanent bond between the cone and the surround. |
| Voice Coil / Former Assembly | Pure Copper: Creates strong magnetic field with a very thin extrusion. Kapton: Lightweight and efficiently dissipates heat. |
| Spider | Epoxy infused Natural Fiber: Natural fiber allows flexibility while the epoxy gives strength during the manufacturing process. |
| Cooling System | Overcoil: Air is exchanged over the voice coil through the spider. |
| Crossover | Passive Butterworth: Smooth transition of frequencies from midrange/midbass to the tweeter element. |
| Frame | Anti-Resonant Stamped Steel Basket: Very strong with minimal harmonics or distortions from flex or ringing. |
| Motor | Ferrite Magnet: Creates a strong magnetic field while remaining small enough to fit nearly every application. |
| Connectors | Spade: Use spade connectors or solder direct for the best connection. |

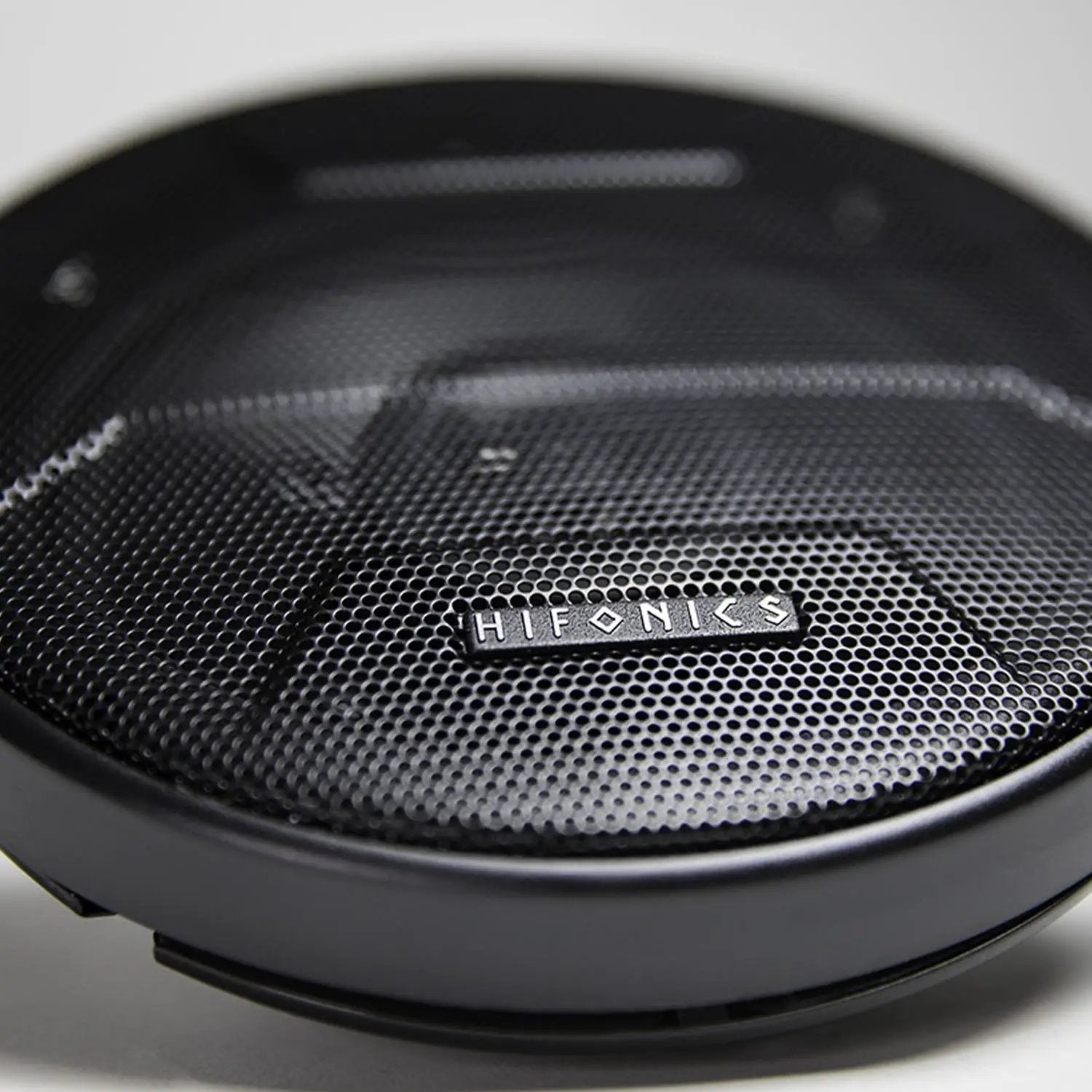

| Grills | Yes: Protects the speaker from accidental damage. Not used if speaker is mounted behind vehicle panel. |
Compatibility
Universal fit for standard 6.5" vehicle speaker locations requiring a shallow mounting depth of 4.2 cm (1.65 in) and a cutout diameter of 14.2 cm (5.59 in).
What's included

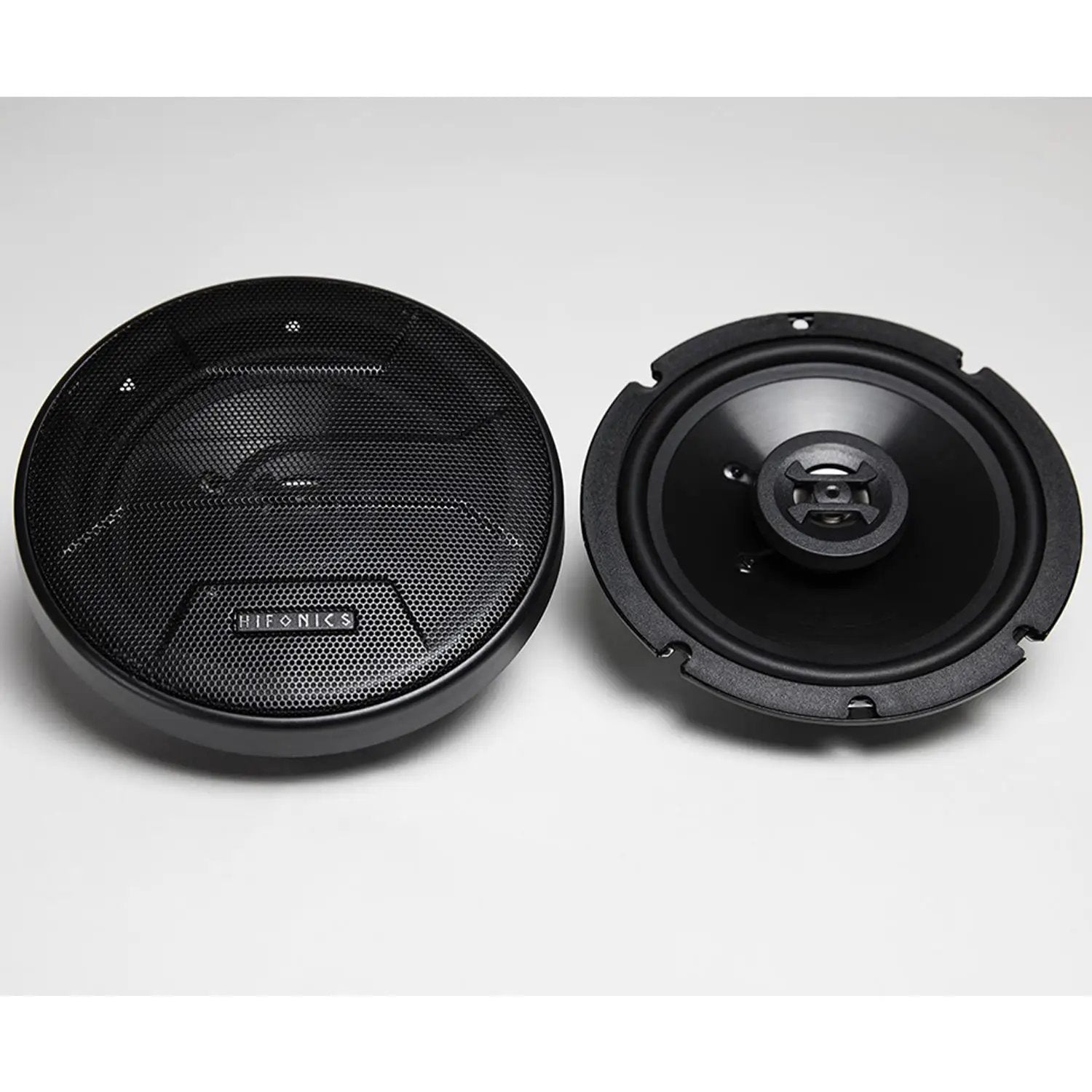

- Pair of Hifonics ZS65CXS 6.5" Shallow Mount Speakers
- Pair of Protective Speaker Grilles
- Quick Start Guide
