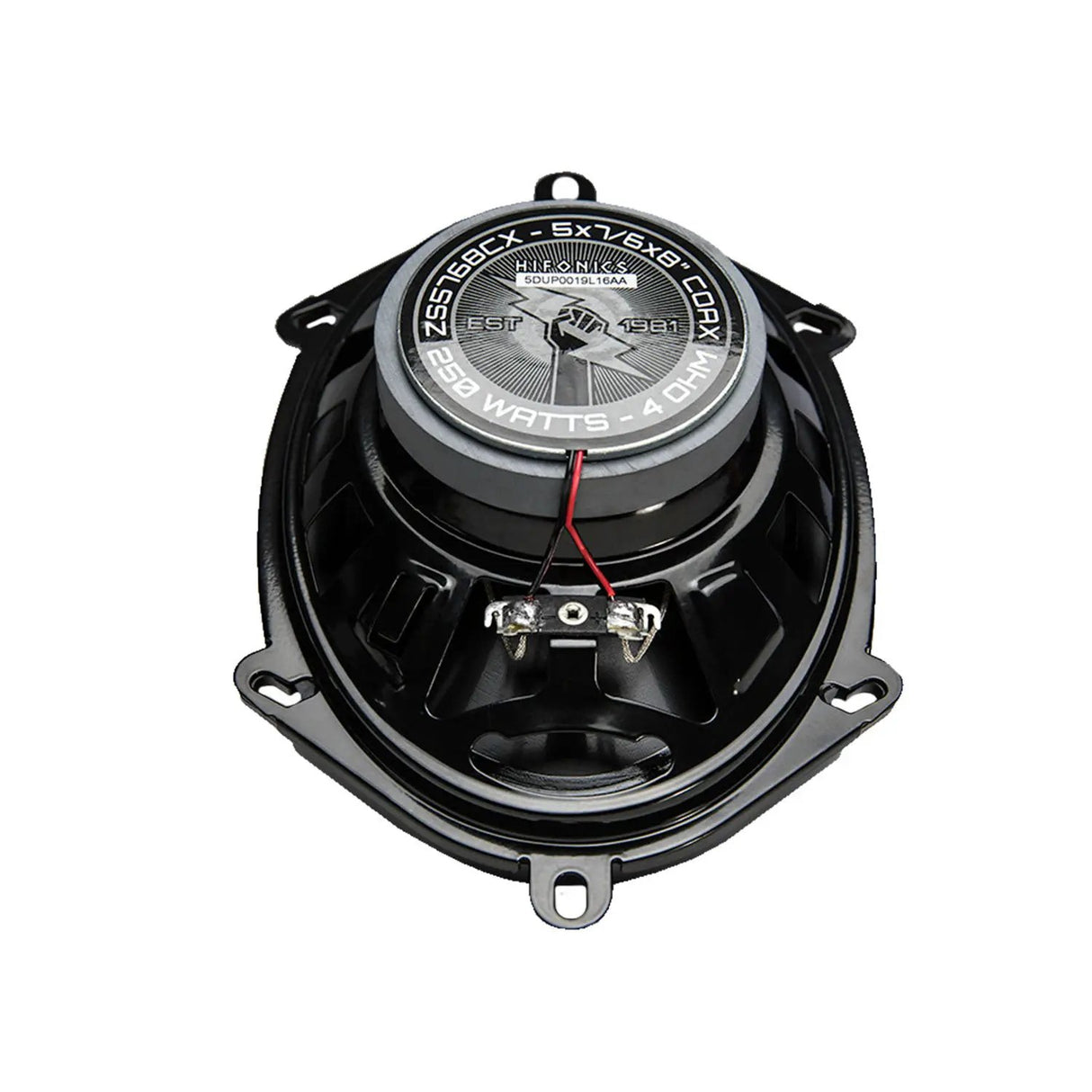

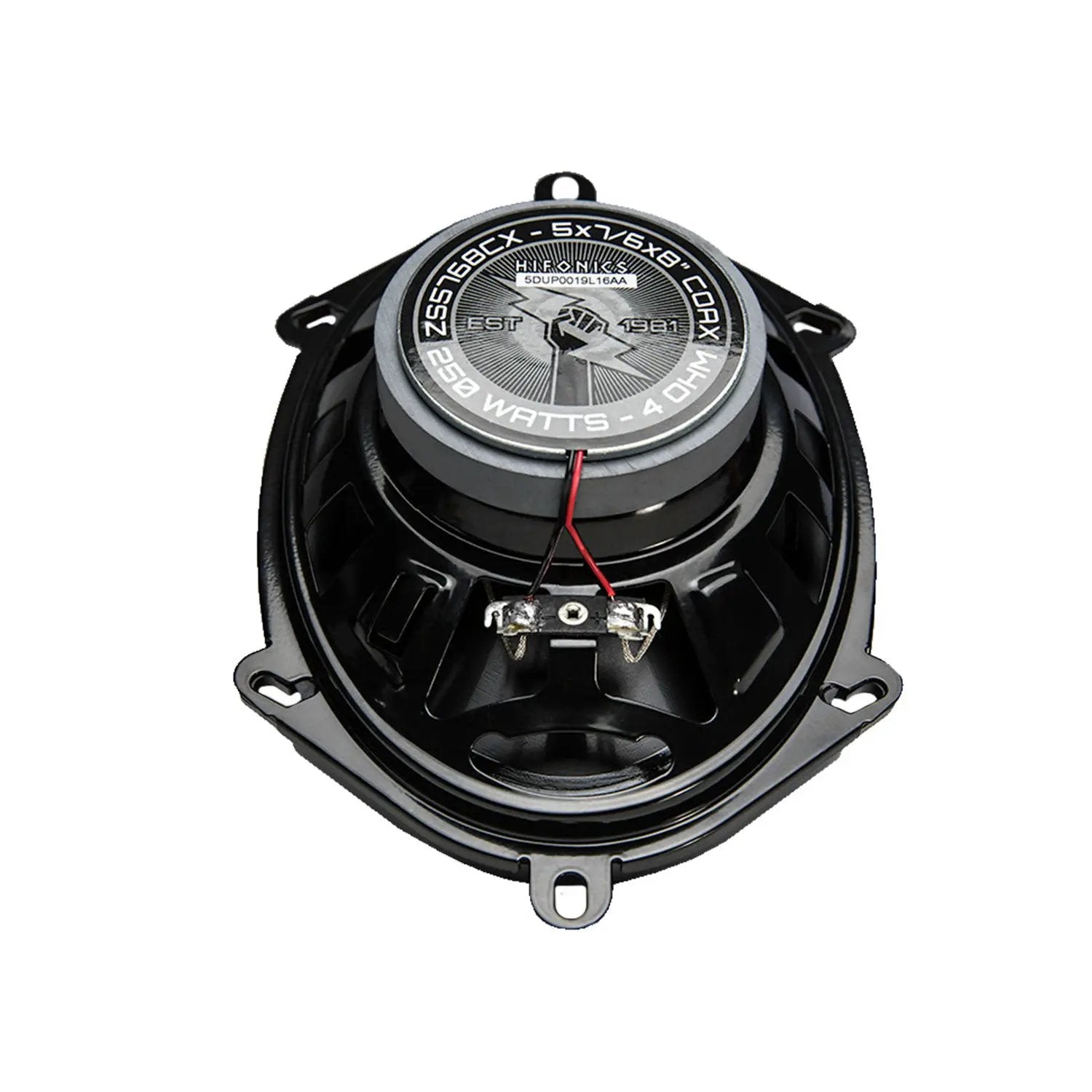

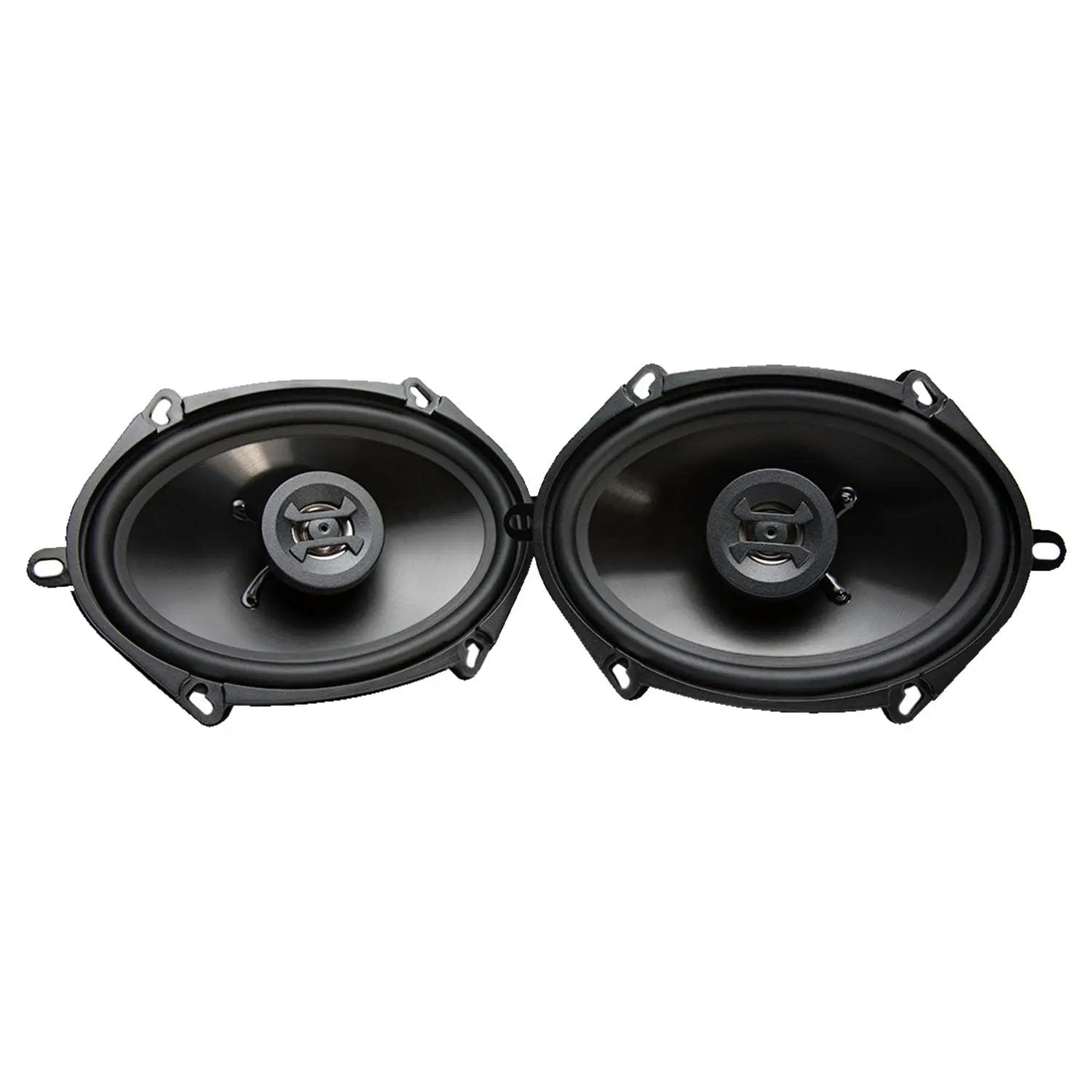

Hifonics ZS5768CX ZEUS 5×7/6×8 Inch Speakers
Description
Description
The Hifonics ZS5768CX ZEUS series 2-way coaxial car audio speakers deliver powerful, full-range acoustic performance designed to upgrade factory speaker systems. Built with rigid Alpha-Cellulose poly woofer cones and moisture-resistant rubber surrounds, these speakers produce deep, impactful bass and punchy mid-bass frequencies.
High frequencies are accurately handled by 1-inch Neo-Mylar soft dome tweeters that provide clear sound without harshness. The voice coil structure features pure copper and lightweight Kapton formers to ensure superior heat dissipation and enduring power handling under heavy output.
Designed for versatile vehicle integration, these speakers feature an anti-resonant stamped steel basket and include standard 6x8-inch adapter plates. They offer an ideal replacement solution for OEM factory dashboard and door speaker locations where grilles are not required.
Key Features
| Brand | Hifonics |
| Series | ZEUS |
| Type | Coaxial Speaker System |
| Speaker Size | 5 x 7 / 6 x 8 in |
| Configuration | 2-Way |
| RMS Power Handling | 90 W |
| Peak Power Handling | 250 W |
| Impedance | 4 Ohms |
| Frequency Response | 46Hz - 20kHz |
| Sensitivity | 88 dB |
| Crossover Slope | 4kHz 12dB |
| Tweeter Size | 1 in |
| Cone Material | Alpha-Cellulose |
| Surround Material | Rubber |
| Mounting Diameter / Cutout | 14.4 cm |
| Mounting Depth | 5.4 cm |
| Outside Diameter | 21.8 x 14.1 cm |
| Overall Dimensions | 32.4 × 24.5 × 9.4 cm |
| Weight | 1.5 kg |
| Connector Type | Spade |
| CEA Standards | CEA426B |
Highlights
- 2-way coaxial speaker pair designed for 5x7 and 6x8 inch locations
- Handles up to 90 watts RMS and 250 watts peak power
- Alpha-Cellulose woofer cones paired with moisture-resistant rubber surrounds
- 1-inch Neo-Mylar soft dome tweeters for smooth high-frequency response
- Anti-resonant stamped steel basket minimizes distortion
Compatibility
Universally compatible with vehicles configured for 5x7 inch or 6x8 inch factory speaker locations with a minimum mounting depth of 5.4 cm.
What's included
- Pair of Hifonics ZS5768CX coaxial speakers
- 6x8 inch adapter plates
- Quick start guide
