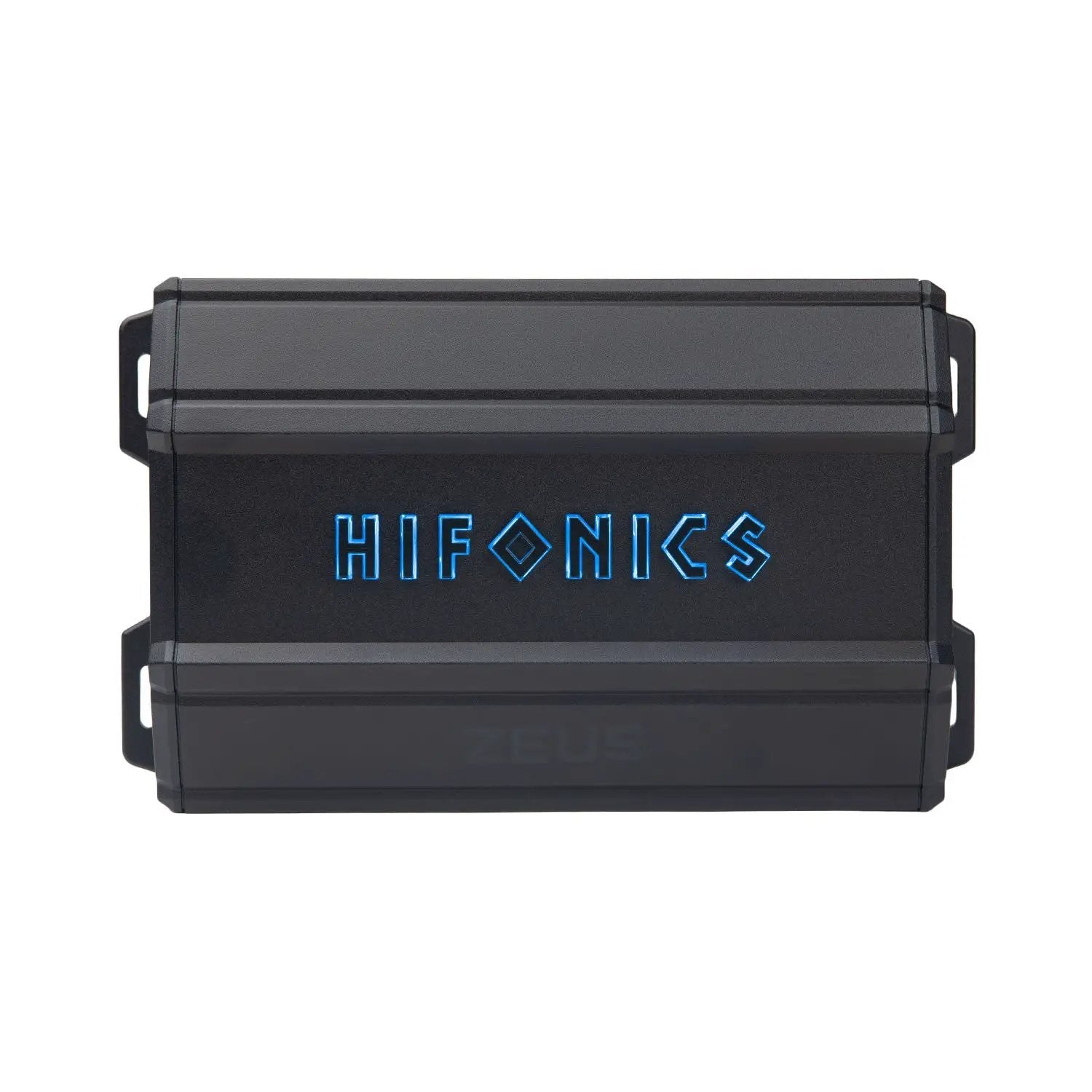

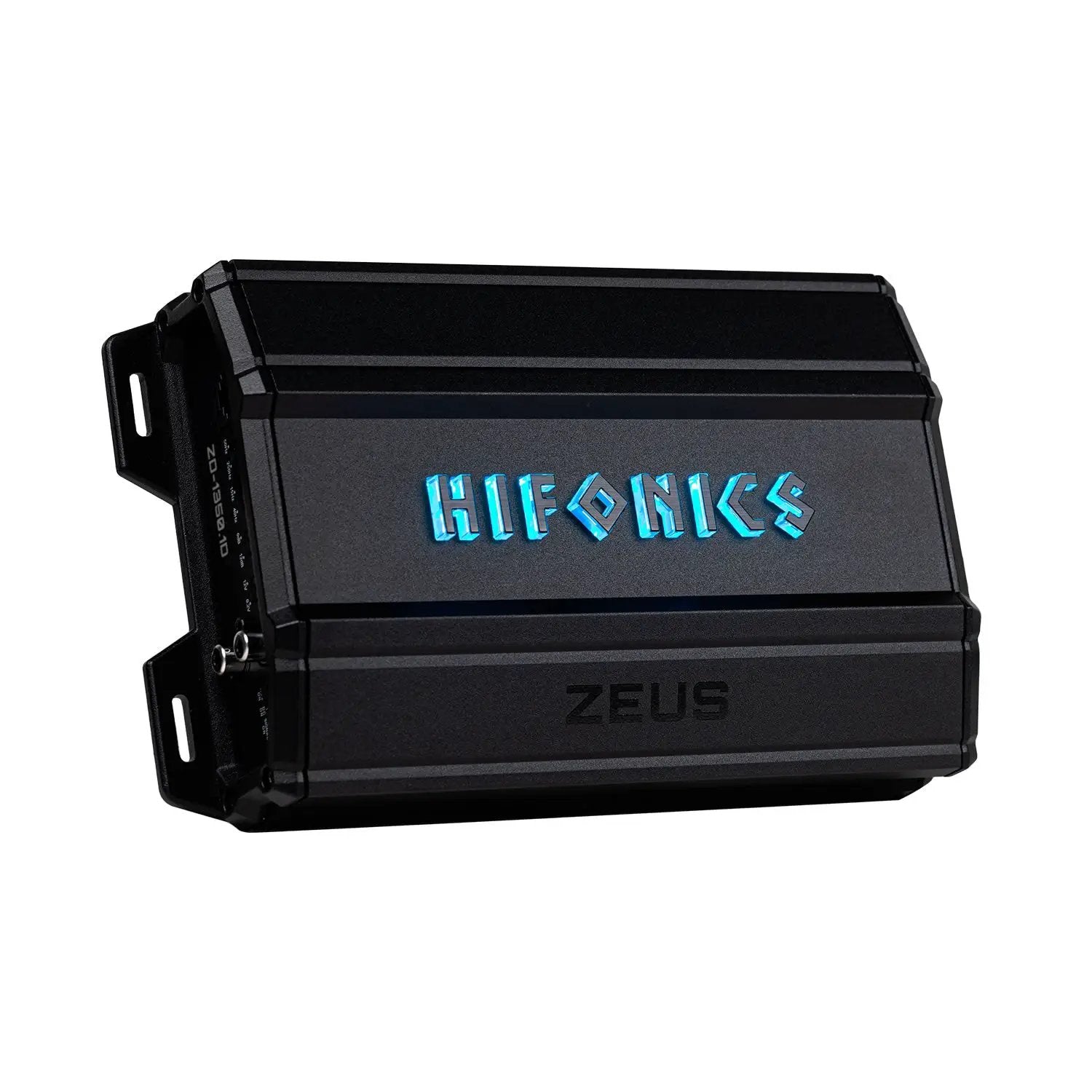

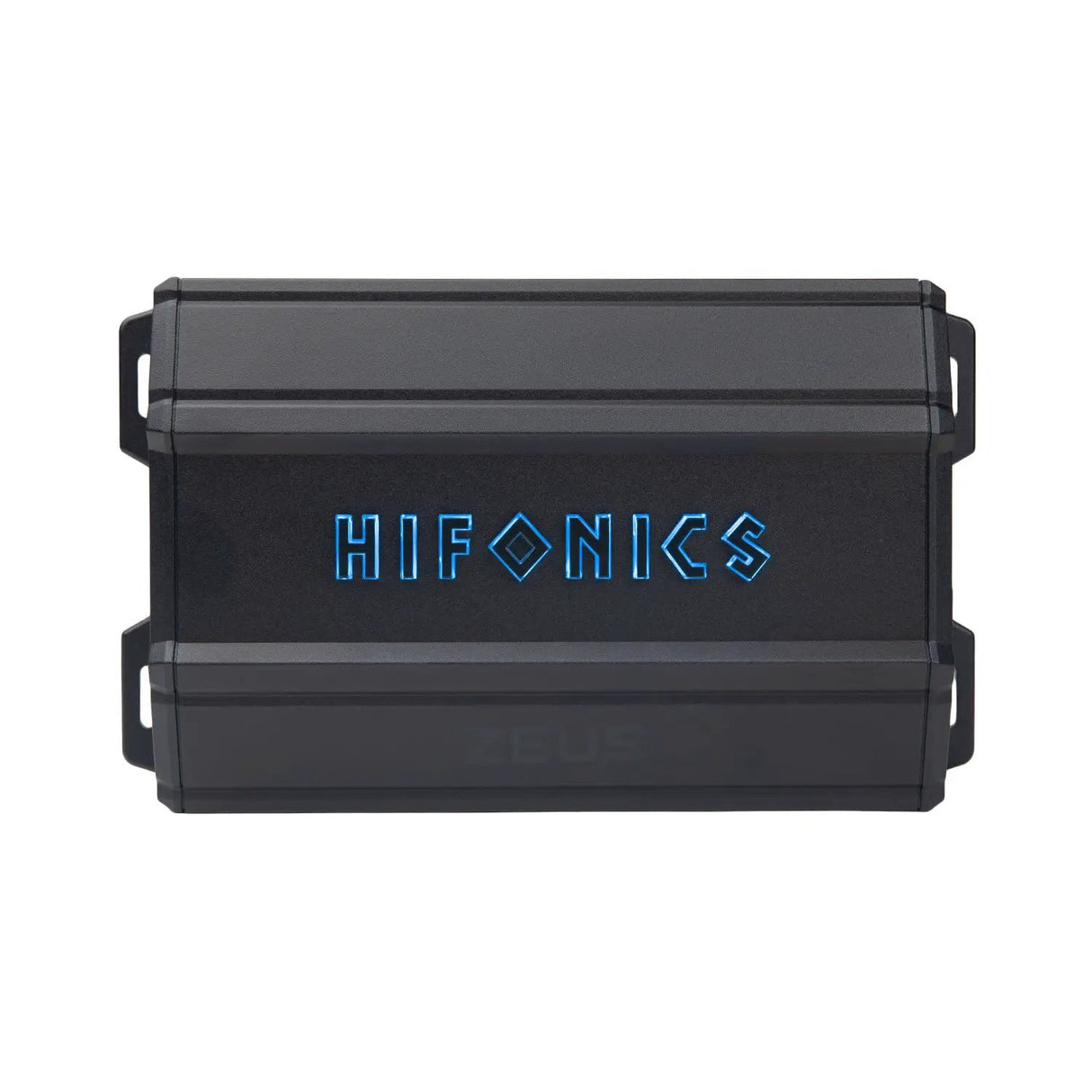

Hifonics ZD-1350.1D ZEUS DELTA 1350 Watt Mono Block Amplifier
Description
Description
The Hifonics ZD-1350.1D ZEUS DELTA Mono Block Amplifier delivers up to 1350 watts of high-efficiency Super Class D power in a compact chassis. Engineered with a Pulse Width Modulated MOSFET power supply and Simpatico coil design, it maintains consistent voltage across Ultra-Fi output devices with minimal heat generation.

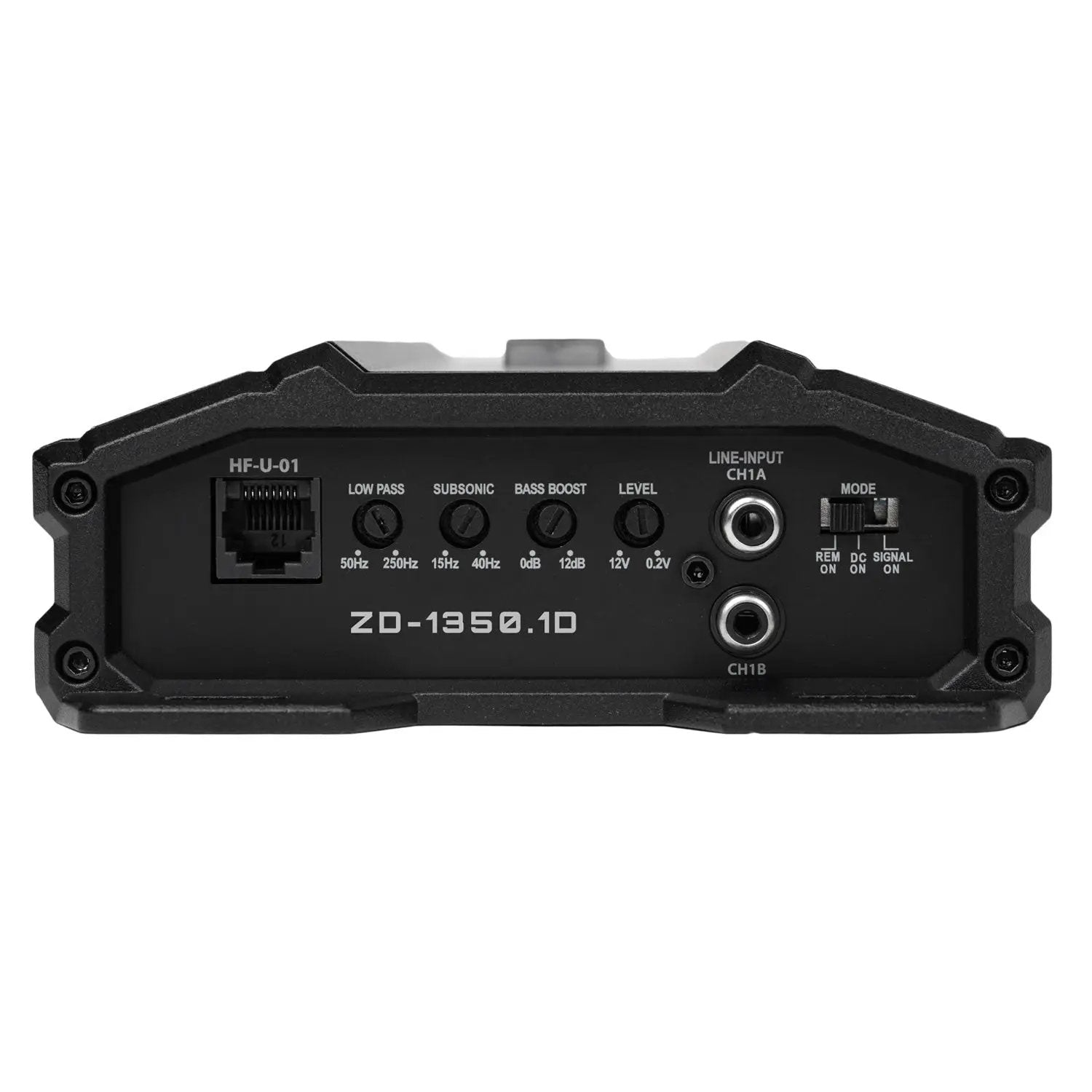

Equipped with a low-noise preamplifier circuit and onboard electronic crossover controls, this amplifier ensures clean signal transmission with minimal distortion. It offers adjustable low-pass filtering, a subsonic filter, variable bass boost from 0 to 12dB, and includes an external bass remote for precision control.
Designed for durability and easy installation, the heavy-duty aluminum heat sink optimizes thermal dissipation while angled, molded connection terminals support 4 AWG power wire. Built-in LED system protection diagnostics and a DC signal-sensing auto turn-on feature provide seamless integration into universal vehicle audio setups.
Key Features
| Brand | Hifonics |
| Series | ZEUS DELTA |
| Model | ZD-1350.1D |
| Amplifier Type | Mono Block |
| Amplifier Class | Class D |
| Total Channels | 1 |
| Max Power | 1350 W |
| Power Output @ 1 Ohm | 1 x 1350 W |
| Power Output @ 2 Ohms | 1 x 675 W |
| Power Output @ 4 Ohms | 1 x 350 W |
| Frequency Response | 15Hz - 250Hz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Variable Low Pass Crossover | 50Hz - 250Hz (12dB/octave) |
| Subsonic Filter | 15Hz - 40Hz |
| Bass Boost | 0 - 12dB |
| Variable Voltage | 0.2 - 6V |
| Power / Ground Terminal Gauge | 4 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| Fusing | External 80A |
| Product Dimensions | 24.6 × 14.6 × 5.5 cm |
| Product Weight | 2.0 kg |
| Package Dimensions | 33.5 × 17.5 × 8.0 cm |
| Package Weight | 2.4 kg |
| Color | Black |
Highlights
| Feature | Description |
|---|---|
| Compatible Vehicle Fitment | Universal |
| Low Noise Preamplifier Circuit | Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. |
| RCA Inputs | Nickel plated high temperature impact resistant that allow for secure connections and is erosion resistant. |
| Operation Mode | Mono only |
| Crossover Type | Onboard electronic crossover |
| Electronic Equalizer | Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. |
| Class / Topology | Class D: High efficiency with big power in a small footprint. |
| Output Device Technology | PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation. |
| Heat Sink | Aluminum: Modern Design Hifonics Heat sink for Superior Heat Dissipation. |
| Power Supply | Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices. |

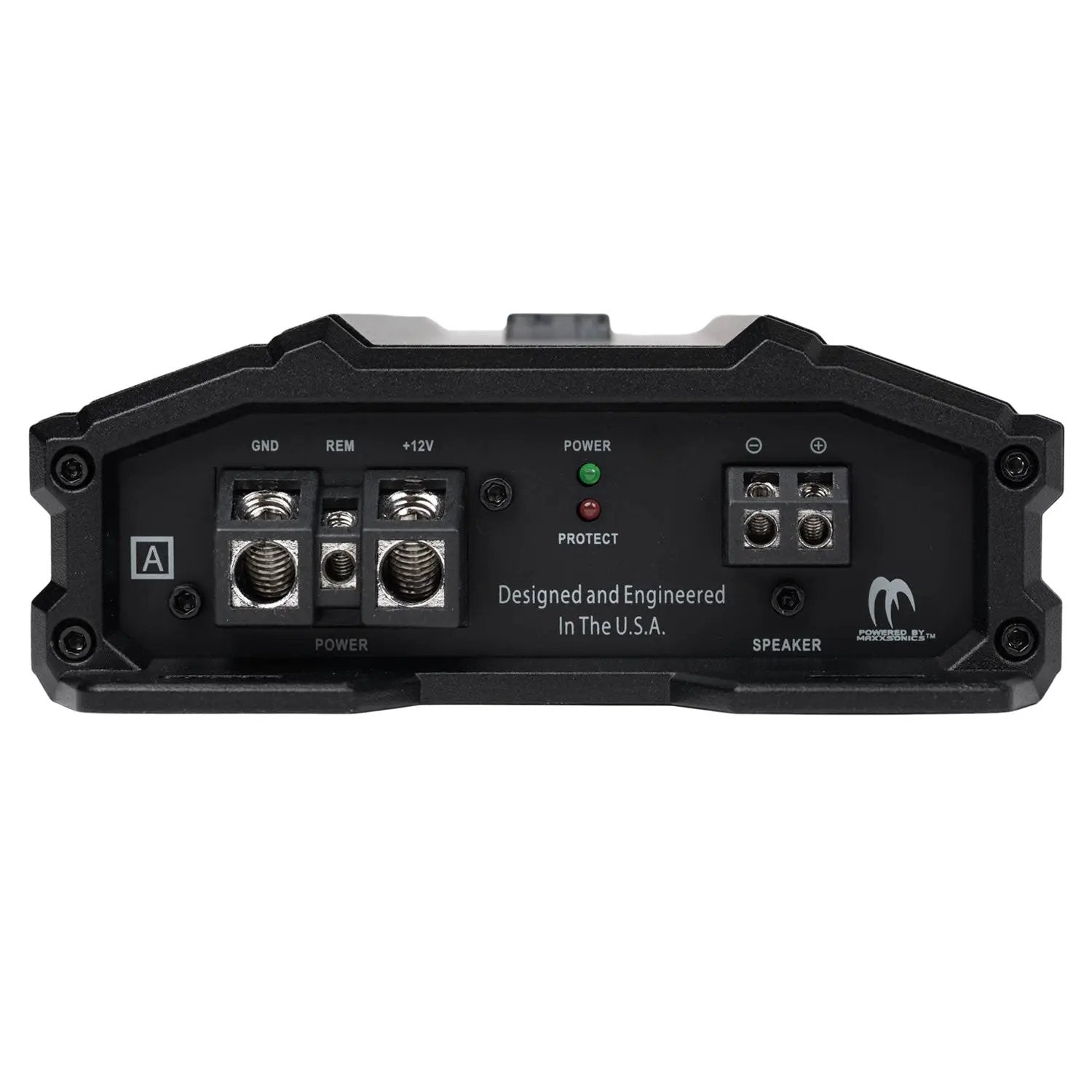

| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile. |
| LED System Protection Circuitry Diagnostics | Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel. |
| Bass Remote Included | Yes |
| Auto Turn-On | DC SIGNAL SENSE: The DC SIGNAL SENSE switch allows the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed. This feature can also be turned off. |
Compatibility
Universal fitment for mobile 12-volt audio systems requiring a dedicated mono subwoofer amplifier.
What's included
- Hifonics ZD-1350.1D Mono Block Amplifier
- Bass Remote Control with Cable
- Quick Start Guide
