Hifonics HFXR Crossover
Description
Description

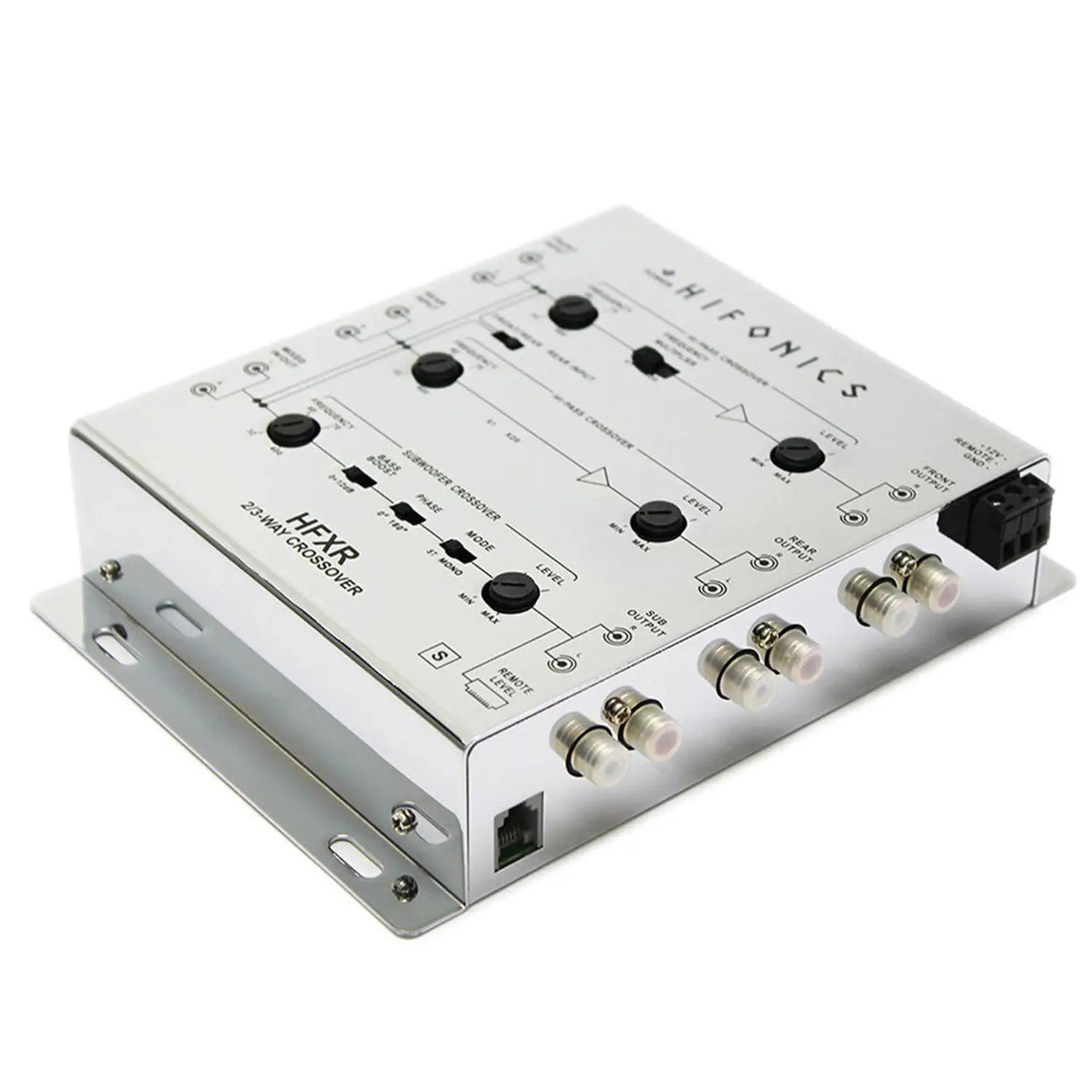

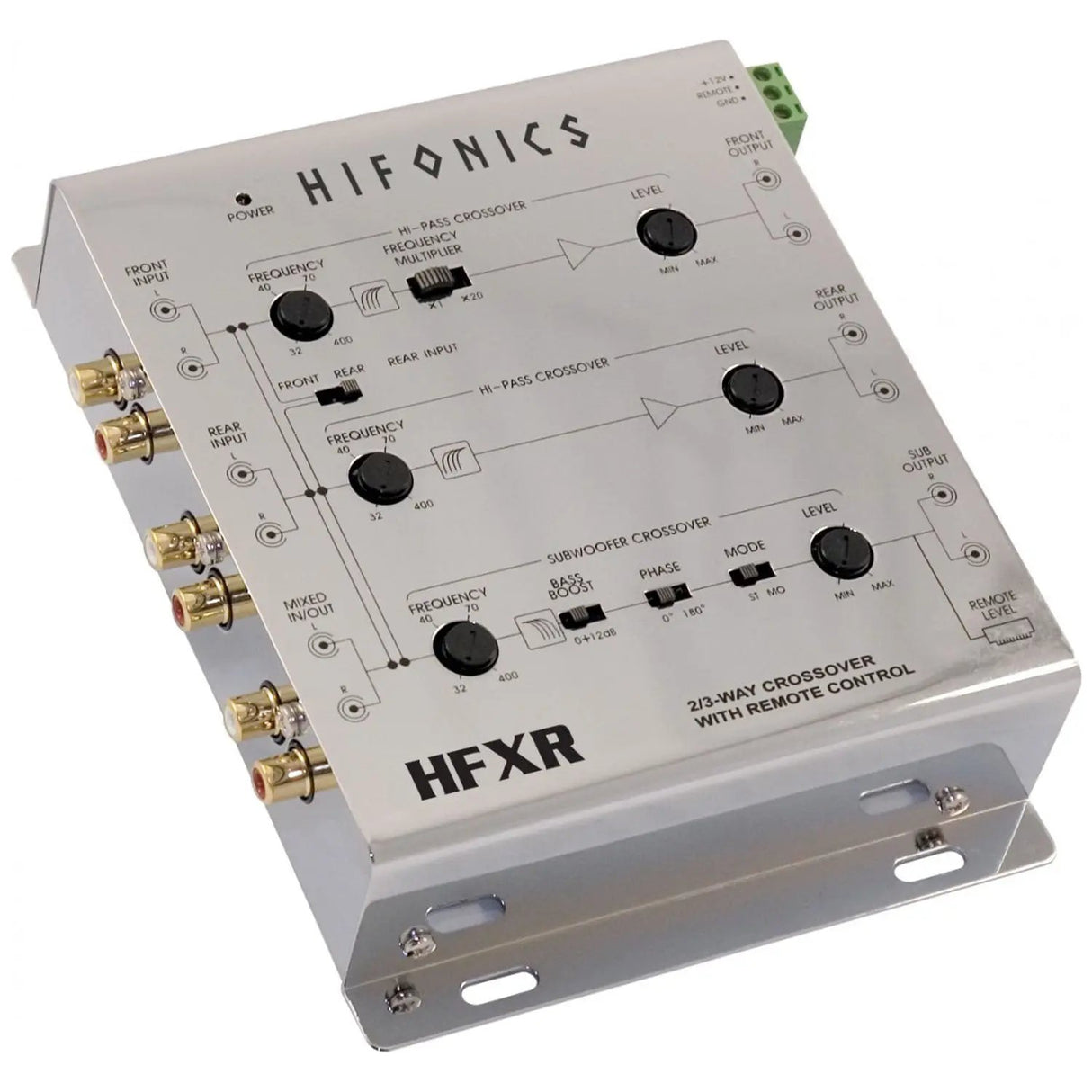

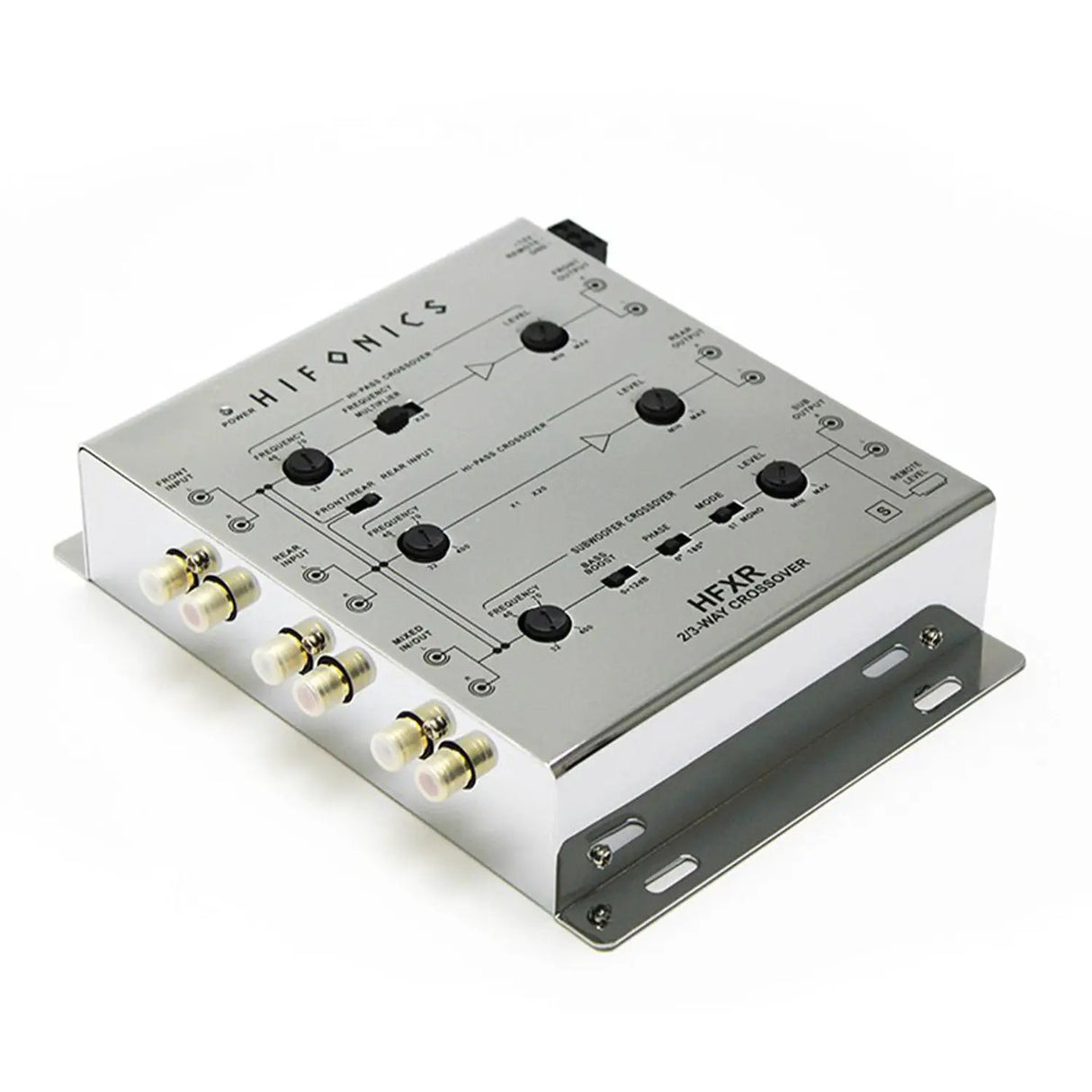

The Hifonics HFXR 2-way/3-way active electronic crossover delivers precise signal routing and sound shaping for car audio systems. Engineered with an integrated 8.5-volt RMS line driver, it provides clean, high-output signal distribution across front, rear, and subwoofer channels.
Equipped with selectable 2-channel or 4-channel RCA inputs, flexible high-pass filtering, and dedicated output level adjustments, this processor offers full tuning control over mobile audio setups. It includes a 45Hz bass boost with quasi-parametric EQ and a 180-degree phase-shift switch for optimized low-frequency response.
Designed for versatile installation, the unit accommodates both mono and stereo woofer configurations. The included remote bass control enables convenient low-end adjustment directly from the driver seat.
Key Features
| Brand | Hifonics |
| Model | HFXR |
| Type | 2-Way/3-Way Active Electronic Crossover |
| Series | HF |
| Color | Silver |
| Maximum Output Voltage | 8.5V RMS |
| Frequency Response | 10Hz-30kHz |
| Signal-to-Noise Ratio | > 95dB |
| Channel Separation | > 60dB |
| Total Harmonic Distortion | > 0.01% |
| Output Gain Ratio | 1:2 |
| Bass Boost | 0-12dB @ 45Hz |
| Front High-Pass Frequency | 32-400Hz (x1), 640-8,000Hz (x20) |
| Rear High-Pass Frequency | 32-400Hz |
| Phase Shift | 0° / 180° |
| Dimensions | 24.8 × 21.0 × 5.7 cm |
| Weight | 1.2 kg |
| Vehicle Compatibility | Universal |
Highlights
- Selectable 2-way or 3-way electronic crossover operation
- Integrated 8.5-volt RMS line driver for maximum signal clarity
- Selectable 2-channel or 4-channel input switch
- 45Hz bass boost with quasi-parametric EQ (0-12dB)
- Includes remote bass control module
- 180-degree phase-shift switch for subwoofer alignment
- Independent level controls for front, rear, and subwoofer outputs
Compatibility
Universally compatible with standard 12V mobile audio systems and can be paired with mono or stereo subwoofer amplifiers and full-range amplifiers.
What's included
- Hifonics HFXR Crossover

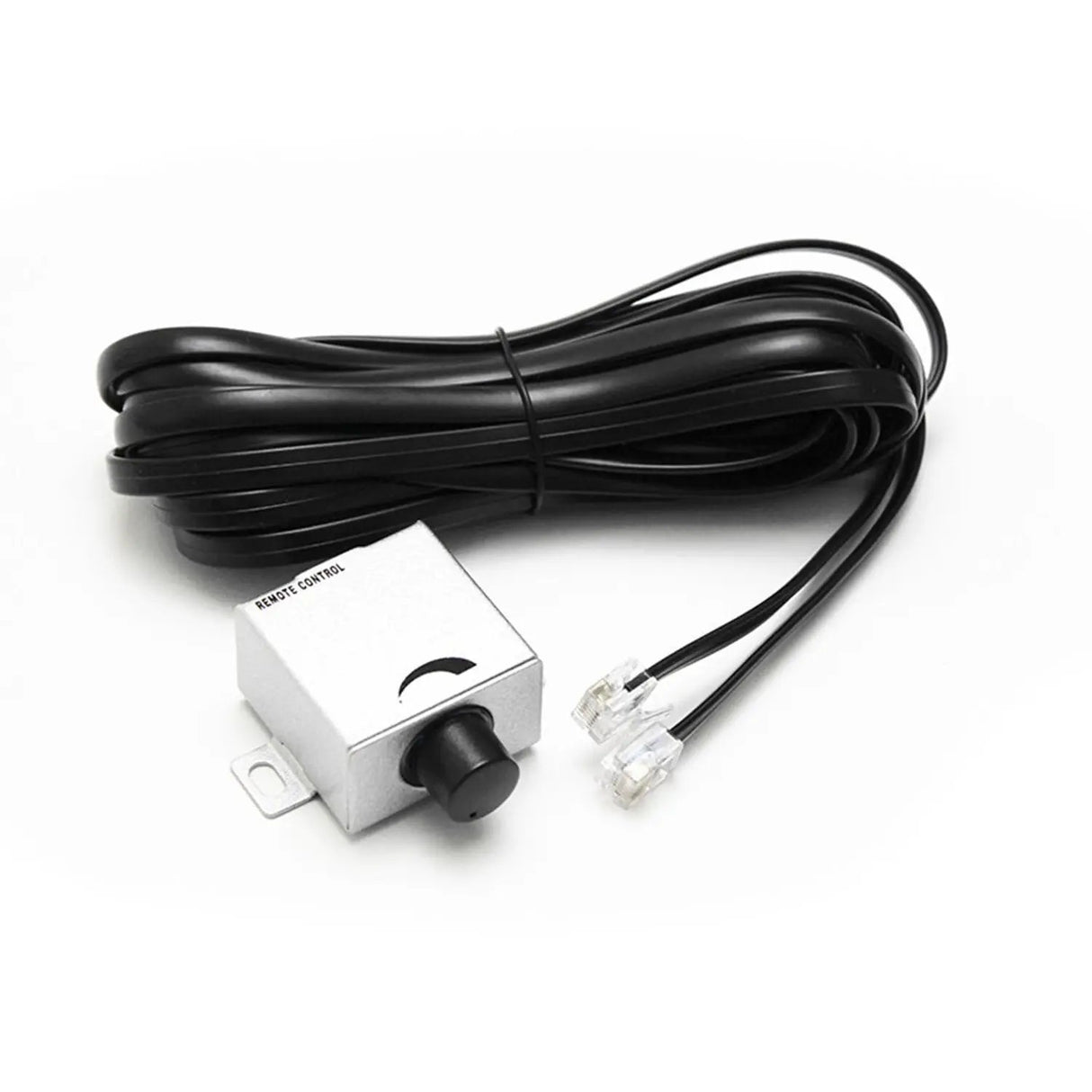

- Remote Bass Control Knob with Cable
