Hifonics HEW12D4S ELITE 12 Inch 4 Ohm DVC Shallow Subwoofer
Description
Description
The Hifonics HEW12D4S ELITE Series 12 inch shallow mount subwoofer is engineered to deliver powerful bass performance in compact spaces. It features dual 4 ohm 3-inch high-temperature voice coils paired with a vented aluminum former to maximize heat dissipation and maintain thermal stability.
Built with a lightweight woven fiber cone and UV-treated foam surround, this subwoofer provides rapid transient response and durability against sun exposure. A specialized poly-cotton spider minimizes distortion while ensuring reliable high-power handling over extended listening periods.

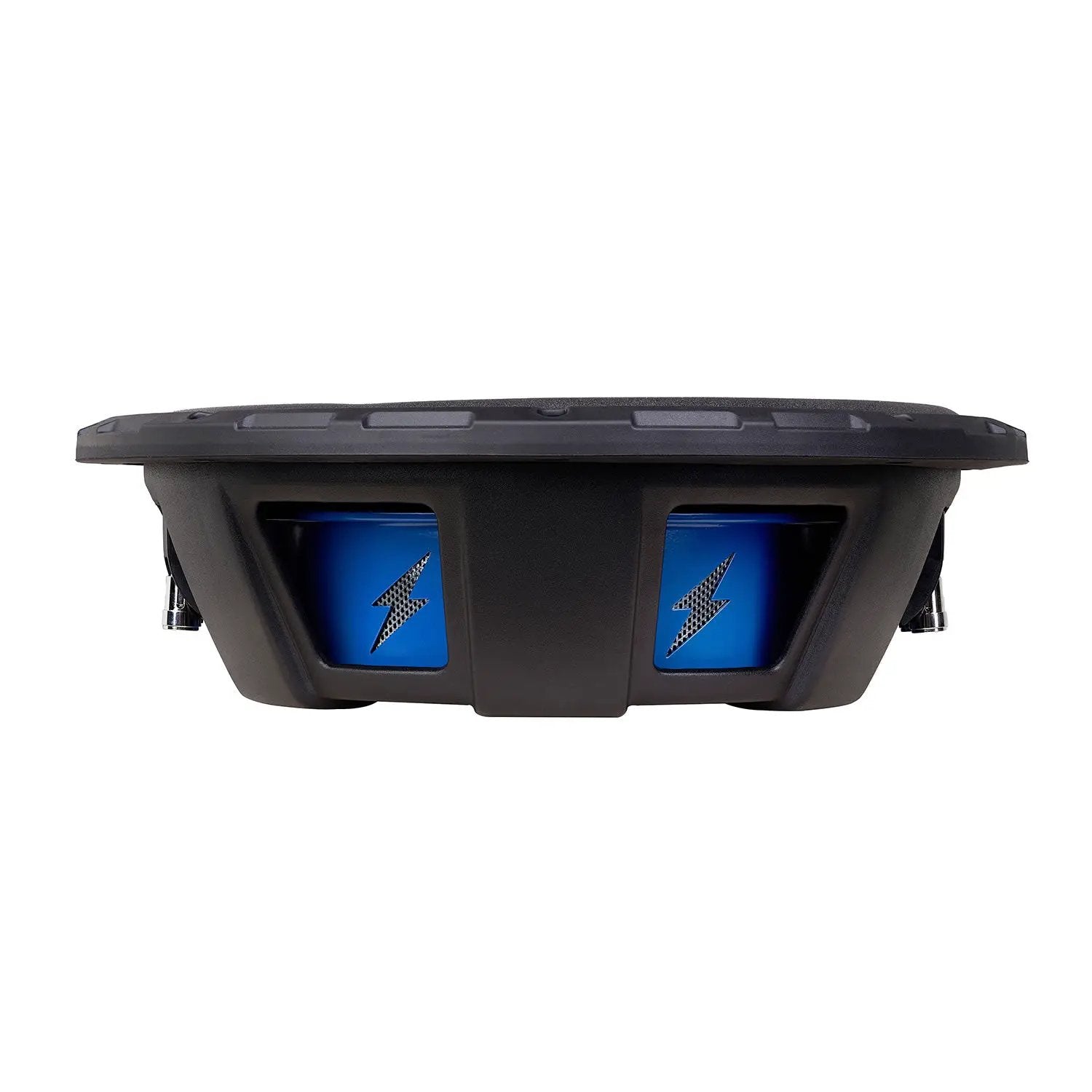

The subwoofer is constructed on a powder-coated stamped steel basket designed with a low mounting depth of 8.1 cm to preserve cargo room. Stainless nickel-plated push-and-insert terminals provide a secure, corrosion-resistant electrical connection for sealed enclosure installations.
Key Features
| Brand | Hifonics |
| Series | Hifonics ELITE |
| Model Number | HEW12D4S |
| Product Type | Subwoofer |
| Speaker Size | 12" |
| RMS Power Handling | 300 W |
| Peak Power Handling | 600 W |
| Impedance | 4 Ohms |
| Voice Coils | 2 (Dual) |
| Voice Coil Diameter | 3" |
| Mounting Depth | 8.1 cm |
| Cut-Out Diameter | 27.6 cm |
| Overall Diameter | 31 cm |
| Sensitivity | 85 dB |
| Dimensions | 34.3 × 34.3 × 12.1 cm |
| Weight | 3.7 kg |
| Enclosure Recommendation | Sealed enclosure |
| Cone Material | Woven Fiber |
| Surround Material | UV-Treated Foam |
| Basket Material | Powder Coated Stamped Steel |
| Terminal Type | Nickel-Plated Push & Insert |
Highlights
| Feature | Description |
|---|---|

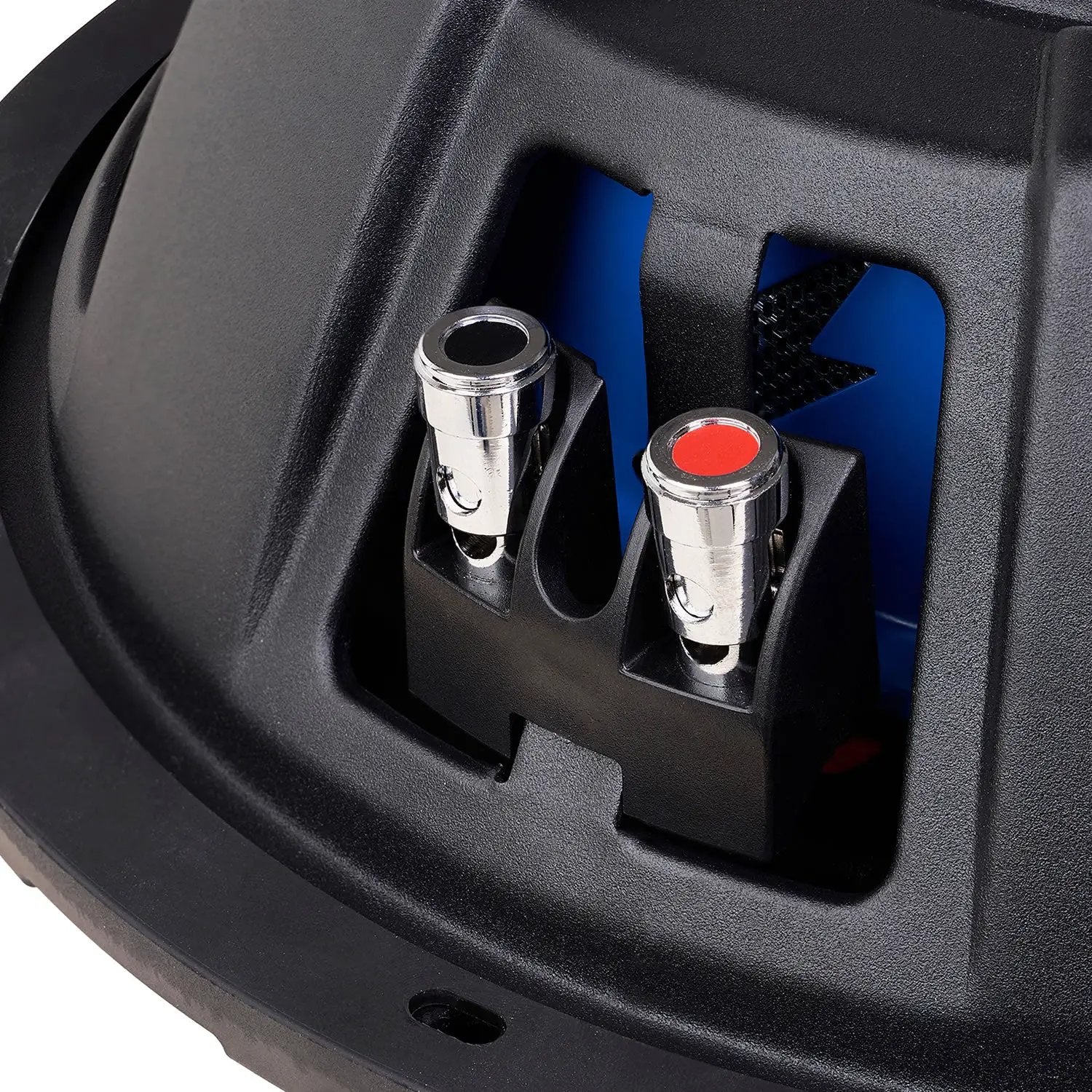

| Terminal Type | Stainless Push & Insert for a secure electrical connection with a high end fit and finish. Nickel plated push & insert to resist corrosion and aid in ease of installation. |
| Configuration | Round Shallow Mount |
| Surround / Cone Coupling | UV treated, foam surround resists sun fading while remaining flexible. |
| Voice Coil / Former Assembly | 3 inch high temperature voice coil and former for high thermal stability in small enclosure volumes. Vented aluminum voice coil former allows more dissipation of heat. |
| Spider | Specialized Hifonics poly cotton spider resists softening and sagging over time which allows the subwoofer to handle more power with minimum distortions. |

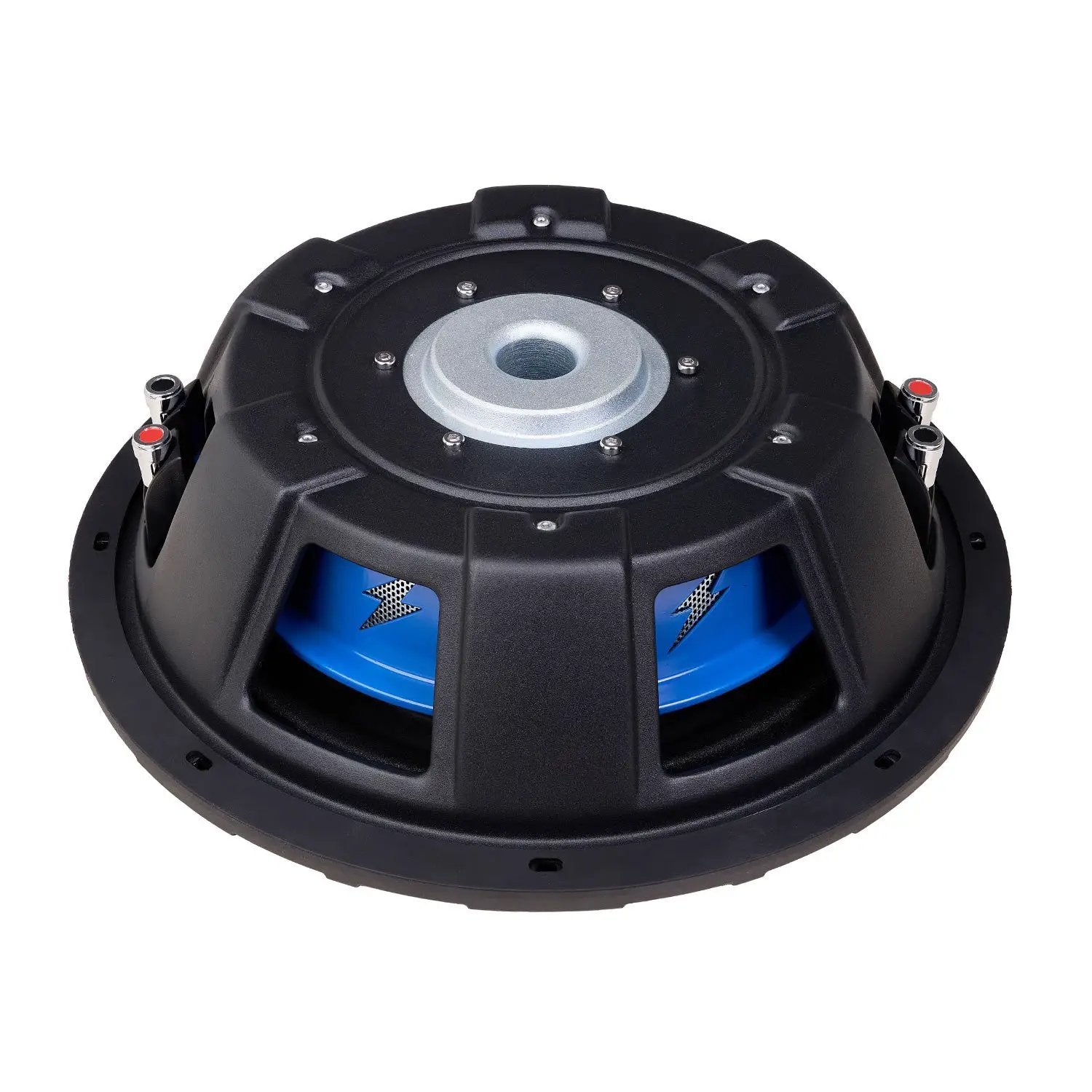

| Frame / Venting | Powder coated stamped steel basket provides a solid base for the motor system and moving parts and delivers bass in a small area. |

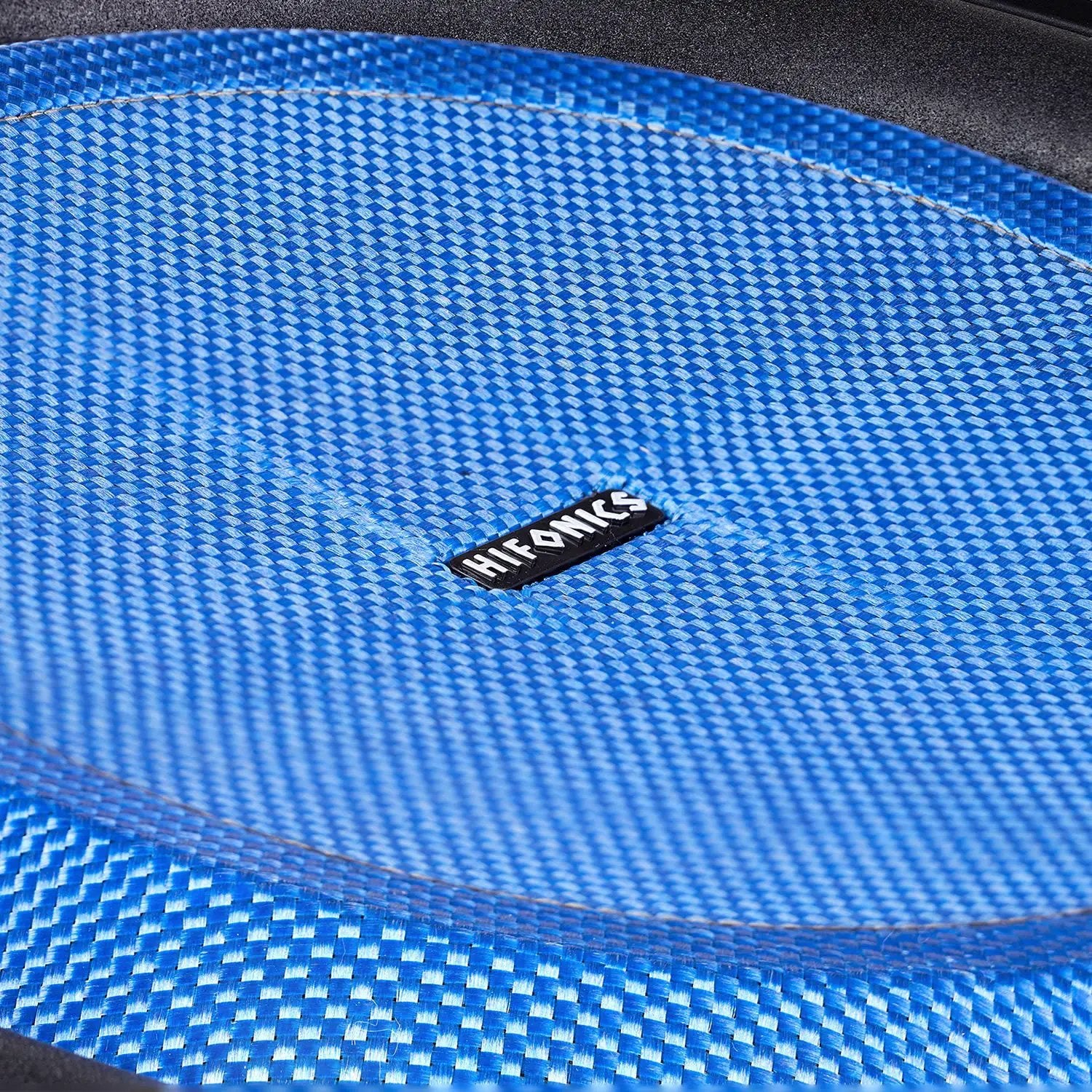

| Cone | Lightweight woven fiber cone and dust cap enables faster response while providing overall strength. |
Compatibility
Universal fitment suitable for mobile car audio systems compatible with a 12-inch shallow-mount sealed enclosure and dual 4-ohm wiring configurations.
