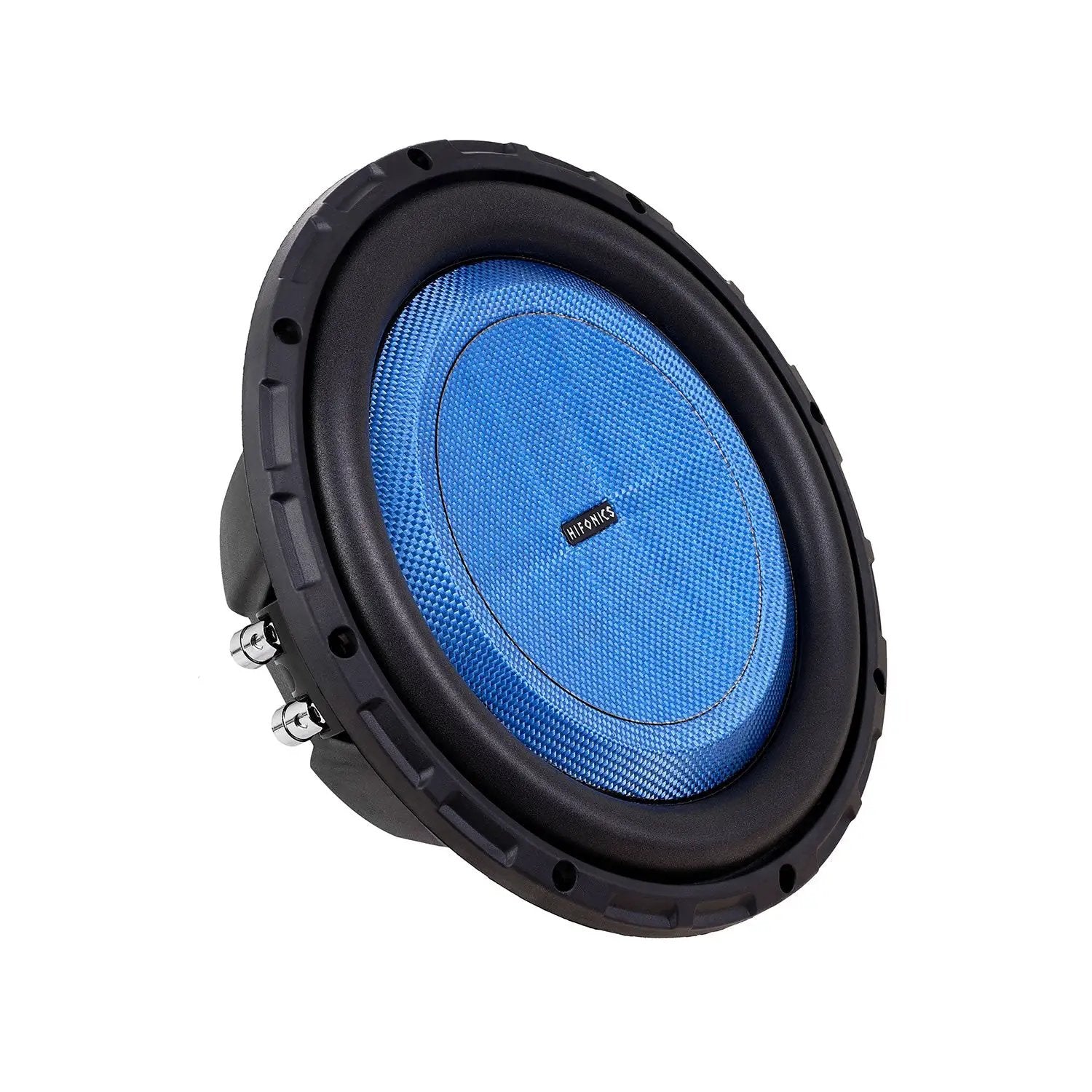

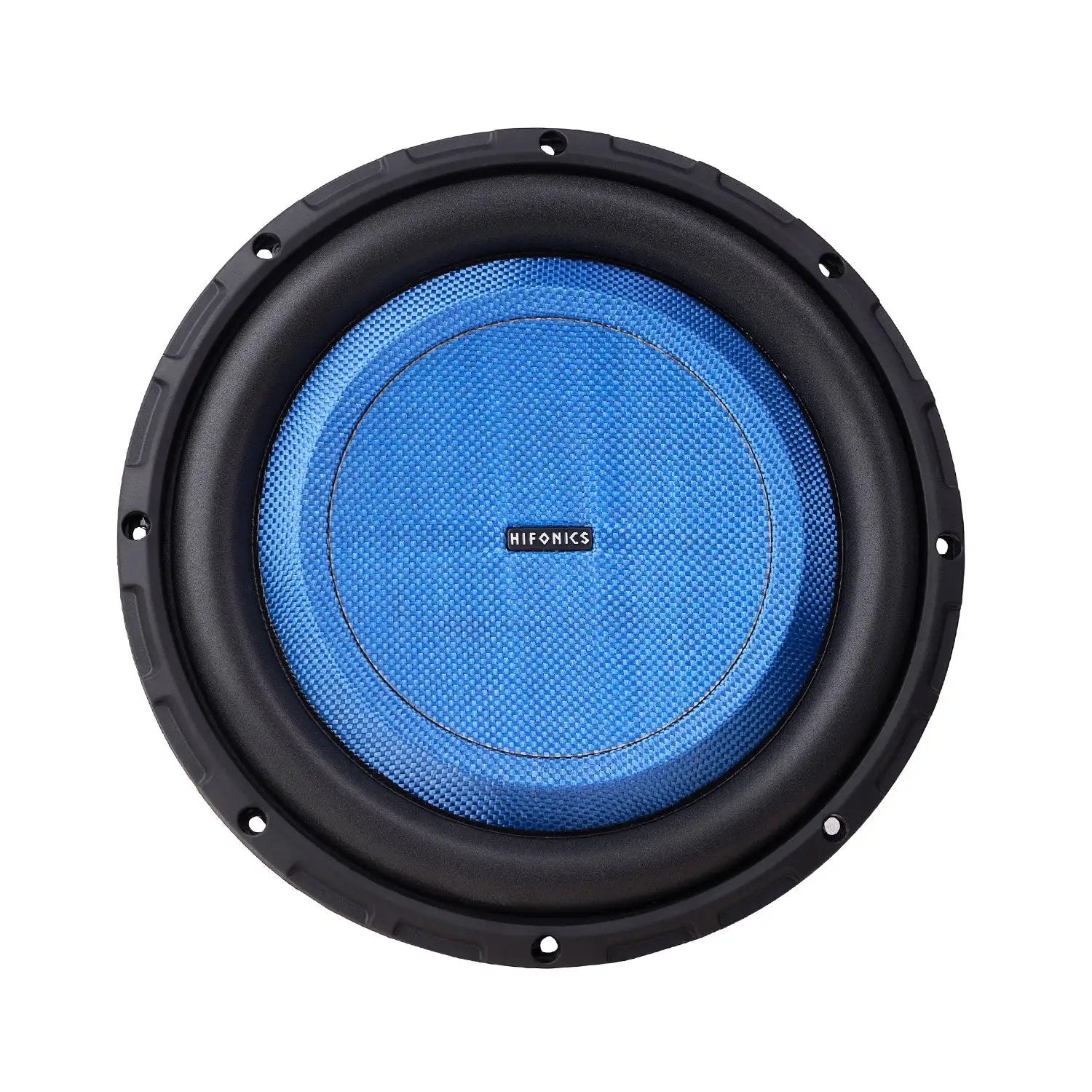

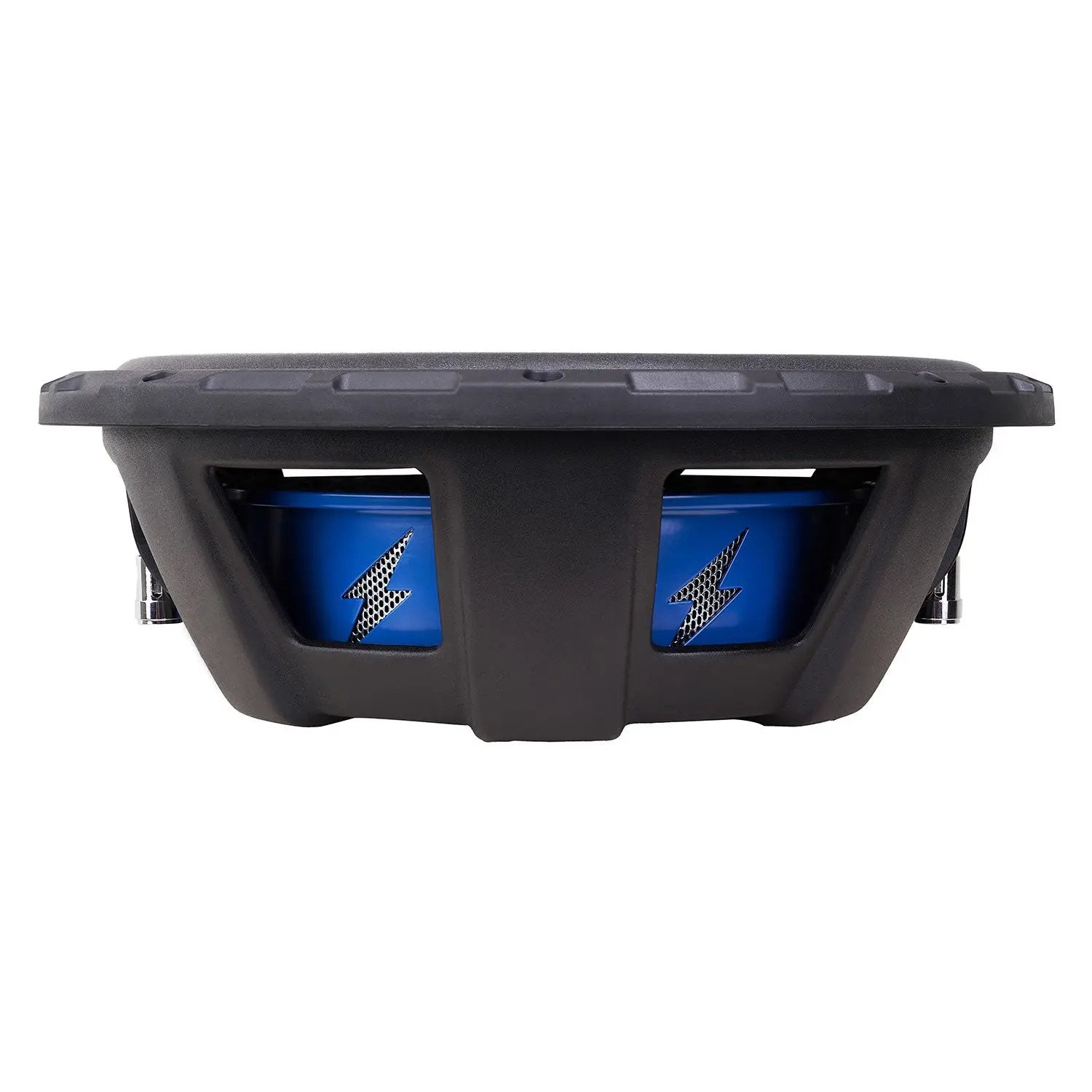

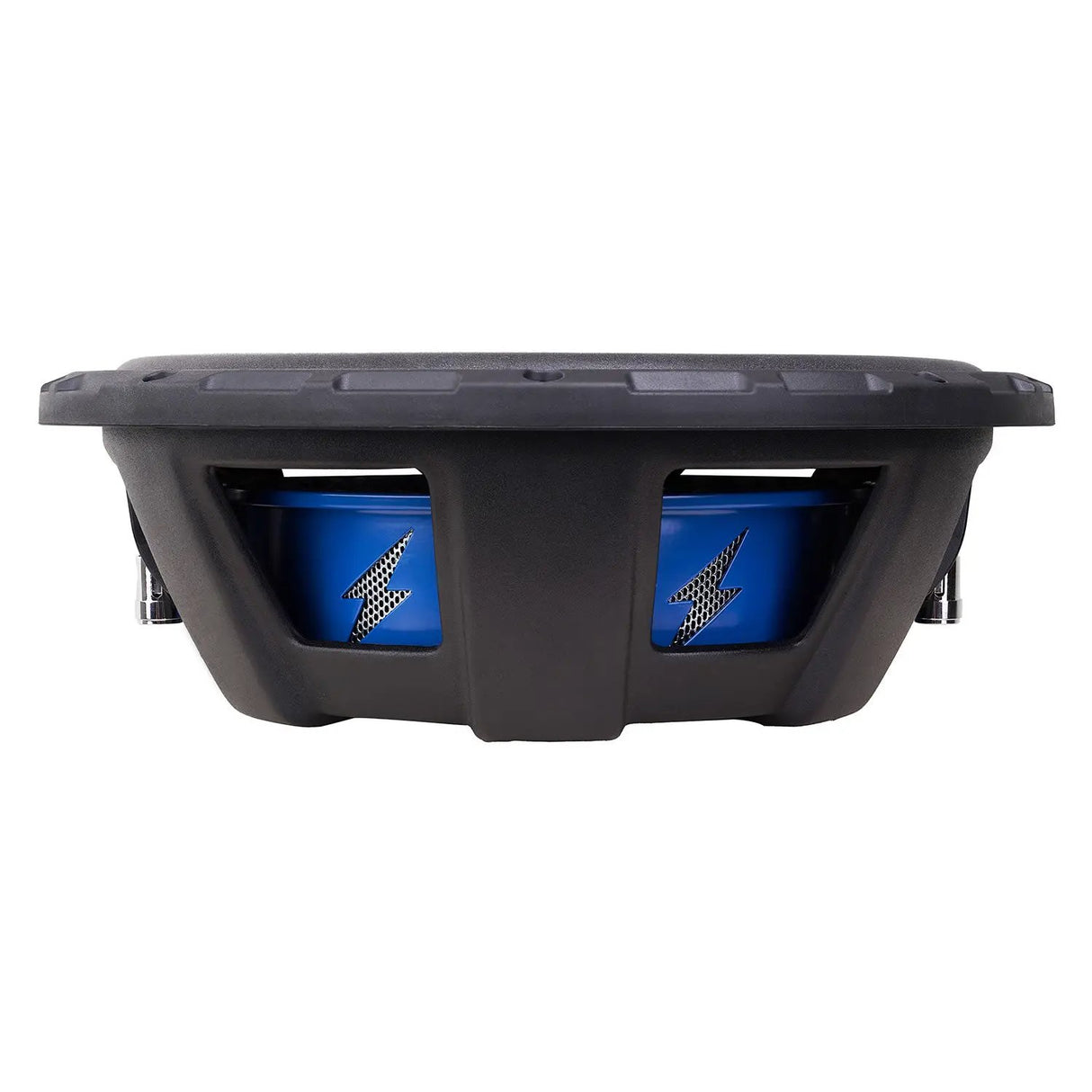

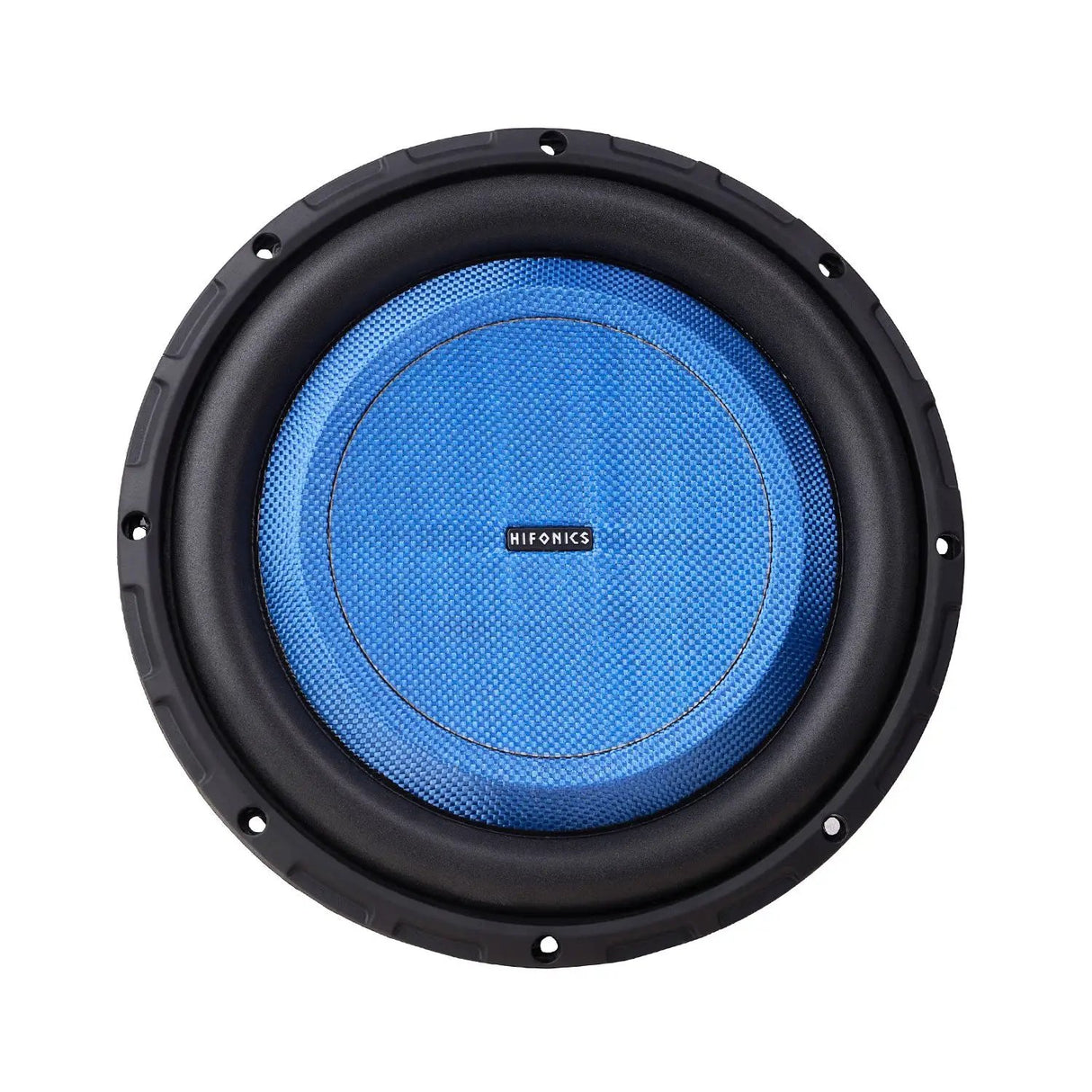

The Hifonics HEW10D4S ELITE Series 10-inch shallow mount subwoofer delivers up to 600 watts of peak power and 300 watts RMS in space-constrained installations. Featuring a compact 7.6 cm mounting depth, this shallow-profile driver fits into tight sealed enclosures without sacrificing cargo room.

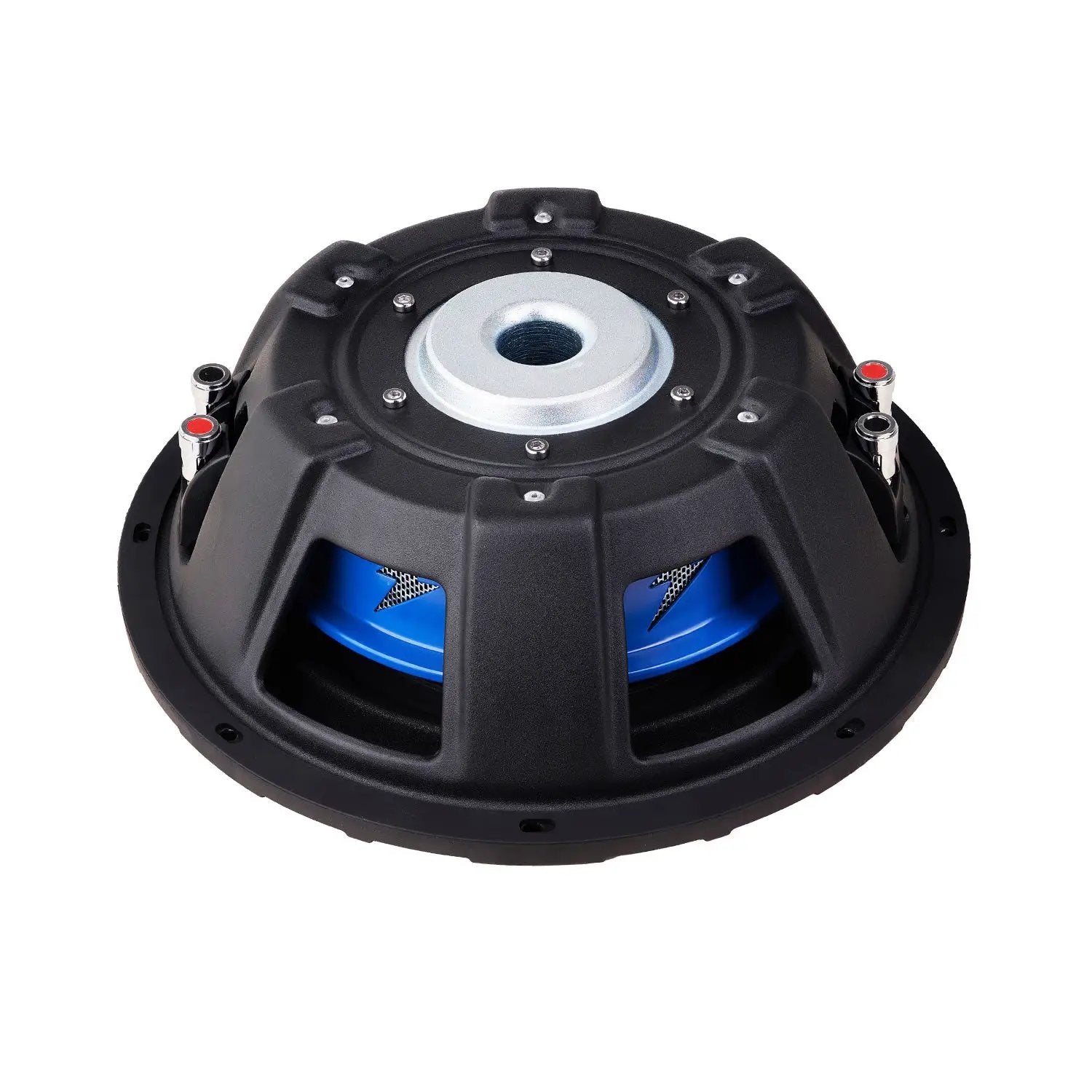

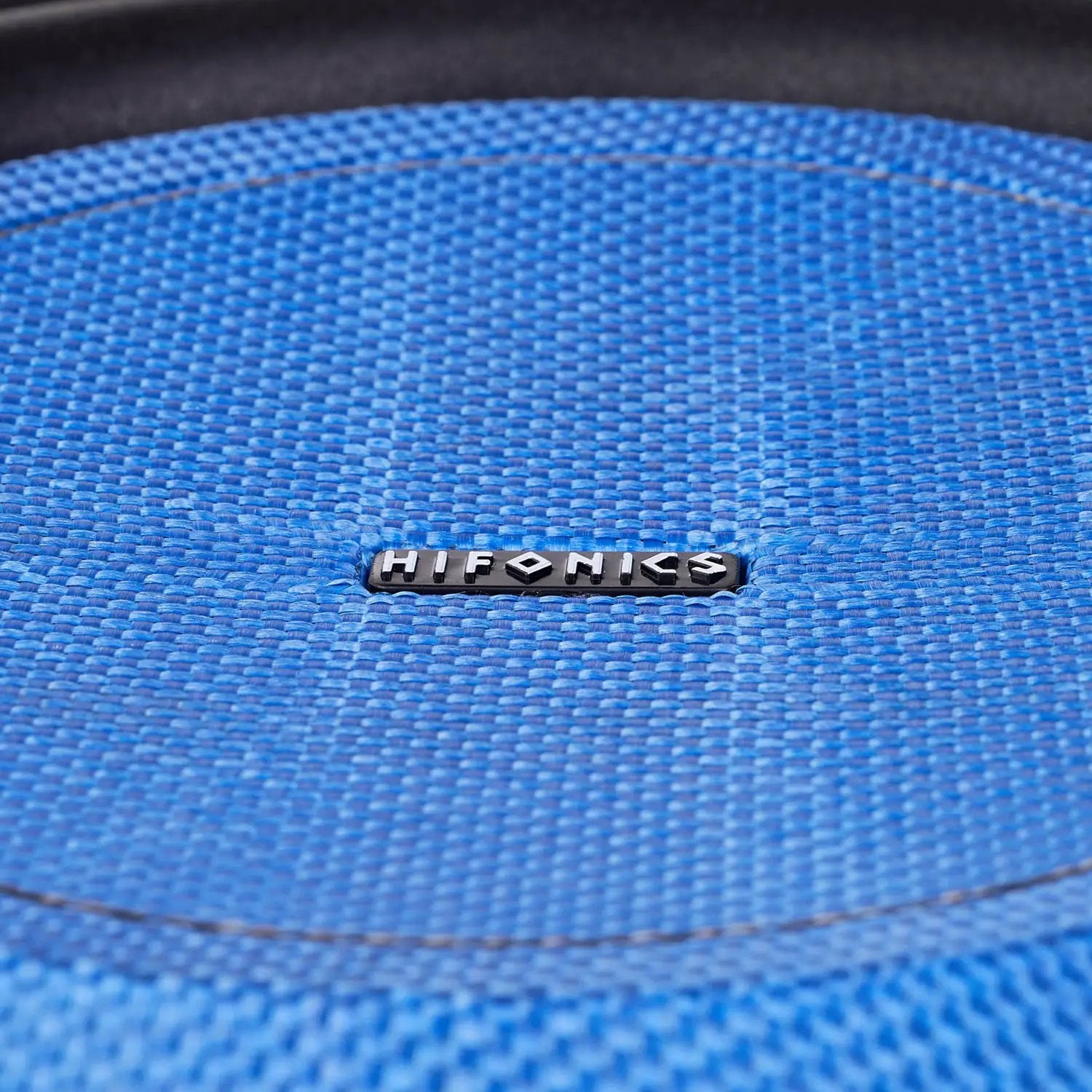

Constructed with a lightweight woven fiber cone, UV-treated foam surround, and a powder-coated stamped steel basket, the subwoofer provides durable structural integrity and fast transient response. Heat dissipation is maintained via dual 6.4 cm high-temperature voice coils wrapped on a vented aluminum former.

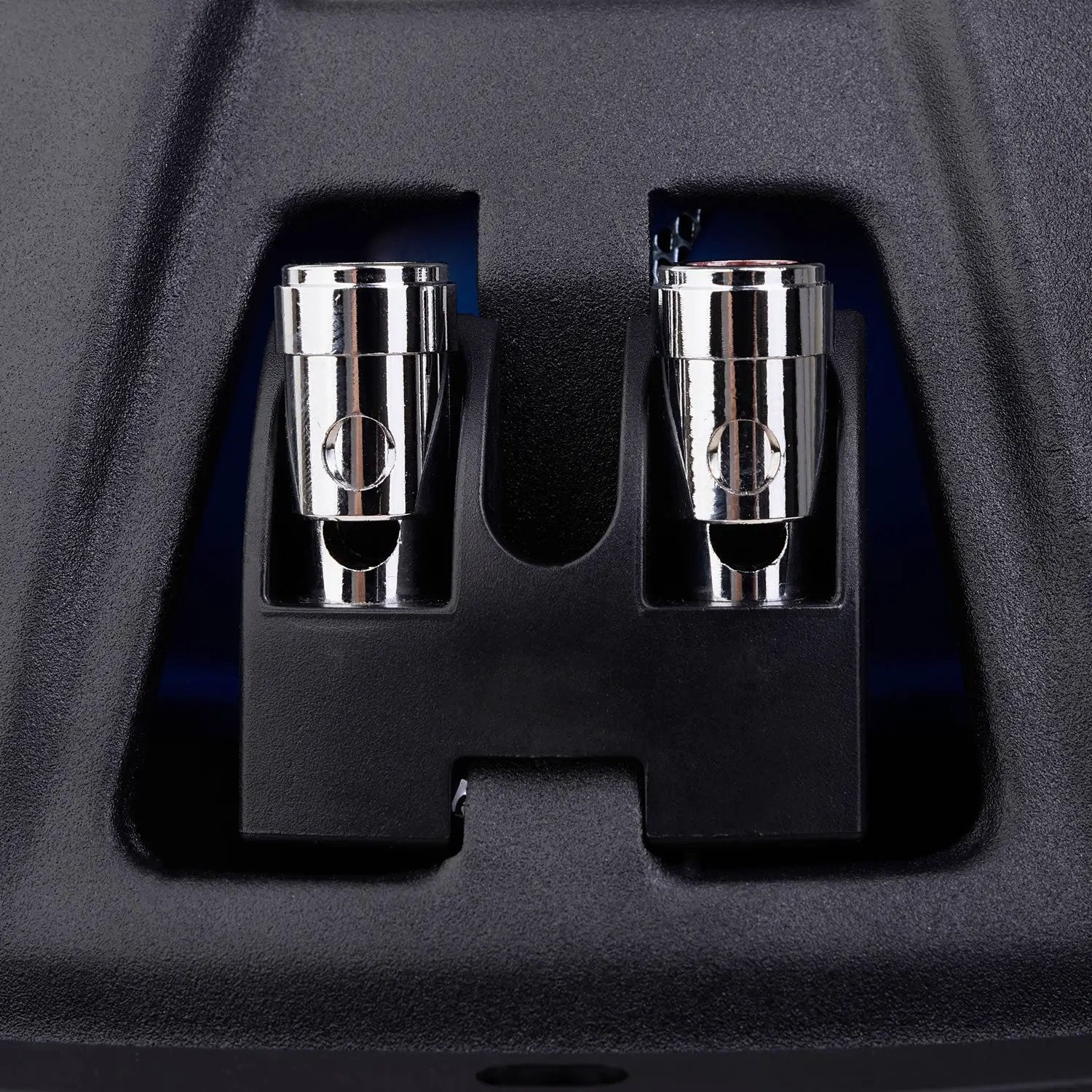

A specialized poly-cotton spider resists sagging over extended operation to minimize distortion under heavy loads. Corrosion-resistant nickel-plated push and insert terminals ensure a secure electrical connection for dual 4-ohm wiring configurations.
Key Features
| Brand | Hifonics |
| Series | Hifonics ELITE |
| Model | HEW10D4S |
| Product Type | Subwoofer |
| Configuration | Round Shallow Mount |
| Subwoofer Size | 10" |
| RMS Power Handling | 300 W |
| Peak Power Handling | 600 W |
| Impedance | 4 Ohms |
| Voice Coils | 2 (Dual) |
| Voice Coil Diameter | 6.4 cm (2.5") |
| Mounting Depth | 7.6 cm (3.0") |
| Cutout Diameter | 23 cm (9.06") |
| Overall Diameter | 25.9 cm (10.2") |
| Sensitivity | 85 dB (1W/1m) |
| Cone Material | Woven Fiber |
| Surround Material | UV-Treated Foam |
| Basket Material | Powder Coated Stamped Steel |
| Spider Material | Poly-Cotton |
| Terminal Type | Nickel-Plated Push & Insert |
| Enclosure Recommendation | Sealed |
| Product Weight | 3.2 kg |
| Dimensions | 29.2 × 29.2 × 11.4 cm |
Highlights
- 10-inch shallow mount car audio subwoofer rated at 300W RMS / 600W Peak
- Slim 7.6 cm mounting depth designed for compact sealed enclosures
- Dual 4-ohm 6.4 cm high-temperature voice coils on a vented aluminum former
- Lightweight woven fiber cone with UV-treated flexible foam surround
- Powder-coated stamped steel basket and anti-sag poly-cotton spider
- Corrosion-resistant nickel-plated push and insert terminals
Compatibility
Universal fit for mobile audio systems requiring a 10-inch shallow mount subwoofer with a 23 cm cutout and sealed enclosure.
