Hifonics BRL800.4 BRUTUS BRL 800 Watt Four Channel Amplifier
Description
Description
The Hifonics BRUTUS BRL800.4 four-channel amplifier delivers 800 watts RMS through an efficient Super D Class design. Built with an extruded aluminum heat sink and Ultra-Fi MOSFETs, it ensures optimized thermal management and clean power output across all channels.
Equipped with a built-in VU meter and stylized badging, the illuminated logo displays audio levels to assist with precise gain adjustments. Nickel-plated RCA jacks and multi-layer printed circuit boards provide clear signal transfer with minimal electromagnetic interference.
Featuring electronic variable crossovers, built-in bass control, and delayed turn-on functionality, this amplifier eliminates unwanted noise during startup. Integrated triple protection circuits safeguard against over-voltage, short circuits, and thermal overload for dependable car audio performance.
Key Features
| Brand | Hifonics |
| Series | BRUTUS BRL |
| Type | Amplifier |
| Amp Class | Super D Class™ |
| Amp Total Channels | 4 |
| Amp Max Power (watts) | 800 |
| Amp Power @ 2 Ohms (ch x watts) | 4 x 200 |
| Amp Power @ 4 Ohms (ch x watts) | 4 x 125 |
| Amp Mono Bridged @ 4 Ohms (ch x watts) | 2 x 400 |
| Amp Frequency Response | 15Hz-30kHz |
| Amp Signal to Noise | 88dB |
| Amp Total Harmonic Distortion (THD) | < 0.2% |
| Amp Variable Voltage | 0.2-9V |
| Amp Crossover | Variable Electronic 12dB Per Octave |
| Amp Variable High Pass Crossover 12dB per Octave | 40Hz-2KHz |
| Amp Variable Low Pass Crossover 12dB per Octave | 40Hz-2KHz |
| Amp Tone Control / Parametric EQ | Built-in Bass Control |
| Amp Power Terminal 12v/GND | 2 AWG |
| Amp Speaker Terminal Wire Gauge | 12 AWG |
| Amp Fusing | External 60A |
| Color | Black |
| Condition | New |
| Dimensions | 26.7 × 18.7 × 9.2 cm |
| Weight | 2.0 kg |
| Item Length | 21.6 cm |
| Item Width | 14.6 cm |
| Item Height | 5.7 cm |
| Item Weight | 1.7 kg |
| Compatible Vehicles | Universal |
| Warranty | 1 Year |
Highlights
| Feature | Description |
|---|---|
| Ultra-High Efficient Design | A thoughtful power supply design coupled with carefully selected parts results in ultra-high efficient amplifier. |
| Half Bridge Design | A more efficient design with fewer components results in higher power output. |
| Ultra-Low EMI Design | Minimal interface with other vehicle electronic systems. |
| Mass-Loaded Heat Sink | The mass-loaded extruded aluminum heat sink results in better thermal management and output performance. |
| High-End Preamplifier Circuit | Accepts a wider range of input signals. |
| RCA Inputs | Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Tolerance Output Device | Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. |
| Operation Mode | 4 channel operation mode allows either stereo or mono bridged operation. |
| Clean Board Construction | Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. |
| Class / Topology | BRL amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range. |
| Power Supply | Iron core transformer assists in the ultra-low EMI design while providing high power at an unmatched value. |
| Delayed Turn-On Function | Ensures compatibility with a wide range of source units to eliminate any unwanted turn-on/off noises like hisses and pops. |

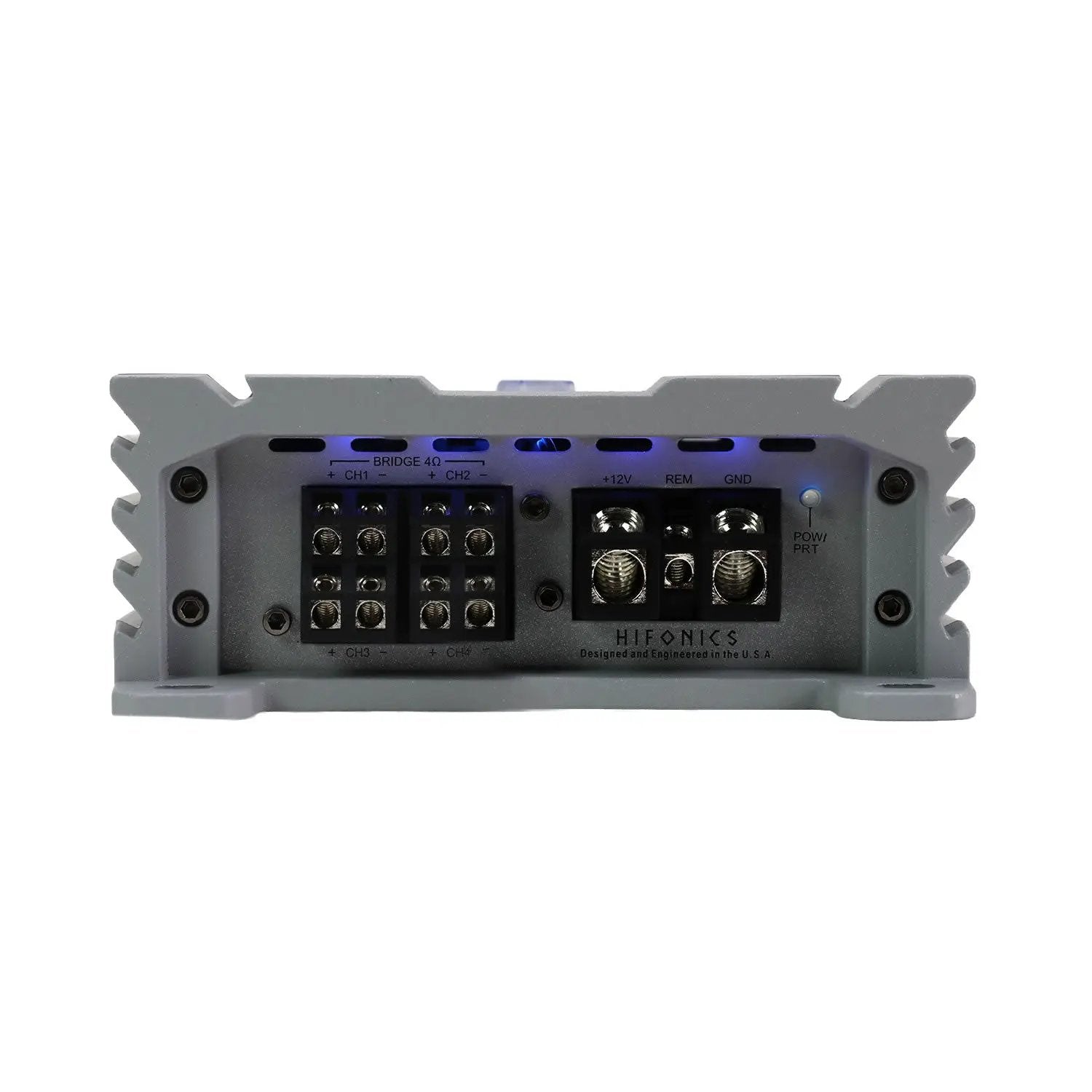

| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile. |

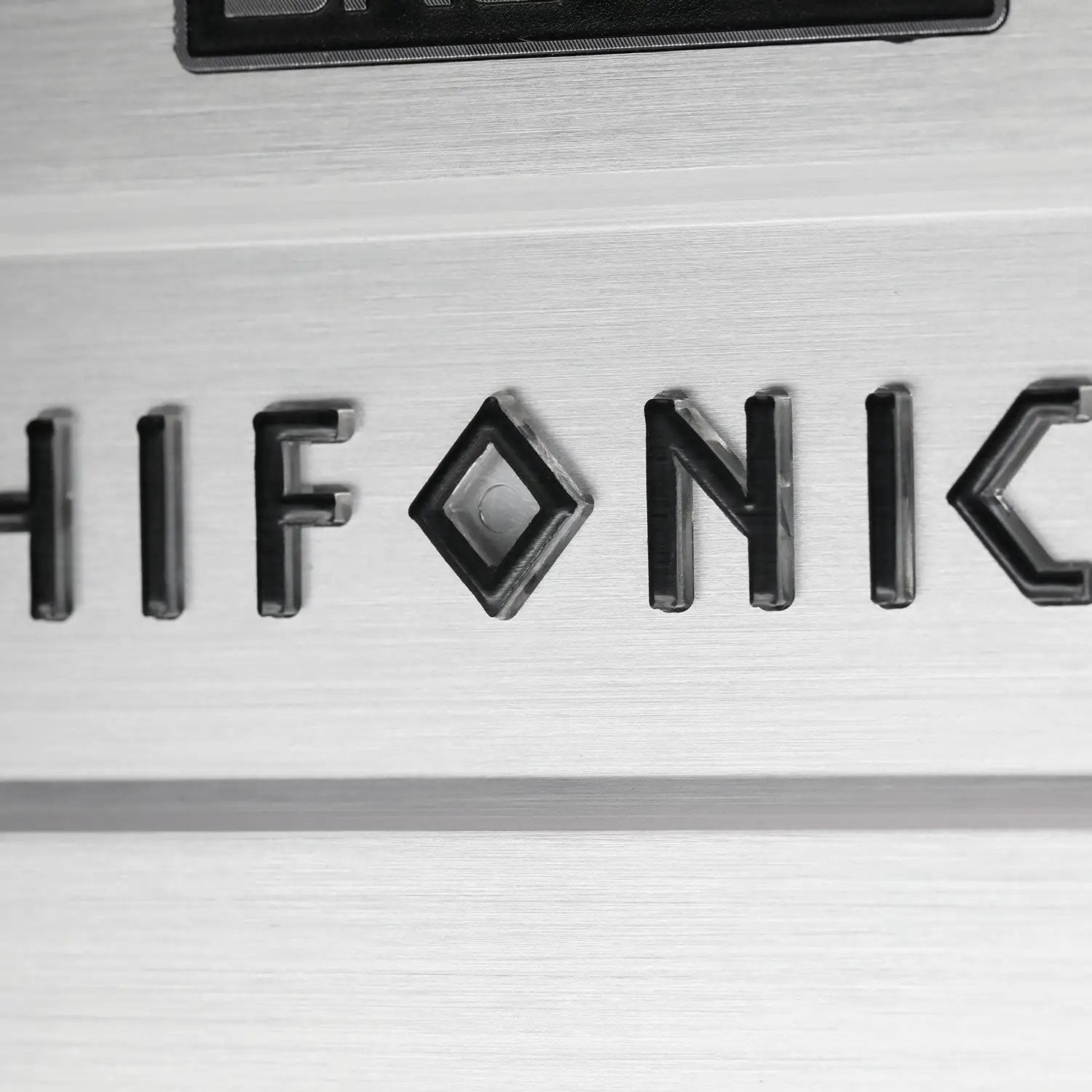

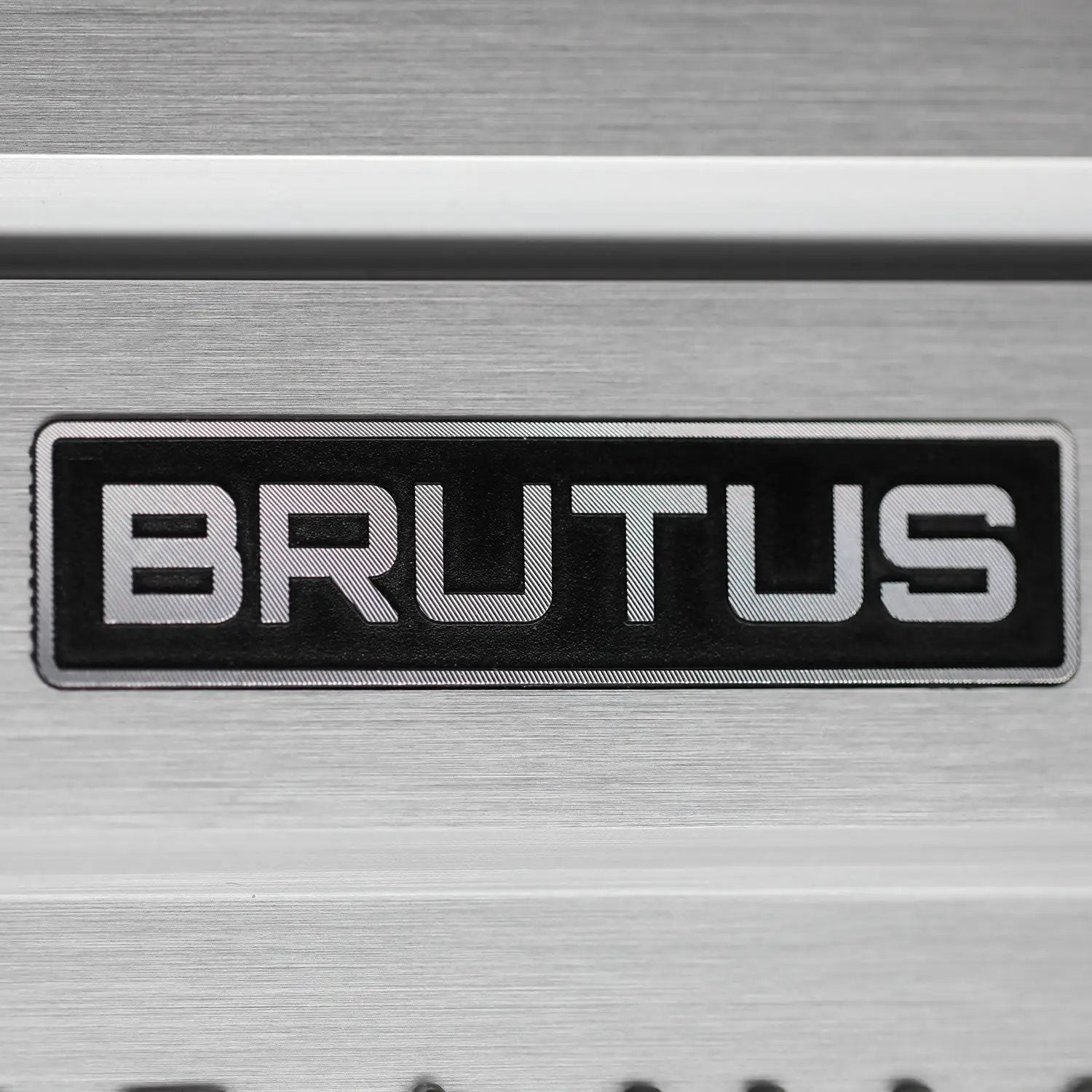

| Stylized Badging | Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, making it useful for gain adjustment. |
| Triple Protection Circuits | Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safe guards to protect your audio system and vehicle under most circumstances. |
Compatibility
Universally compatible with standard 12V automotive electrical systems and source units accepting RCA audio inputs.
