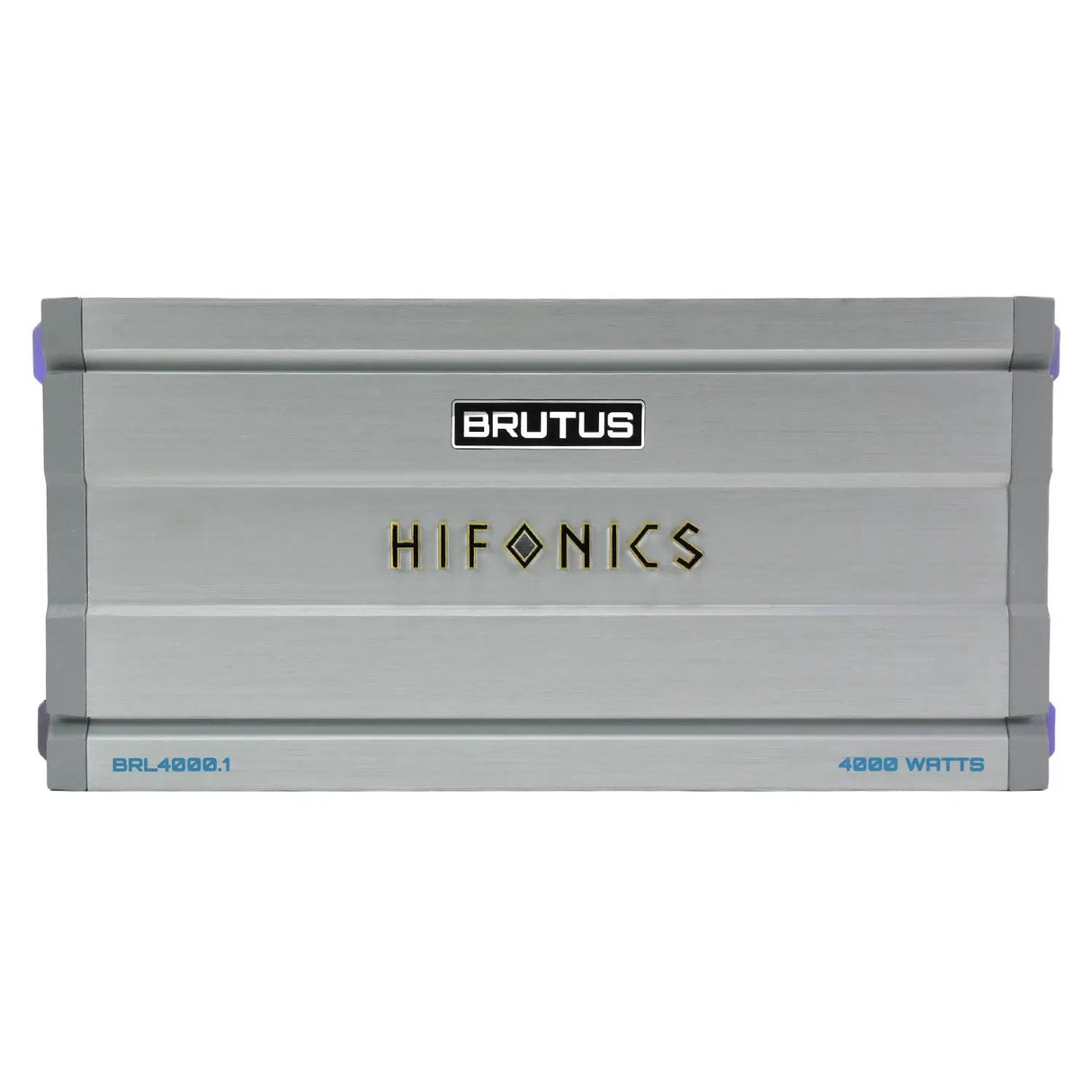

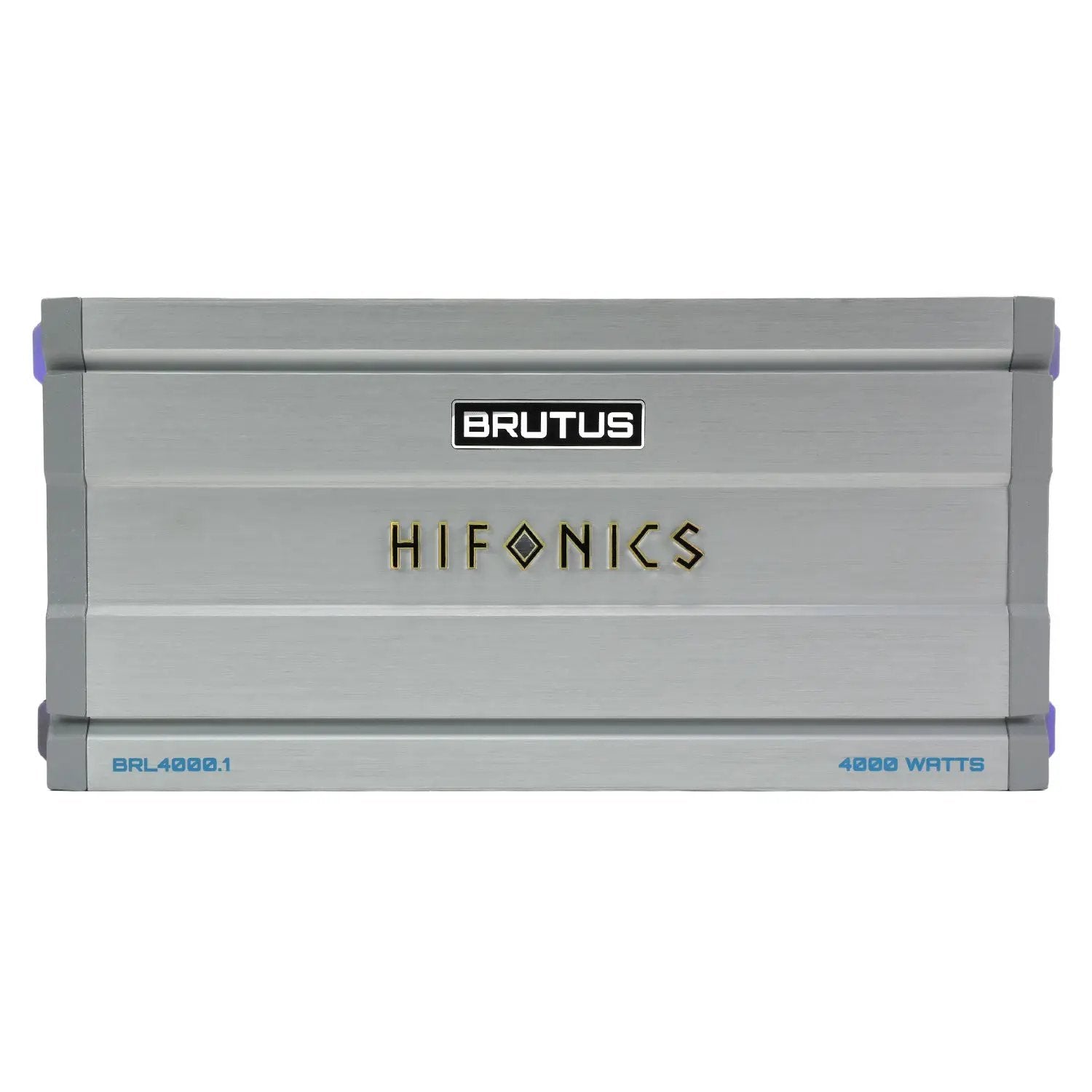

Hifonics BRL4000.1 BRUTUS BRL 4000 Watt Mono Block Amplifier
Description
Description

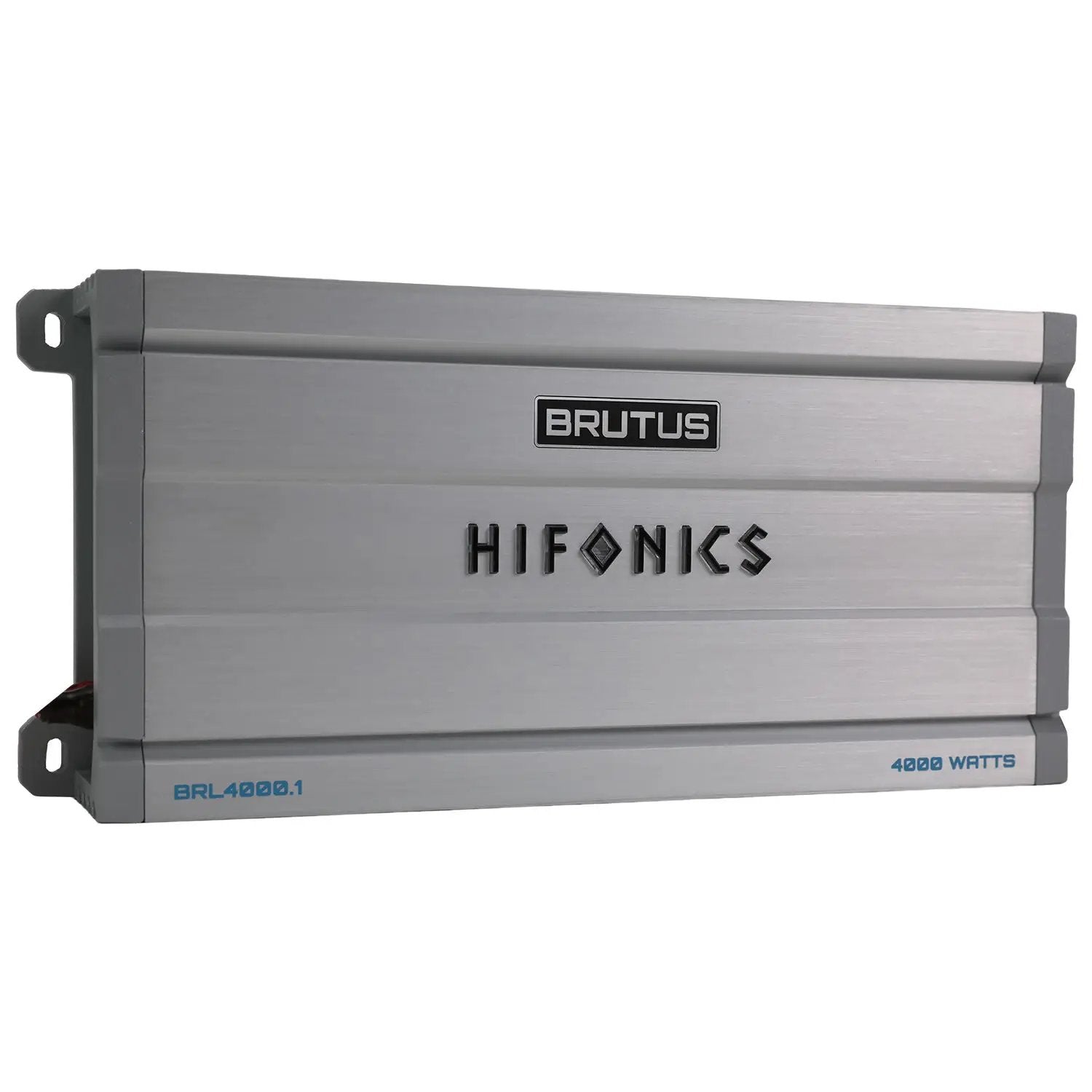

The Hifonics BRL4000.1 BRUTUS BRL mono block amplifier delivers up to 4000 watts of high-efficiency Super D Class audio output. Built with an iron core transformer and Ultra-Fi MOSFET power supply, it maintains clean signal fidelity while keeping vehicle electromagnetic interference minimal.
Thermal control is managed by a heavy mass-loaded extruded aluminum heat sink combined with multi-layer surface mount circuitry for reliable high-demand performance. The top badging features selectable illumination modes, operating as solid blue lighting, fully off, or as an active VU meter to assist with gain calibration.

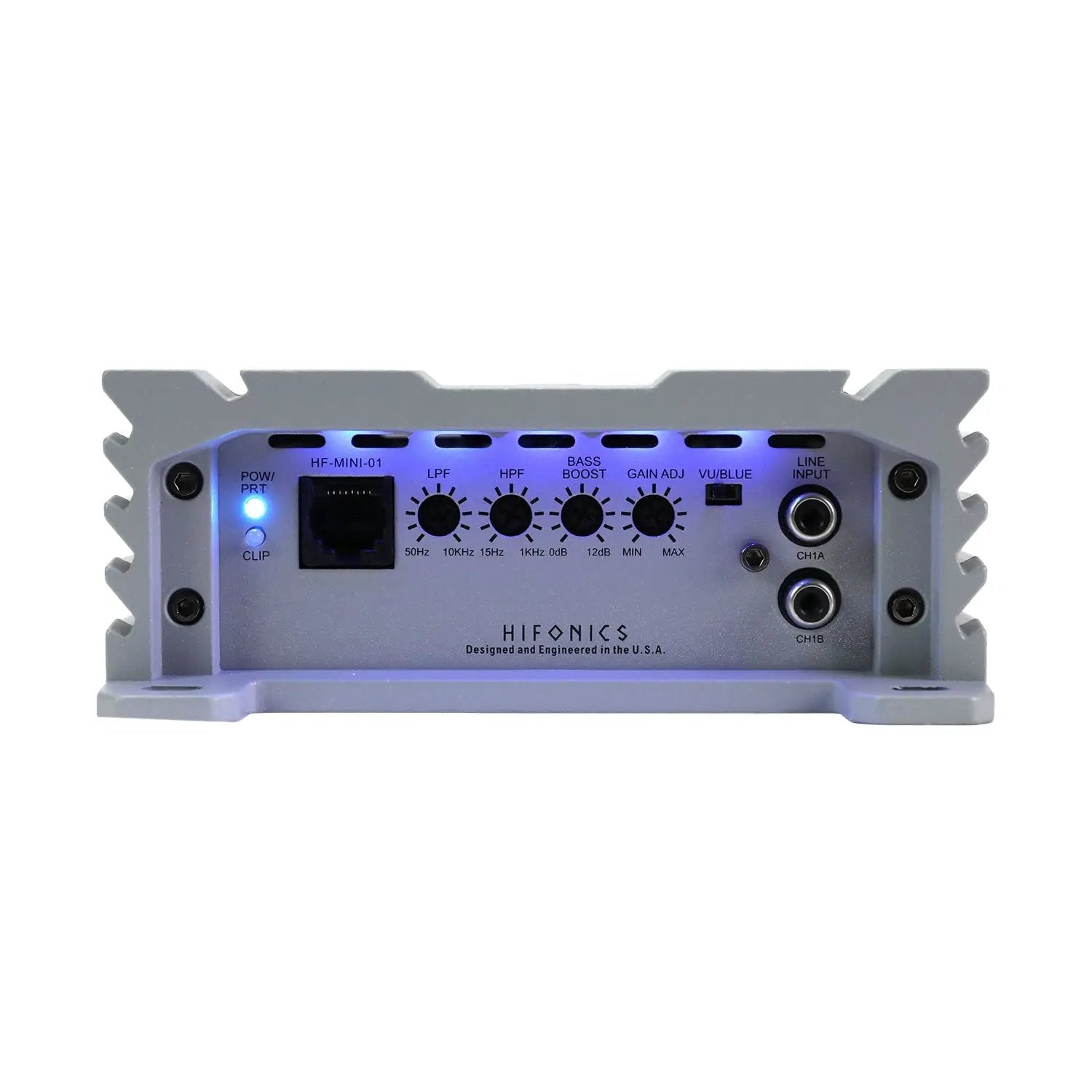

Integrated multi-stage safety circuits protect against voltage anomalies, short circuits, overcurrent, and overheating. Fine-tuning is enabled via variable onboard crossover filters, bass boost control, and an included wired bass remote with an integrated status indicator.
Key Features
| Brand | Hifonics |
| Series | BRUTUS BRL |
| Product Type | Mono Block Amplifier |
| Amplifier Class | Super D Class™ |
| Total Channels | 1 |
| Max Power | 4000 W |
| Power Output @ 1 Ohm | 1 x 4000 W |
| Power Output @ 2 Ohms | 1 x 2800 W |
| Power Output @ 4 Ohms | 1 x 1500 W |
| Frequency Response | 10Hz - 10kHz |
| Signal to Noise Ratio | 101 dB |
| Total Harmonic Distortion (THD) | < 0.5% |
| Variable Voltage | 0.2 - 9 V |
| Bass Boost | 0 - 12 dB |
| Low Pass Crossover | 50Hz - 10kHz (12dB/Octave) |
| High Pass Crossover | 15Hz - 1kHz (12dB/Octave) |
| Power/Ground Terminal Gauge | 2 AWG |
| Speaker Terminal Gauge | 12 AWG |
| External Fusing | 350 A |
| Dimensions | 32.7 × 14.6 × 5.7 cm |
| Product Weight | 2.8 kg |
| Package Dimensions | 44.5 × 18.7 × 9.2 cm |
| Package Weight | 3.3 kg |
| Color | Black |
Highlights
| Feature | Description |
|---|---|
| Ultra-High Efficient Design | A power supply design coupled with carefully selected parts results in an ultra-high efficient amplifier. |
| Half Bridge Design | An efficient design with fewer components results in higher power output. |
| Ultra-Low EMI Design | Minimal interference with other vehicle electronic systems. |
| Mass-Loaded Heat Sink | The mass-loaded extruded aluminum heat sink results in improved thermal management and output performance. |
| High-End Preamplifier Circuit | Accepts a wider range of input signals. |
| RCA Inputs | Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Tolerance Output Device | Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. |
| Operation Mode | Mono only |
| Clean Board Construction | Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. |
| Class / Topology | BRL amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range. |
| Power Supply | Iron core transformer assists in the ultra-low EMI design while providing high power. |
| Delayed Turn-On Function | Ensures compatibility with a wide range of source units to eliminate unwanted turn-on/off noises like hisses and pops. |

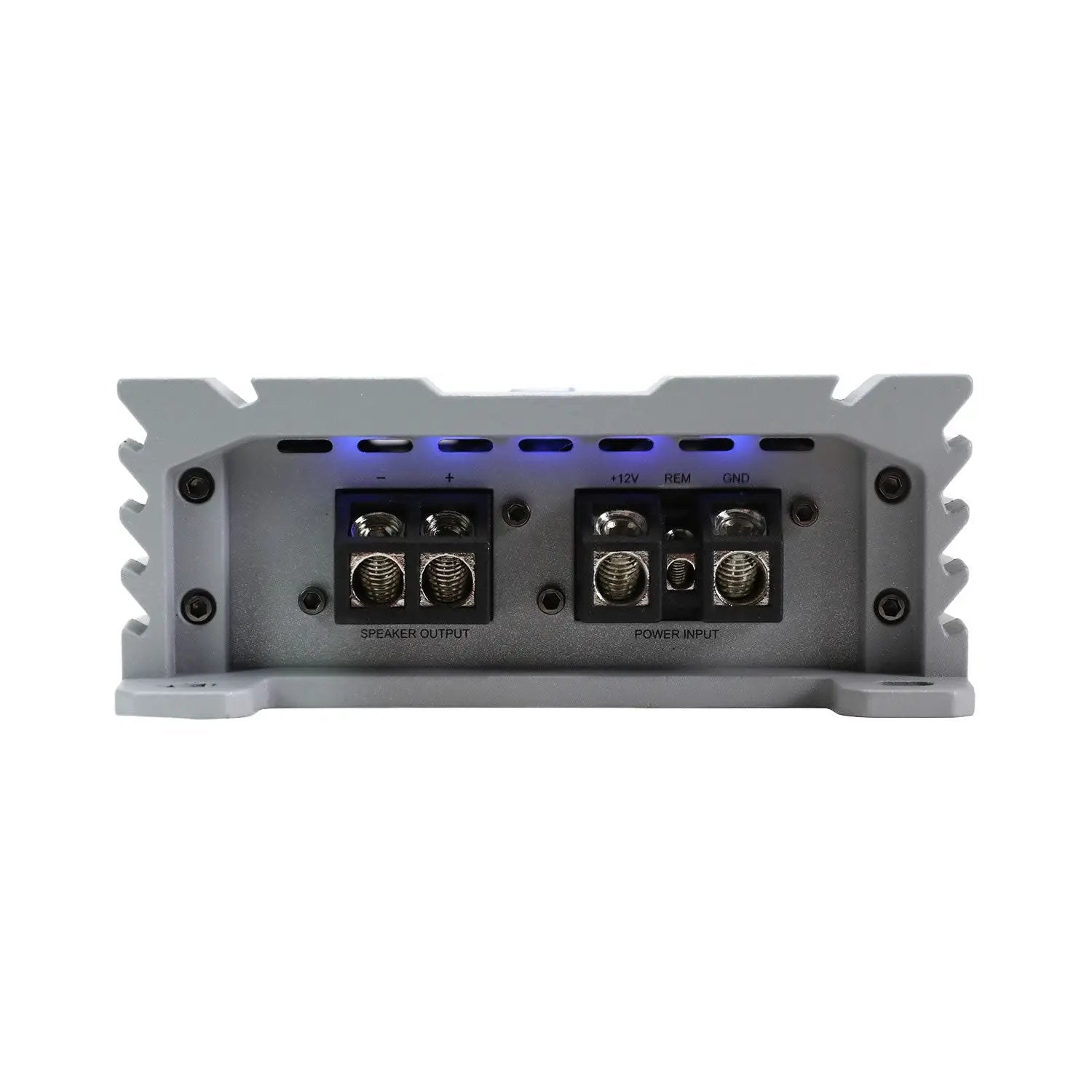

| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile. |

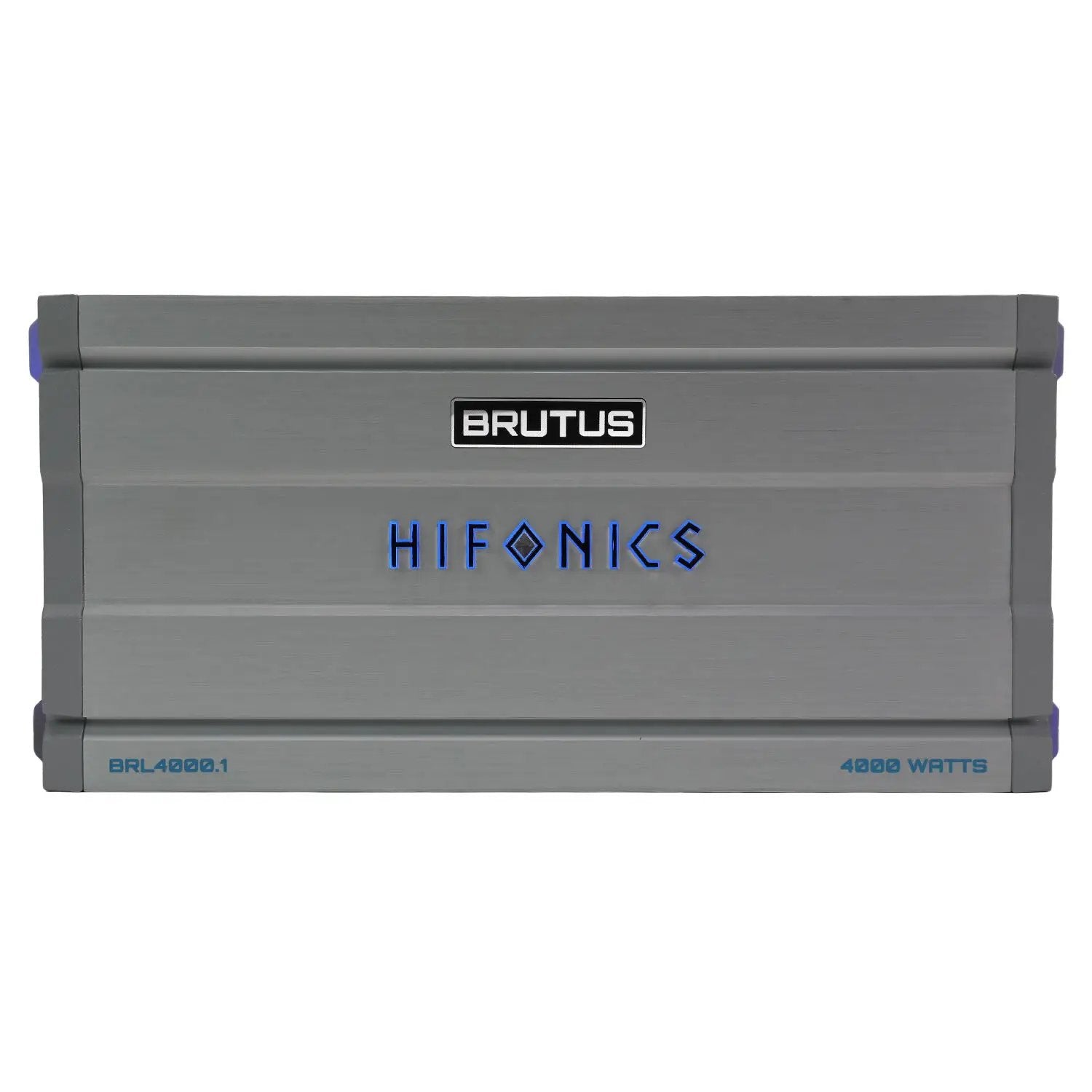

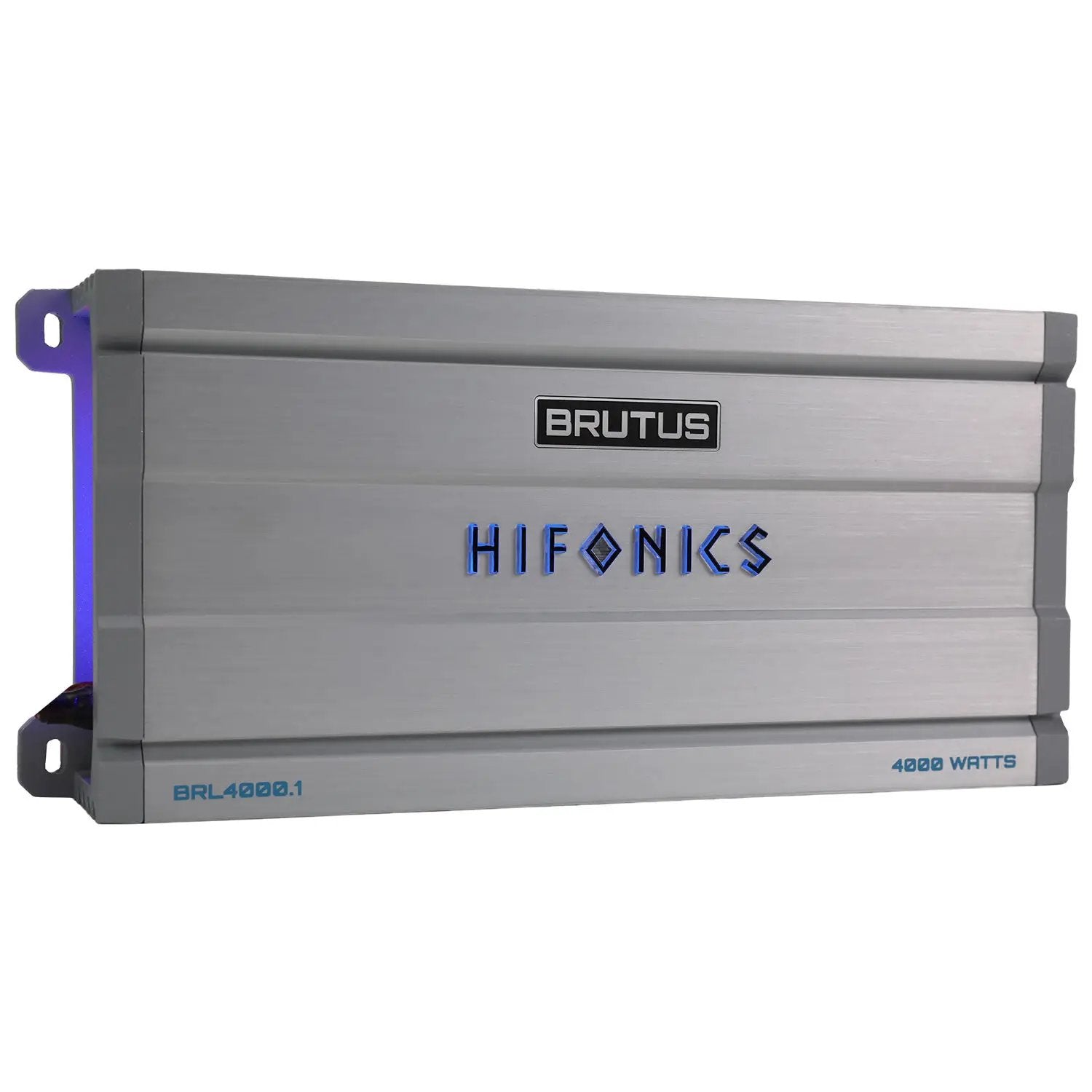

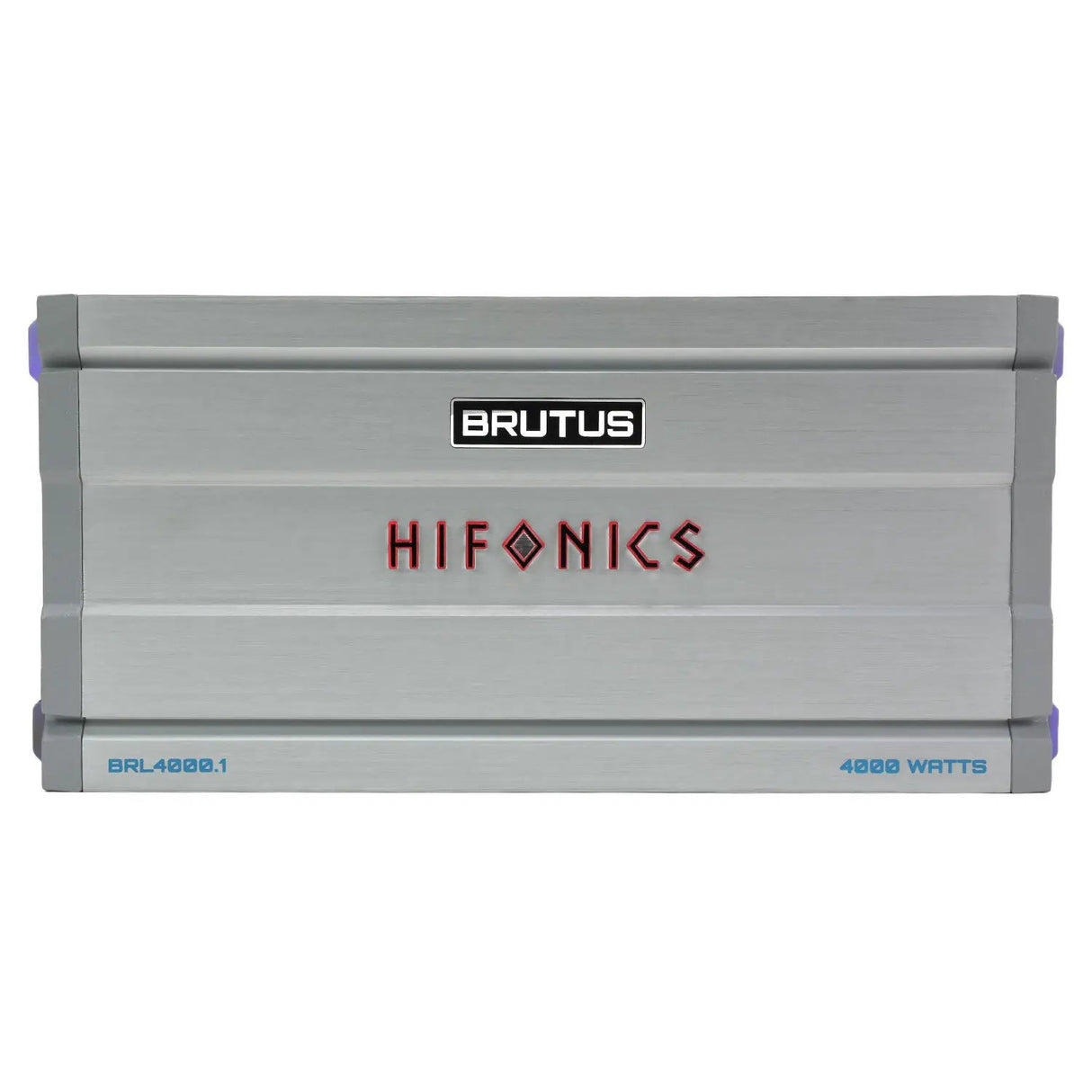

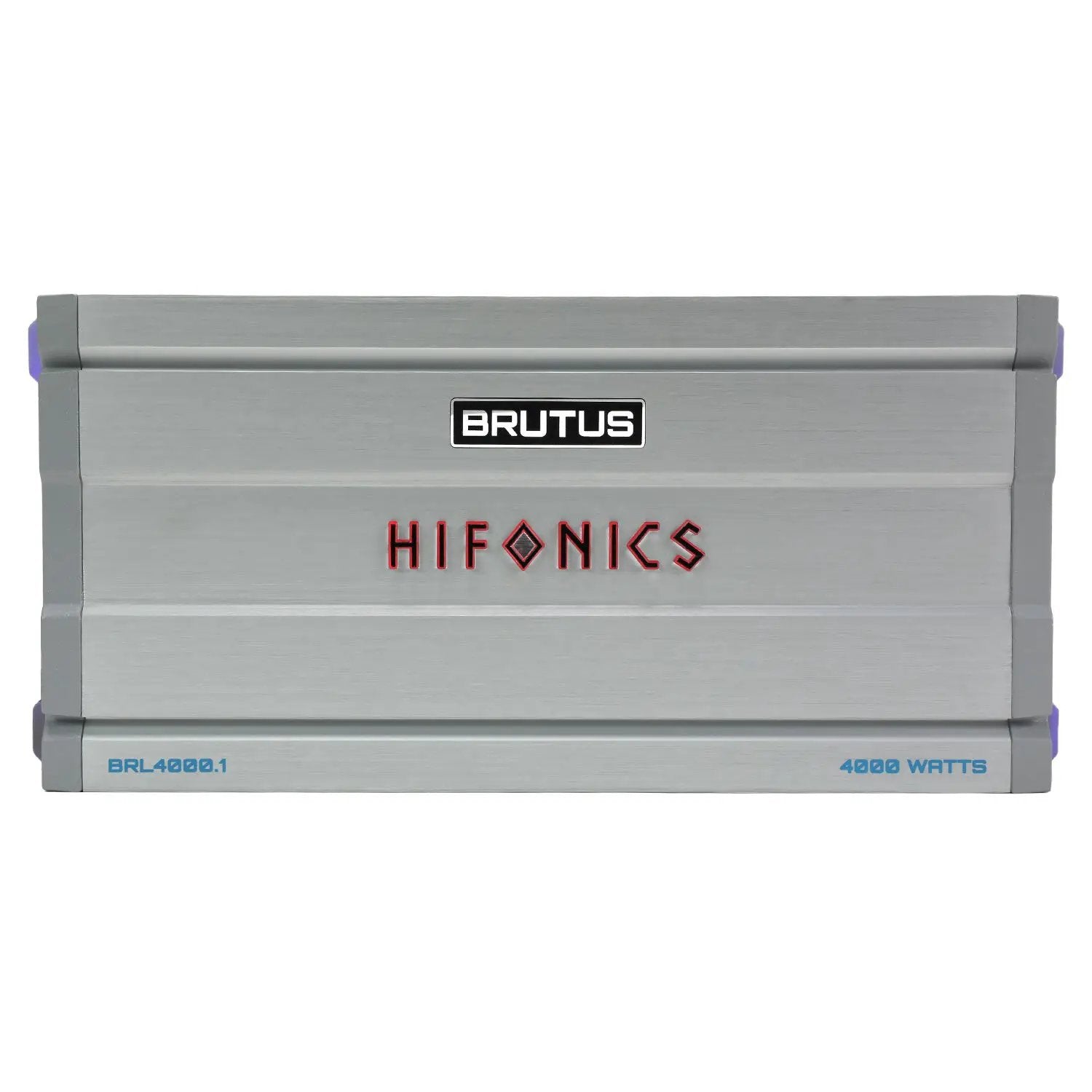

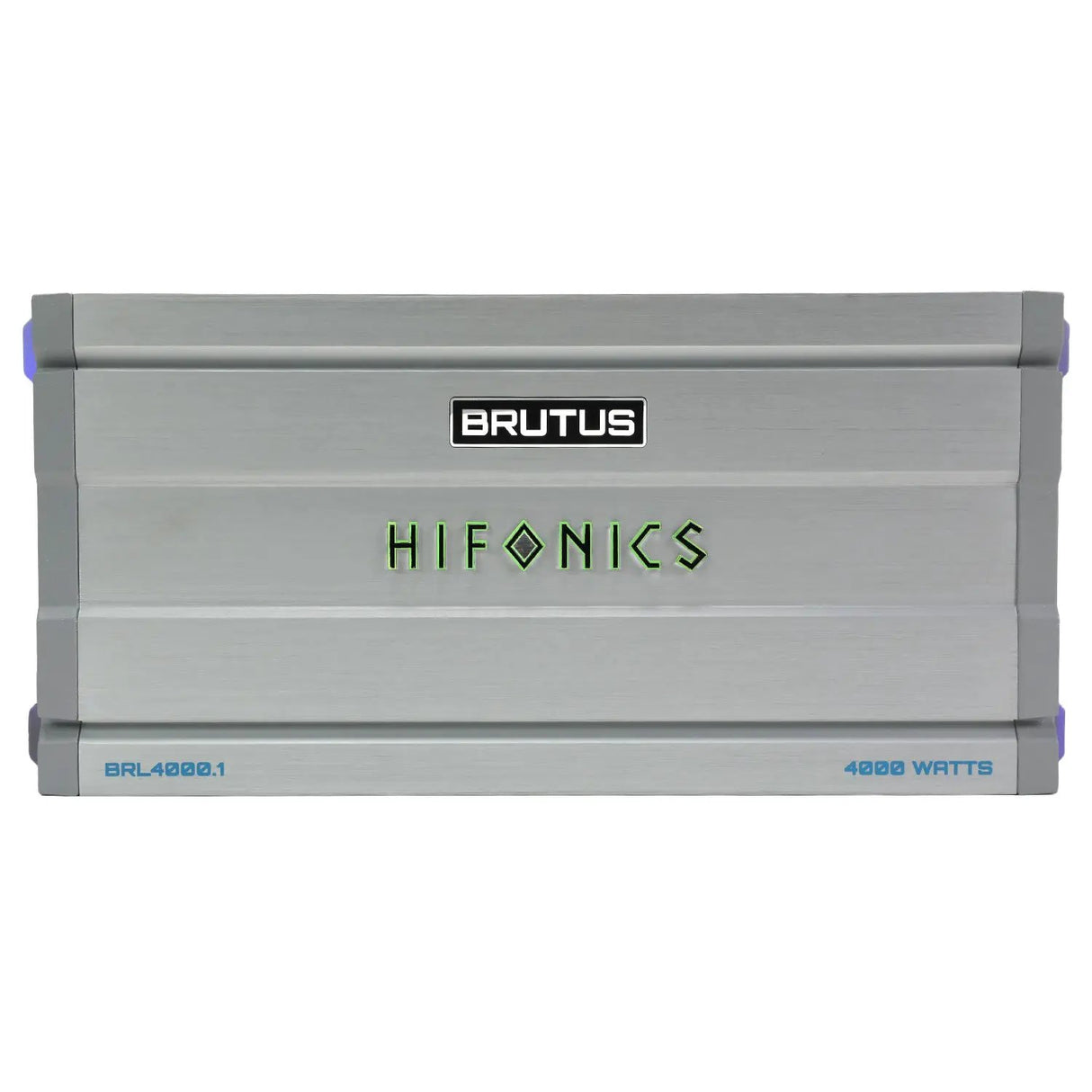

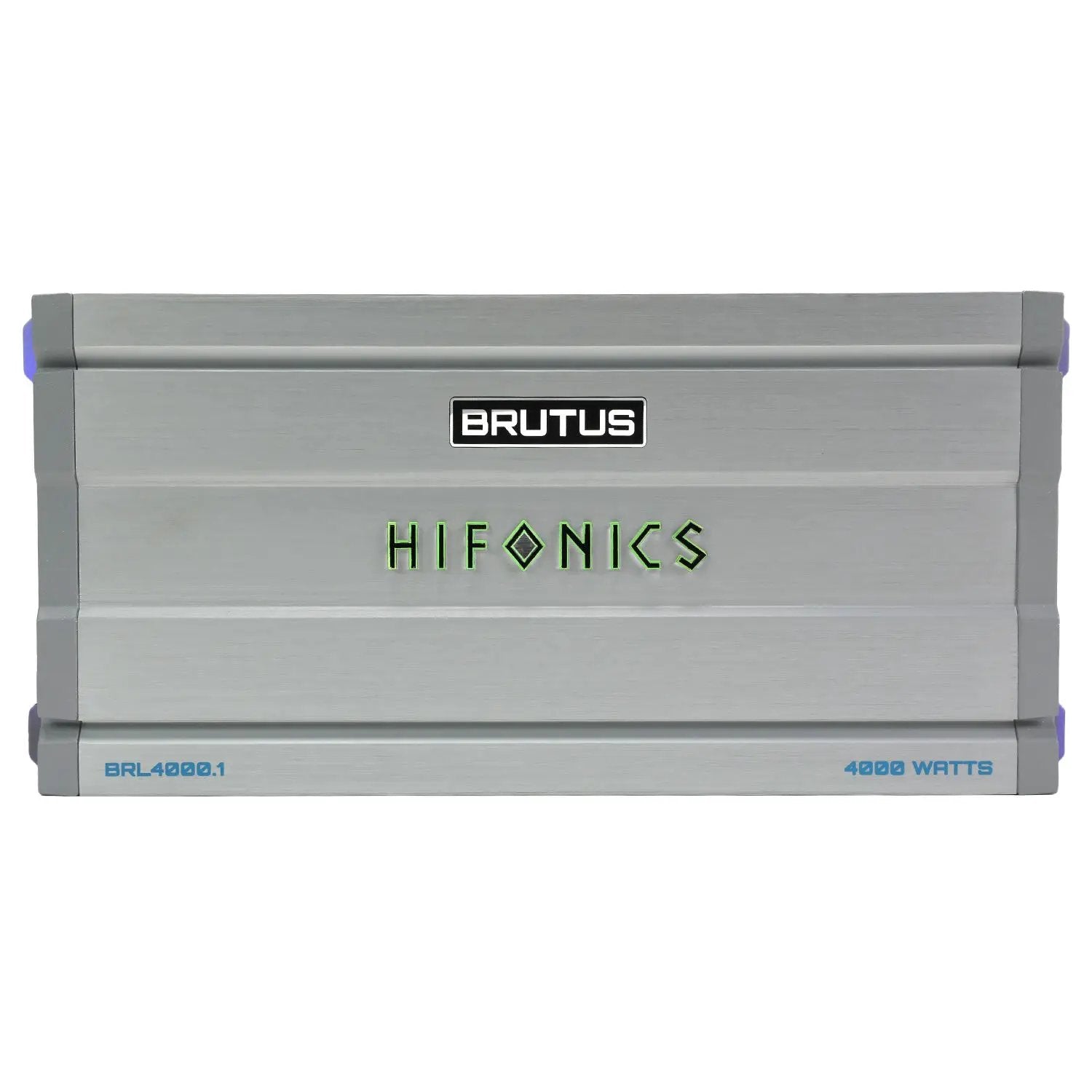

| Stylized Badging | Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, useful for gain adjustment. |
| Triple Protection Circuits | Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safeguards to protect the audio system and vehicle. |

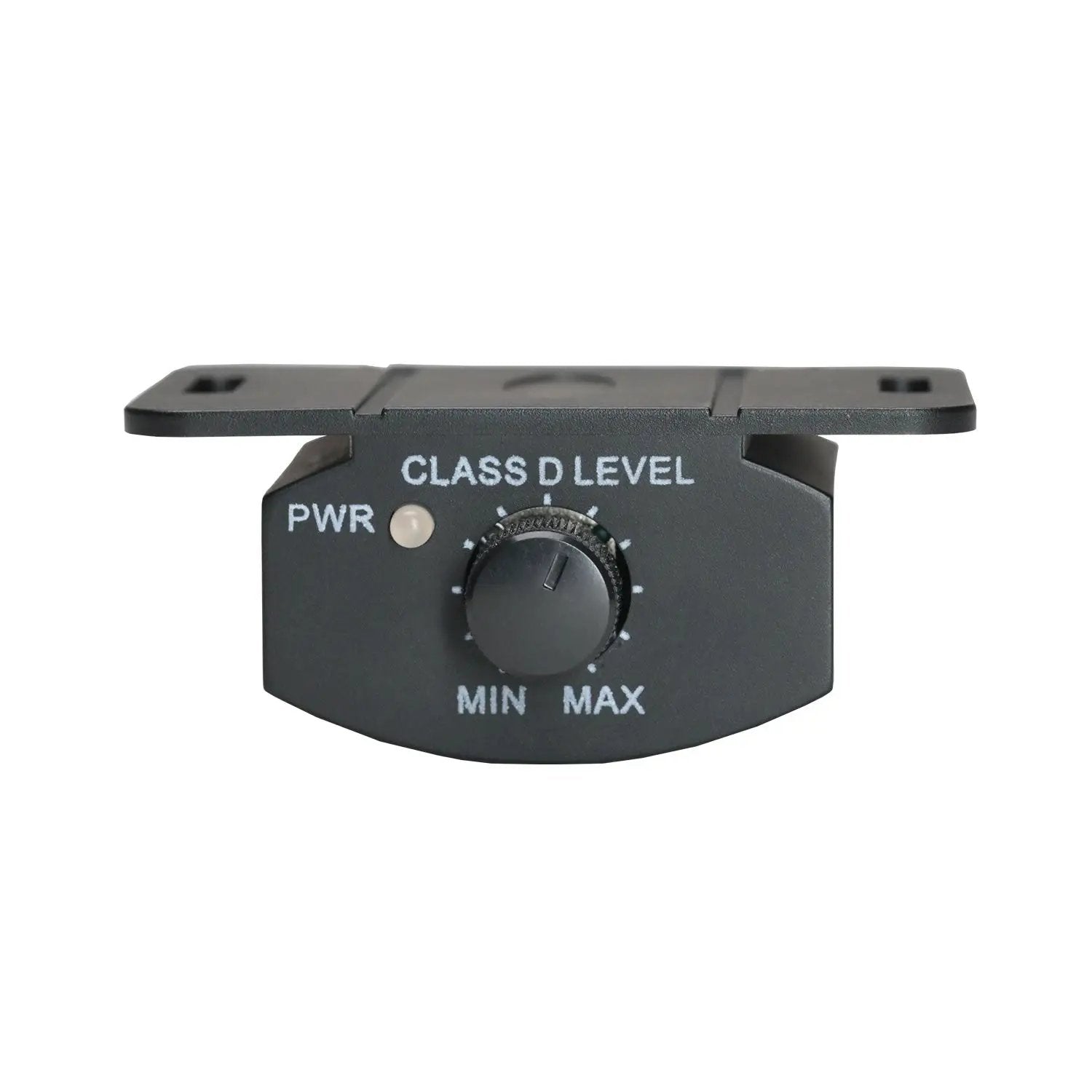

| Bass Remote Included | The included bass remote on mono models allows adjustment of the bass level relative to the setting on the amplifier’s end panel. The LED indicator light displays green when the amplifier is powered on and red if the amplifier enters protect. |
Compatibility
Universally compatible with 12V mobile audio electrical systems, supporting 1-Ohm, 2-Ohm, and 4-Ohm subwoofer configurations.
What's included
- Hifonics BRL4000.1 Mono Block Amplifier

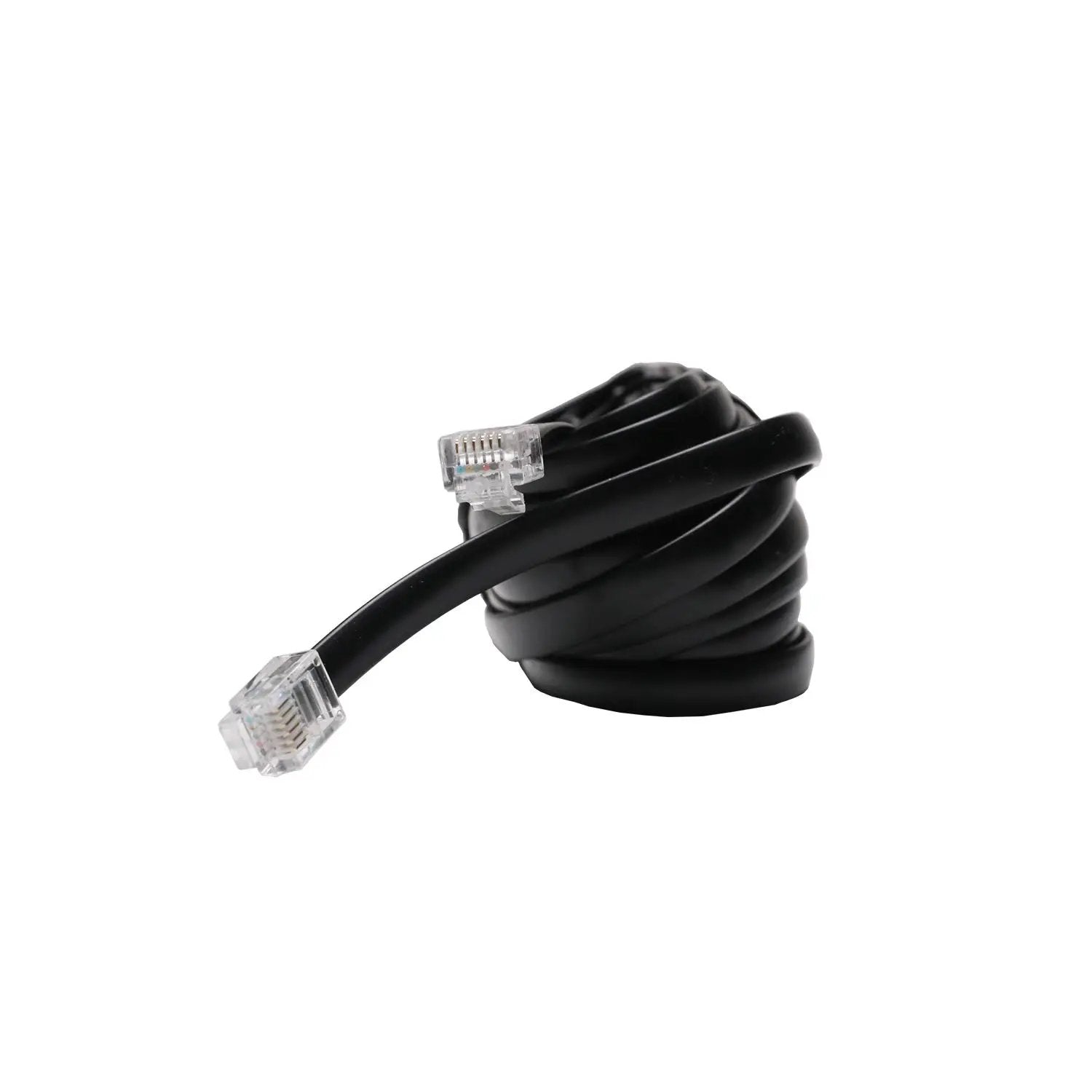

- Wired Bass Remote Control
- Quick Start Guide
