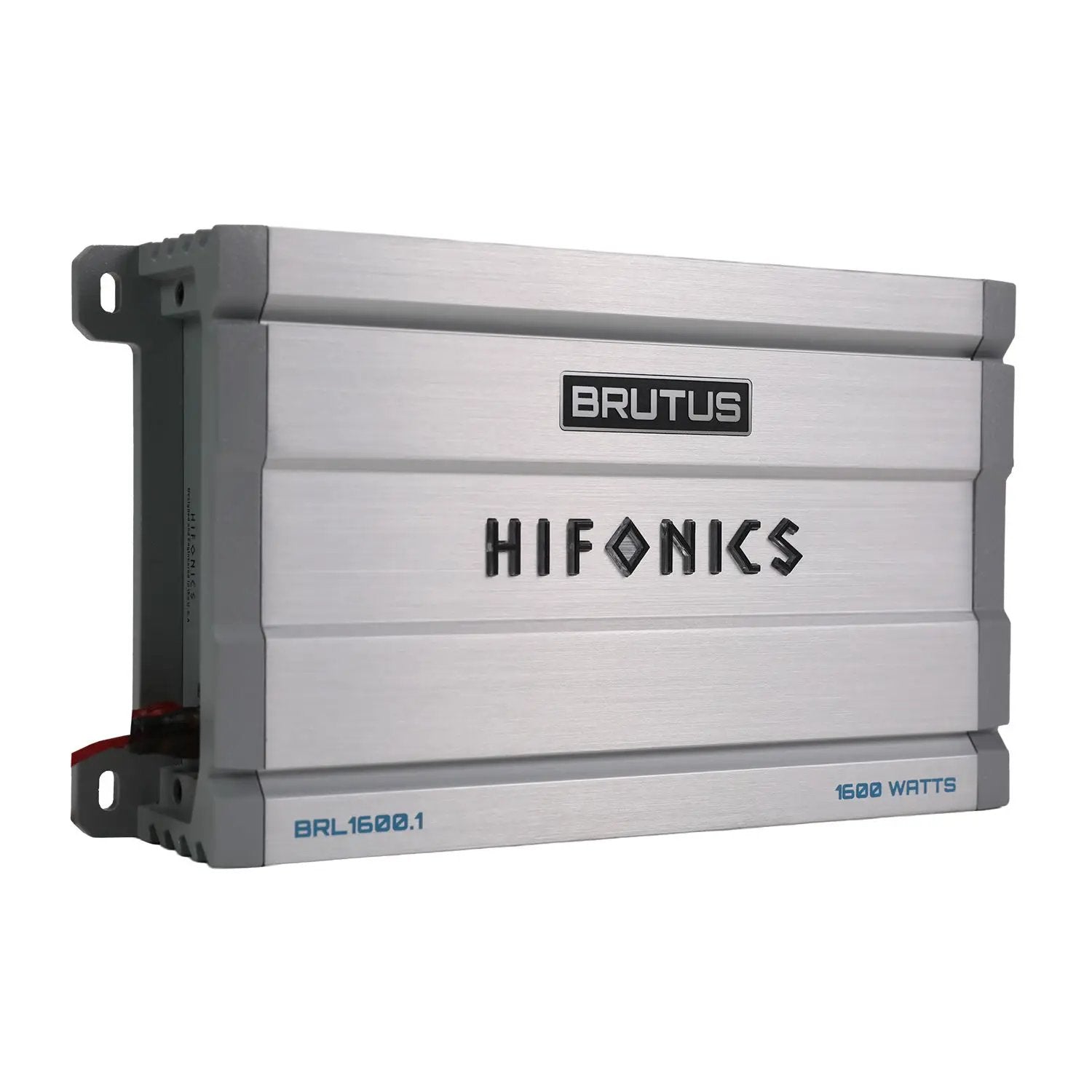

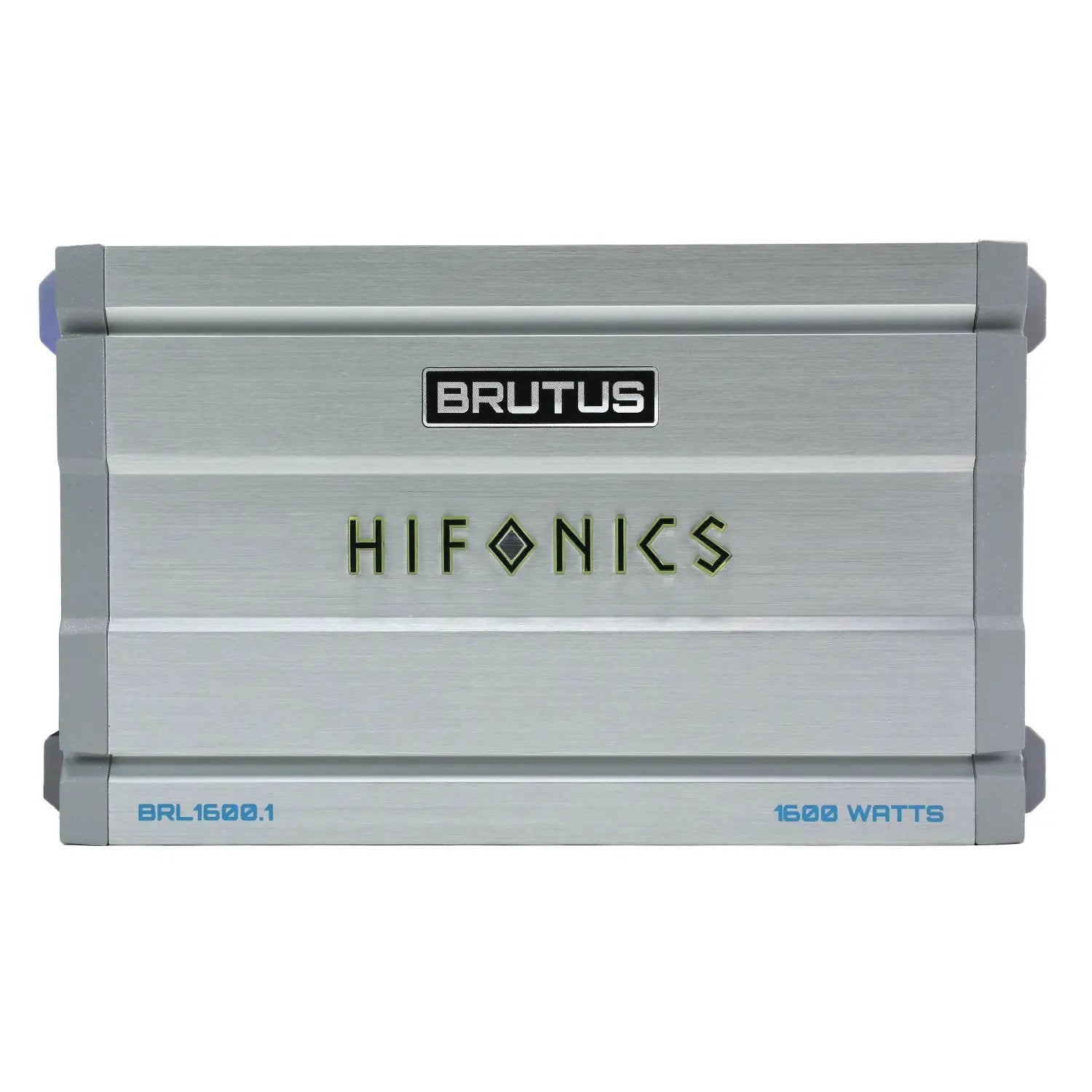

Hifonics BRL1600.1 BRUTUS BRL 1600 Watt Mono Block Amplifier
Description
Description
The Hifonics BRUTUS BRL1600.1 mono block amplifier delivers robust performance with an ultra-high efficiency Super D Class™ design. Capable of providing up to 1600 watts of clean power, it utilizes Ultra-Fi MOSFETs and a half-bridge layout for superior audio clarity and thermal management.
Equipped with an extruded aluminum heat sink and multi-layer circuit boards, this amplifier minimizes interference with vehicle electronics while ensuring reliable operation. The secure molded connection terminals provide angled access for streamlined power, ground, and speaker wire routing.
Integrated stylized badging features an active VU meter mode for visual gain adjustment and monitoring. Comprehensive protection circuitry safeguards against overvoltage, thermal overload, and short circuits during high-demand operation.
Key Features
| Brand | Hifonics |
| Series | BRUTUS BRL |
| Type | Amplifier |
| Condition | New |
| Color | Black |
| Compatible Vehicles | Universal |
| Amp Class | Super D Class™ |
| Amp Total Channels | 1 |
| Amp Max Power (watts) | 1600 |
| Amp Power @ 1 Ohm (ch x watts) | 1 x 1700 |
| Amp Power @ 2 Ohms (ch x watts) | 1 x 1250 |
| Amp Power @ 4 Ohms (ch x watts) | 1 x 750 |
| Amp Crossover | Variable Electronic 12dB Per Octave |
| Amp Variable High Pass Crossover 12dB per Octave | 15Hz-1KHz |
| Amp Variable Low Pass Crossover 12dB per Octave | 50Hz-10KHz |
| Amp Tone Control / Parametric EQ | Built-in Bass Control |
| Amp Bass Boost | 0-12dB |
| Amp Variable Voltage | 0.2-9V |
| Amp Signal to Noise | 101dB |
| Amp Frequency Response | 10Hz-10kHz |
| Amp Total Harmonic Distortion (THD) | < 0.5% |
| Amp Power Terminal 12v/GND | 2 AWG |
| Amp Speaker Terminal Wire Gauge | 12 AWG |
| Amp Fusing | External 200A |
| Item Length | 26.7 cm |
| Item Width | 14.6 cm |
| Item Height | 5.7 cm |
| Item Weight | 2.1 kg |
| Dimensions | 37.6 × 18.7 × 9.2 cm |
| Weight | 2.5 kg |
Highlights
| Feature | Description |
|---|---|
| Ultra-High Efficient Design | A power supply design coupled with carefully selected parts results in ultra-high efficient amplifier. |
| Half Bridge Design | An efficient design with fewer components results in higher power output. |
| Ultra-Low EMI Design | Minimal interface with other vehicle electronic systems. |
| Mass-Loaded Heat Sink | The mass-loaded extruded aluminum heat sink results in better thermal management and output performance. |
| High-End Preamplifier Circuit | Accepts a wider range of input signals. |
| RCA Inputs | Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Tolerance Output Device | Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. |
| Operation Mode | Mono only |
| Clean Board Construction | Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. |
| Class / Topology | BRL amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range. |
| Power Supply | Iron core transformer assists in the ultra-low EMI design while providing high power. |
| Delayed Turn-On Function | Ensures compatibility with a wide range of source units to eliminate unwanted turn-on/off noises like hisses and pops. |

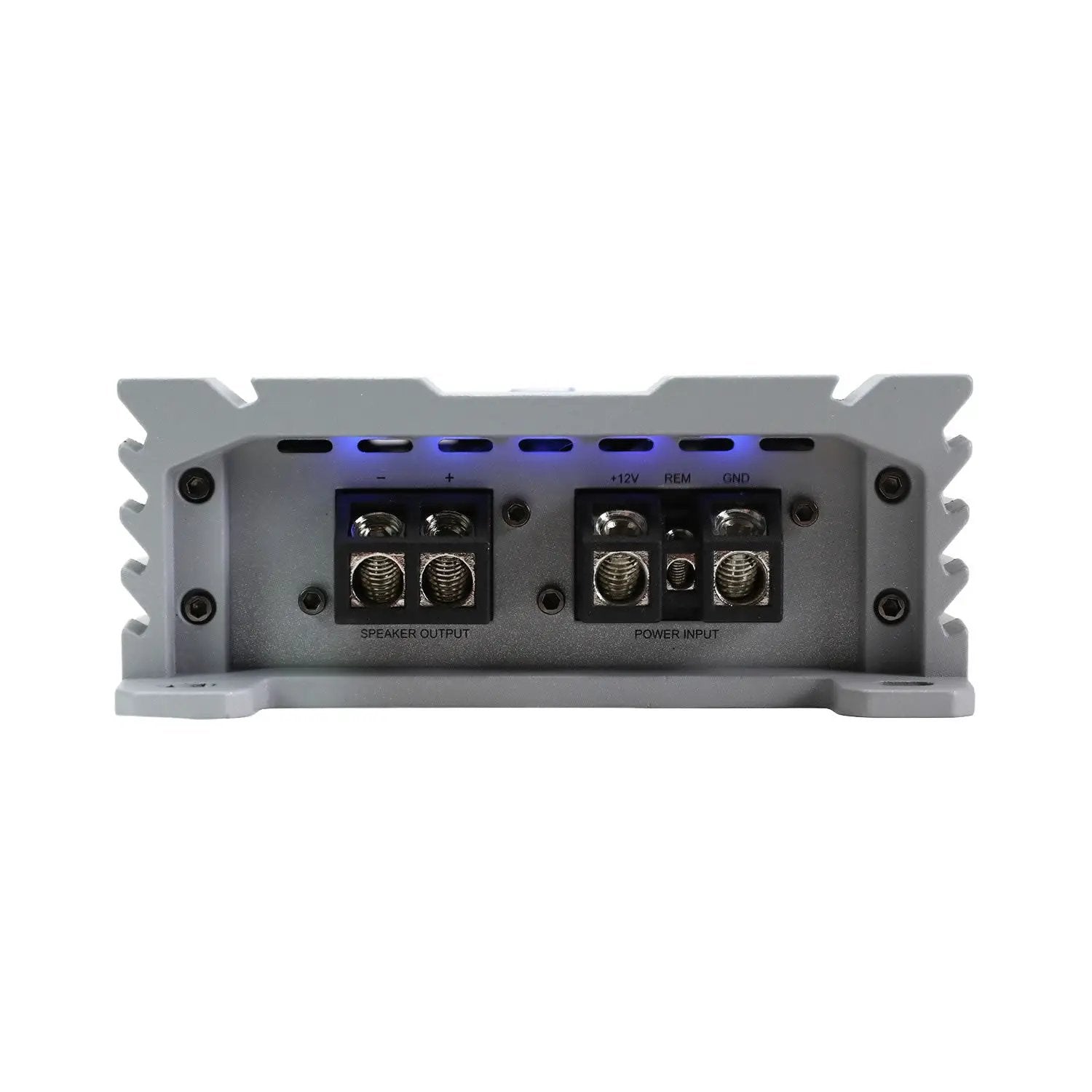

| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile. |

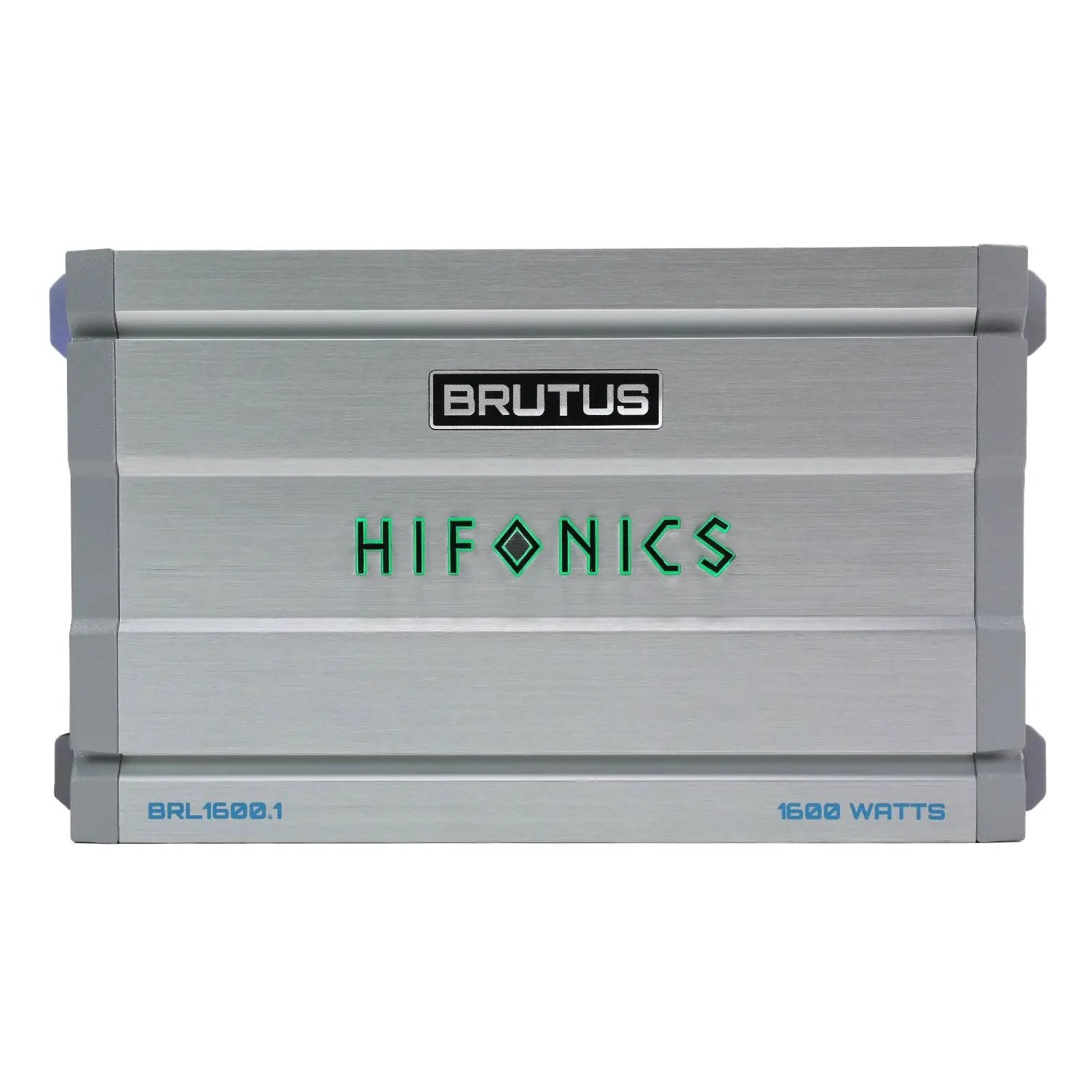

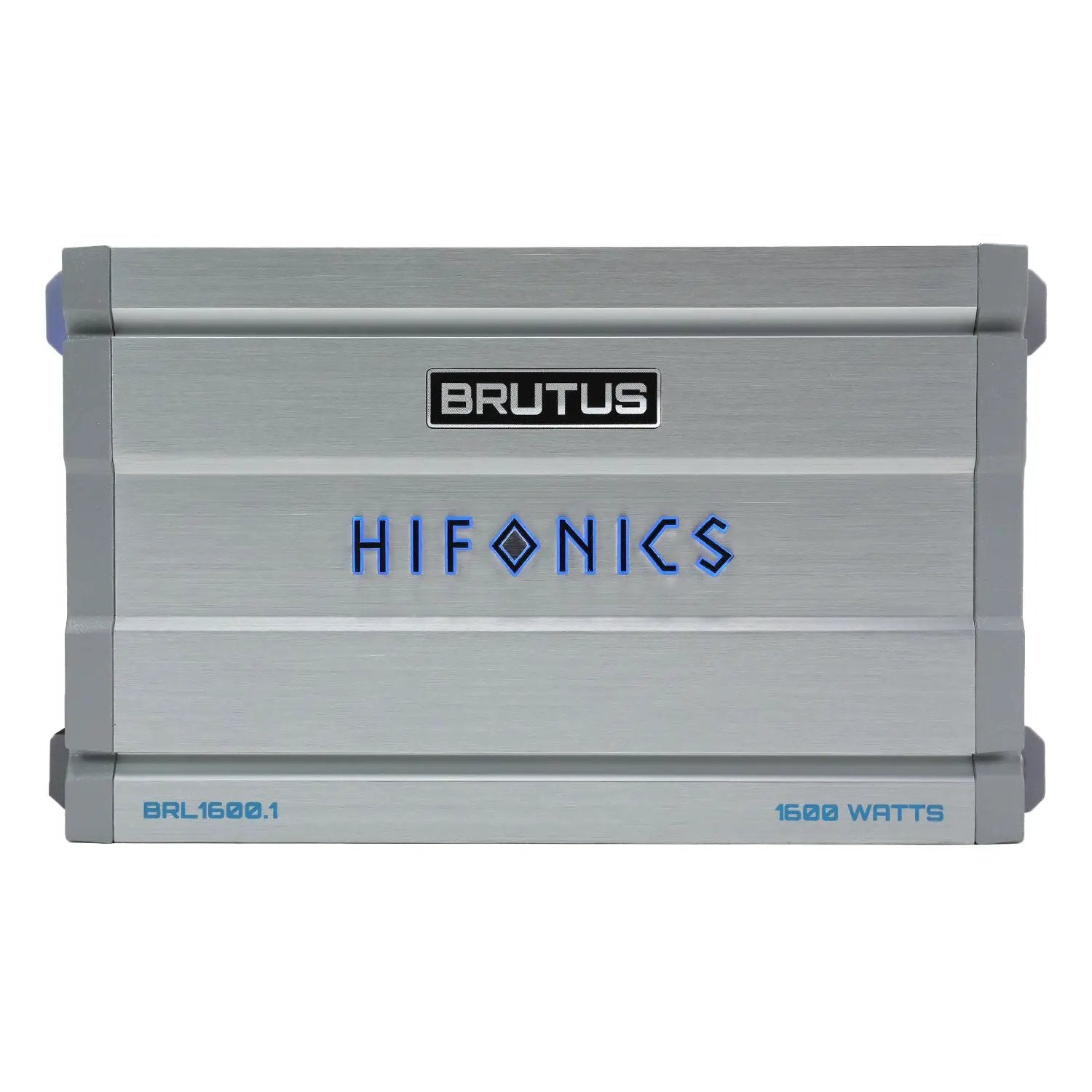

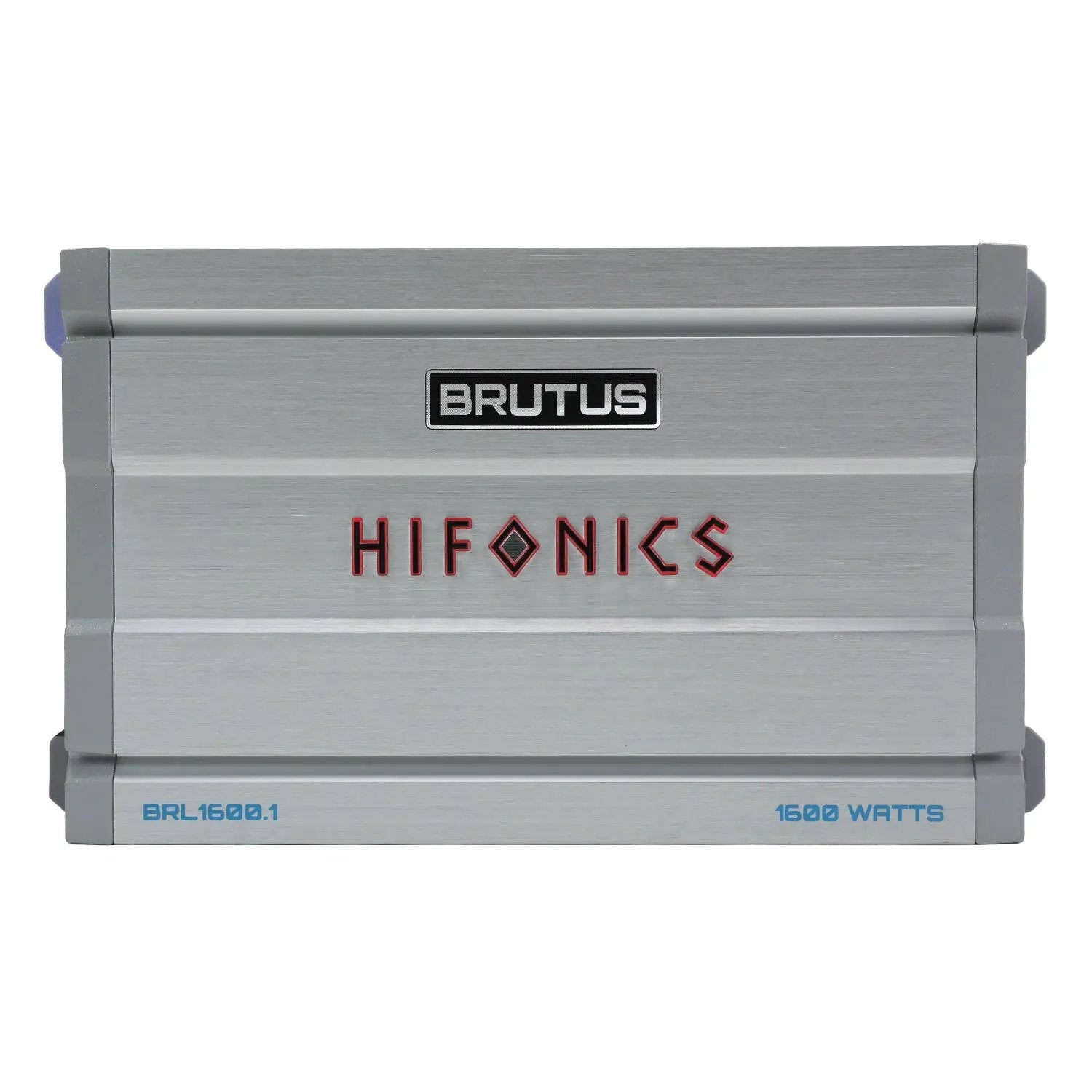

| Stylized Badging | Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, useful for gain adjustment. |
| Triple Protection Circuits | Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safeguards to protect the audio system and vehicle under most circumstances. |

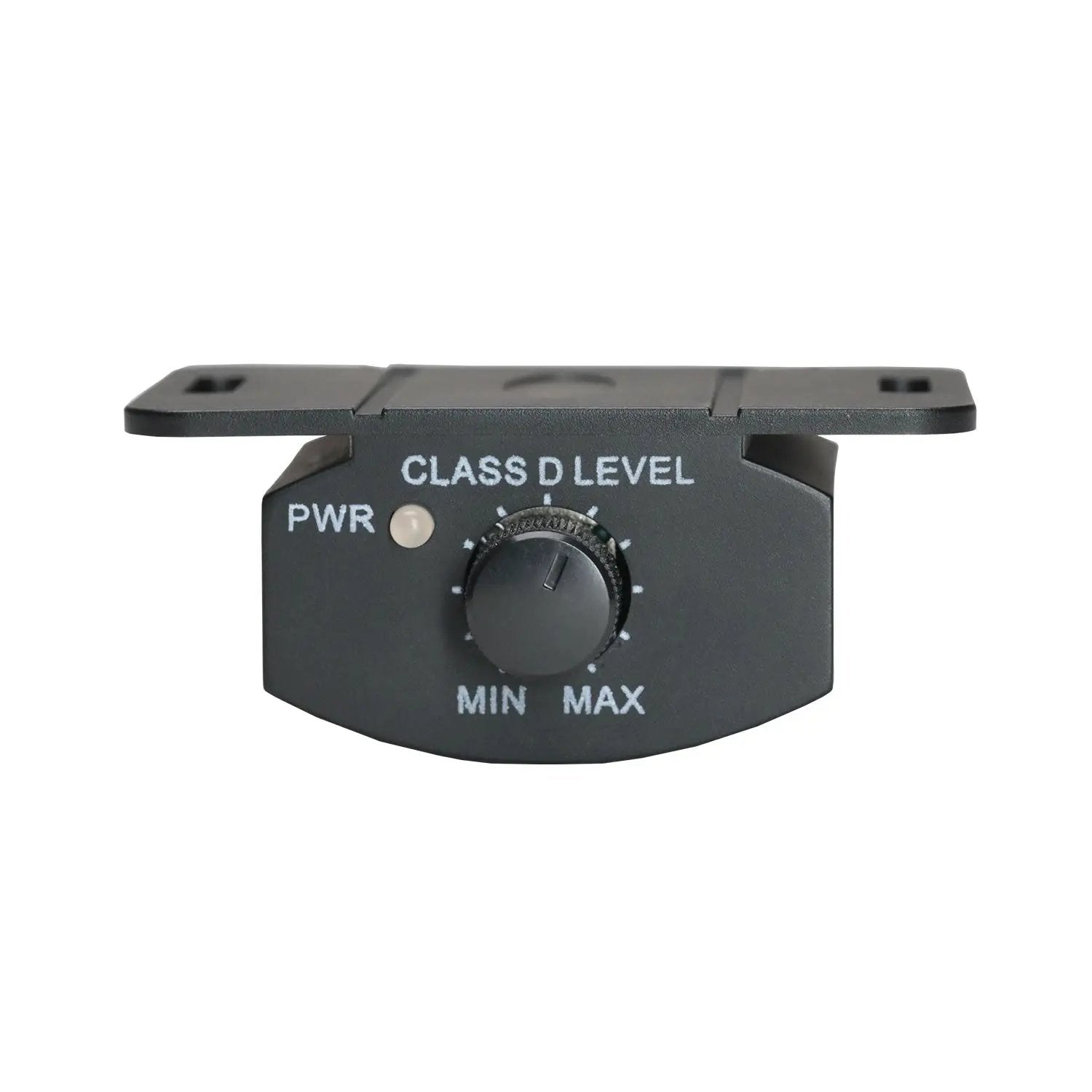

| Bass Remote Included | The included bass remote on mono models allows adjustment of the bass level relative to the setting on the amplifier’s end panel. The LED indicator light displays green when the amplifier is powered on and red if the amplifier enters protect. |
Compatibility
Universal fit for 12V mobile audio systems requiring a dedicated mono block subwoofer amplifier.
Warranty
1 Year manufacturer's warranty
What's included
- Hifonics BRL1600.1 Mono Block Amplifier

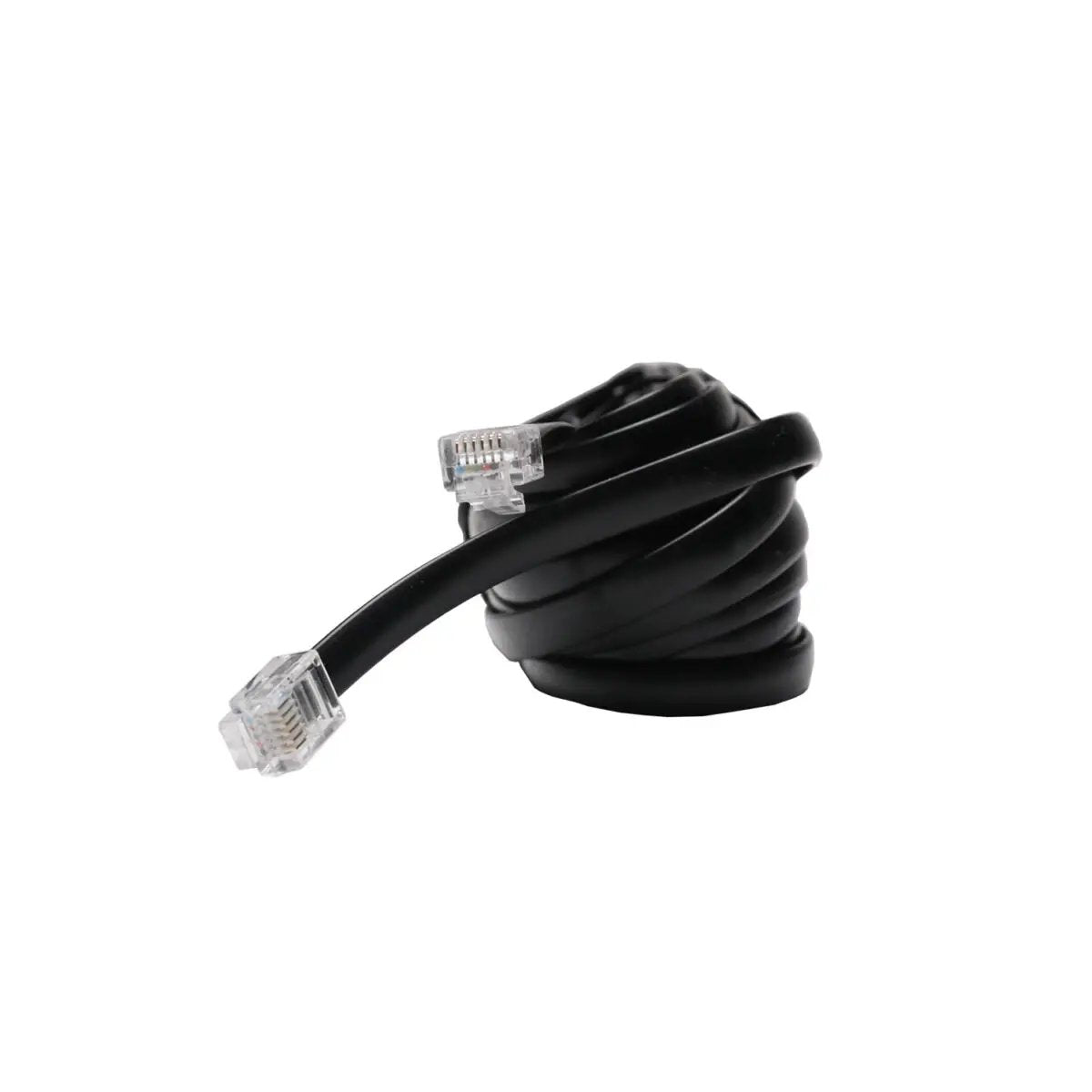

- Bass Remote Control with Cable
