Hifonics BG-560.2 BRUTUS BG 560 Watt Two Channel Amplifier

Name: Hifonics BG-560.2 BRUTUS BG 560 Watt Two Channel Amplifier
Brand: Hifonics
SKU: 806576238584
Price: 189.99 USD
Availability: InStock

$189.99 $227.99

Description

The Hifonics BRUTUS BG-560.2 is a 2-channel Super D Class car audio amplifier engineered to deliver up to 560 watts of total output. It features a dual toroidal transformer PWM power supply paired with an overload current limiter to maximize efficiency and stability across stereo or bridged operation modes.

Built on a 4-layer PCB with a mass-loaded extruded aluminum heat sink, this amplifier ensures optimal thermal dissipation and low EMI output. High-tolerance MOSFETs, shielded inductors, and nickel-plated RCA connections provide high-fidelity audio reproduction with minimal distortion.

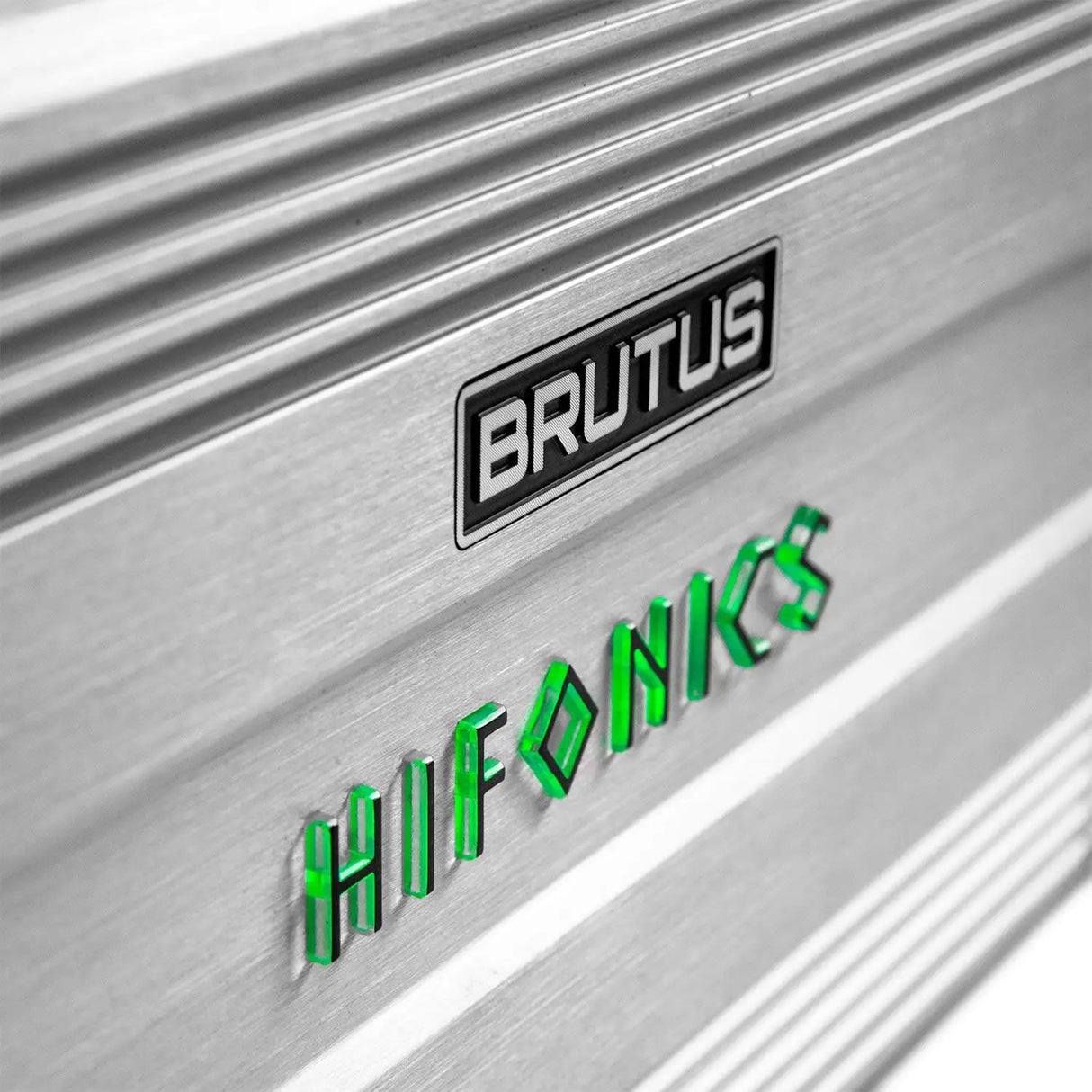

Equipped with speaker-level inputs and DC signal sensing for remote-free auto turn-on, the unit integrates smoothly into aftermarket and OEM systems. The chassis includes stylized backlighting with a functional VU meter mode to assist with precise gain calibration.

Key Features

Brand	Hifonics
Model	BG-560.2
Series	BRUTUS BG
Amplifier Class	Super D Class™
Total Channels	2
Max Power	560 W
Power Output @ 2 Ohms	2 x 275 W
Power Output @ 4 Ohms	2 x 150 W
Mono Bridged Power @ 4 Ohms	1 x 560 W
Frequency Response	10Hz-30kHz
Signal to Noise Ratio	85 dB
Total Harmonic Distortion (THD)	< 0.1%
Bass Boost	0-12dB

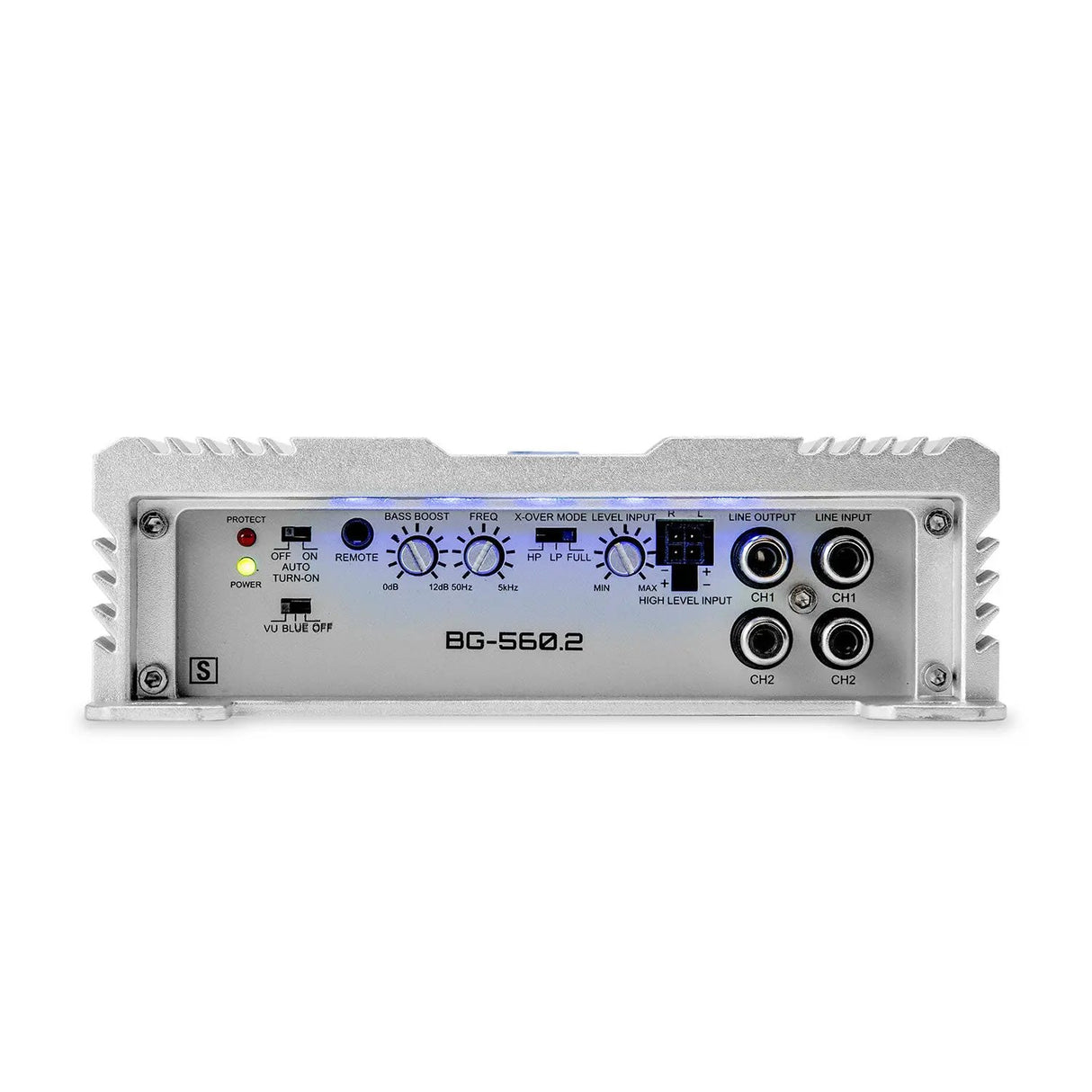

Crossover	Variable Electronic 12dB Per Octave, APF, HPF, LPF
Variable High Pass Crossover	50Hz-5KHz
Variable Low Pass Crossover	50Hz-5KHz
Variable Voltage Input	High: 1.1-19.3V, Low: 0.2-6.7V

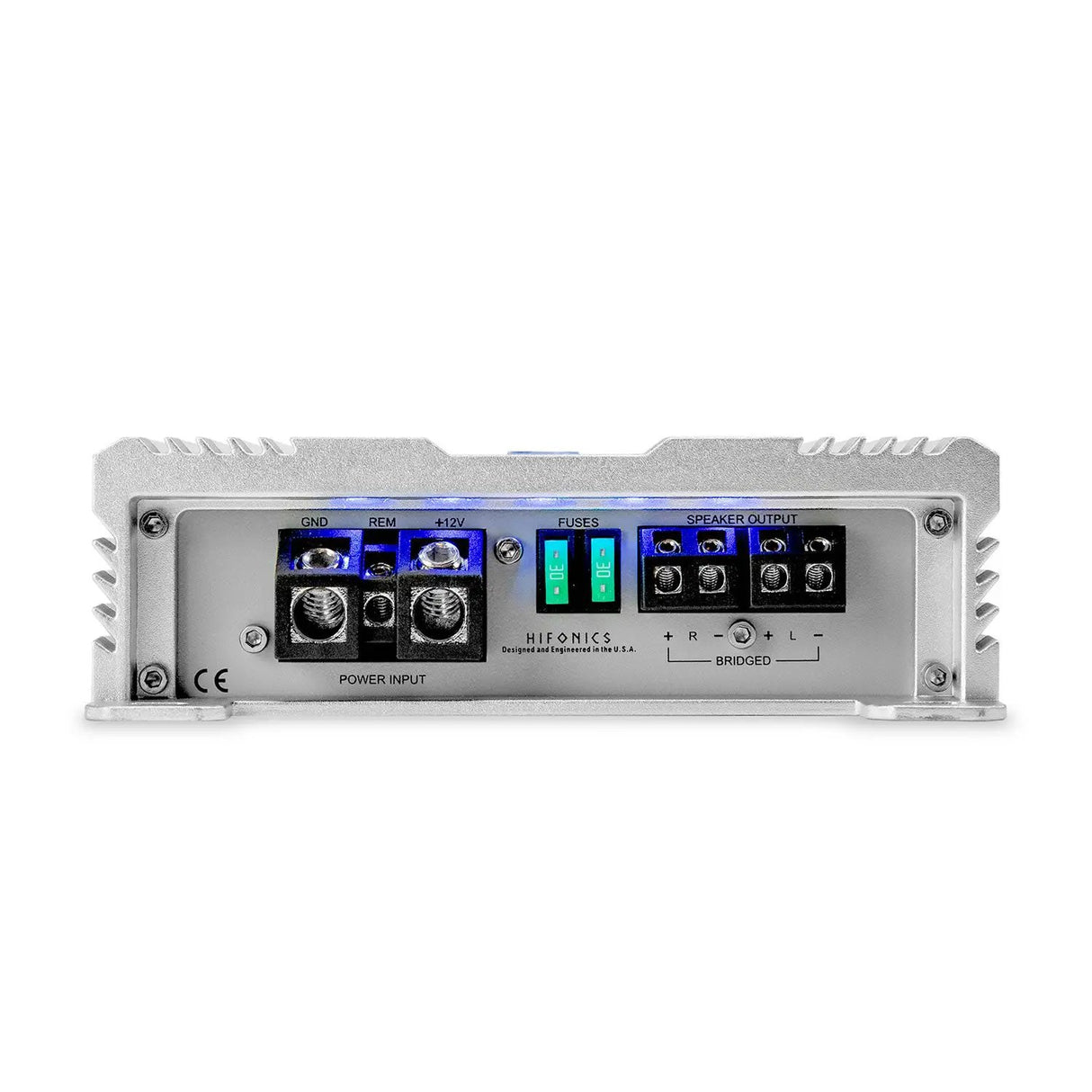

Power Terminal Gauge	4 AWG
Speaker Terminal Gauge	12 AWG
Fusing	2 x 30A
Color	Silver
Item Dimensions	24.9 x 13.0 x 4.8 cm
Item Weight	1.9 kg
Packaged Dimensions	32.3 x 20.8 x 9.3 cm
Packaged Weight	2.3 kg

Highlights

560-watt peak output with Super D Class™ efficiency
2-channel operation supporting stereo or mono bridged modes
Mass-loaded extruded aluminum heat sink and 4-layer PCB for thermal control
High-level inputs with DC Signal Sense auto turn-on for OEM integration
Interactive illuminated badge featuring VU meter mode for gain monitoring
Nickel-plated RCA inputs and pass-through RCA preamp outputs

Videos

Compatibility

Universal fitment compatible with 12V automotive electrical systems, accepting both standard RCA preamp signals and high-level OEM speaker inputs.

Downloads

Hifonics BRUTUS (BG) Amplifiers Quick Start Guide (Rev1)

Frequently asked questions

What is the maximum power output of the Hifonics BG-560.2?

The amplifier delivers a maximum output of 560 watts, providing 2 x 275 watts at 2 ohms, 2 x 150 watts at 4 ohms, or 1 x 560 watts bridged at 4 ohms.

Can this amplifier be connected to factory OEM stereos without RCA outputs?

Yes, it includes speaker-level audio inputs and DC signal sensing auto turn-on, allowing integration with factory head units without needing a separate remote wire.

What function does the stylized logo badging serve?

The illumination can switch between constant blue lighting, completely off, or a VU meter mode that reflects real-time audio levels to assist with gain setup.

What built-in protection mechanisms are included?

The amplifier features triple protection circuitry against over/under voltage, short circuits, and thermal overload, alongside current overload limiting on the power supply.
