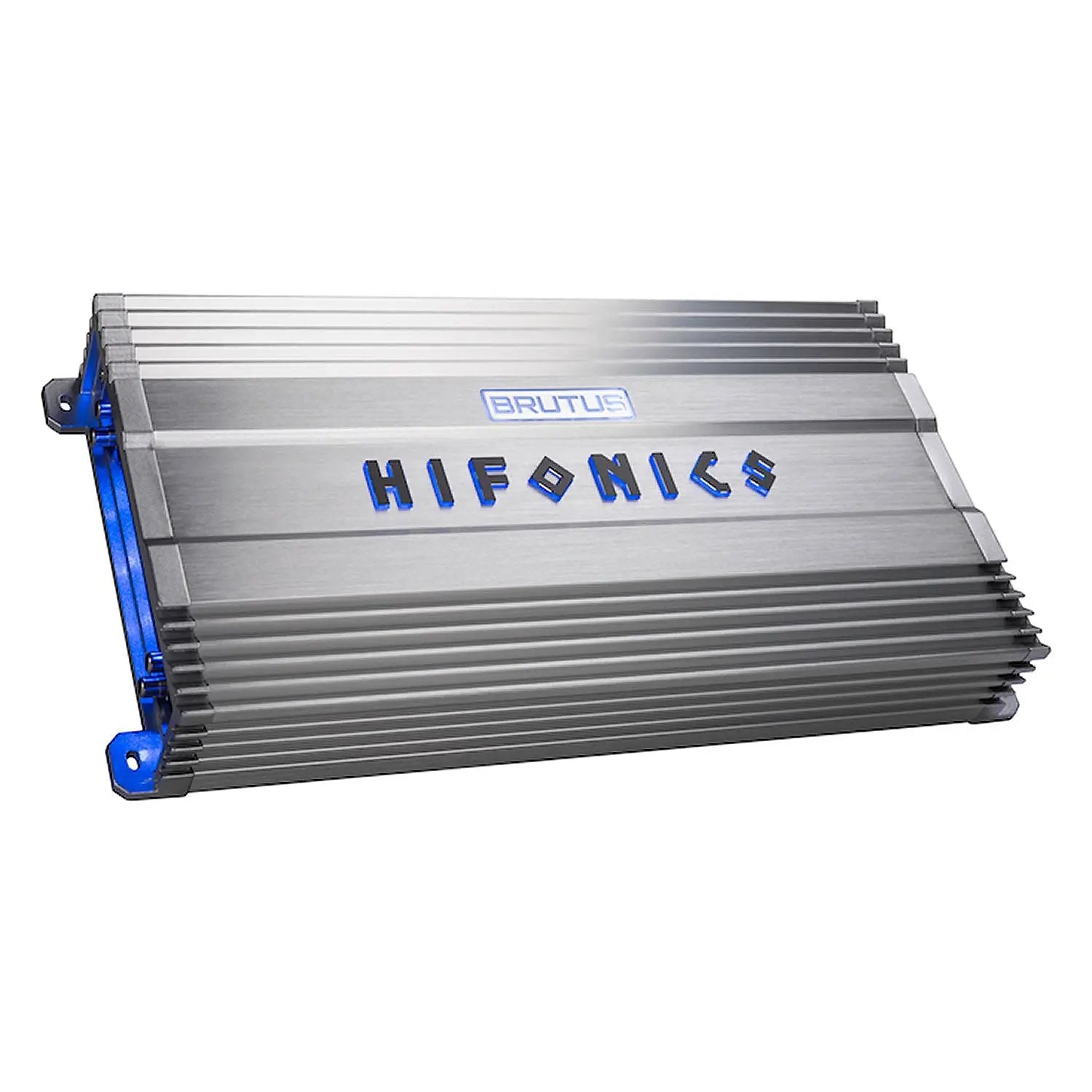

Hifonics BG-4000.1D BRUTUS GAMMA 4000 Watt Monoblock Amplifier
Description
Description
The Hifonics BG-4000.1D BRUTUS GAMMA delivers up to 4000 watts of high-efficiency output in a mono configuration, engineered specifically to drive demanding subwoofer setups. Powered by proprietary Super D-Class topology and Ultra-Fi MOSFET output devices, it optimizes power conversion to produce clean, musical bass while keeping distortion minimal and heat generation low.

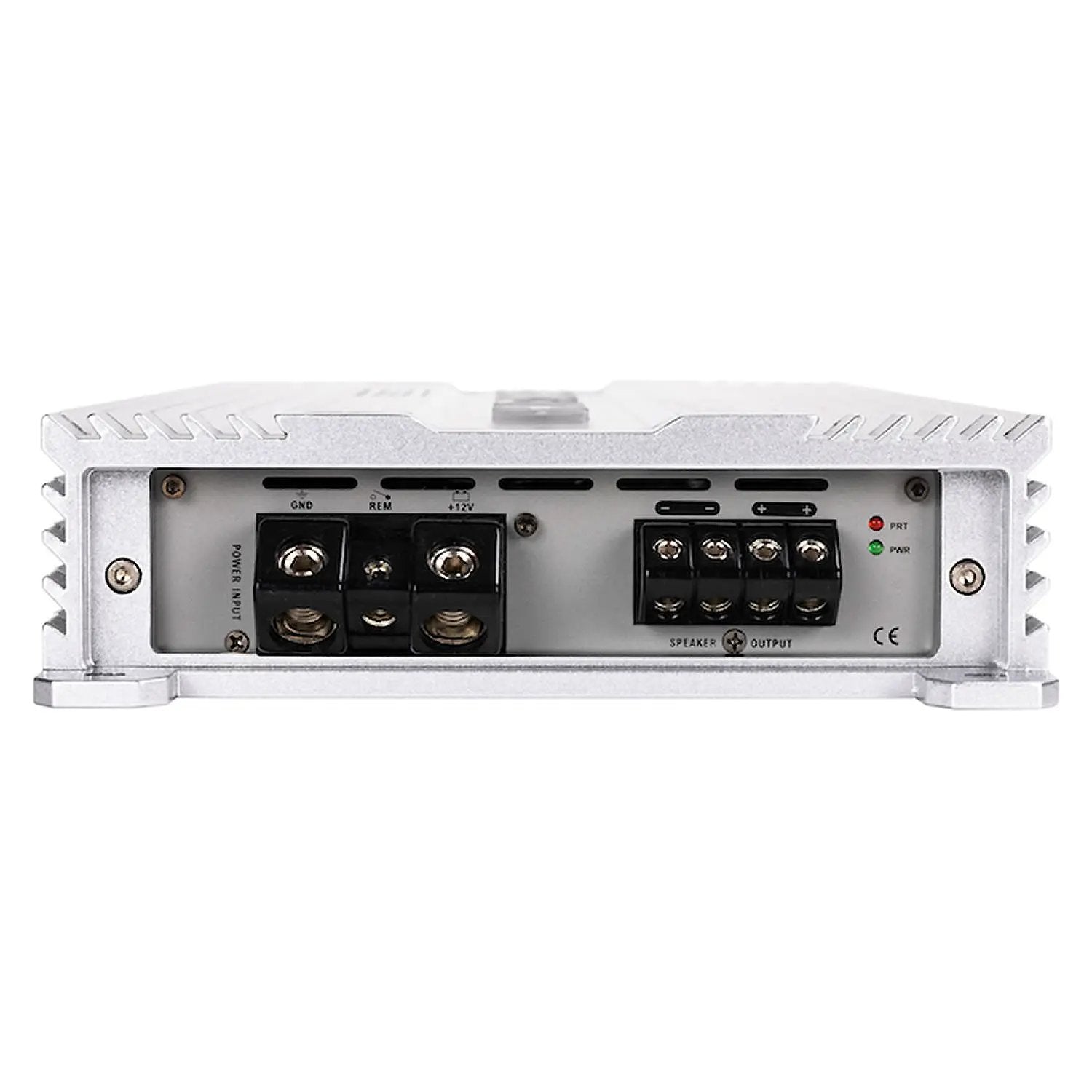

Featuring a dual-coil Simpatico PWM power supply and a classic aluminum heatsink, this amplifier maintains consistent operating voltage and reliable thermal management during extended play sessions. Secure molded terminals angled for clean cable management, nickel-plated RCA connections, and comprehensive diagnostic LED protection circuitry ensure stable signal integrity and system safety.

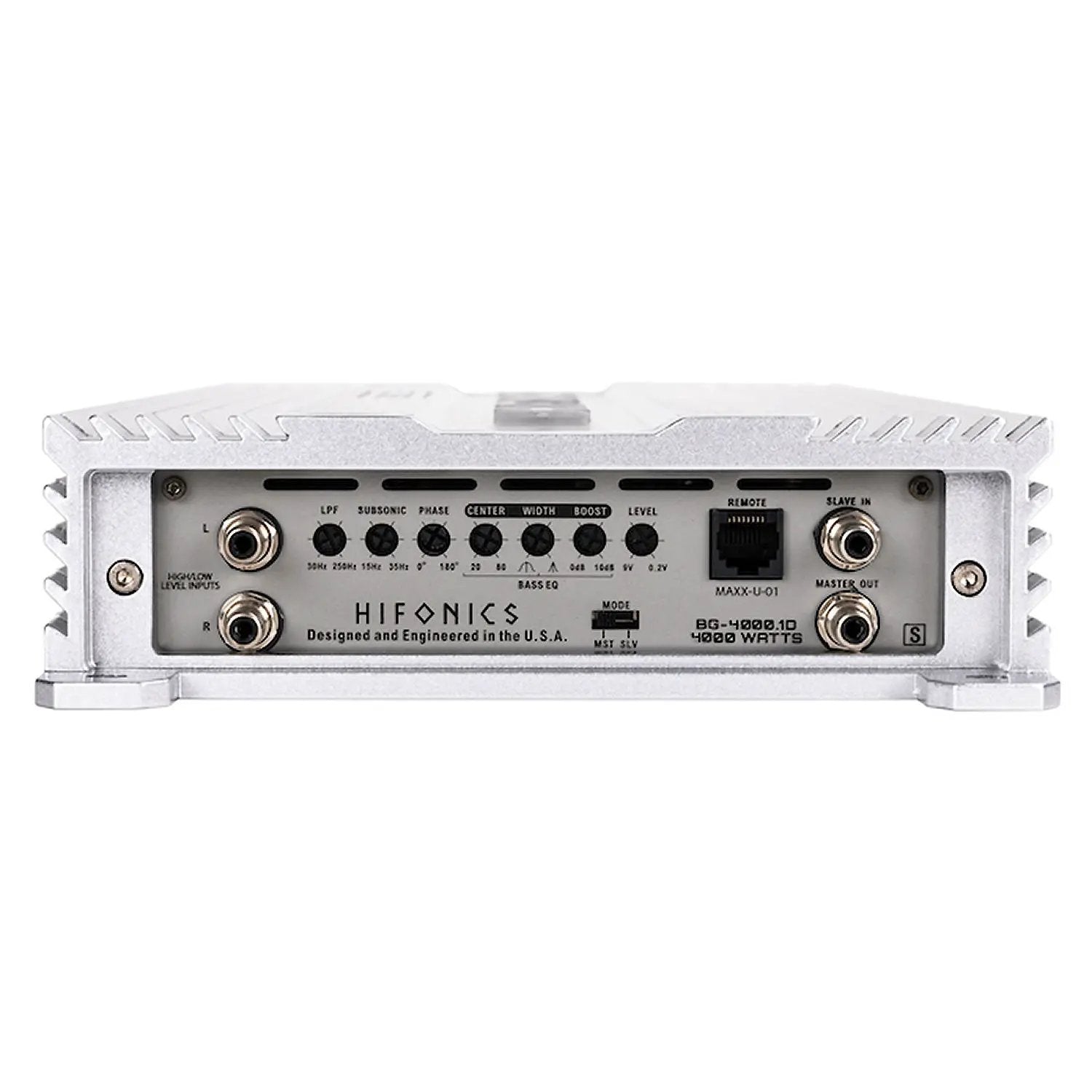

Extensive on-board sound shaping includes variable electronic crossovers, a 15Hz to 35Hz subsonic filter, adjustable bass boost, 0 to 180 degree phase shift, and power strapping capability to sync dual units. An included wired remote control allows for seamless real-time bass adjustments directly from the front of the vehicle cabin.
Key Features
| Brand | Hifonics |
| Model | BG-4000.1D |
| Series | BRUTUS GAMMA |
| Amplifier Class | Super D-Class |
| Channels | 1 |
| Max Power | 4000 W |
| Power @ 1 Ohm | 1 x 4000 W |
| Power @ 2 Ohms | 1 x 2000 W |
| Power @ 4 Ohms | 1 x 1000 W |
| Frequency Response | 10Hz - 500Hz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Variable Low Pass Crossover | 30Hz - 250Hz (12dB/Octave) |
| Subsonic Filter | 15Hz - 35Hz |
| Bass Boost | 0 - 10dB |
| Phase Adjustment | 0 - 180° |
| Variable Voltage | 0.2 - 9V |
| Power Terminal Wire Gauge | 2 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| Dimensions | 55.7 × 30.0 × 10.3 cm |
| Weight | 6.2 kg |
| Color | Bright Silver Hairline Anodized Finish |
Highlights
- Super D-Class circuit design with Ultra-Fi MOSFET outputs for clean, highly efficient power delivery
- Delivers up to 4000 watts at 1 ohm, 2000 watts at 2 ohms, and 1000 watts at 4 ohms
- Comprehensive sound customization including low-pass crossover, subsonic filter, phase shift, and bass boost
- Heavy-duty aluminum heatsink and Simpatico dual-coil PWM power supply for constant thermal and voltage stability
- Includes a wired remote bass control knob for quick cabin adjustments
Compatibility
Universal compatibility with 12V automotive electrical systems and car audio source units featuring RCA line-level or speaker-level audio outputs.
What's included
- Hifonics BG-4000.1D Mono Amplifier
- Wired Remote Bass Control and Cable
- Mounting Hardware
