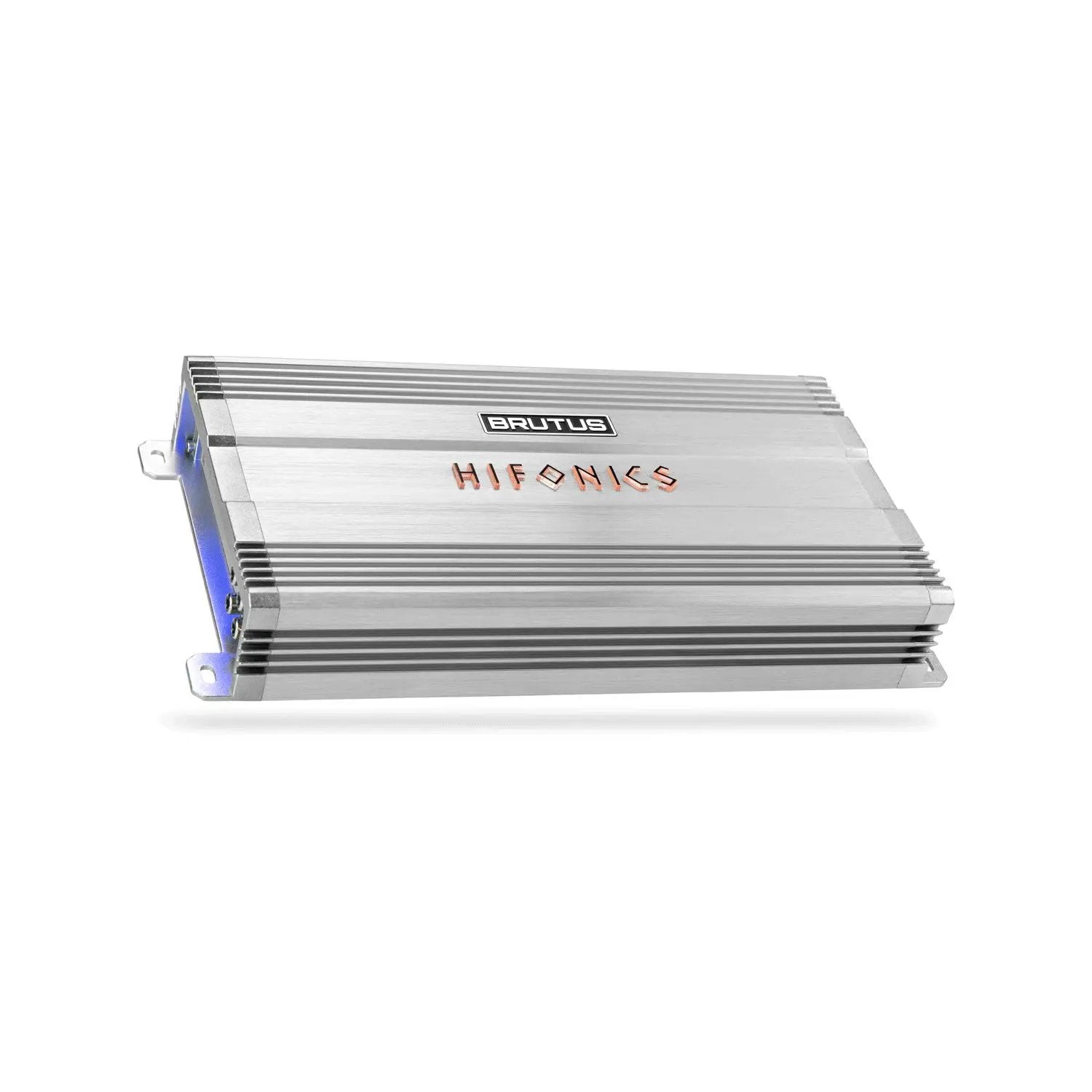

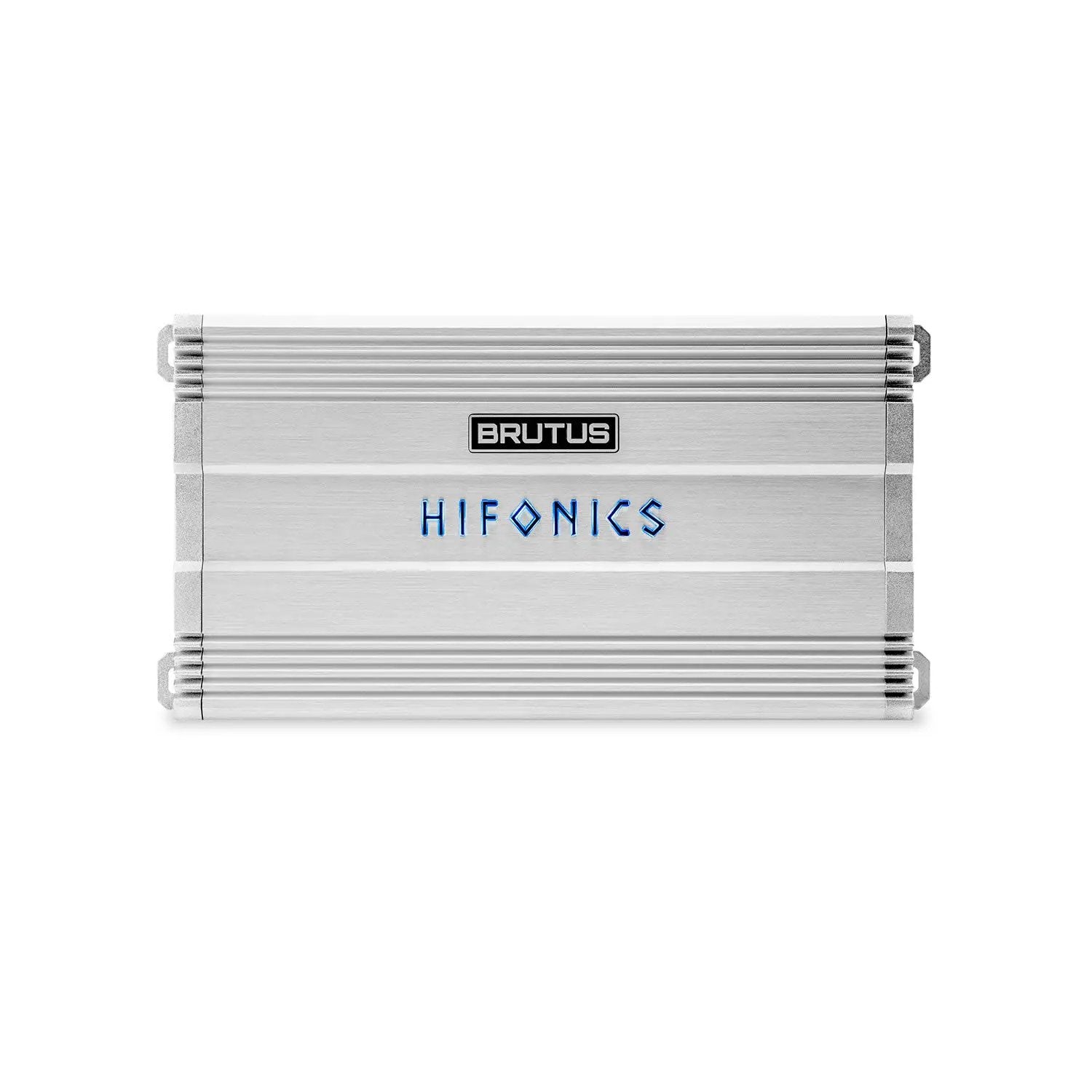

Hifonics BG-1000.2 BRUTUS BG 1000 Watt Two Channel Amplifier
Description
Description
The Hifonics BRUTUS BG-1000.2 is a high-performance Super D Class™ two-channel car audio amplifier engineered to deliver up to 1000 watts of clean, reliable output. Built with dual toroidal transformers and a high-frequency PWM power supply, it maintains optimal efficiency across demanding acoustic loads.
Advanced thermal management is powered by a mass-loaded extruded aluminum heat sink and a four-layer PCB design for enhanced operating stability. High-tolerance MOSFET components and shielded inductors provide ultra-low EMI and distortion-free sound reproduction.

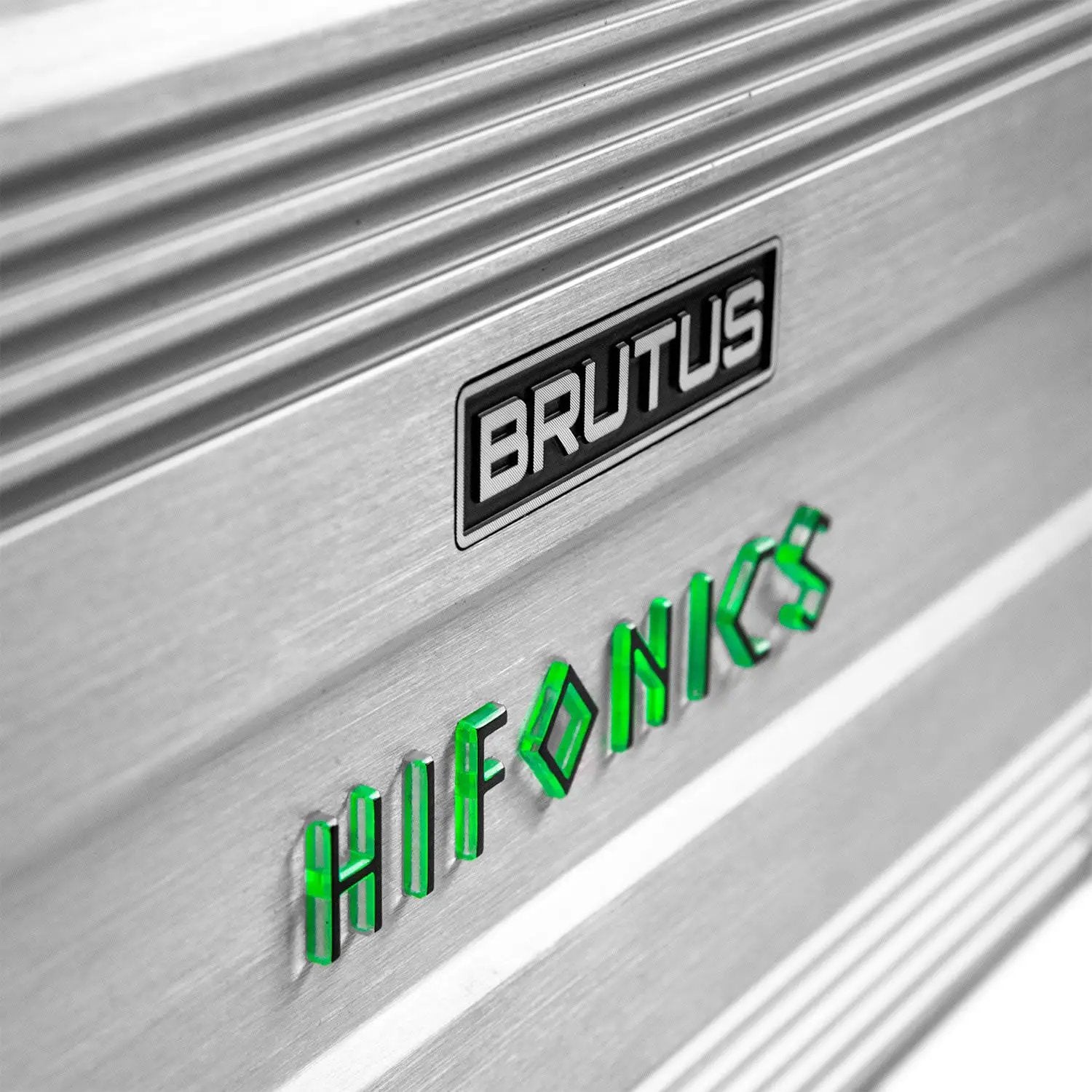

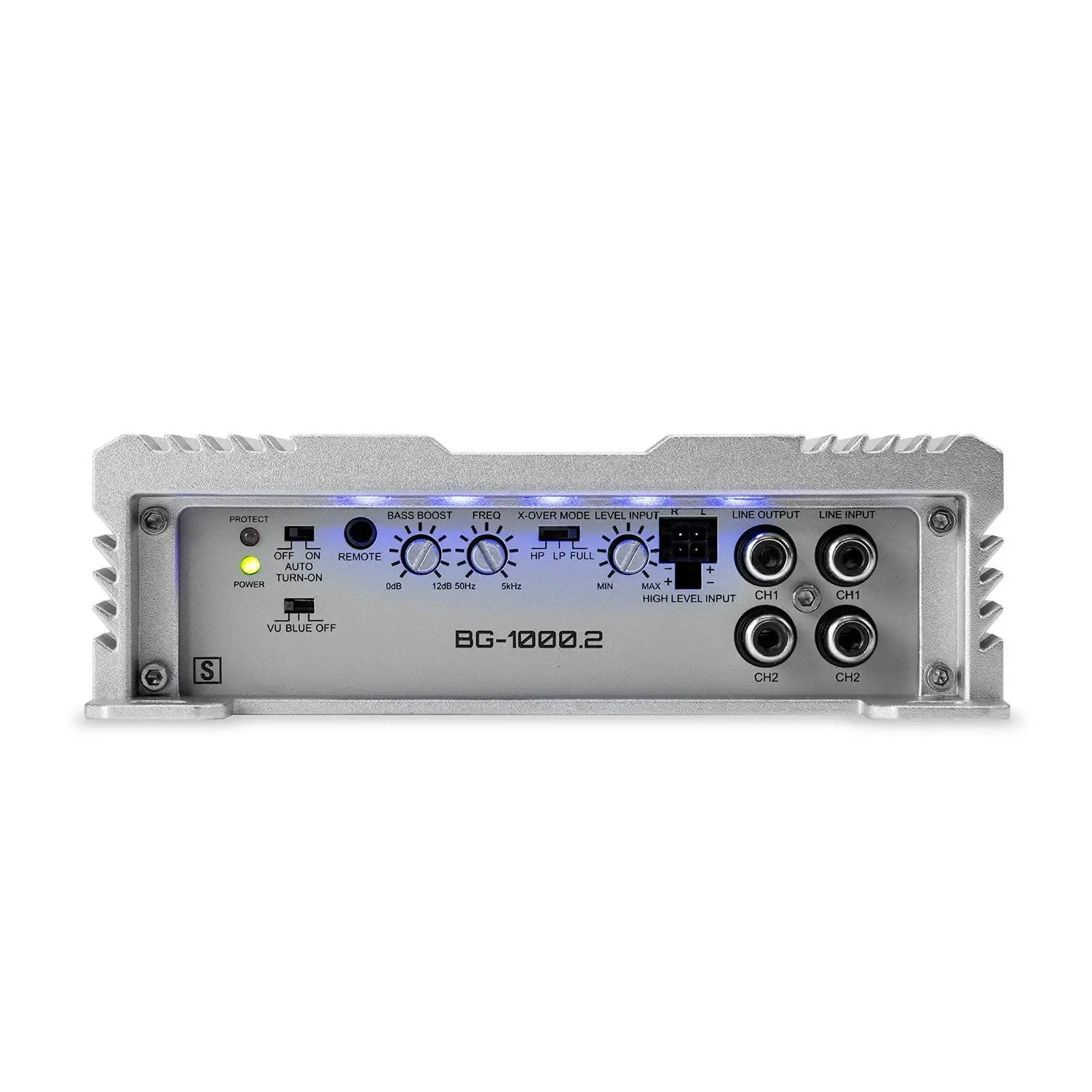

Equipped with versatile integration options, this amplifier features nickel-plated RCA inputs, high-level speaker inputs with DC signal sense auto turn-on, and variable electronic crossovers. The stylized front badging features selectable blue LED illumination with dynamic VU meter operation for real-time output monitoring.
Key Features
| Brand | Hifonics |
| Series | BRUTUS BG |
| Model Number | BG-1000.2 |
| Amplifier Class | Super D Class™ |
| Total Channels | 2 |
| Max Power | 1000 W |
| Power Output @ 2 Ohms | 2 x 575 W |
| Power Output @ 4 Ohms | 2 x 300 W |
| Mono Bridged Power @ 4 Ohms | 1 x 1000 W |
| Frequency Response | 10Hz-30kHz |
| Signal to Noise Ratio | 105dB |
| Total Harmonic Distortion (THD) | < 0.1% |
| Variable Voltage | 0.2-7V |
| Bass Boost | 0-12dB |
| Crossover | Variable Electronic 12dB Per Octave, APF, HPF, LPF (50Hz-5KHz) |
| Speaker Level Audio Inputs | Yes |
| Pre-amp Audio Outputs | Pass Thru RCA |
| Power / Ground Terminal Gauge | 4 AWG |
| Speaker Terminal Gauge | 12 AWG |
| Fusing | External 80A |
| Color | Silver |
| Product Dimensions (L x W x H) | 31 cm × 13 cm × 4.8 cm |
| Product Weight | 2.6 kg |
| Package Dimensions (L x W x H) | 38.7 cm × 20.8 cm × 9.3 cm |
| Package Weight | 3 kg |
Highlights
Performance Features
Hifonics BRUTUS BG Amplifiers provide high power output.
Videos
Compatibility
Features universal vehicle compatibility and supports standard 12V automotive electrical systems, connecting via high-level OEM speaker inputs or low-level RCA pre-amp inputs.
