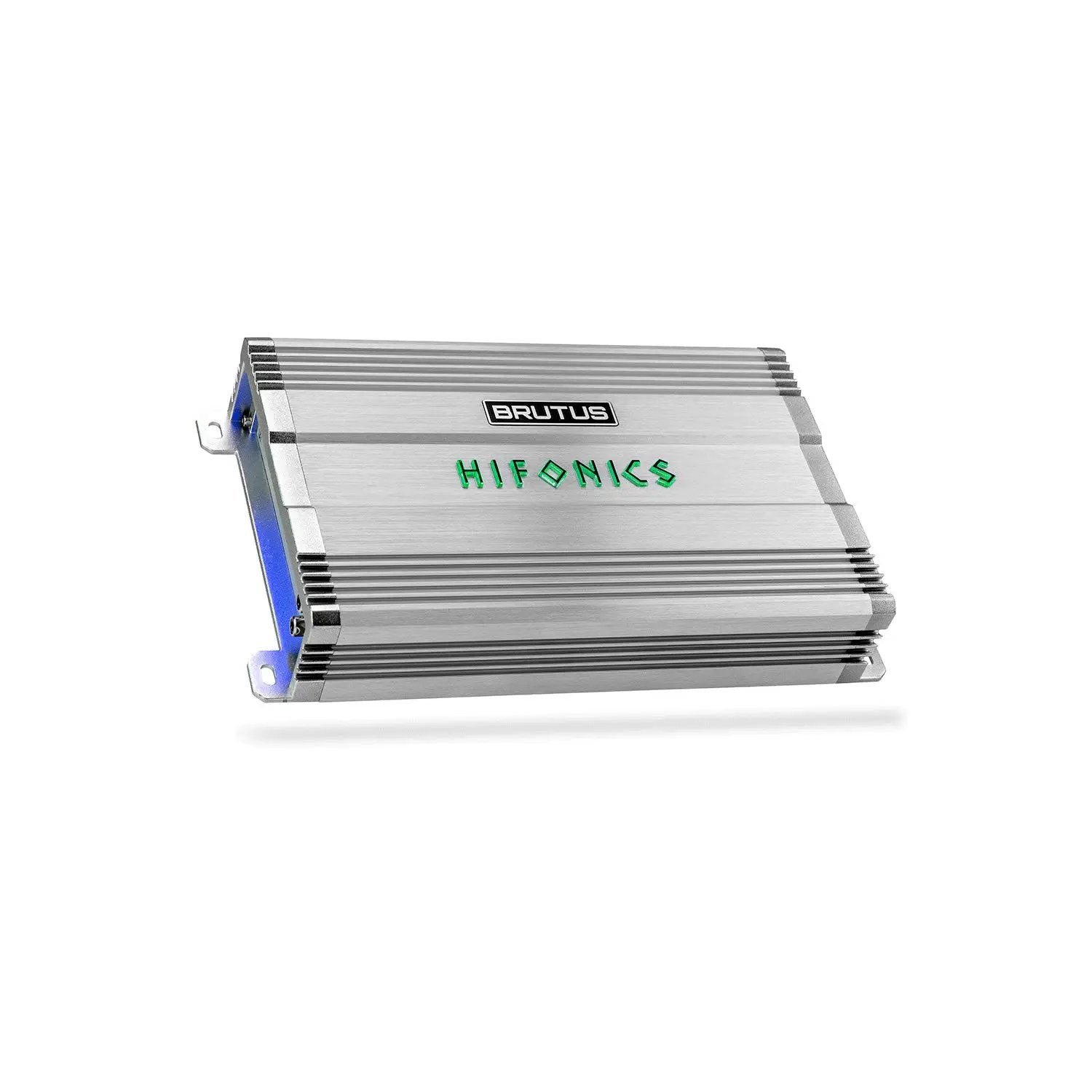

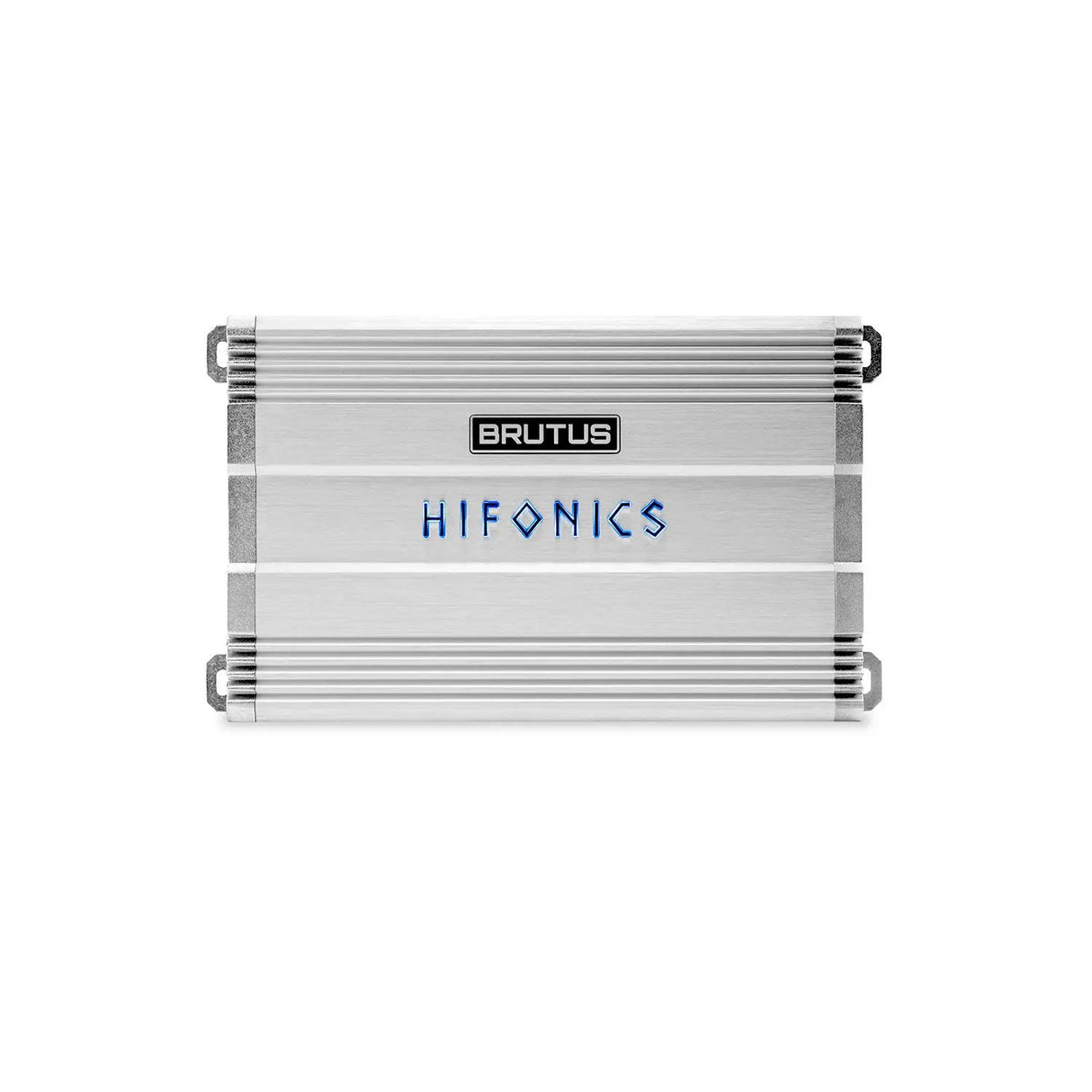

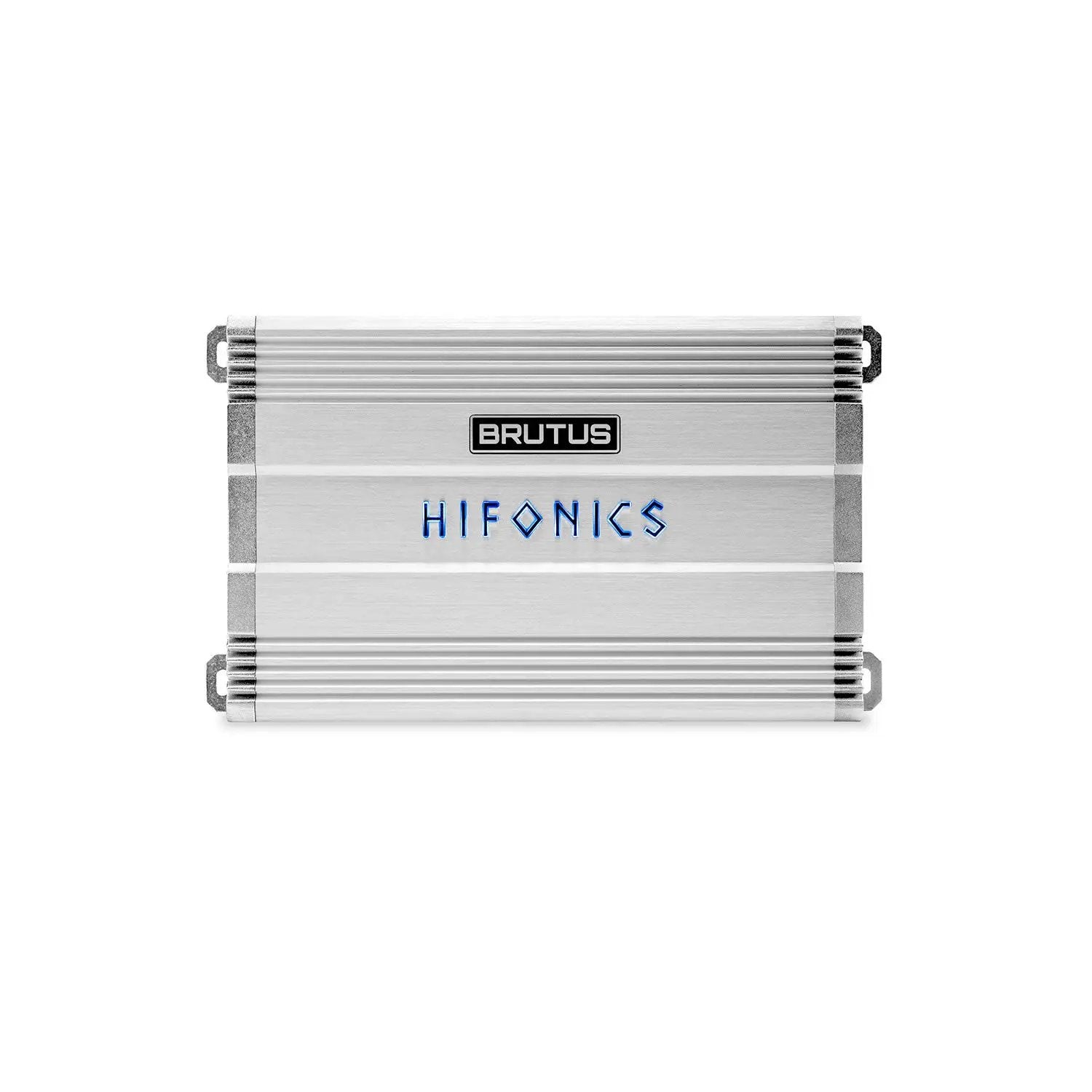

Hifonics BG-1000.1 BRUTUS BG 1000 Watt Mono Block Amplifier
Description
Description
The Hifonics BRUTUS BG-1000.1 is a high-performance Super D Class mono block car audio amplifier delivering up to 1000 watts of power. Engineered with a dual toroidal transformer PWM power supply and clean 4-layer PCB construction, it provides robust power delivery with minimal distortion.

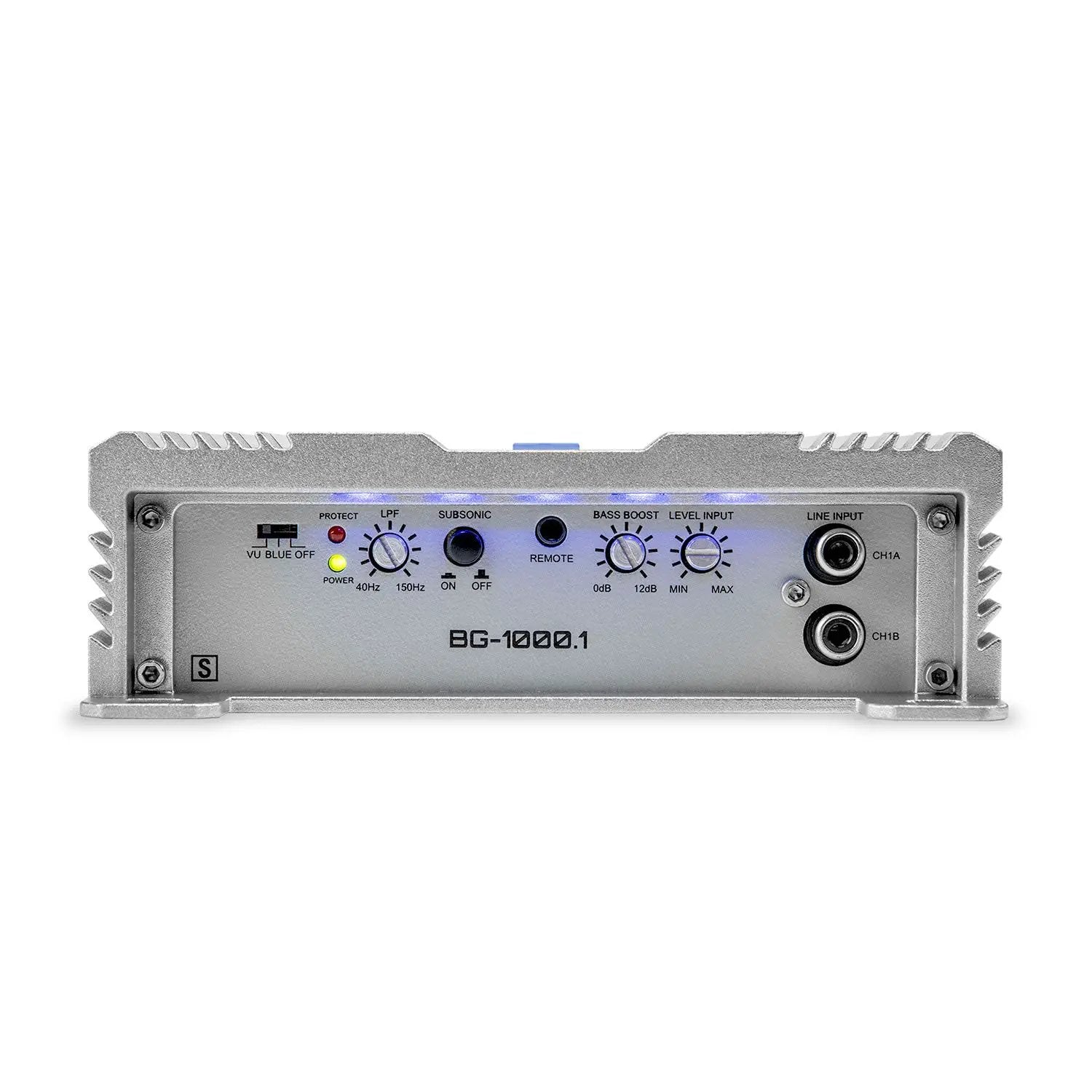

Thermal efficiency is maintained through a mass-loaded extruded aluminum heat sink and low-EMI MOSFET output devices. The preamplifier stage features nickel-plated RCA inputs, a variable 12dB electronic crossover, switched subsonic filtering, and onboard bass boost for precise frequency shaping.

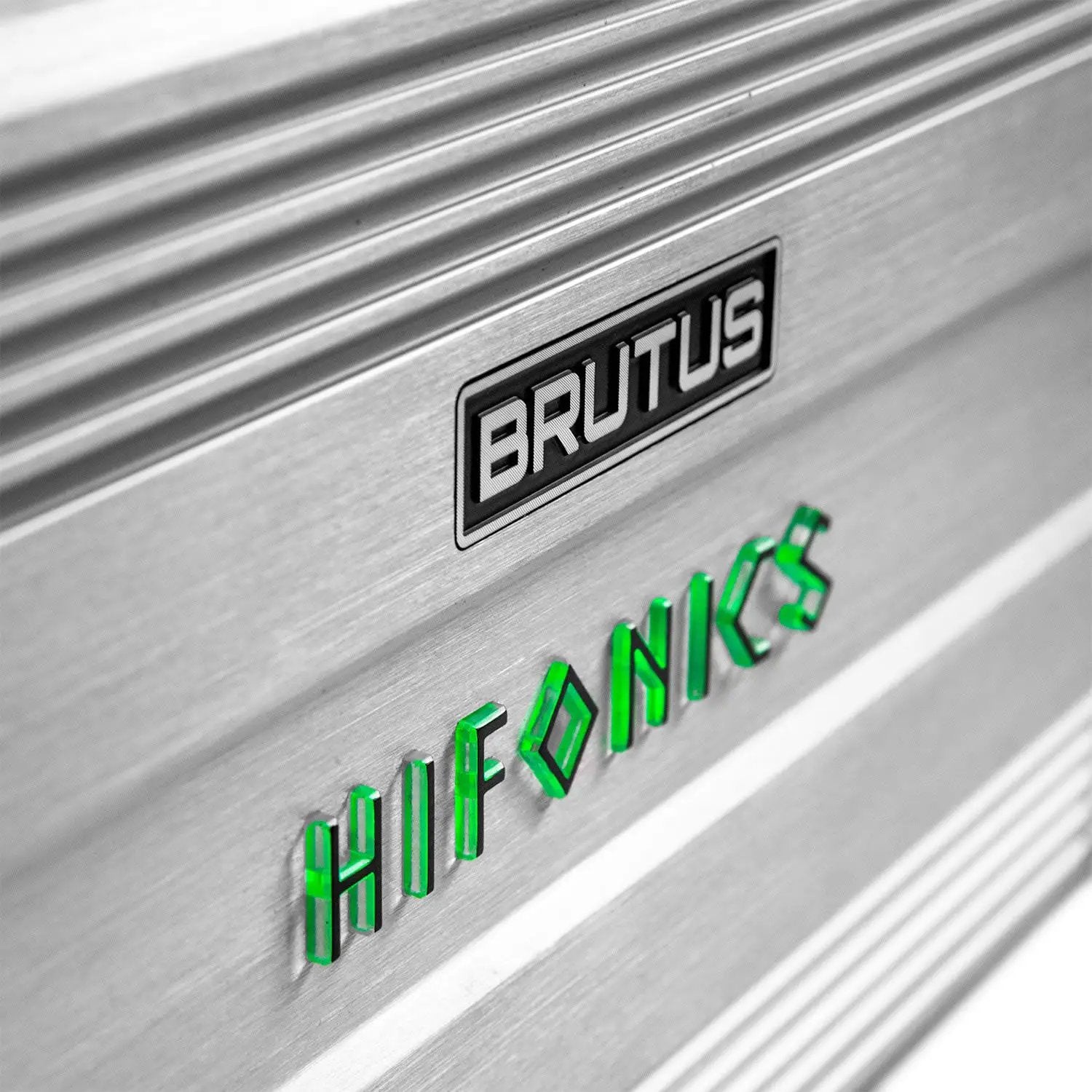

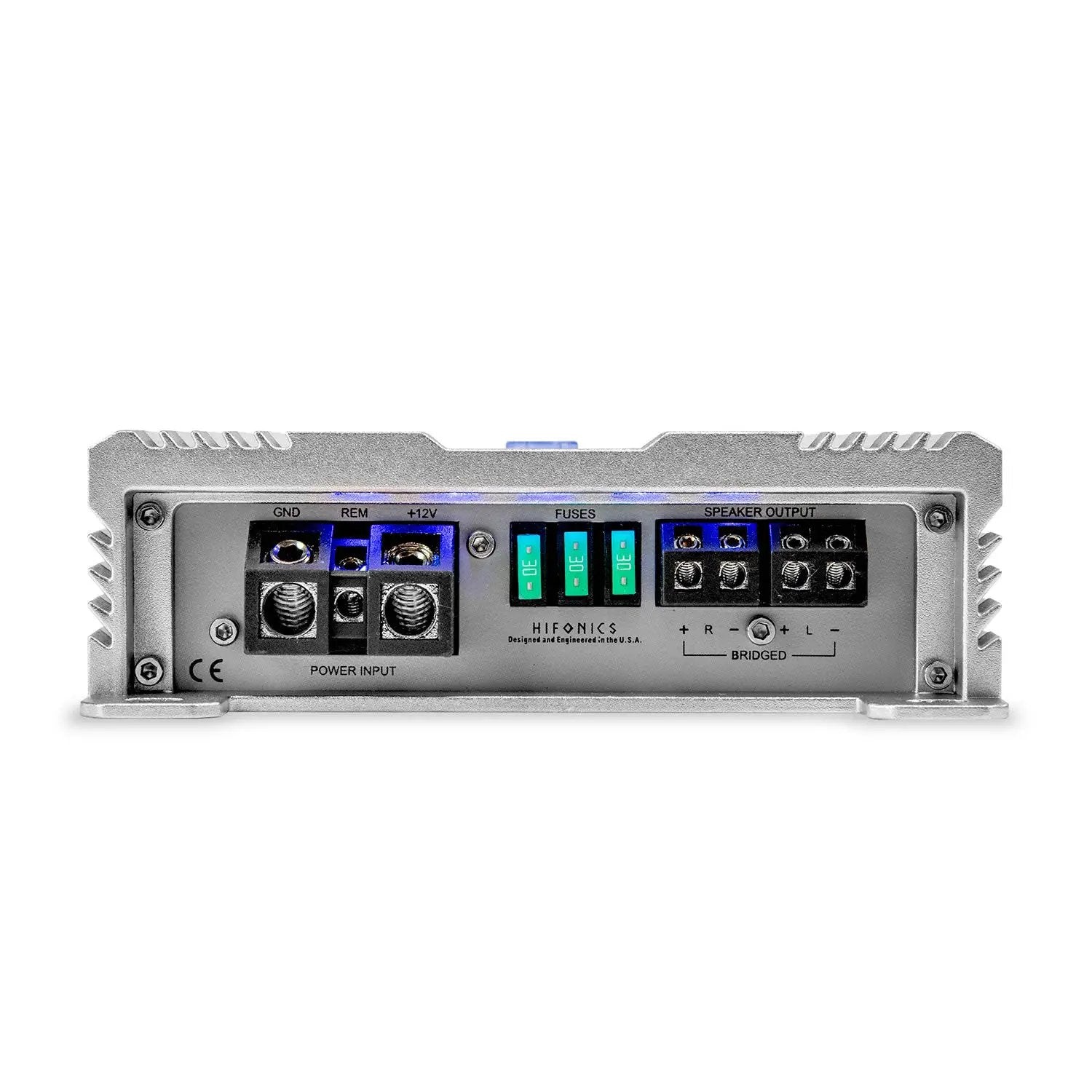

Angled molded terminals accommodate 4 AWG power wire and 12 AWG speaker connections for clean cable routing. Multi-mode stylized LED badging functions as an active VU meter for gain matching, backed by integrated triple-protection circuitry and an included wired bass remote.
Key Features
| Brand | Hifonics |
| Model | BG-1000.1 |
| Series | BRUTUS BG |
| Amplifier Class | Super D Class™ |
| Total Channels | 1 |
| Max Power | 1000 W |
| Power Output @ 1 Ohm | 1 x 1000 W |
| Power Output @ 2 Ohms | 1 x 800 W |
| Power Output @ 4 Ohms | 1 x 550 W |
| Frequency Response | 10Hz - 180Hz |
| Signal to Noise Ratio | 75 dB |
| Total Harmonic Distortion (THD) | < 0.1% |
| Low Pass Crossover | 40Hz - 150Hz (12dB/Octave) |
| Bass Boost | 0 - 12 dB |
| Variable Voltage Input | 0.2V - 6.5V |
| Power/Ground Terminal Gauge | 4 AWG |
| Speaker Terminal Gauge | 12 AWG |
| Fusing | 3 x 30A |
| Product Dimensions | 26.9 x 13 x 4.8 cm |
| Product Weight | 2.2 kg |
| Package Dimensions | 34.3 x 20.8 x 9.3 cm |
| Package Weight | 2.5 kg |
| Color | Silver |
Highlights
Performance Features
Hifonics BRUTUS BG Amplifiers provide high power output.
Videos
Compatibility
Universally compatible with standard 12V automotive electrical systems and car audio source units via RCA inputs.
Warranty
1 Year manufacturer's warranty

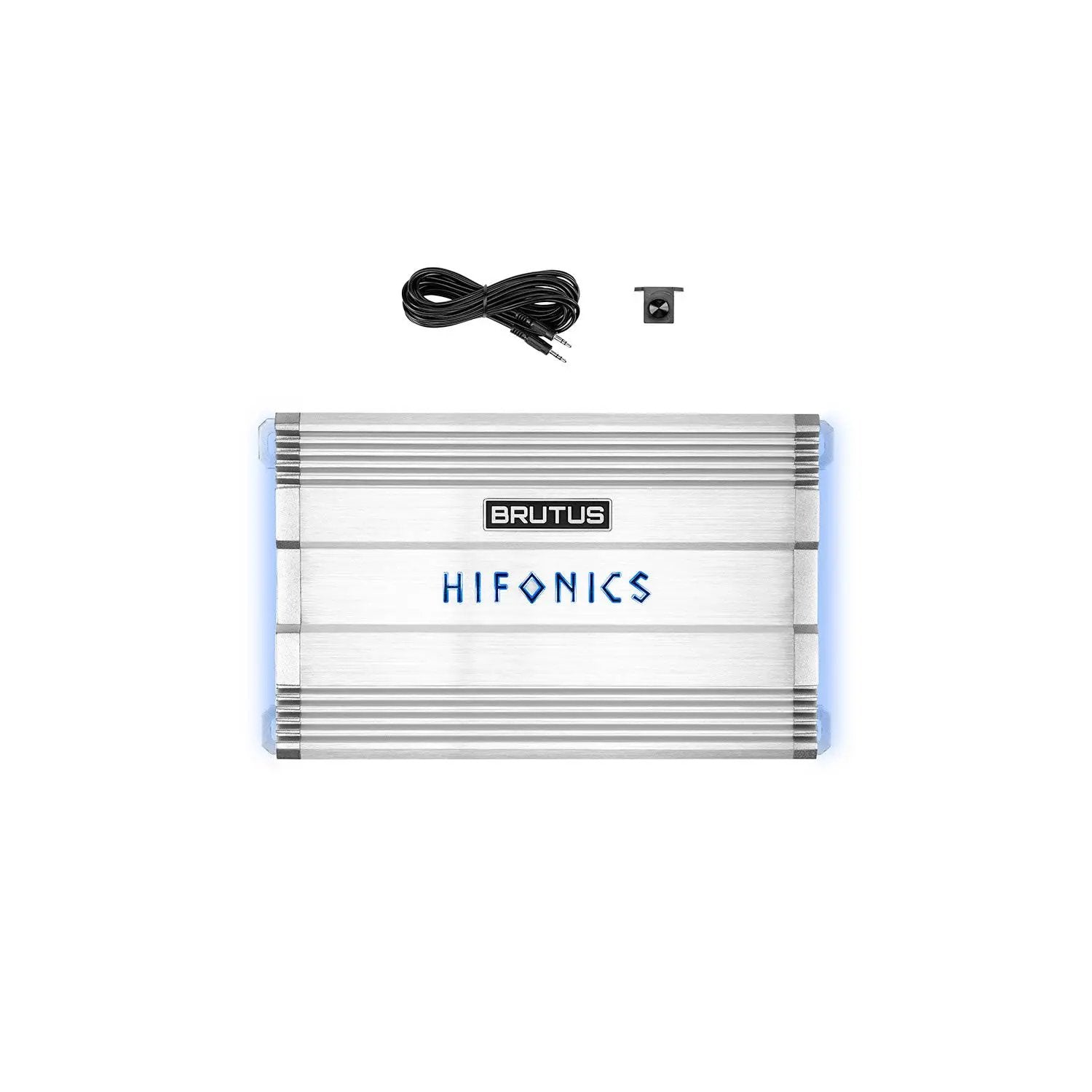

What's included
- Hifonics BG-1000.1 Mono Block Amplifier

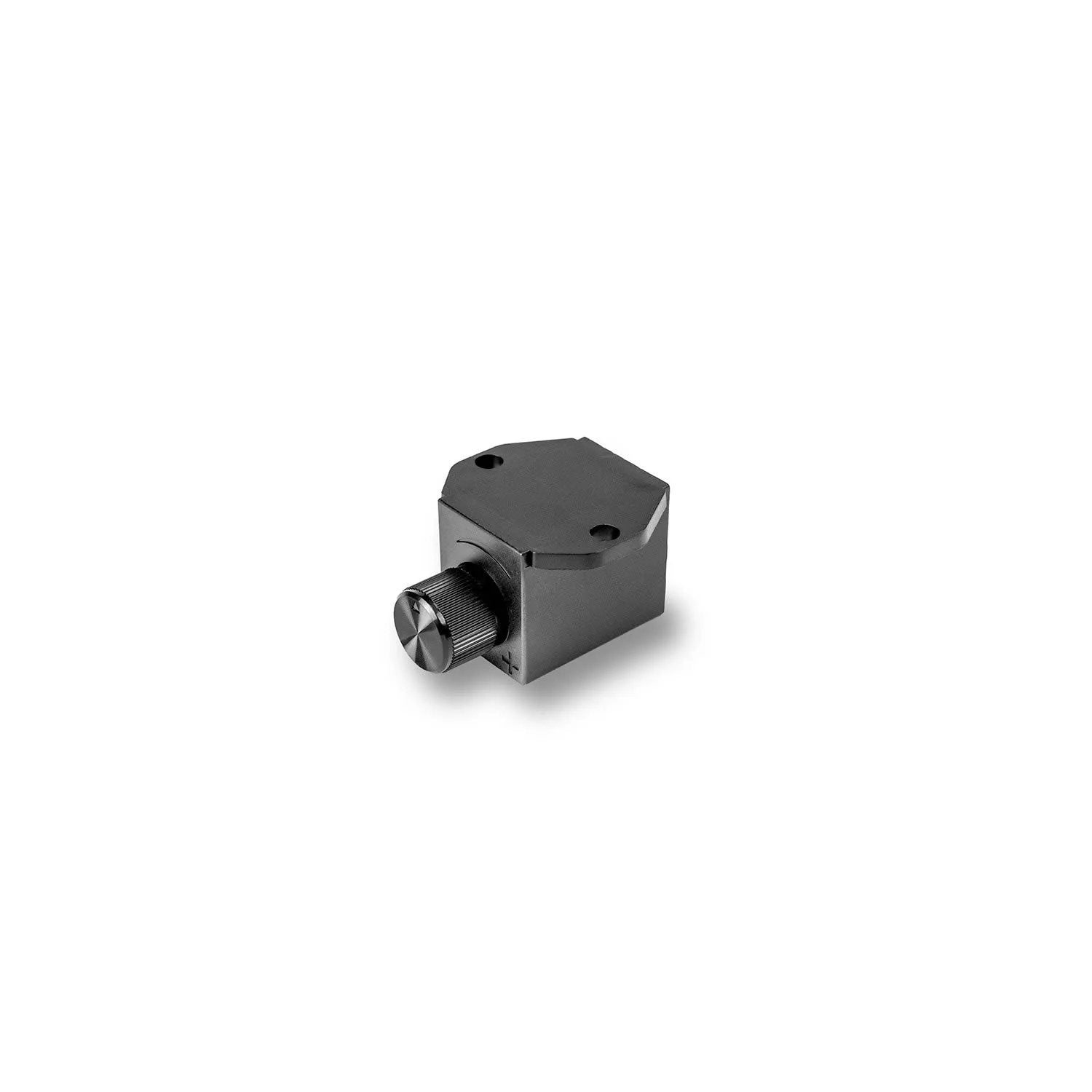

- Wired Bass Remote Control
- Quick Start Guide
