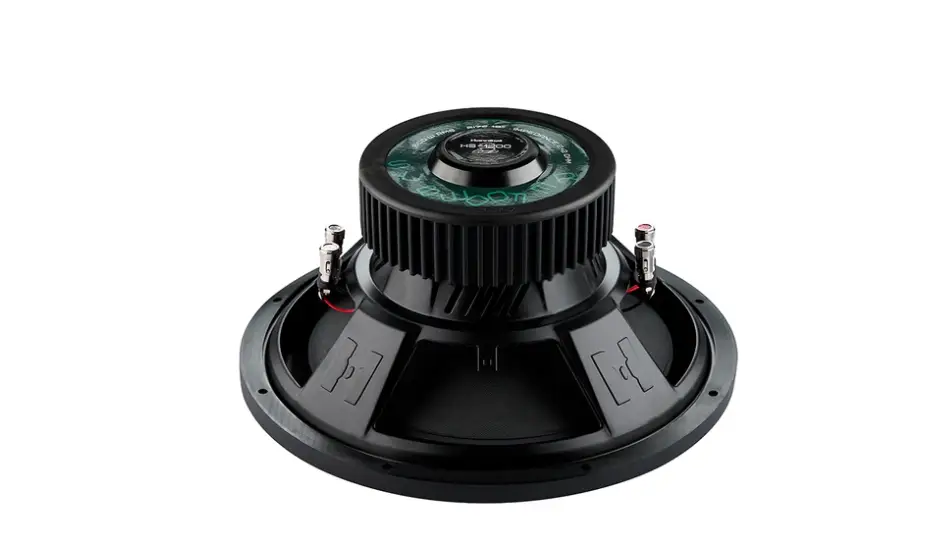

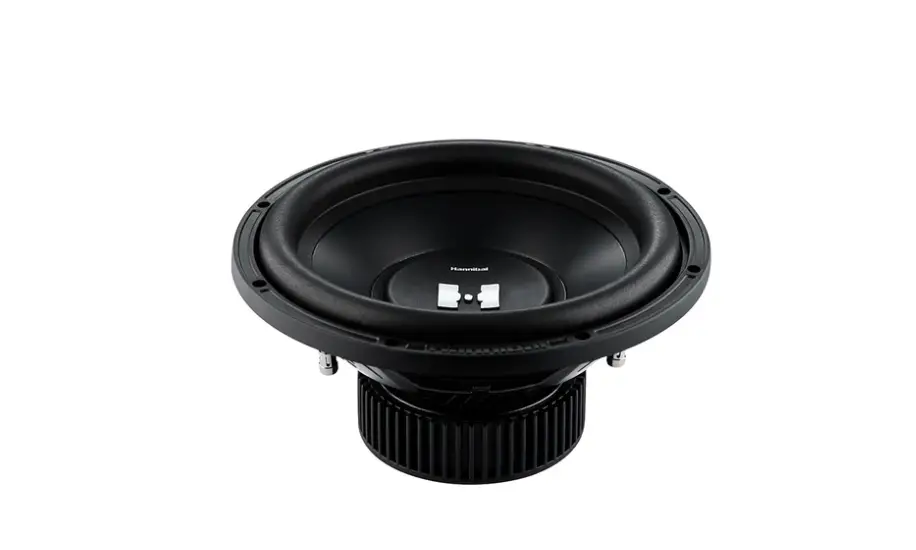

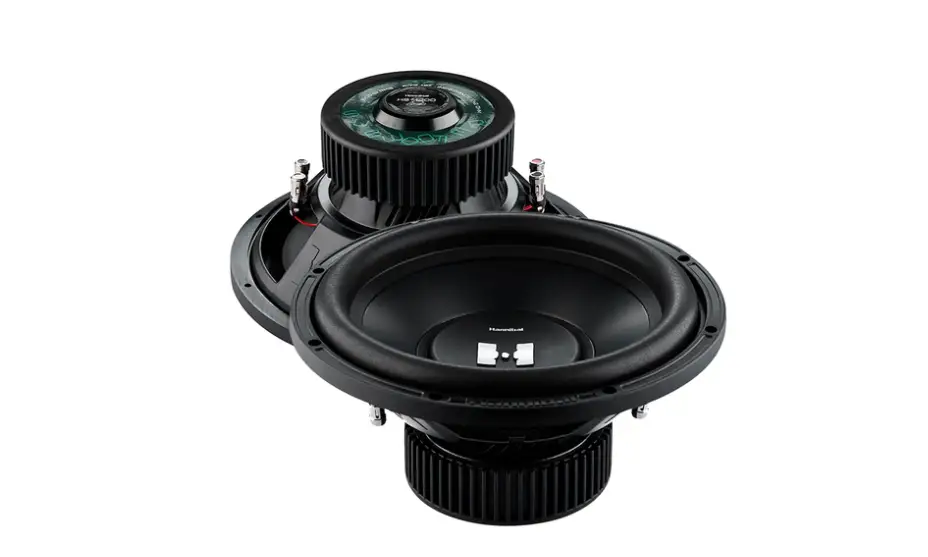

Deaf Bonce HANNIBAL HS-1200 D2/D4 600w RMS 12" Subwoofer

The Deaf Bonce HANNIBAL HS-1200 is a 12-inch subwoofer delivering 600 W RMS (1200 W max) with a dual 2/4 Ω impedance, engineered for high-performance car setups that demand tight, impactful bass in a compact footprint.

• Size: 12" diameter cone for strong bass potential in standard trunk and cabin spaces.
• Voice coil size: 2" copper voice coil to handle power while aiding heat transfer for sustained output.
• Cone: Paper cone for lightweight rigidity and responsive excursion characteristics.
• Magnet: Ferrite magnet providing substantial magnetic flux in a compact form factor.
• Surround: Foam surround that supports repeated excursion and durability under high-output bass.
• Frame: Aluminum frame for rigidity with minimal added weight, helping reduce distortion at high levels.
• Impedance: 2/4 Ω dual voice-coil configuration allows flexible amp matching and wiring options.
• RMS Power / MAX Power: 600 W RMS continuous and 1200 W peak capacity, enabling strong dynamic bass with appropriate amplification.
• Sensitivity (SPL): 86.9 dB, indicating usable output level with a given input, important when pairing with an amplifier.
• Fs: 41.09 Hz, suggesting usable bass extension with proper enclosure design to leverage low-end performance.
• Qts: 0.58, reflecting a balance between damping and efficiency, influencing enclosure choices.
• BL: 16.54, a measure of motor strength that affects control at high excursion.
• Vas: 30.26 L, indicating the recommended enclosure volume range for intended performance.
• Xmah: 11 mm, the mechanical excursion limit, setting expectations for how far the cone can travel cleanly.

In a real-world build, the HS-1200 suits high-output systems in mid-sized vehicles where a single 12" driver needs to fill the cabin with tight, controlled bass. The dual-impedance design supports versatile amplifier matching, and the combination of a ferrite magnet, aluminum frame, and 2" voice coil helps manage heat and rigidity during deep bass bursts. Pair it with an appropriately rated amplifier and enclosure tuned to your goals to maximize dynamic range and low-end extension without sacrificing clarity.
