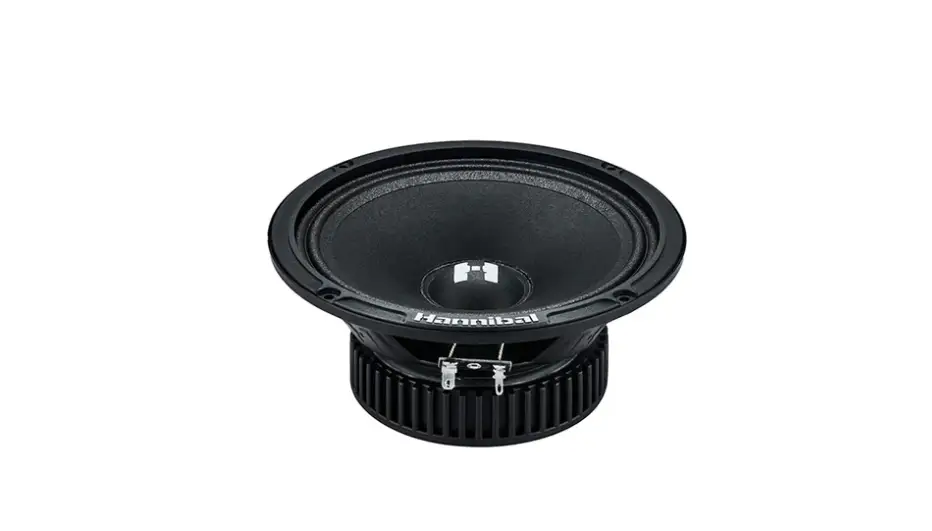

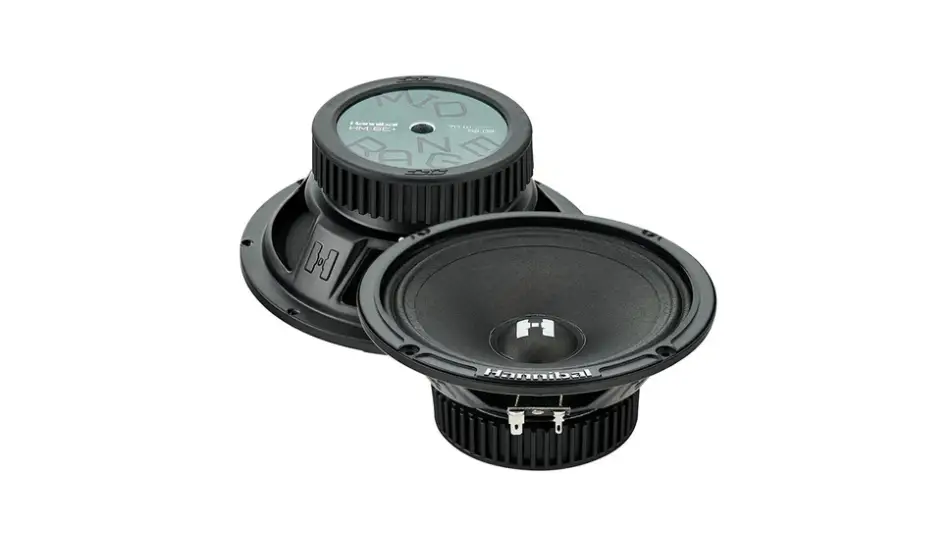

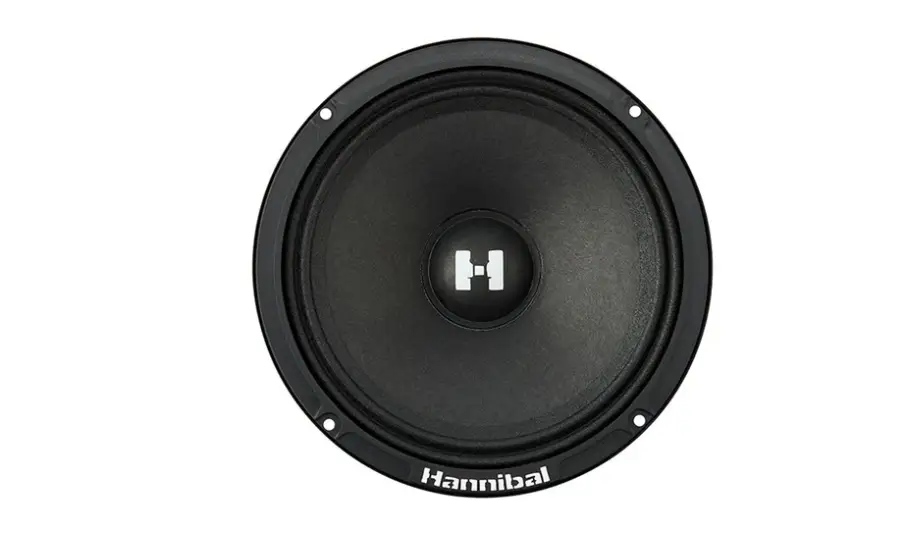

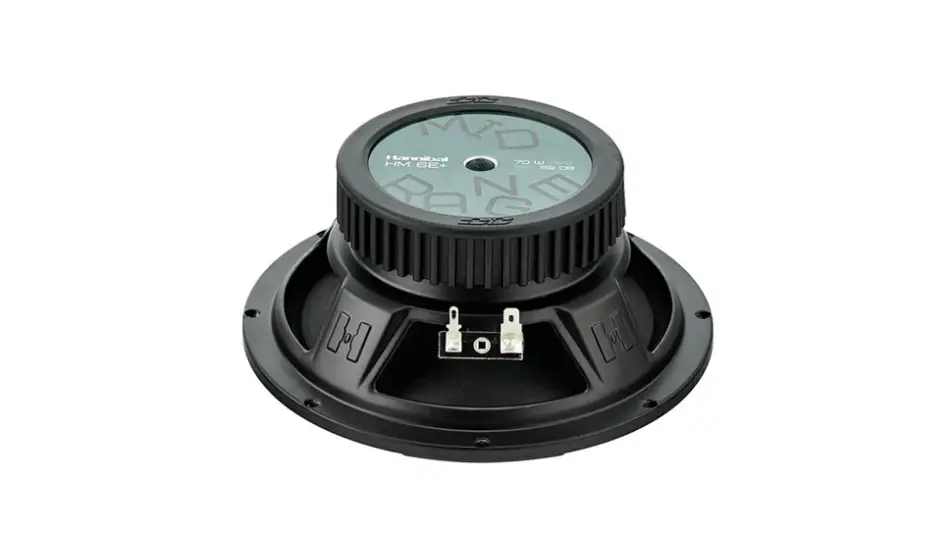

Deaf Bonce Hannibal HM-6E+ 6.5" Mid-Range Speakers (Pair)

The Deaf Bonce Hannibal HM-6E+ is a 6.5" midrange pair built for precise vocal articulation in car audio systems, offering an 100–11,000 Hz range and solid power handling for front-stage performance.

• Size: 6.5" midrange drivers fit common aftermarket enclosures and dash locations, providing a compact midrange footprint.
• Type: Midrange, designed to reproduce the vocal and upper midband with clarity while integrating with other loudspeakers in a multi-way setup.
• Frequency response: 100–11000 Hz covers essential vocal fundamentals to upper mid/highs, contributing to intelligibility and detail in music and dialogue.
• Package quantity: Pair, enabling paired left/right installation for balanced stereo imaging.
• Voice coil size: 1" coil, sized to handle the rated power while maintaining control and limited inductance at high frequencies.
• Cone: Paper, offering a lightweight, reasonably stiff platform for accurate midrange reproduction with damping characteristics.
• Magnet: Ferrite, providing a compact magnetic structure suitable for a 6.5" midrange footprint.
• Voice coil wire: CCAW, combining conductivity and light weight to support power handling without excessive heat buildup.
• Surround: Cloth, offering durability and consistent excursion over the driver’s operating range.
• RMS Power: 80 W, indicating continuous power handling for sustained listening without overdriving the transducer.
• MAX Power: 160 W, the peak capability for brief dynamic bursts while staying within safe limits.
• Frame: Stamped steel, providing a rigid yet lightweight mounting structure for reliable alignment.
• Impedance: 4 Ω, a common load that pairs well with a wide range of car amplifiers and offers good damping.
• SPL: 90.9 dB, a practical sensitivity figure translating to usable loudness with modest amplification.
• Fs: 89 Hz, indicating the low-frequency resonance point and informing enclosure design decisions.
• Qts: 0.91, an alignment parameter that influences how the driver interacts with enclosure volume.
• BL: 3.6, motor strength contributing to linear cone control at higher excursion.
• Vas: 12.62 L, the equivalent enclosure volume guidance useful for predicting performance in sealed or small-port designs.
• Mounting depth: 2.54" (64.5 mm), enabling installation in relatively shallow mounting spaces.
• Cut-out dimension: 5.85" (148.5 mm), the hole size required for proper fitting in standard 6.5" openings.

In a typical car audio build, HM-6E+ serves as the midrange voice in a two-way or multi-way system, delivering clear vocal articulation and detailed upper mids while matching with compatible components to achieve balanced on-axis performance and controlled dispersion.
