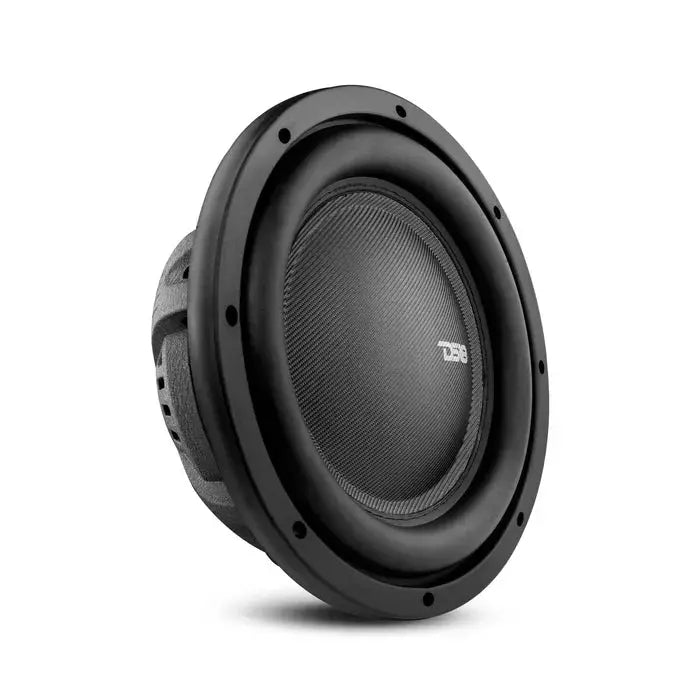

DS18 IXS12.2D IXS Shallow 12" Subwoofer 1600 Watts DVC 2-Ohm

The DS18 IXS12.2D is a shallow-mount 12" car subwoofer delivering 800W RMS / 1600W max, engineered for compact enclosures and flexible dual-voice-coil wiring to maximize amplifier compatibility and bass output.

• Nominal Diameter: 12" (304.8 mm) — standard large-diaphragm size for deep bass within a compact footprint.
• Impedance: 2+2 ohms (dual 2-Ω voice coils) — offers flexible wiring options and broader amplifier compatibility.
• Power Handling: 800W RMS / 1600W max — supports strong control and dynamic bass performance when paired with a capable amplifier.
• Sensitivity: 85 dB (1W/1m) — indicates efficient conversion of electrical power into sound pressure, aiding higher output with available amp power.
• Frequency Response: 20–600 Hz — covers deep bass and low-midrange for detailed, impactful low-end reproduction.

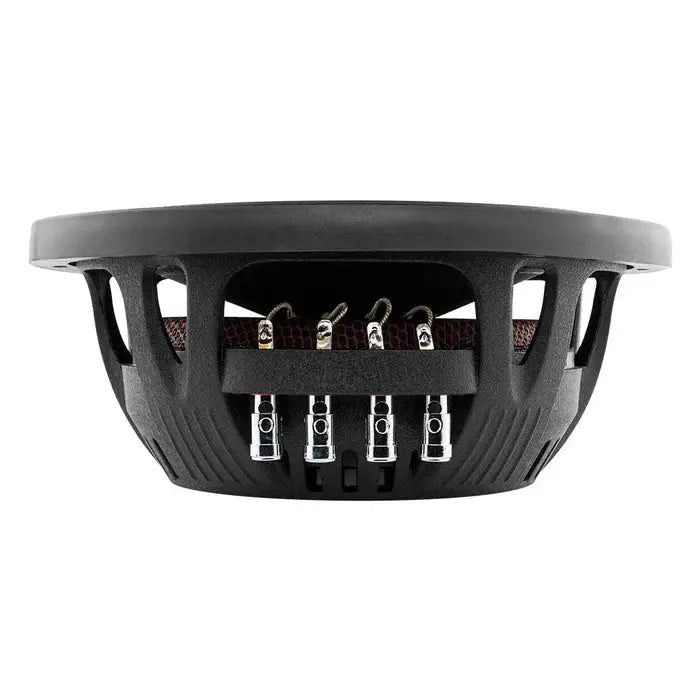

• Shallow Mount Design — fits in compact spaces and, with a displacement of 0.93 L, requires less enclosure volume than subs of similar size.

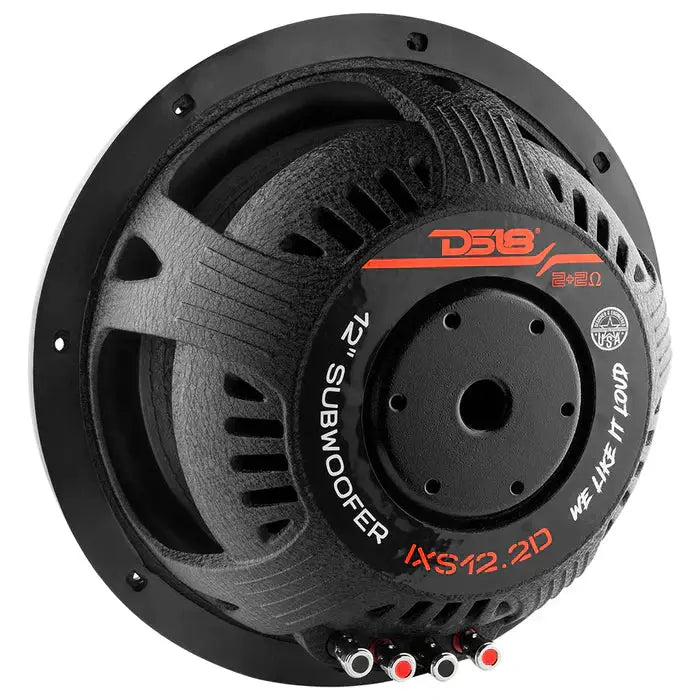

• Voice Coil & Construction: 2.5" (63.5 mm) voice coil with aluminum former and copper windings; ferrite magnet; aluminum basket; paper cone; fiberglass dust cap; stitched rubber surround — combines power handling with rigid, heat-friendly construction.
• Enclosure Recommendation: Sealed internal volume (minimum) 28 L / 1 ft³; F3 approximately 40 Hz — optimized for tight, controlled bass in sealed boxes.

In a real car audio build, the IXS12.2D excels in sealed, space-constrained installations where sound quality and bass impact matter more than enclosure size. Its dual-voice-coil arrangement provides wiring flexibility to suit a range of amplifiers, while the shallow depth enables integration under seats, behind panels, or in trunks with limited mounting depth. The combination of a 12" cone, ferrite magnet, and aluminum basket delivers sturdy, repeatable performance with clear low-end extension and reliable thermal handling at higher output levels.
