DS18 G700.2 GEN-X Full-Range Class D 2-Channel Amplifier 700 Watts

DS18 G700.2 GEN-X Full-Range Class D 2-Channel Amplifier is a compact, high-efficiency power stage designed for demanding two-channel car audio installs, delivering up to 360W bridged at 4 ohms and 2x180W at 2 ohms from a 700W peak rating.

• Amplifier Class: Digital (D) design for high efficiency and smaller footprint in tight mounting locations.
• Amplifier Type: Full Range
• Number of Channels: 2CH
• Minimum Impedance: 2 ohms, enabling stable operation with tougher speaker loads.
• RMS Power @ 4 Ω: 2 x 100W
• RMS Power @ 2 Ω: 2 x 180W
• RMS Power (Bridged @ 4 Ω): 1 x 360W
• Total Watts (Peak): 700W
• Frequency Response: 20Hz–20kHz
• Signal-to-Noise Ratio: >90dB
• Efficiency @ 4 Ω: 0.94
• Damping Factor: 78
• Input Impedance: 22K

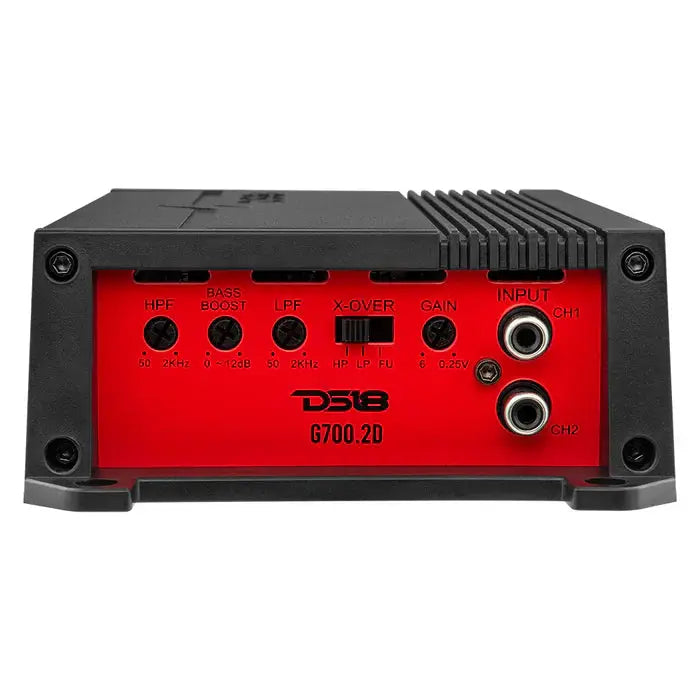

• Crossovers: Selectable LPF/FLAT/HPF
• X-Over Range: 50Hz–2kHz
• Bass Boost: 0–12dB
• Bass Boost Frequency: 45Hz
• Infrasonic Filter: No
• Phase Selector: No
• Low-Level Input: 0.25–6V
• High-Level Input Compatibility: Direct signaling to factory radios

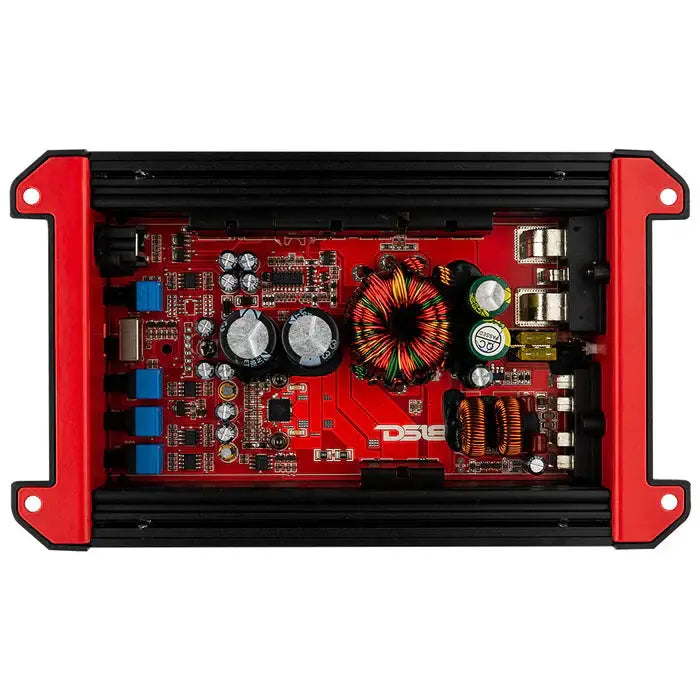

• Surface Mount Technology: Yes, enables flexible placement and build options
• LED Indicators: Power / Protection / Clip
• Power Input Terminal Size: 4ga
• Fuse Size: 2 x 20A
• Remote Level Control: No
• Cooling: No cooling fan
• Body Color / Finish: Matte black
• Dimensions: Length 8.1" (205mm); Width 4.72" (120mm); Height 1.96" (50mm); Heatsink Length 6.2" (158mm)

The G700.2 GEN-X pairs precise 2-channel power delivery with flexible crossover control, allowing you to shape the front stage or bridge for mono use while maintaining reliable protection and clear signal integrity. Its high-level input compatibility simplifies integration with factory radios, and the compact, fanless design helps preserve space in tighter installs without sacrificing performance.
