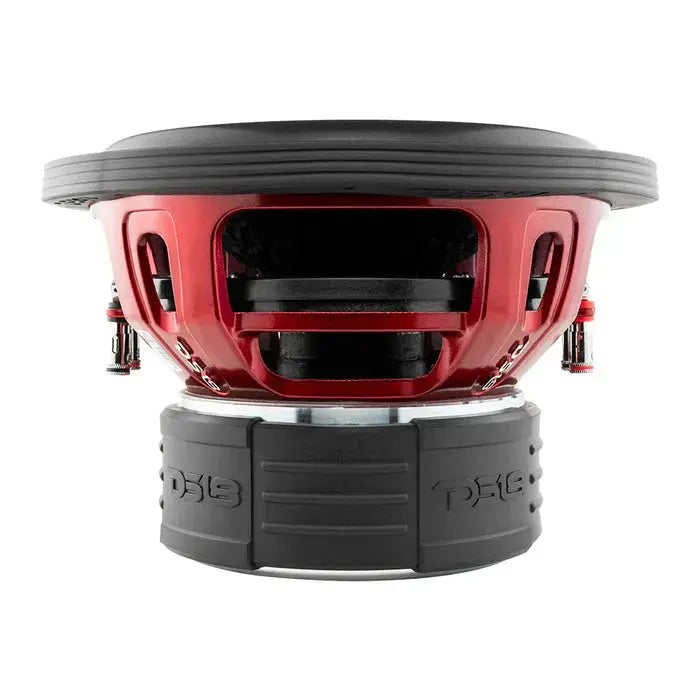

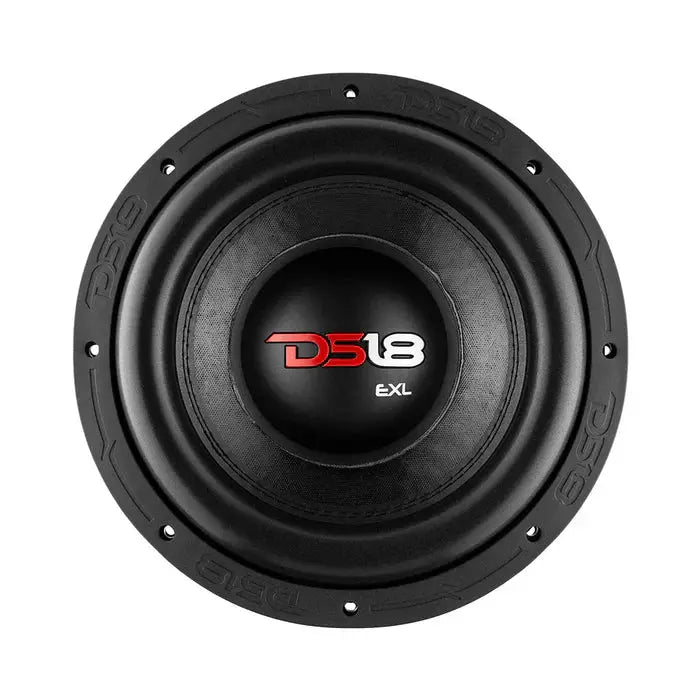

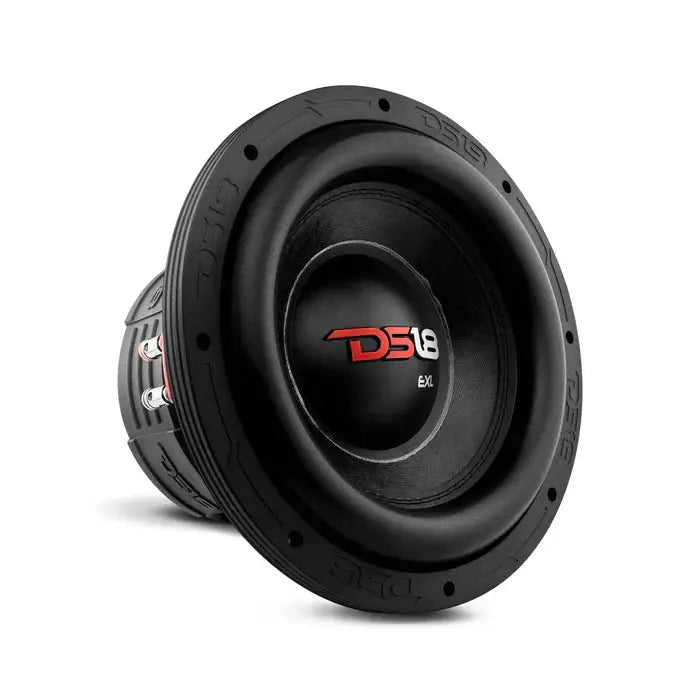

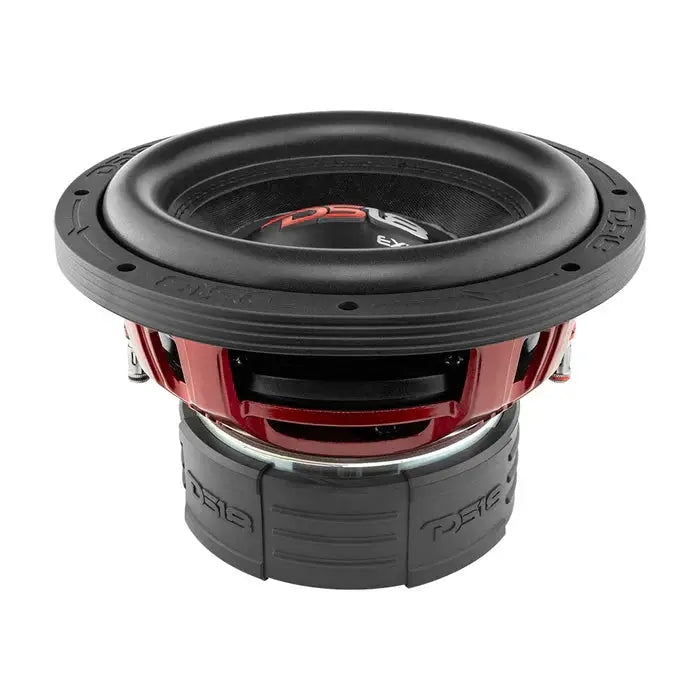

DS18 EXL-X10.4D EXL-X 10" Subwoofer 1700 Watts Dvc 4-Ohms

DS18 EXL-X10.4D is a 10" dual-voice-coil subwoofer engineered for competition-grade bass, delivering up to 1700W peak with deep, precise output down to 35 Hz.

With a ferrite magnet, glossy red aluminum basket, a non-pressed paper cone reinforced with glass fiber, and a 2.57" voice coil on a black aluminum former, it supports sealed or ported enclosures for high-excursion performance.

• Dual 4-Ohm Voice Coils (4+4 Ω): Provides wiring flexibility for different amp configurations and enclosure types, enabling versatile install options.
• RMS Power Handling: 850W continuous power rating for sustained bass control without overheating.
• Max Power Handling: 1700W peak power capacity for brief dynamic bursts and loud transients.
• Sensitivity (1W/1m): 88.7 dB, indicating efficient conversion of power to SPL and strong output with typical car amplifiers.
• Frequency Response: 35 Hz – 1.2 kHz, giving deep bass extension while maintaining usable output into the upper bass range for integration with midrange drivers.
• Voice Coil: 2.57" (65.2 mm) diameter on a black aluminum former for high excursion and heat management.
• Cone & Surround: Non-Pressed Paper + Glass Fiber cone with foam surround; dust cap material PPI for reinforced rigidity and durability.
• Basket & Magnets: Aluminum basket with glossy red finish; Ferrite magnets (two 90 oz each) delivering strong, stable magnetic flux.
• Displacement: 2.3 L, contributing to high output by moving more air in and out of the enclosure.
• Enclosure Recommendations: Sealed internal volume 9.91 L (0.35 ft³); Ported internal volume 21.23 L (0.75 ft³); Port tuning 48 Hz; Port size 1.62" x 9.52" x 19.4" (W x H x L).
• Dimensions: Overall diameter 10.9" (276 mm); Overall depth 7.48" (190 mm).

In a real car audio build, the EXL-X10.4D suits both sealed and ported designs, serving as the bass foundation for high-output systems. Its dual-voice-coil configuration and substantial magnet structure enable flexible amplifier pairing and robust excursion, while the enclosure recommendations help you tailor bass extension and transient response to your space and tuning goals.
