DS18 EXL-P1200X4 EXL Power 4-Channel Class A/B Amplifier 200 x 4 @ 4-Ohm Watts Rms Made In Korea

The DS18 EXL-P1200X4 is a four‑channel Class AB car amplifier built in Korea for enthusiasts who demand clean, high‑headroom multi‑channel power. Made in Korea with optimized Korean circuitry and premium components, it delivers 200W RMS per channel at 4Ω, with a heatsinked chassis and thermal protection for reliable, long‑term performance.

• RMS Power @ 4 Ohm: 200W x 4CH — provides solid, per‑channel power to a four‑speaker front or rear stage, delivering punch without strain.
• RMS Power @ 2 Ohm: 300W x 4CH — higher current capability if your speakers are wired for 2Ω, increasing available headroom.
• Power (4 Ohm) Bridge: 600W x 2CH — two channels can be bridged to drive a sub or high‑current load with a single 4Ω path.
• Frequency Response: 20Hz–20kHz — covers the full audible spectrum for crisp highs and solid bass extension.
• Signal/Noise Ratio: >98dB — low noise floor yields cleaner audio with minimal hiss.
• Efficiency @ 4 Ohm: >63% — efficient power conversion helps reduce heat in normal operation.
• Damping Factor: 160 — improved control of speaker cone movement for tighter bass and better transient response.
• THD: <0.10% — low distortion at rated levels preserves fidelity across the music range.
• Low Level Input Range: 200mV–6V — compatible with a wide range of head units and pre‑amp outputs.

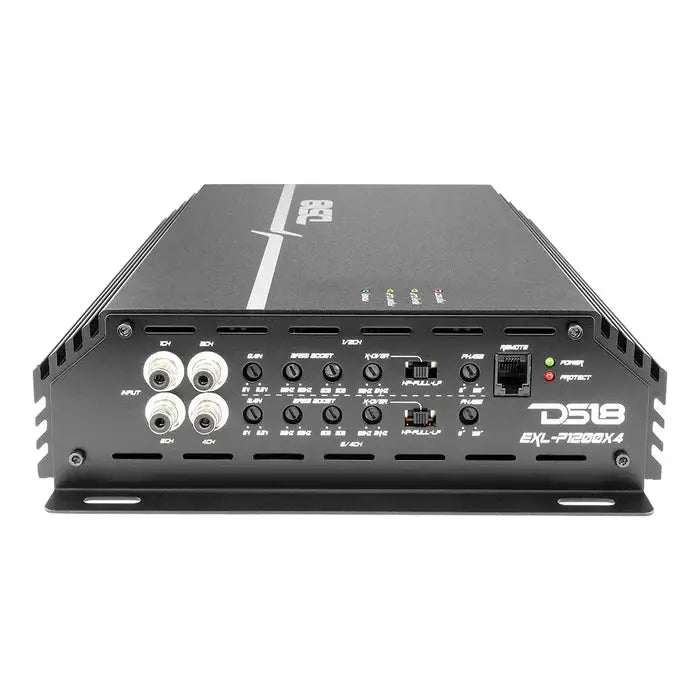

• X‑Over: Selectable HPF/FULL/LPF, 50Hz–2kHz — flexible crossovers to tailor each channel’s bandwidth and protect drivers.
• Bass Boost: 0–/+9dB at 30Hz–60Hz — optional bass lift to deepen low end without altering midrange clarity.
• Infrasonic Filter: No — external subsonic management may be used if needed.
• Phase Selector: 0–180° — helps optimize subwoofer integration and overall stage image.
• Class: AB (Analog) — traditional, linear amplification with low‑noise performance.
• Channels: 4 — suitable for a complete four‑speaker front/rear setup, with bridging options for subs.
• Minimum Impedance: 2 Ohm/CH (4 Ohm Bridge) — supports lower impedance loads for higher output per channel when required.
• LED Indicators: PWR / CLIP / PROTECT — quick status checks during install and tuning.
• Power Input: 4 AWG; Fuse 160A — requires solid wiring and an appropriately sized fuse for safe operation.

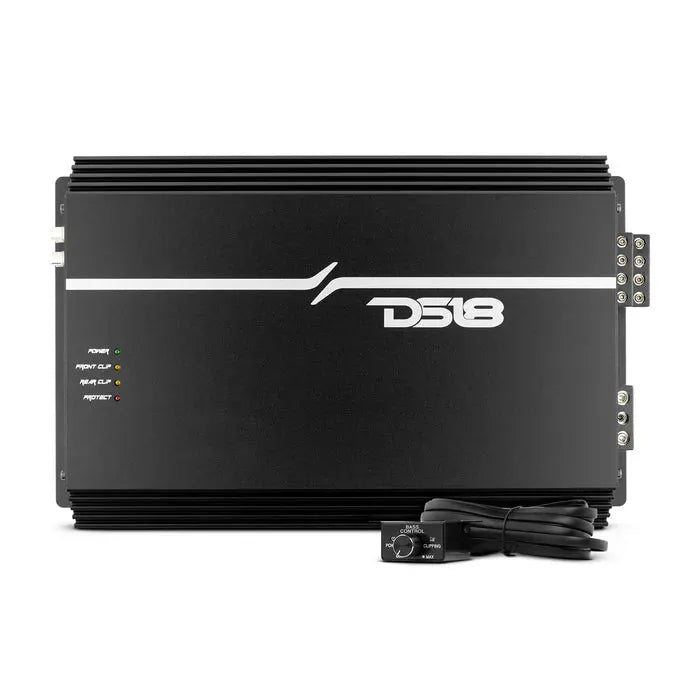

• Remote Level Control: Yes — Dash‑mount control for convenient level adjustment on the fly.
• Cooling: Cooling Fan Yes; Thermal Protection Yes (>97°C) — active cooling and high‑temperature protection for reliability under load.
• Protection: Over‑Load and DC Output Protection — safeguards both amp and speakers from faults.
• Finish: Black Aluminum — rigid, heat‑dissipating enclosure with a restrained, professional look.
• Dimensions: 14.25" L × 8.77" W × 2.67" H — compact form factor designed for versatile trunk or under‑seat mounting.

In a real‑world build, the EXL‑P1200X4 excels as a versatile four‑channel front/rear amplifier with bridge‑able output for subs, precise tone shaping via adjustable crossovers, and dependable protection for long sessions. The included remote dash control and bass management tools let you dial in your preferred sound without sacrificing reliability or thermal stability, making it a strong choice for a clean, powerful daily driver or enthusiast install.
