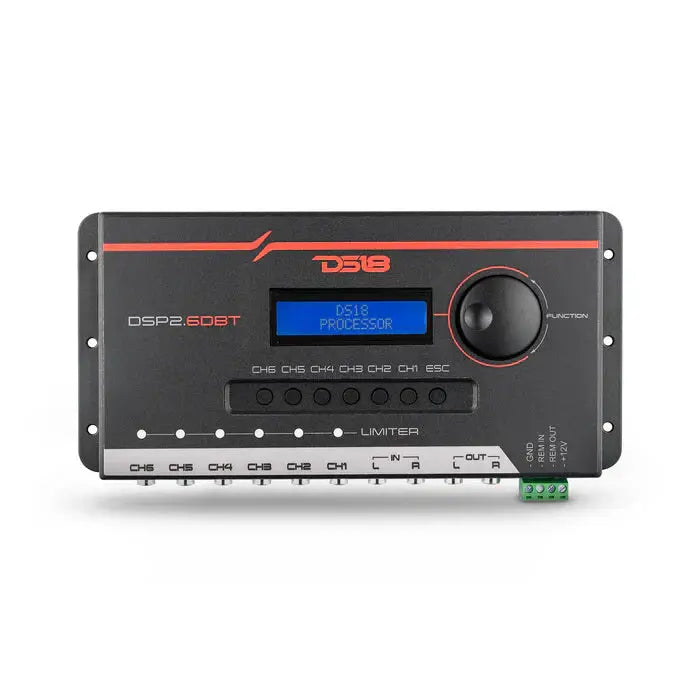

DS18 DSP2.6DBT 2-Channel In and 6-Channel Out Digital Sound Processor with Bluetooth and LCD Screen

DS18 DSP2.6DBT is a 2-channel in and 6-channel out digital sound processor with Bluetooth and LCD screen, built for enthusiasts who demand precise control over their car audio imaging and tonal balance.

• 2-channel input / 6-channel output: Unbalanced RCA signals enter the DSP up to 6 V RMS with a 47 kΩ input impedance, then get mapped to six processing/output channels for flexible amp and speaker routing.
• Bluetooth interface and mobile app: Bluetooth access lets you control filtration settings directly, while the DS18 DSP2.6DBT App (iOS and Android) lets you tune, monitor, and save presets for songs or genres.
• LCD screen: On-device LCD provides at-a-glance status and navigation during setup and adjustments, reducing guesswork in deep-tuning sessions.
• Precision Parametric Equalizer: 3 independent bands per channel (6 total) let you surgically sculpt frequency response for each channel, addressing peaking, notch, and shelf shapes with precision.
• Dynamic Crossover Filters: Choose Butterworth, Linkwitz-Riley, or Bessel filter types to tailor crossover slopes and phase characteristics between drivers for cleaner separation.
• High-resolution processing: 24-bit resolution at 48 kHz sample rate preserves detail and dynamic range through complex EQ and crossovers.
• Low latency and signal quality: 1.08 ms latency helps keep channels in time with each other; THD+N max 0.01% and SNR 100 dB indicate minimal distortion and strong noise performance.
• Power, dimensions, and wiring: Powers from 10–15 V DC (5 W typical), fused at 2 A; dimensions 1.18" x 9.84" x 4.72" (30 x 250 x 120 mm); weight 382 g.

In a premium install, the DSP2.6DBT serves as the central tuning hub for a 2-in/6-out setup, delivering targeted EQ, precise crossovers, and app-driven presets to unlock your system’s true potential with clarity and consistency.
