DS18 DBPX200.MX Digital Bass Processor With Hi to Low Signal Converter & Speaker Emulator – Mexico Design SKU: DBPX200.MX

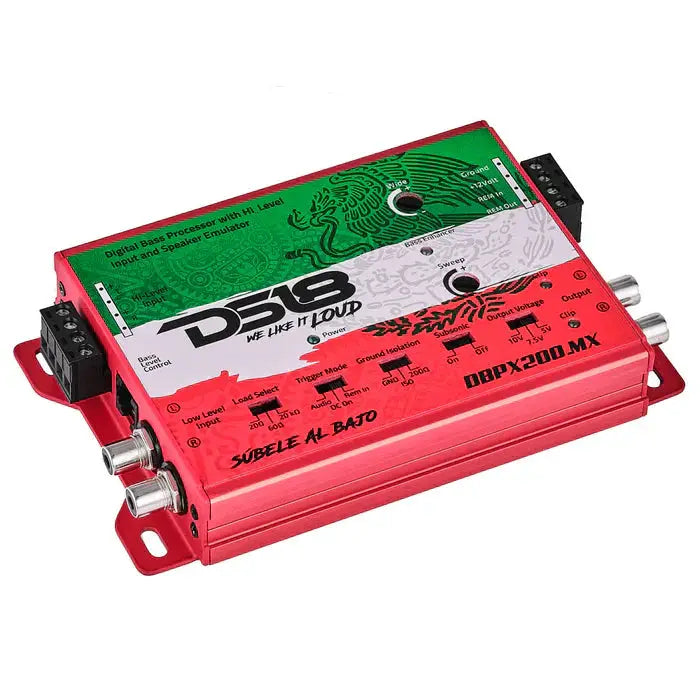

The DS18 DBPX200.MX Digital Bass Processor is a compact, Mexico-design bass processor that provides Hi-to-Low signal conversion and a speaker emulator for precise bass shaping in tight vehicle installs. It combines a rugged aluminum housing, anti-corrosion coated PCB, and a dual-knob dash remote for on-the-fly tuning, all with a backdrop of the Mexican flag to show pride while you tune.

• Operating Voltage: 9–16V designed for typical automotive electrical systems, ensuring stable operation across the car’s power range.
• Power Consumption: 0.18A, indicating low idle draw to minimize drain when the system is parked or idle.
• Recommended Fuse Rating: 1A, providing appropriate protection for the unit within a standard car audio setup.
• Power Input Terminal Size: 16ga, supporting common wiring practices for reliability and ease of installation.
• LED Indicator: Power / Bass Enhancer / Clipping, giving clear, at-a-glance status for power, bass Boost activity, and potential signal clipping.
• Hi-Level Speaker Input: 2 Channels, enabling OEM integration without requiring separate line-level outputs.
• Auto Turn-on Function: Yes (Audio/DC), allowing the processor to power up automatically from audio or DC signal presence.
• Remote Turn-on: Input / Output, enabling seamless control from the head unit or integration point.
• Remote Level Control: Yes (Bass Enhancer/Level), giving hands-on bass and level adjustment from the dash remote.
• RCA Connector Type: Tiffany (Silver), providing high-quality, low-noise signal connections.
• Housing Material: Aluminum, offering a rigid chassis for durability and heat dispersion in a small form factor.
• Body Color / Finish: Red / Green / White (Mexico Theme), enhancing visual appeal in themed builds.
• Frequency Response: 10Hz–20kHz, covering the full audible spectrum for accurate bass and overall signal integrity.
• S/N Ratio: 95dB, contributing to low noise in the signal path.
• THD: 0.05%, indicating low distortion at typical operating levels.
• Input Sensitivity (Low-Level): <8.8V, and Input Sensitivity (Hi-Level): >15V, describing the signal levels the unit is designed to accept.
• Input Impedance: 20Kohms, matching typical preamp outputs for stable, noise-resistant operation.
• Output Voltage Selectable: 5V / 7.5V / 10V, allowing tailoring of output swing to your amp and speakers.
• Output Impedance: 110ohms, defining a stable drive to downstream components.
• Balanced Input Noise Rejection: >45dB, helping preserve signal integrity in noisy vehicle environments.
• Stereo Separation: >50dB, contributing to a clearer stereo image when used with multi-channel systems.
• Subwoofer LPF Frequency Cut-off: No (Full Range Signal), meaning the processor can pass full-range bass signals without a fixed subsonic limit.
• Subwoofer Infrasonic Frequency Cut-off: Selectable (Off/50Hz), enabling a controllable low-frequency roll-off to protect speakers and manage bass energy.
• Gain: 0–8.8V, providing a wide adjustment range for Bass and output level control.
• Center Frequency (Sweep): 75Hz–120Hz, allowing precise tuning of bass emphasis in the desired range.
• Q Factor (Wide): 1–4, enabling broad or narrower bass boost shaping depending on the install.
• Compact Size: Yes, designed for easy installation in a variety of vehicles and mounting locations.
• Surface Mount Component Technology: Yes, reflecting modern, compact assembly for reliability and performance.
• Quality Control Verification: Verified using Audio Precision Instruments, supporting consistent audio measurements and performance.
• Remote Level Control with Clip Indicator: Yes, providing visual feedback while adjusting levels to avoid distortion.
• Overall Dimensions: Length 6" / 153mm; Width 3.7" / 95mm; Height 1.1" / 28mm, indicating a compact footprint suitable for tight installs.
• Ground Isolation Switch: Yes
• Extra Features: Hi-Level to Low-Level Signal Converter and Speaker Emulator for flexible integration and enhanced bass shaping.

The DBPX200.MX is designed to integrate with OEM or aftermarket systems via hi-level inputs, while delivering adjustable bass processing, selectable output levels, and a compact, durable chassis. It suits builds where precise bass control is required without sacrificing launch volume or clarity, and it adds convenient remote control for on-the-fly tuning in a Mexico-themed aesthetic.
